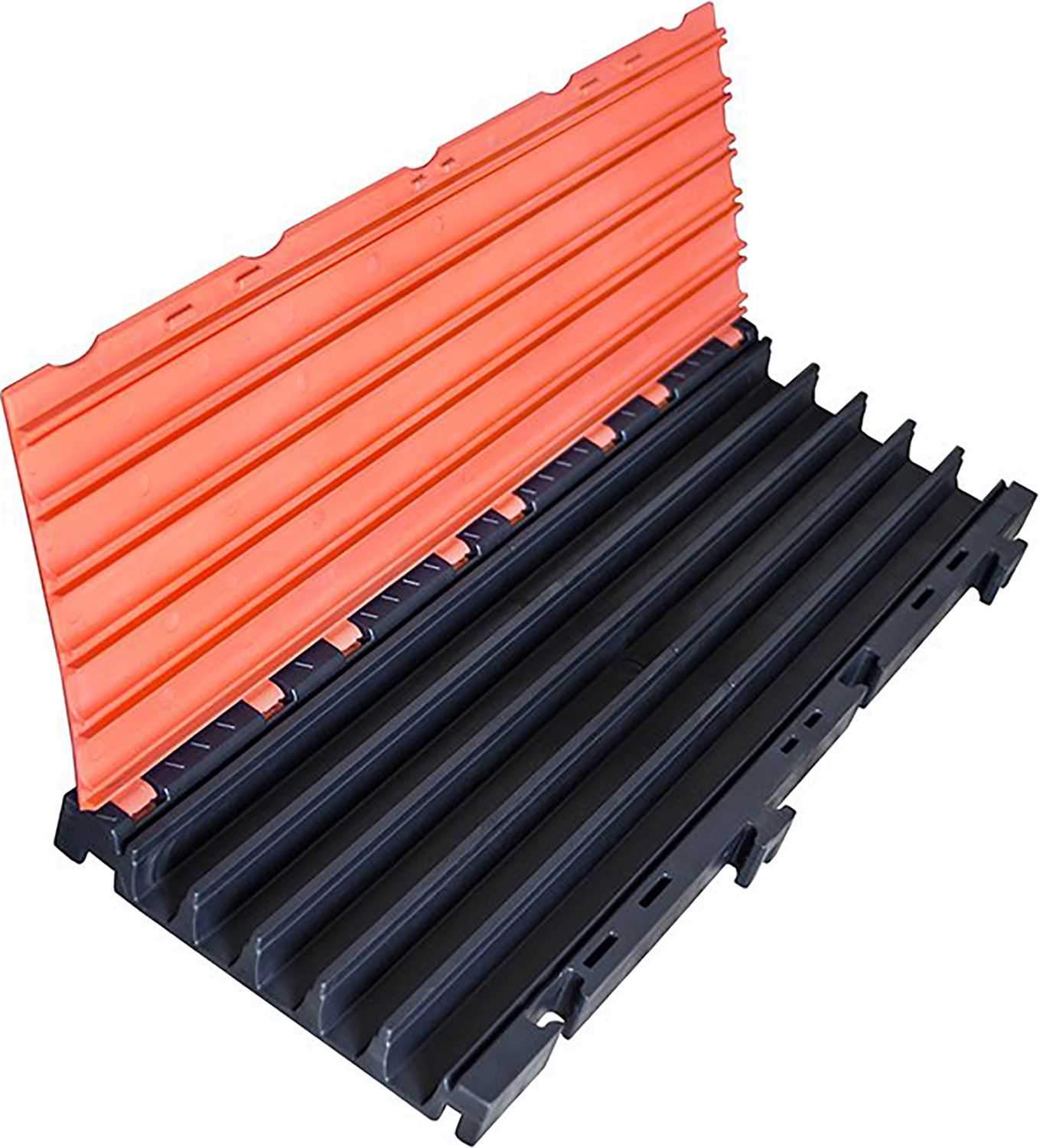

Penn Elcom Cross 5 Half Base - Orange Lid 500mm

Cross 5 is more than just a crossover.Forged from high quality thermoplastic polyurethane (TPU), Cross 5 is a five channel crossover system that gives you unrivalled strength, abrasion resistance and flexibility, with New fire retardant technology.

Its ingenious design enables a wide variety of crossover combinations, whatever your cable management needs. The two elements that enable this system are the base section and the ramp section.

Half Base Section: The base sections acts as a connector piece, from which many combinations of cross over systems can be created.

Half Ramp Section: The ramp section has a 15° angle of inclination, the optimal angle for vehicles to drive over.

Features:

• Highly tear-proof and high form stability.
• Indented channel ridges to prevent the lid bowing under pressure.
• Resistant to most oils, fats and chemicals.
• Fire retardant (DIN EN 13501-1).
• Can withstand 5 tonnes of direct pressure.
• Coloured lids can be changed.
• Fixed lid in drive over position.
• Quick and easy assembly.
• Max Performance: anti-sliding pads available for hexagonal base.

Specifications:

Dimensions

Half Base Section

• Length: 500mm/ 19.5"
• Width: 370mm / 14.57"
• Width of x2 base pieces side by side: 800mm / 31.5"
• Height: 58mm / 2.28"
• Weight: 12kg/26.46lb
• Cable channels: width 40mm / 1.57", height 44mm / 1.73"

Half Ramp Section

• Length: 500mm/ 19.5"
• Width: 230mm / 9.06"
• Height: 50mm / 1.97"
• Weight: 5kg/11.02lb
• Incline angle: 15°

Wheelchair Section

• Length: 500mm/ 19.5"
• Width: 1.2m / 47"
• Height: 62mm / 2.44"
• Incline angle: 3.4° / 6%
