Panasonic PT-RZ790 Compact and Flexible 1-Chip DLP™ Projector
The Panasonic PT-RZ790 projector delivers the brightness, resolution, and color designers need to enhance exhibits with bright, bold, and vivid pictures. The SOLID SHINE Laser and Quartet Color Harmonizer enhance color depth and white balance accuracy for arrestingly realistic pictures even in well-lit spaces. The PT-RZ790 is engineered for 20,000 hours of maintenance-free reliability with lasting brightness and color uniformity from the industry's leading dust-resistant optical engine.
- SOLID SHINE laser reliability
- 4K signal input via HDMI and DIGITAL LINK
- WUXGA (1920 x 1200) resolution
- Excellent uniformity for multi-screen projection
- Daylight View 3 technology stops the picture from washing out in bright light
- Easy to install and integrate
- 7,200 Center lumens
- 7,000 ISO lumens
Image Display
| Display System |
0.67" DLP
|
| Native Resolution |
1920 x 1200
|
| Maximum Brightness |
7000 Lumens (ISO)
7200 Lumens (Center)
|
| Uniformity |
90%
|
| Aspect Ratio |
Native: 16:10
|
| Dynamic Contrast Ratio |
10,000:1
|
Lens
| Includes Lens |
Yes
|
| Focus |
Manual Powered
|
| Aperture |
f/1.7 to 1.9
|
| Focal Length |
25.6 to 35.7mm
|
| Lens Shift |
Horizontal: -10 to 30%
Vertical: -16 to 50%
|
| Optical Zoom |
Powered:
|
| Throw Ratio |
1.71 to 2.41:1
|
Features
| Keystone Correction |
Horizontal: ± 40°
Vertical: ± 45°
|
| HDR Support |
No
|
| Multi-Input Support (PIP/PBP) |
No
|
| Ceiling Mountable |
Yes
|

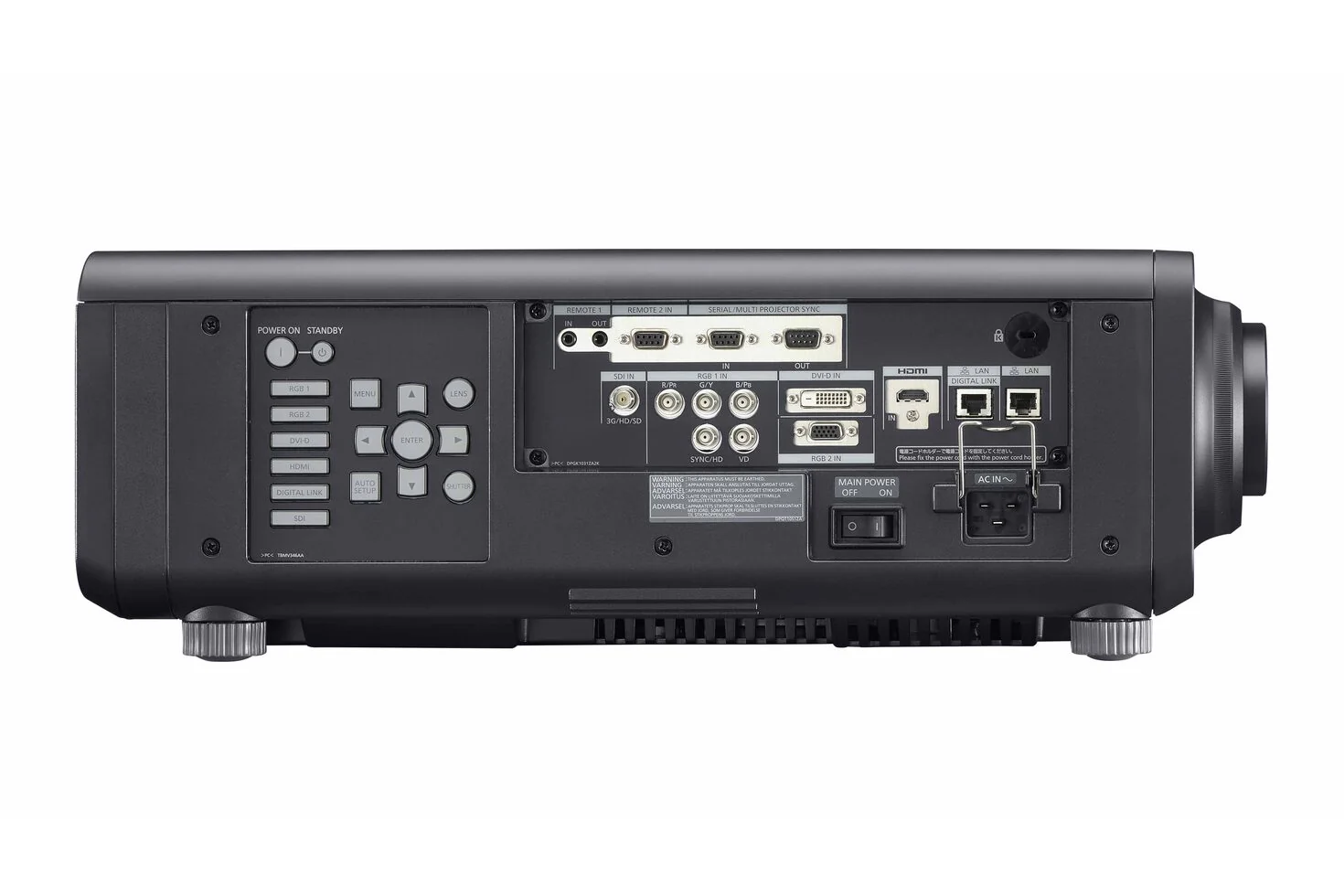

Input/Output Connectors
| Inputs/Outputs |
1x RJ45 (HDBaseT) Audio, Control, Data, Power, Video
1x HDMI Audio, Video Input
1x DVI-D Video Input
1x BNC (3G-SDI) Video Input
1x 5BNC (Component) Video Input
1x DE-15/DB-15 (VGA) Video Input
1x RJ45 (Ethernet) LAN
1x 1/8" / 3.5 mm Mini Remote Input
1x 1/8" / 3.5 mm Mini Remote Output
1x DE-9/DB-9 Remote Input
1x DE-9/DB-9 (RS-232) Control Input
1x DE-9/DB-9 (RS-232) Control Output
|
| HDCP Support |
Yes: Version 2.2
|
Hardware
| Mobile App Compatible |
Yes: Android & iOS
|
| Bluetooth |
No
|
General
| Light Source |
Laser Phosphor
|
| Expected Lamp Life |
Full Brightness: 20,000 Hours
Low Brightness: 24,000 Hours
|
| Fan Noise |
Medium Brightness: 36 dB
|
| Security |
Cable Lock Slot
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
Full Brightness: 545 W
Medium Brightness: 435 W
Low Brightness: 170 W
|
| Operating Conditions |
32 to 113°F / 0 to 45°C at 10 to 80% Humidity
|
| Dimensions (W x H x D) |
19.6 x 7.9 x 22.9" / 498.0 x 200.0 x 581.0 mm
|
| Weight |
48.7 lb / 22.1 kg
|
Packaging Info
| Package Weight |
63 lb
|
| Box Dimensions (LxWxH) |
29.5 x 25.5 x 14.25"
|
