On-Stage DB1100 Active DI w Stereo-Mono Summing
On-Stage DB1100 Active DI w Stereo-Mono Summing

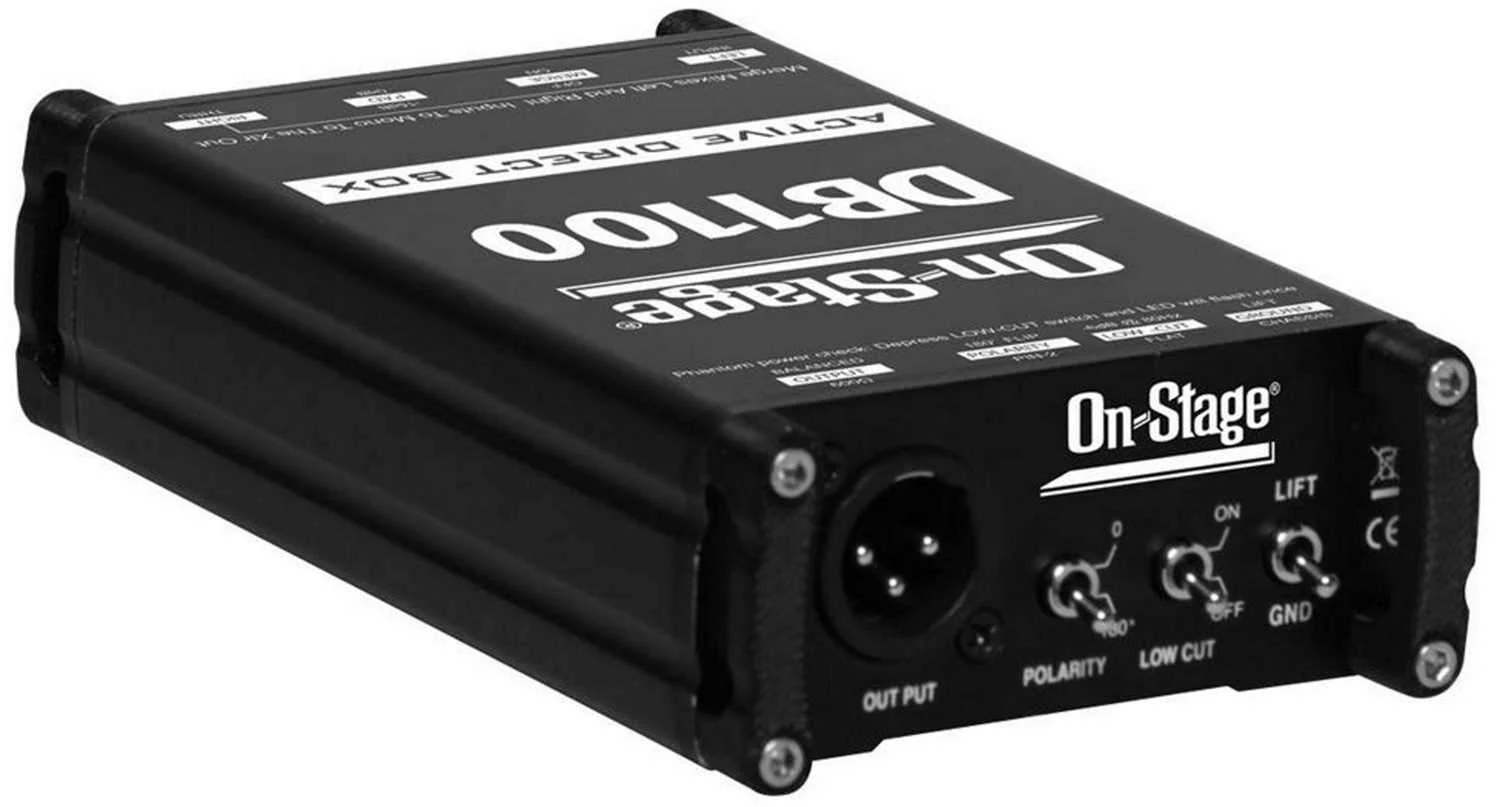

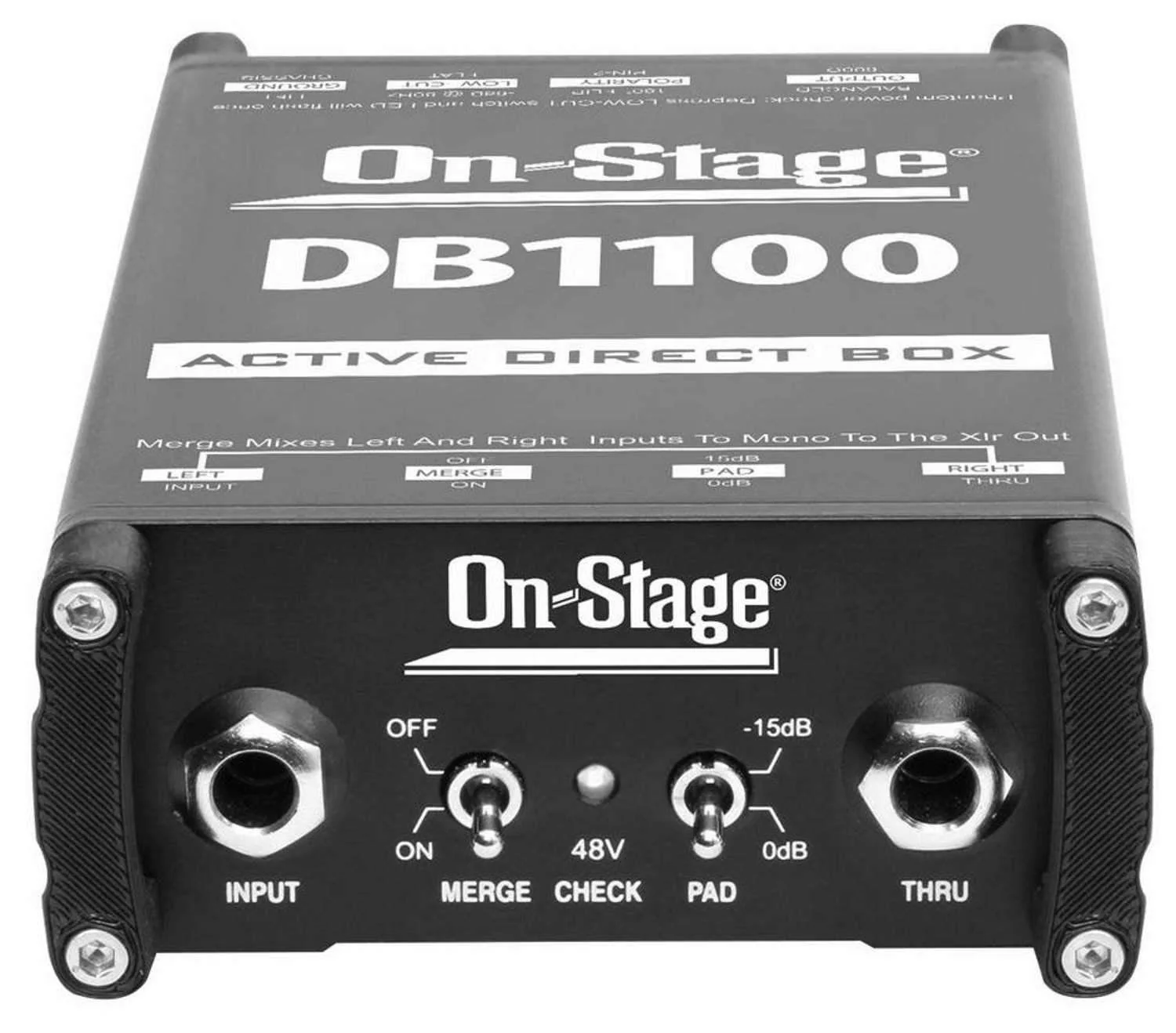

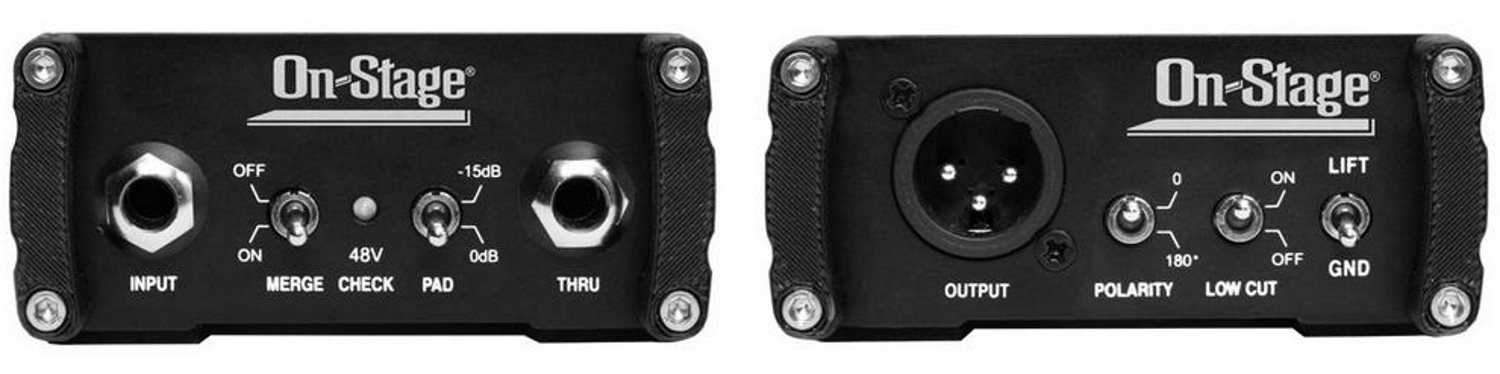

The DB1100 Active Direct Box transforms any high-impedance source into a low-impedance (XLR) signal ready to be sent long distances to a mixing board or recording console. Its active design features isolated inputs, a 15dB pad switch, ground lift switch, low cut switch, and polarity switch. The DB1100 also features a Merge function, allowing a left/right stereo signal to be input through the In and Thru jacks, thus outputting a summed mono signal. Great for any device or instrument, especially keyboards.
Features- Phantom Powered – No batteries or adapters needed
- Merge switch (Stereo-to-Mono Summing)
- Ground lift switch
- 15dB pad switch
- Ground lift switch
- Polarity switch
- Low cut switch
- Rugged metal construction
- Input Resistance: 220K Ohms
- Dimensions (in): 6 x 3 1/2 x 1 1/2
Original: $112.95
-70%$112.95
$33.88Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
On-Stage DB1100 Active DI w Stereo-Mono Summing
The DB1100 Active Direct Box transforms any high-impedance source into a low-impedance (XLR) signal ready to be sent long distances to a mixing board or recording console. Its active design features isolated inputs, a 15dB pad switch, ground lift switch, low cut switch, and polarity switch. The DB1100 also features a Merge function, allowing a left/right stereo signal to be input through the In and Thru jacks, thus outputting a summed mono signal. Great for any device or instrument, especially keyboards.
Features- Phantom Powered – No batteries or adapters needed
- Merge switch (Stereo-to-Mono Summing)
- Ground lift switch
- 15dB pad switch
- Ground lift switch
- Polarity switch
- Low cut switch
- Rugged metal construction
- Input Resistance: 220K Ohms
- Dimensions (in): 6 x 3 1/2 x 1 1/2
