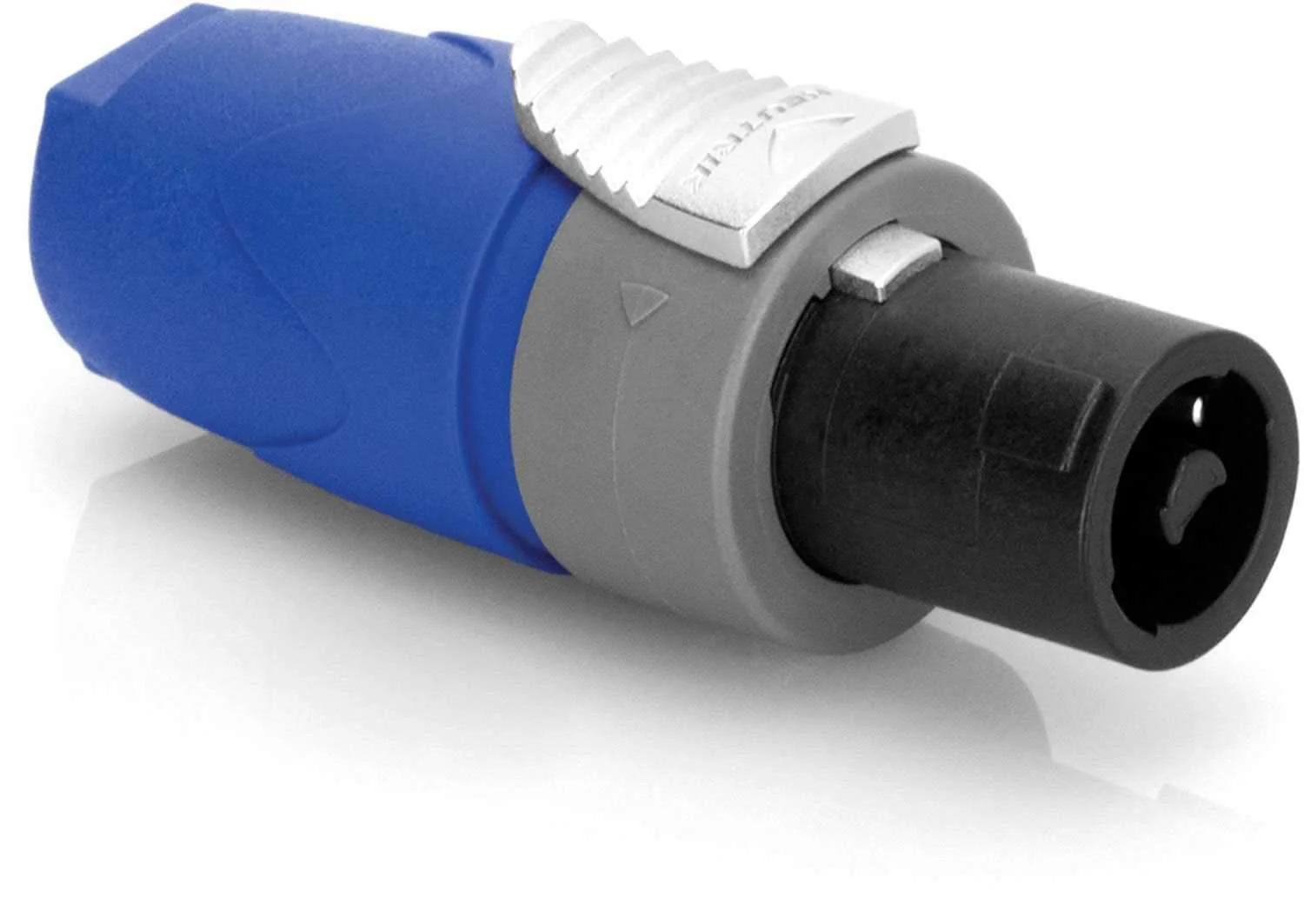

Neutrik Speakon NL2F 2-Pole Cable Connector

2-pole cable connector, chuck type strain relief

The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.

• Current rating 40 A continuous, 50 A audio signal with 50% duty cycle

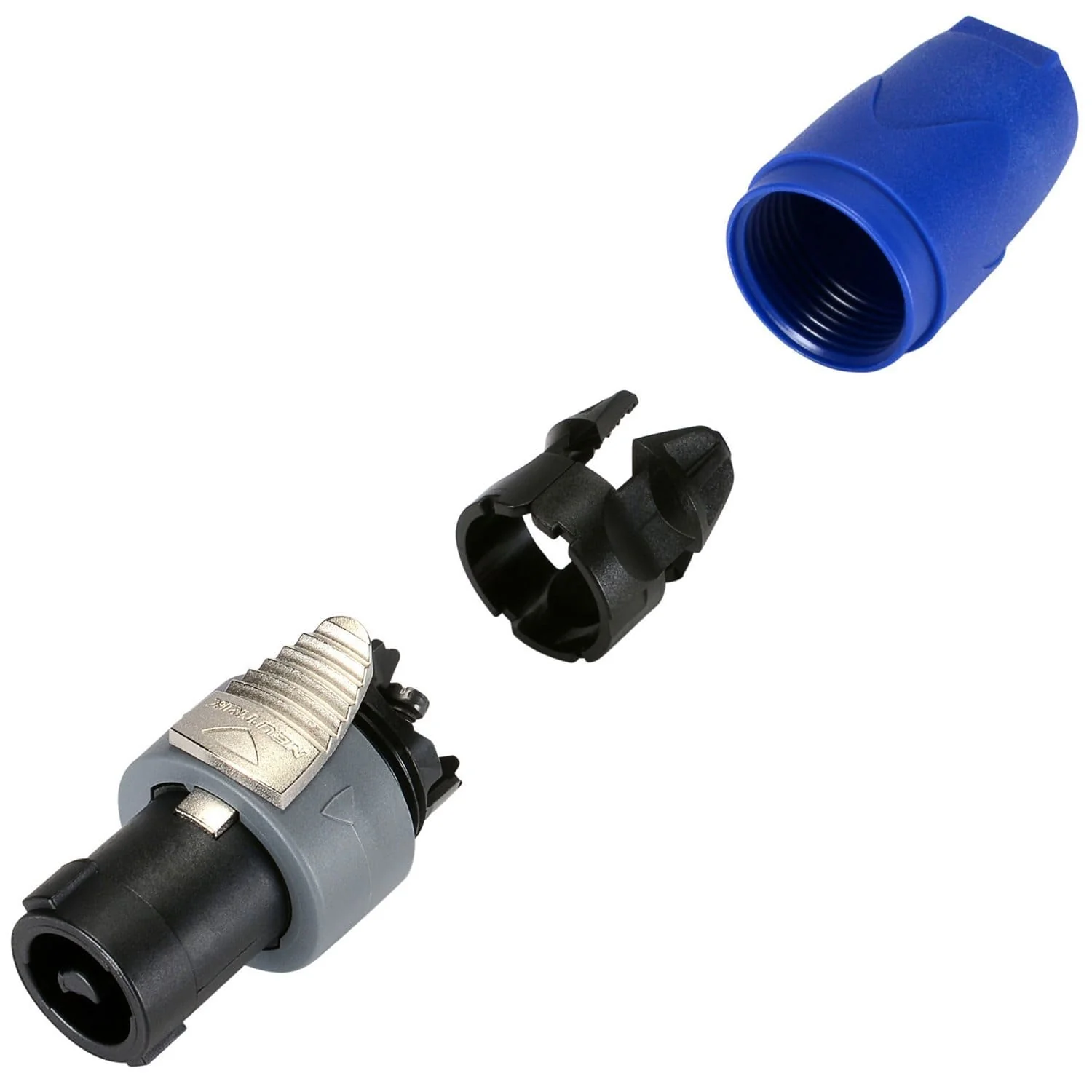

• Only 3 parts, easy to assemble
• High impact materials – long-lasting and reliable
• Easy and extremely precise locking system "Quick Lock"
• 1 piece strain relief, chuck for 6 to 10 mm cable O.D.
• Improved grip on latch
• Mates with 4-pole chassis connector as well and makes contact with +1/-1

• Connection Type: speakON
• Gender: female

• Contact resistance: <2 megaOhm (inner) (after lifetime)
• Dielectric strength: 4 kVdc (peak)
• Insulation resistance: >1 GigaOhm (after dampheat)
• Rated current per contact: 40A rms continuous
• Rated current per contact: 50A audiosignal, duty cycle 50%
• Rated voltage: 250V (Insulation)
• Attention: speakON is not to be used as an AC mains or power supply connector!

• Cable O.D.: 6 - 10 mm
• Cable retention: = 220N (subject to cable O.D. and material)
• Lifetime: >5000 mating cycles
• Wiresize: 1.5 - 4 mm squared
• Wiresize: 16 - 12 AWG
• Wiring: screw type terminals or soldering
• Locking device: Quick Lock (latch)

• Contact plating: 4 µm Ag
• Contacts: Brass (CuZn39Pb3)
• Insert: PBTP 20% GR
• Locking element: Zinc diecast (ZnAl4Cu1)
• Shell: PBTP 20% GR
• Strain relief: Polyacetal (POM)

• Flammability: UL 94 HB
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30°C to +80°C
