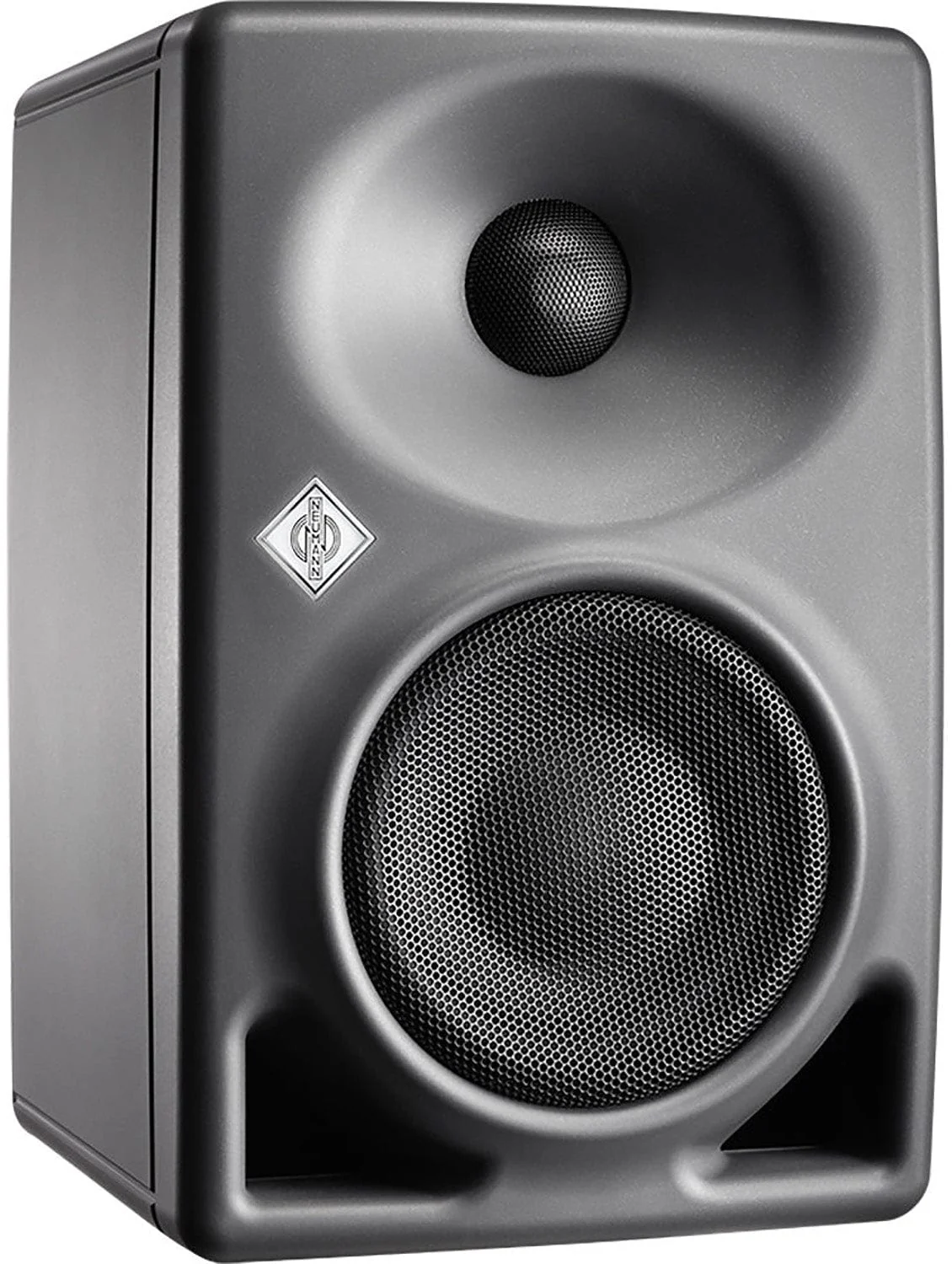

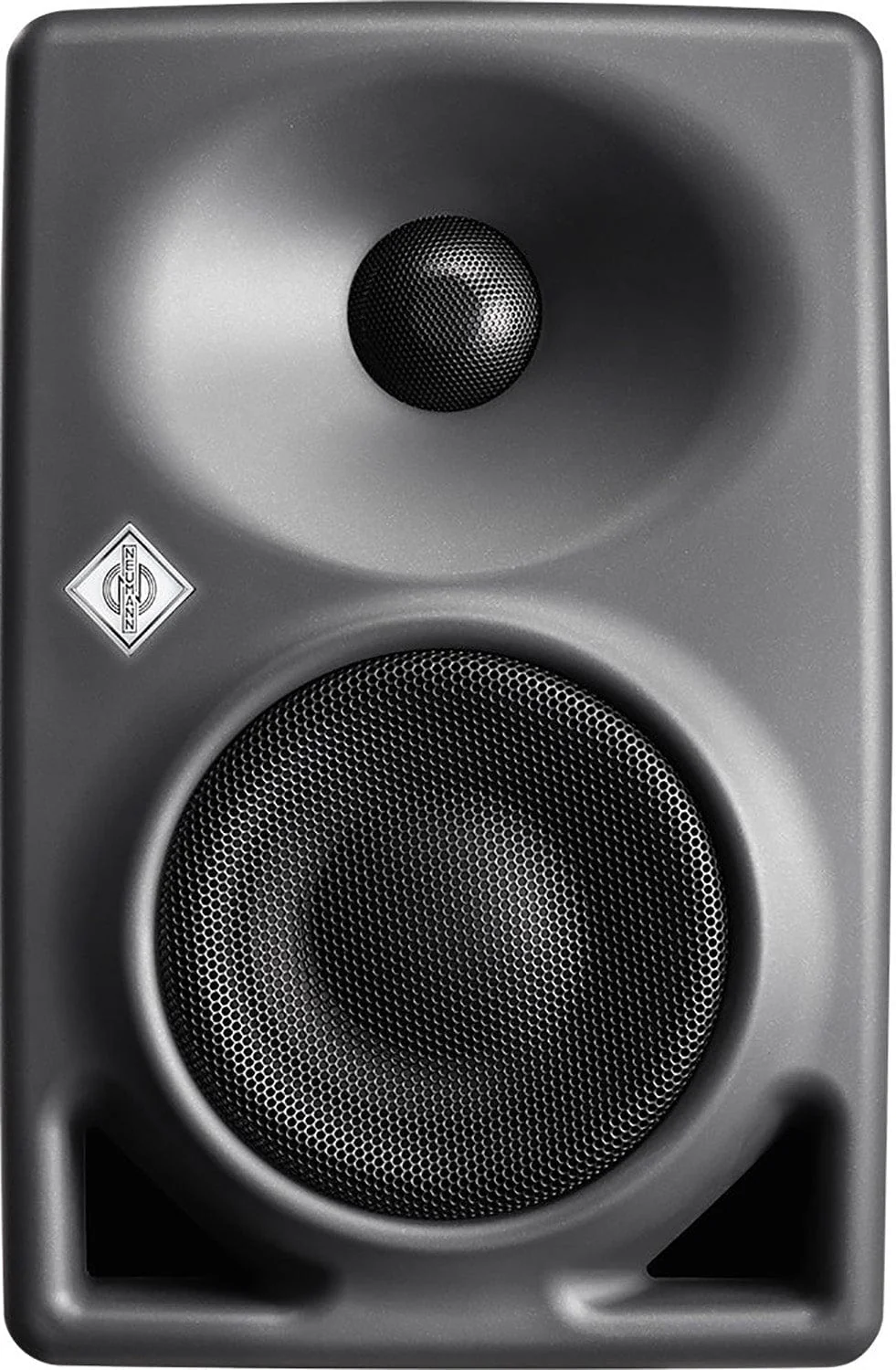

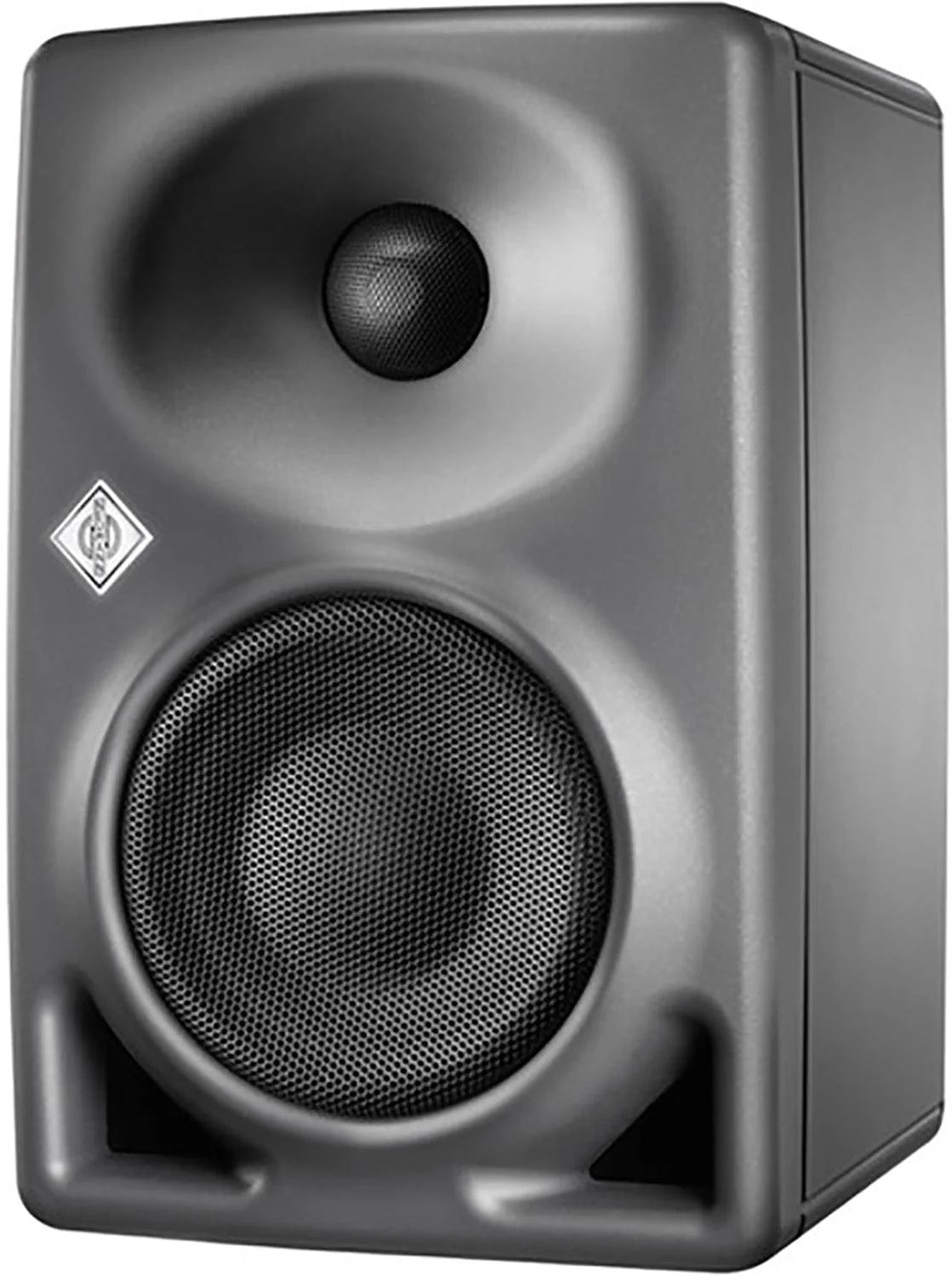

Neumann KH 80 DSP A G EU Two Way Nearfield Monitor

With its digital core, the KH 80 DSP enables filtering functions and room adjustment options, which brings reference level reproduction to any environment. Even with its compact design, it has extraordinary reserve capacity - as well as the classic strengths of the Neumann monitor philosophy: clearly defined dispersion angle, distortion-free design and sophisticated material selection.

Features:

• 4" Woofer
• 1" Tweeter
• Bi-Amped: LF 120W, HF 70W
• MMD Waveguide
• DSP Engine
• Standard IP Network Input
• Bass Extension: 57 Hz (-3 dB)
• Neumann.Control App
• Mac, Windows, iOS, Android Compatible

Specifications:

• Enclosure: Bass-Reflex/Ported, Shielded
• Total Power Output: 190 W

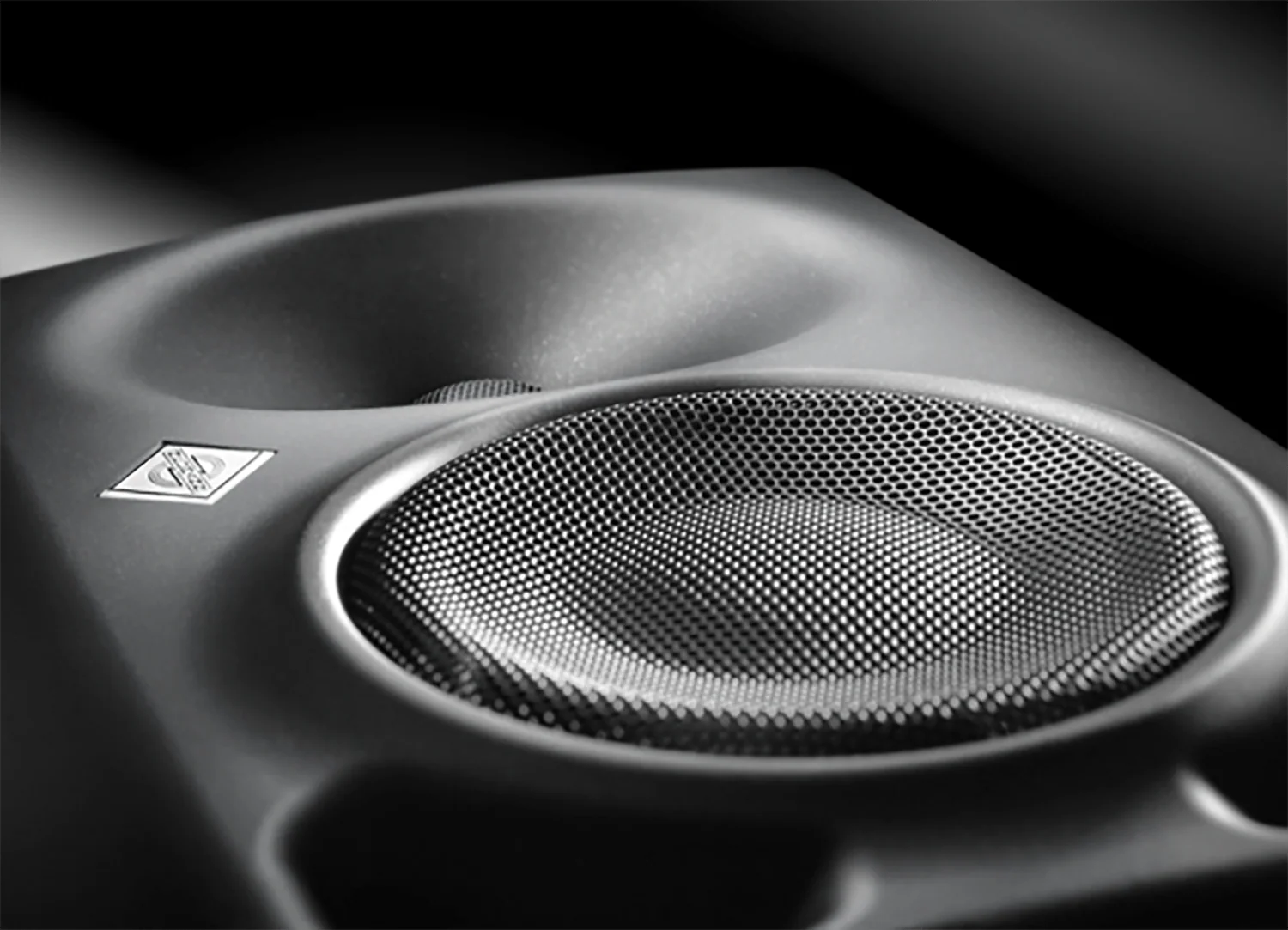

• Drivers:
  • Tweeter: 1x 1" / 25.4 mm Dome
  • Woofer: 1x 4" / 10.16 cm Composite Cone
  • Amplifiers:
  • LF: 90 W / 120 W Peak
  • HF: 50 W / 70 W Peak
• Performance:
  • Frequency Range:
    • 53 Hz to 21 kHz ± 6 dB
    • 57 Hz to 21 kHz ± 3 dB
  • Maximum Sound Pressure Level (SPL): 108.8 dB
  • Dynamic Range: 114 dBA
  • Maximum Input Level: +24 dBu (Balanced)
  • Analog Input Sensitivity/Gain: 0 dB to -15 dB (Incrementally Variable)
  • Protections and Limiting: Excursion Limiter, Peak Limiter, Soft Limiter, Thermal Limiting

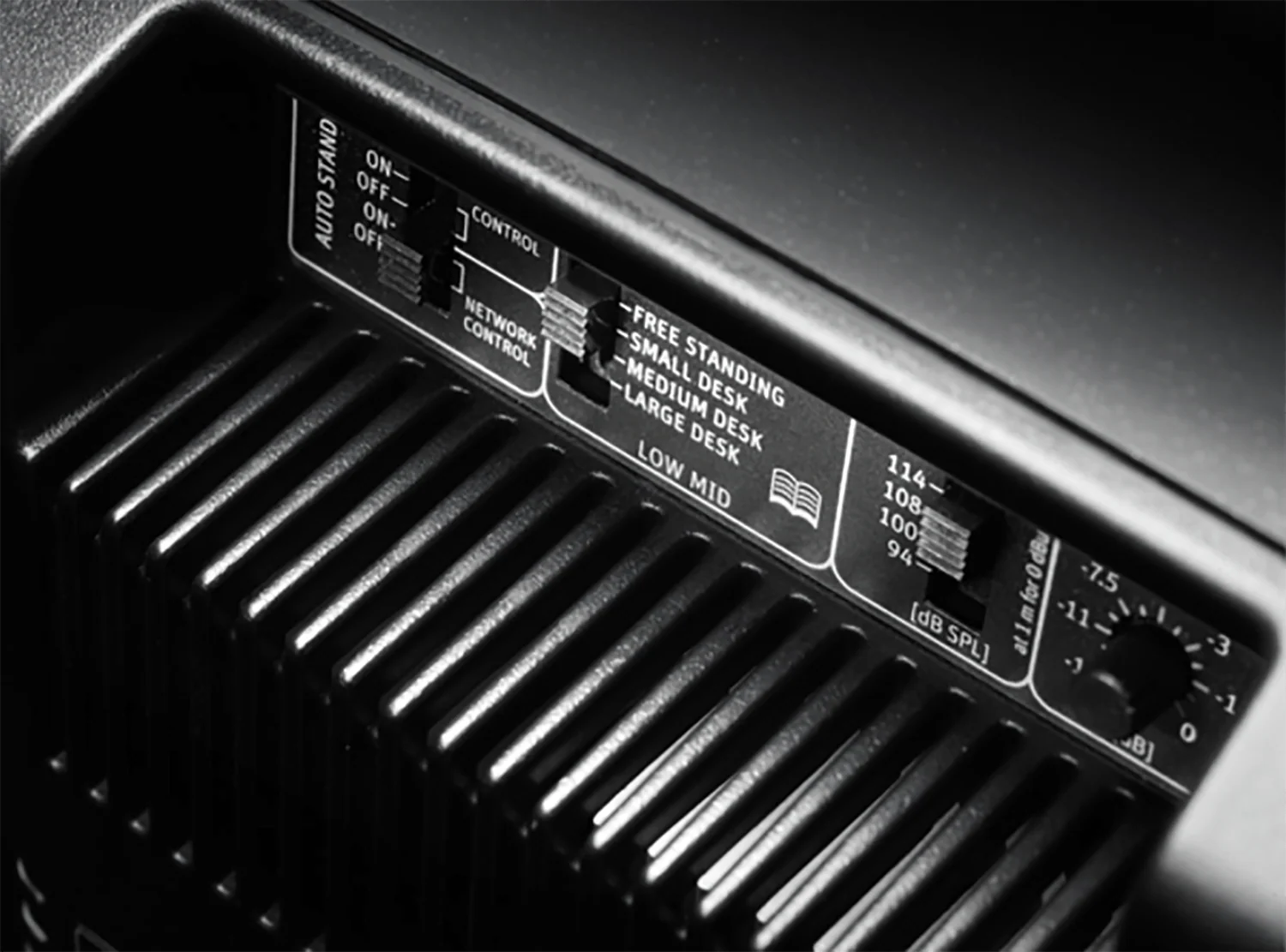

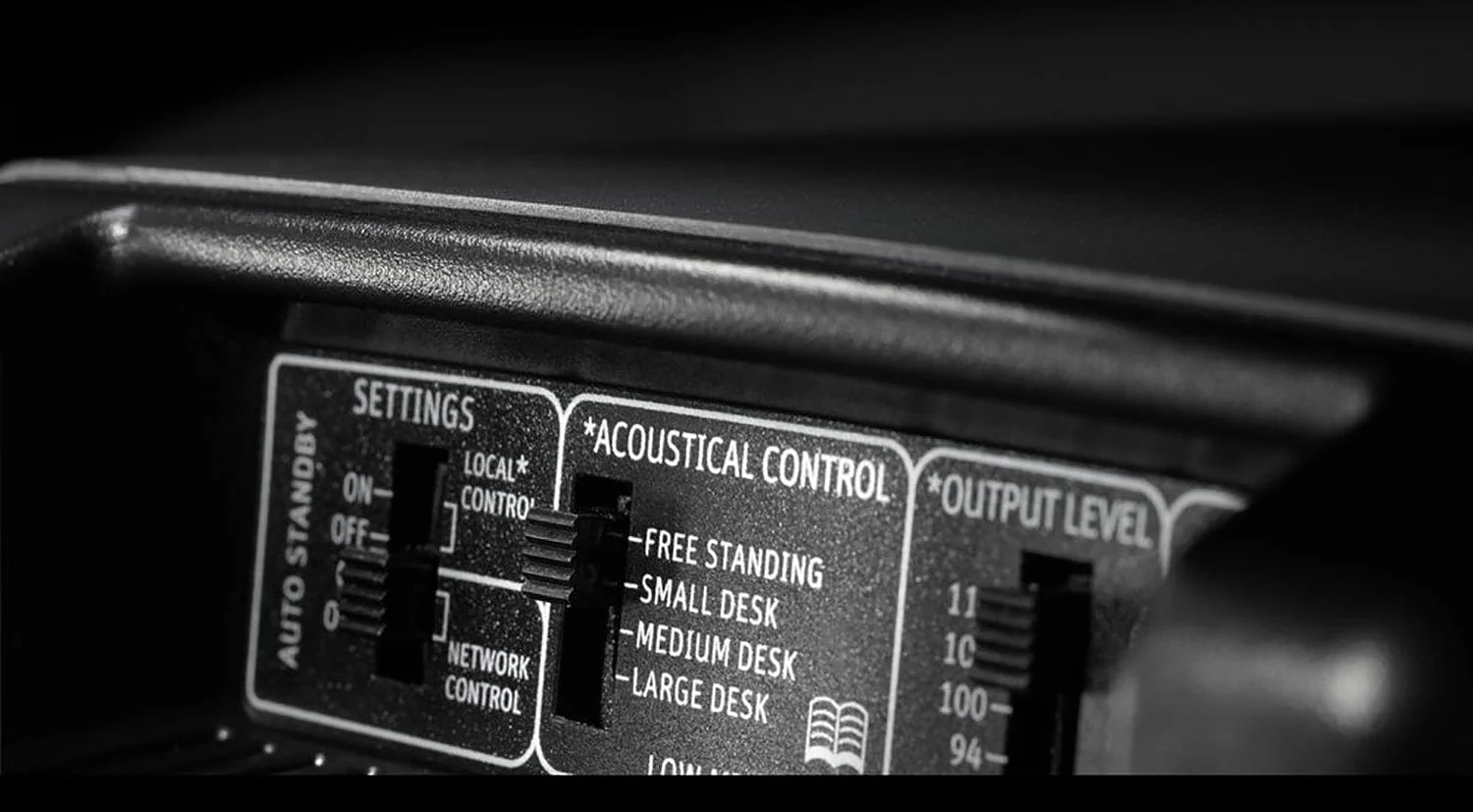

• Signal Processing:
  • EQ: 1x Low-Mid Shelf
  • Crossover Frequency: Low-Pass: 1.8 kHz, 48 dB/Octave Slope

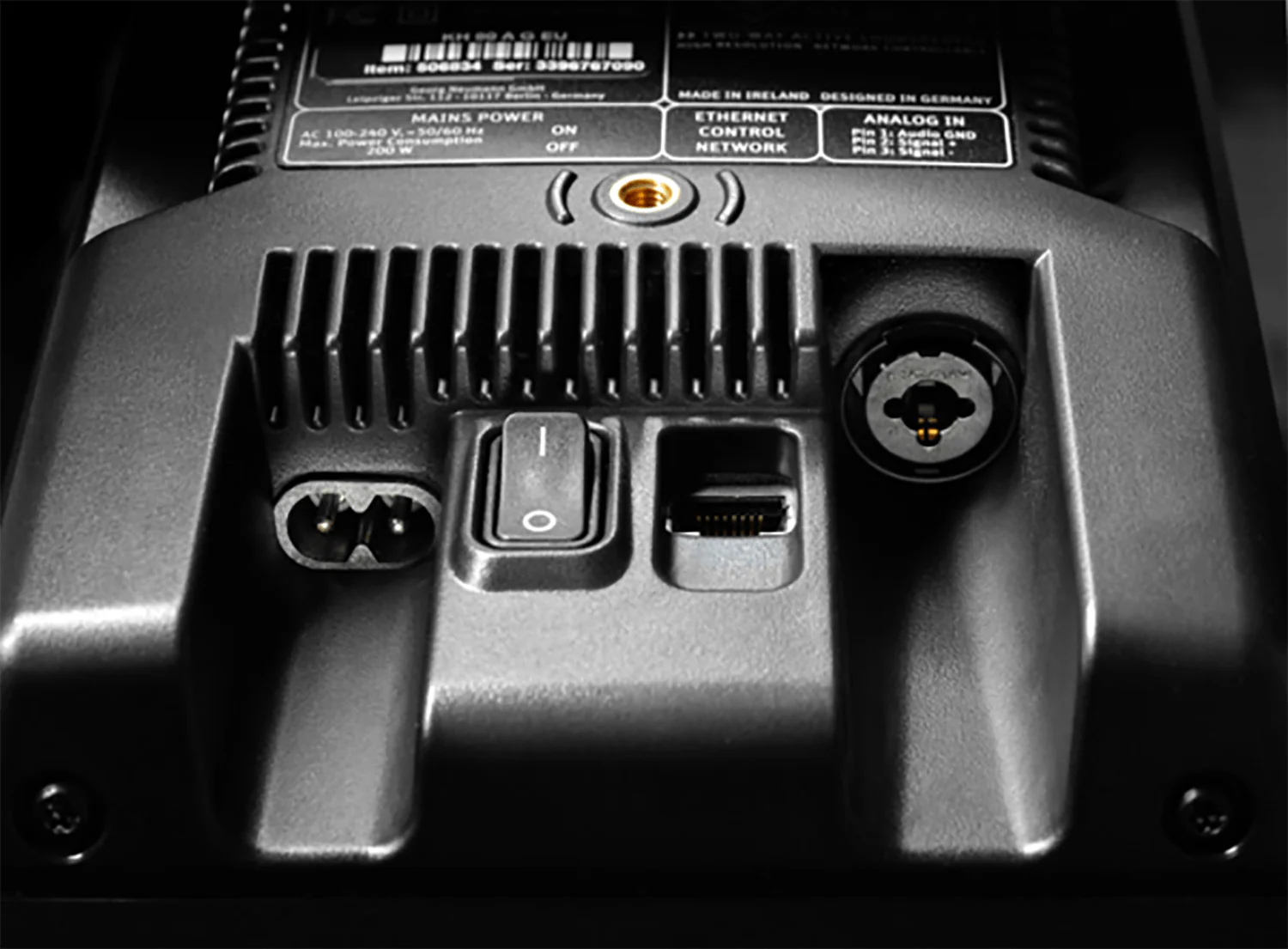

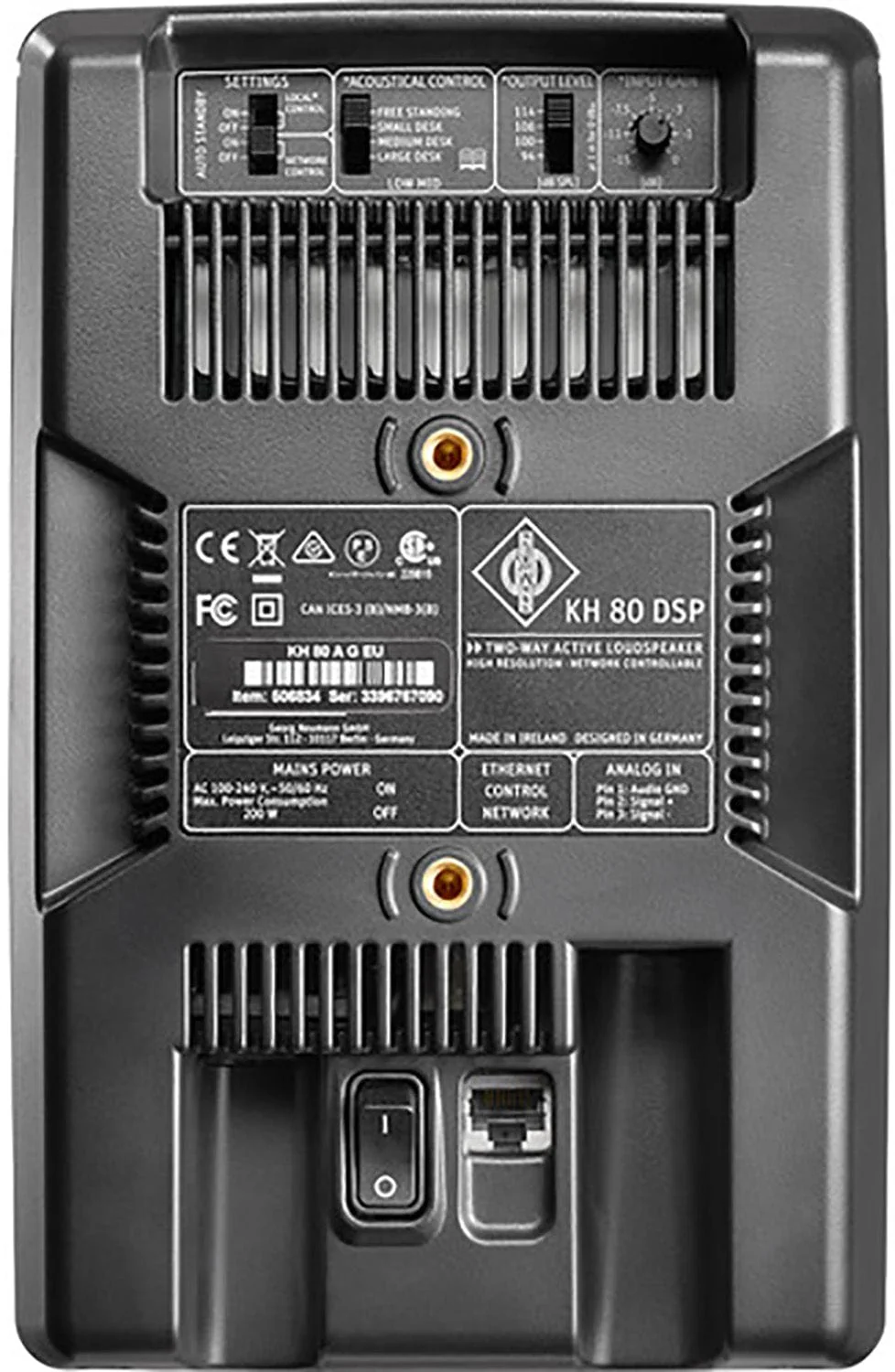

• Connectivity:
  • Audio I/O: 1x Combo XLR-1/4" TRS Balanced Input
  • Network I/O: 1x RJ45 Ethernet
  • USB: No
  • Wireless: No
• Power:
  • AC Input Power: 100 to 240 VAC, 50/60 Hz
  • Power Consumption: 180 W (Maximum)
  • Color: Gray
  • Mounting Points: 2x M6 (Rear Panel)
  • Operating Temperature: 42 to 72°F / 10 to 40°C
  • Storage Temperature: -13 to 158°F / -25 to 70°C
  • Dimensions (W x H x D): 6.1 x 9.2 x 7.6" / 154 x 233 x 194 mm
  • Weight: 9.0 lb / 4.1 kg
