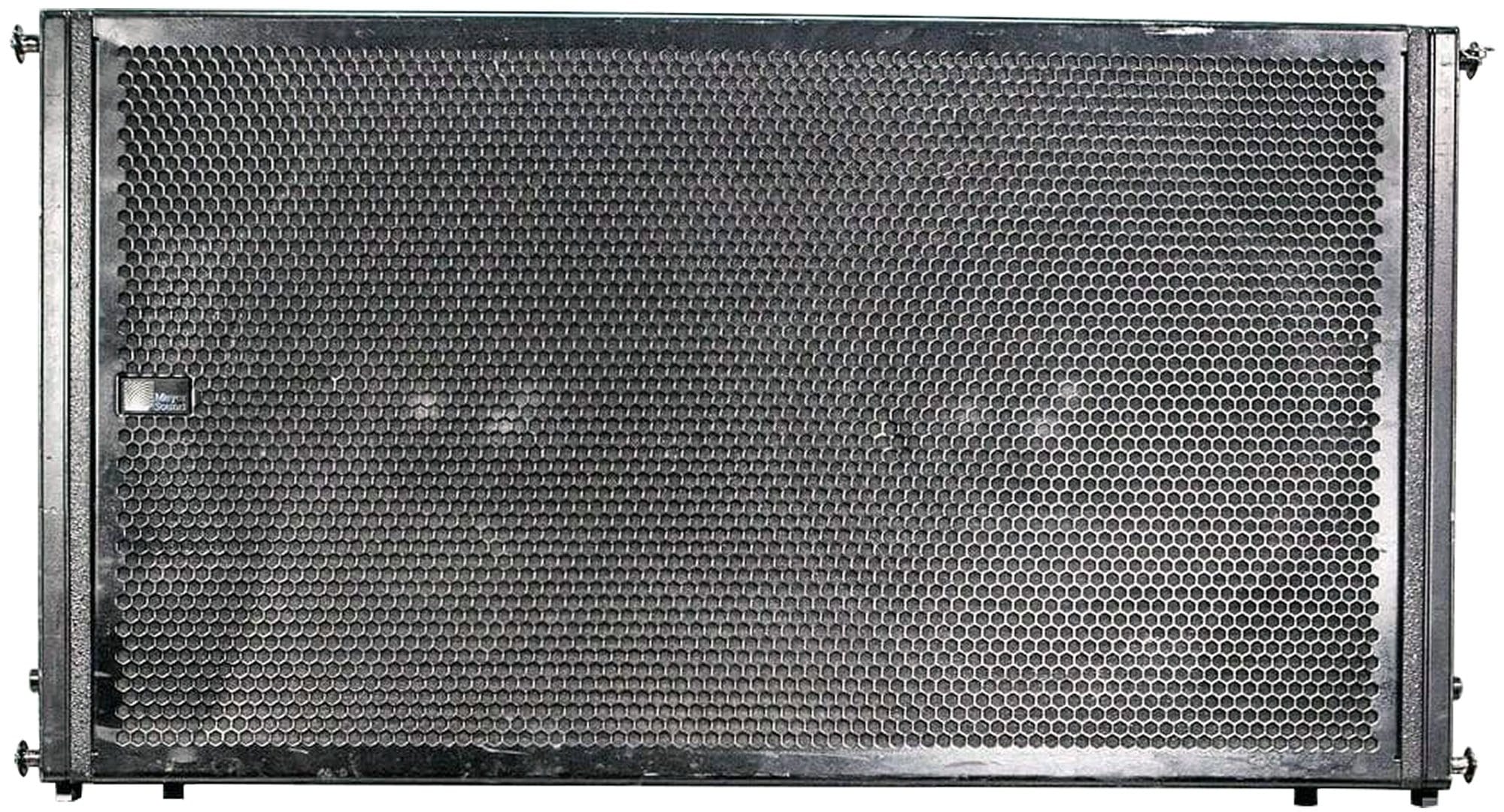

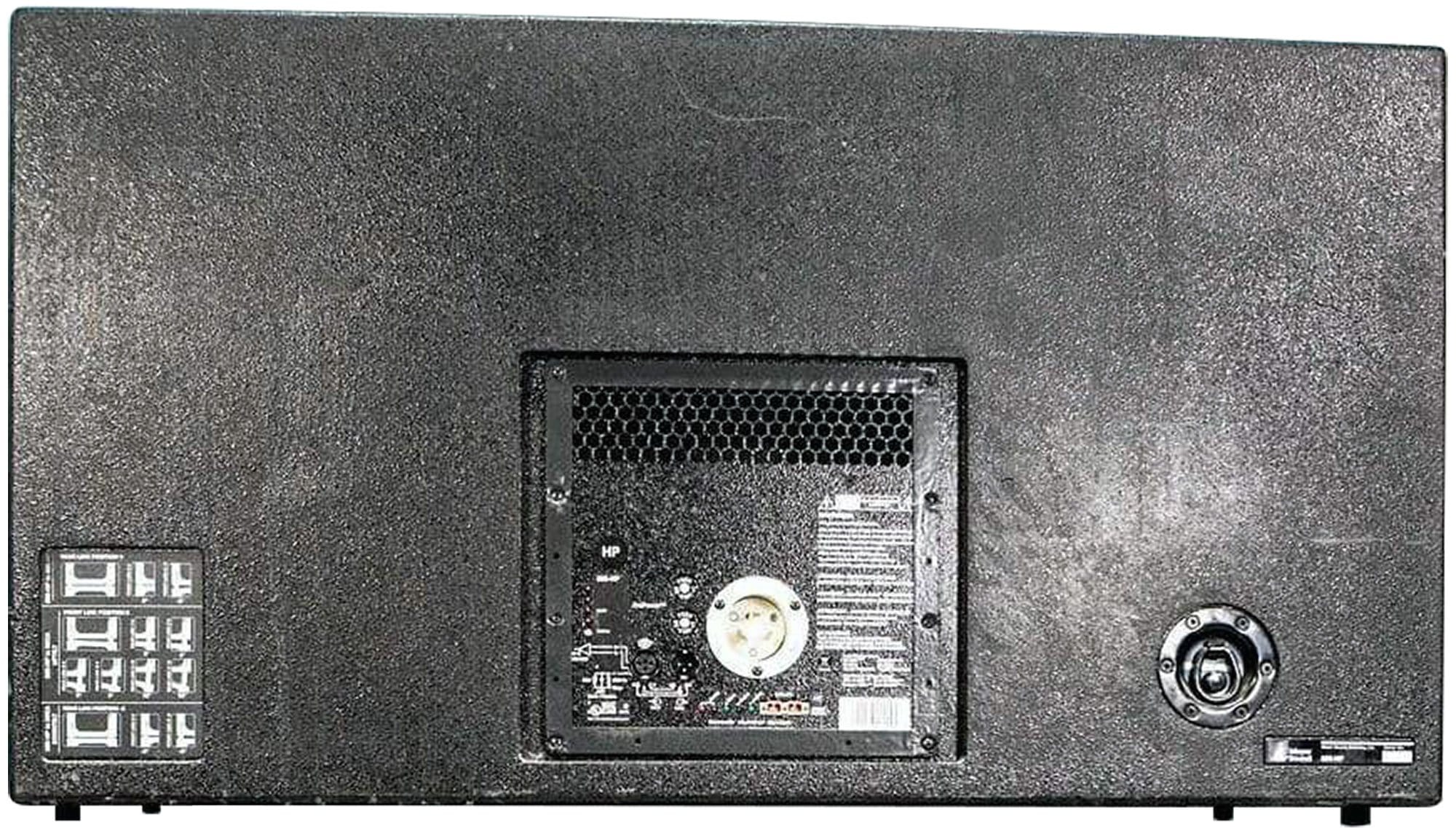

Meyer Sound 600-HP Powered Subwoofer

The 600-HP is a self-powered, high-output subwoofer that may be used in both flown and ground-stacked configurations. It is designed to rig directly with MICA™ compact high-power curvilinear array loudspeakers when fitted with the optional QuickFly MRF-600 rigging frame. The versatility of the 600-HP also allows it to be used with a variety of other Meyer Sound self-powered loudspeakers — such as M’elodie, CQ-1, CQ-2, UPA-1P, UPA-2P, and UPJ-1P — in fixed and touring applications.

Features:

• Efficient, high-power, high-excursion cone drivers
• Extremely low distortion for low-frequency clarity
• Very high peak power yields excellent transient reproduction
• Stackable, and flyable by itself or with MICA full-range loudspeakers
• Compatible with MG-MICA rigging frame for flying and ground-stacking
• Transportable in stacks using optional MCF-MICA caster frame or MDB-600 dolly board
• Low-frequency complement to MICA and other Meyer Sound self-powered loudspeakers

Specifications:

• ACOUSTICAL
  • Operating Frequency Range: 35 Hz – 150 Hz
  • Frequency Response: 36 Hz – 130 Hz ±4 dB
  • Phase Response: 46 Hz to 120 Hz ±30°
  • Maximum Peak SPL: 138 dB
  • Dynamic Range: >110 dB
  • Coverage: 360° for a single unit; varies with number of units and configurations
• TRANSDUCERS
  • Low Frequency:
    • Two 15" cone drivers
    • Nominal impedance: 4 Ω
    • Voice coil size: 4”
    • Power-handling capability: 1200 W (AES)
• AUDIO INPUT
  • Type: Differential, electronically balanced
  • Maximum Common Mode Range: ±15 V DC, clamped to earth for voltage transient protection
  • Connectors: Female XLR input with male XLR loop output or VEAM all-in-one (integrates AC, audio, and network)
  • Input Impedance: 10 kΩ differential between pins 2 and 3
  • Wiring:
    • Pin 1: Chassis/earth through 220 kΩ, 1000 pF, 15 V clamp network to provide virtual ground lift at audio frequencies
    • Pin 2: Signal +
    • Pin 3: Signal –
    • Case: Earth ground and chassis
  • DC Blocking: None on input, DC blocked through signal processing
  • CMRR: >50 dB, typically 80 dB (50 Hz – 500 Hz)
  • RF Filter:
    • Common mode: 425 kHz
    • Differential mode: 142 kHz
  • TIM Filter: <80 kHz, integral to signal processing
  • Nominal Input Sensitivity: 0 dBV (1 V rms, 1.4 V peak) continuous is typically the onset of limiting for noise and music
  • Input Level: Audio source must be capable of producing +20 dBV (10 V rms, 14 V peak) into 600 Ω to produce the maximum peak SPL over the operating bandwidth of the loudspeaker
• AMPLIFIER
  • Type: Two-channel complementary MOSFET output stages (class AB/H)
  • Output Power: 2250 W (4500 W peak)
  • THD, IM TIM: <.02%
  • Load Capacity: 4 Ω each channel
  • Cooling: Forced air cooling, two fans (one ultrahigh-speed reserve fan)
• AC POWER
  • Connectors: 250 V NEMA L6-20 (twist lock), IEC 309 male inlet, PowerCon, or VEAM
  • Voltage Selection: Automatic, two ranges, each with high-low voltage tap
  • Safety Agency Rated Operating Voltage: 95 V AC - 125 V AC; 208 V AC - 235 V AC; 50/60 Hz
  • Turn On/Turn Off Points: 85 V AC - 134 V AC; 165 V AC - 264 V AC; 50/60 Hz
  • Current Draw:
    • Idle Current: 0.64 A rms (115 V AC); 0.32 A rms (230 V AC); 0.85 A rms (100 V AC)
    • Max. long-term continuous current (>10 sec): 8.8 A rms (115 V AC); 4.4 A rms (230 V AC); 10 A rms (100 V AC)
    • Burst Current (<1 sec): 19 A rms (115 V AC); 9.5 A rms (230 V AC); 22 A rms (100 V AC)
    • Ultimate Short-Term Peak Current Draw: 39 A pk (115 V AC); 20 A pk (230 V AC); 45 A pk (100 V AC)
    • Inrush Current: 7 A pk (115 V AC); 7 A pk (230 V AC); 10 A pk (100 V AC)
• RMS NETWORK (Standard with rigging version and optional with others)
  • Equipped for two-conductor twisted-pair network, reporting all operating parameters of amplifiers to system operator’s host computer.
• PHYSICAL
  • Enclosure: Premium birch plywood
  • Finish: Black textured
  • Protective Grille: Perforated metal grille lined with acoustical black mesh
  • Rigging: Optional end-mounted QuickFly rigging hardware, with captive GuideALinks and quick-release pins; compatible with MICA compact highpower curvilinear array loudspeakers and accessories
  • Dimensions: 41.4” w x 22.5” h x 22” d (1052 mm x 572 mm x 559 mm)
  • Weight: 182 lb (82.55 kg); with rigging 215 lb (97.52 kg)
