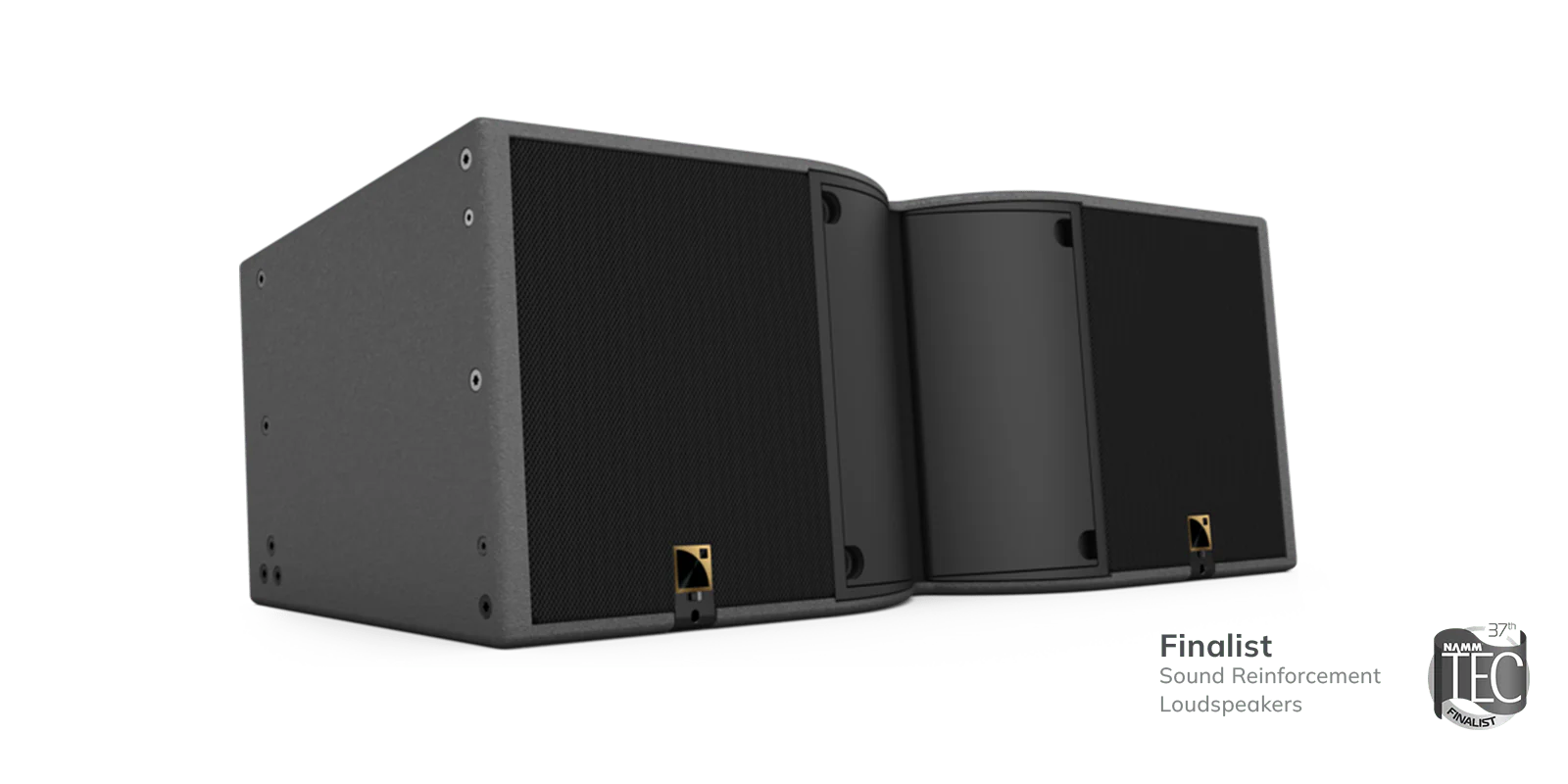

L-Acoustics K3i 2-way Active, Dual 12"

The K3i delivers large-format system performance in a compact form, featuring a maximum SPL of 143 dB and a frequency range from 42 Hz to 20 kHz.

The K3i is equipped with two 12" low-frequency drivers and a 4" high-frequency transducer, it provides powerful, sharp bass through L-VENTS and versatile coverage with four horizontal directivities using PANFLEX technology.

Its refined design ensures to blend into any venue.

This is the install specific of the L-Acoustics K3 Loudspeaker.

Specifications:

• 42 Hz - 20kHz
• 143 dB
• Horizontal: 70° / 110° symmetric or 90° asymmetric
  Vertical: depending on number of elements and array curvature
• LF: 2 × 12″ neodymium cone driver
  HF: 1 × 4″ diaphragm compression driver, neodymium
• LF: bass-reflex, L-Vents
  HF: DOSC waveguide, Panflex
• LF: 8 Ω
  HF: 8 Ω
• 2 × 4-point terminal blocks with push-in connection
• external rigging kits
  M8 inserts for rigging plates
  M6 inserts for K3i-SCREEN

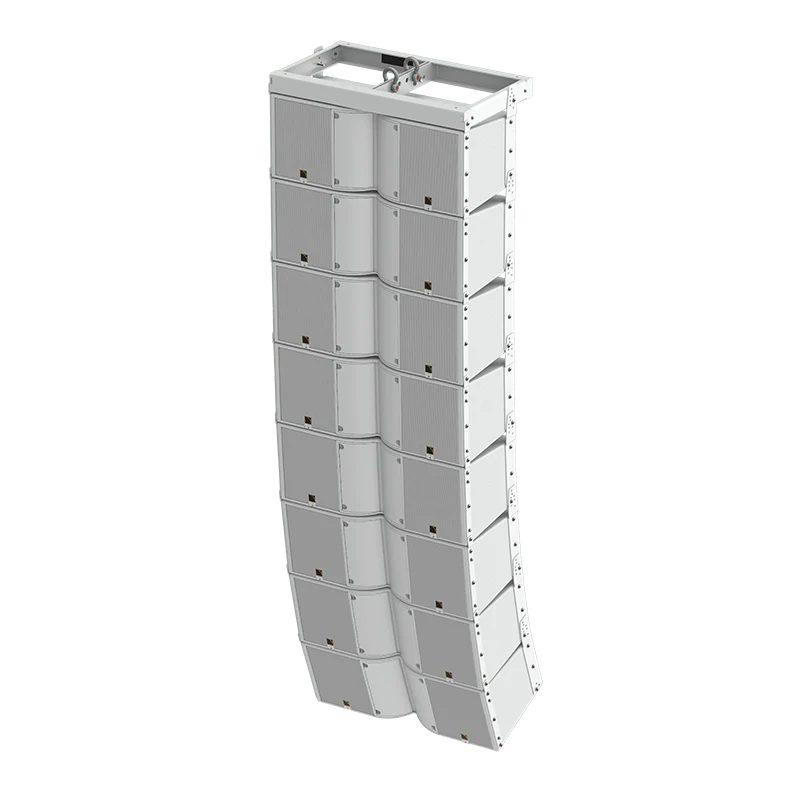

  inter-enclosure angles: 0.25°, 1°, 2°, 3°, 4°, 5°, 7.5° or 10°
• 907 mm (35.7 in) / 357 mm (14.1 in) / 429 mm (16.9 in)
• 35 kg / 77 lb

Controllers:

• L-Acoustics LA12X Amplified Controller
