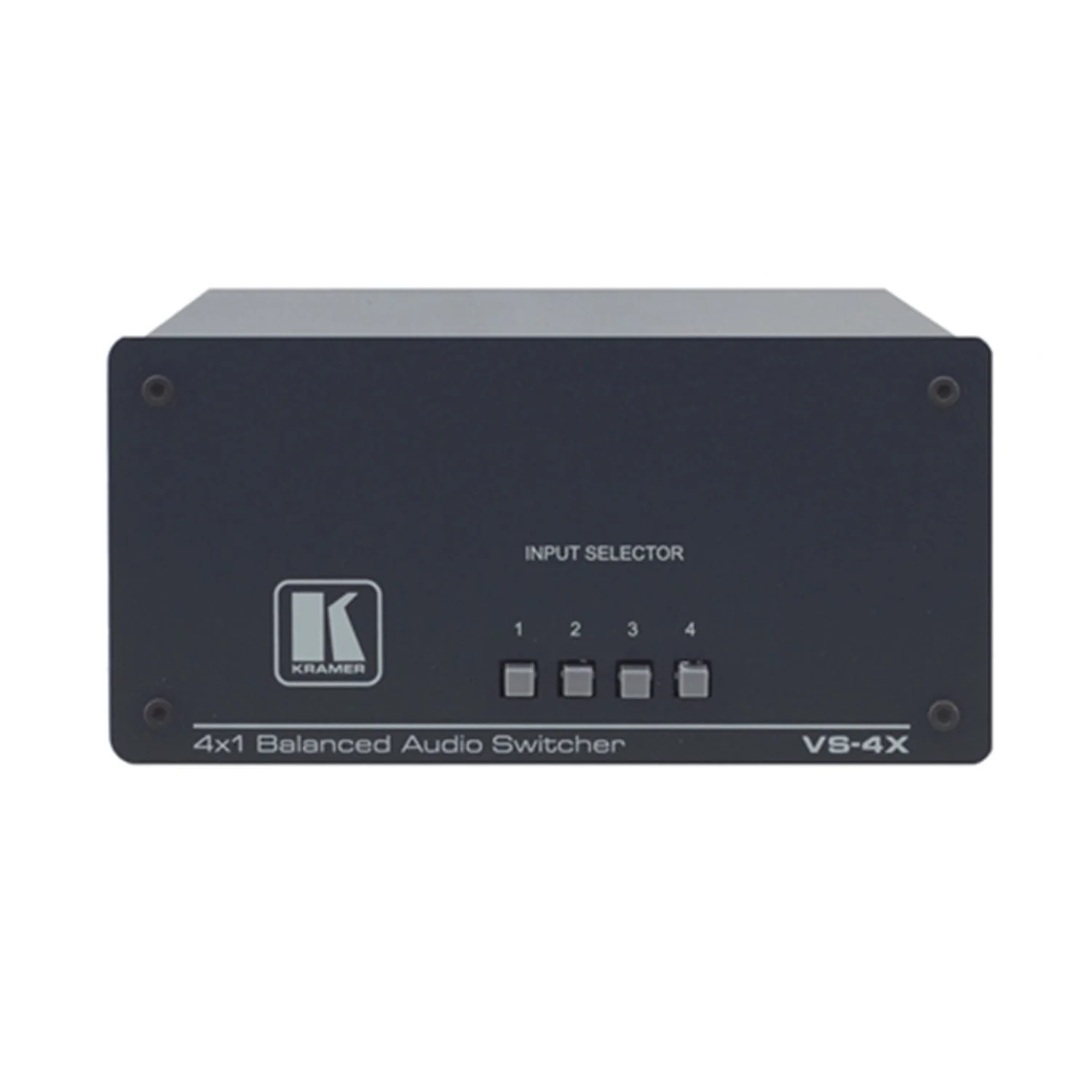

Kramer VS4X 4x1 Passive Stereo Audio Switcher

Product image 1
1 / 3

Kramer VS4X 4x1 Passive Stereo Audio Switcher

VS-4X 4x1 Balanced Stereo Mechanical Switcher

The VS-4X is a high performance switcher for balanced stereo audio signals on XLR connectors. It switches any one of four stereo signals to a single stereo output.


Features:
  • Mechanical (Passive) Switching - No power required
  • Desktop Size - Compact size. Two units can be rack mounted side-by-side in a 2U rack space with the optional RK-4X adapter

Specifications:

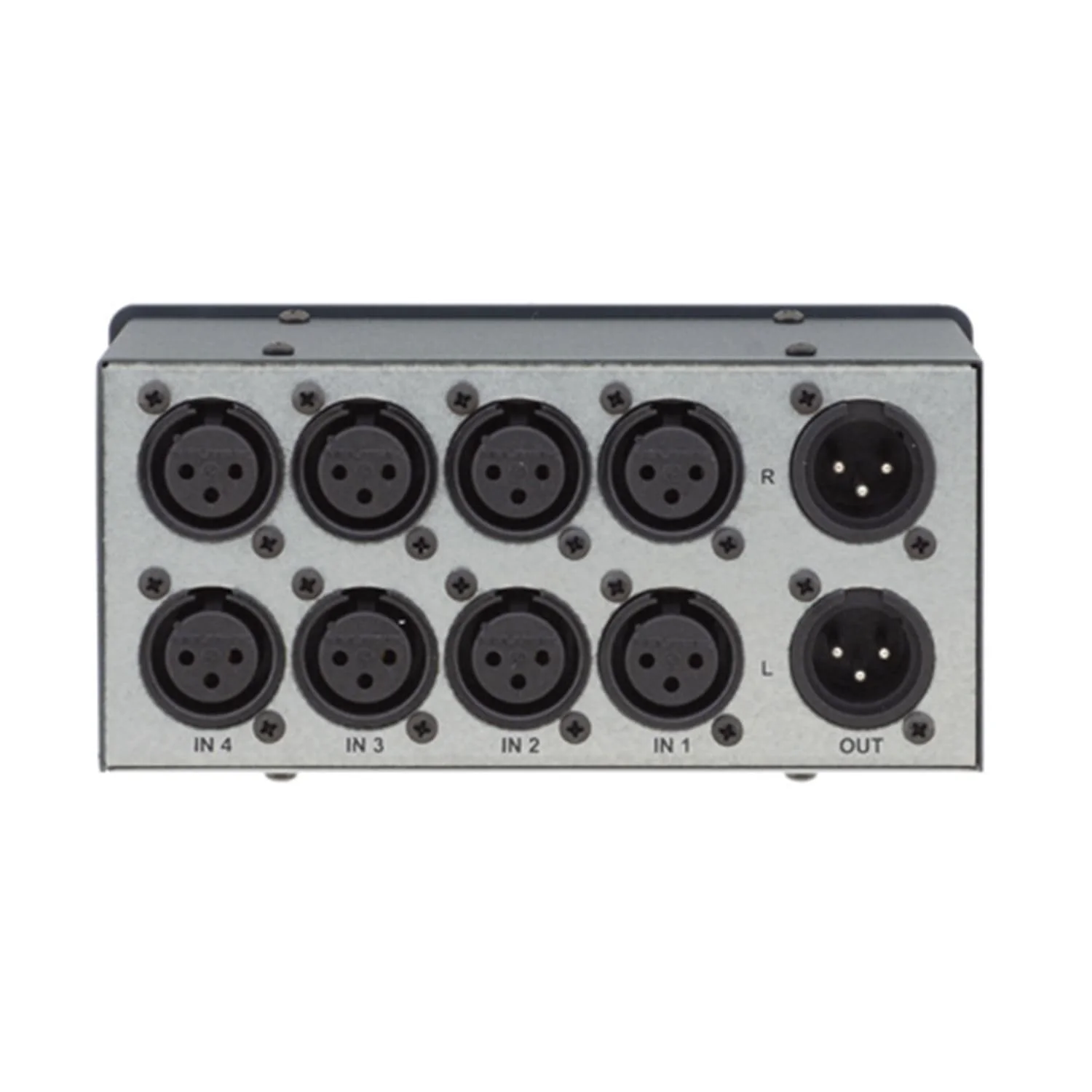

  • INPUTS: 4 stereo balanced audio, +4dBm typical, on XLR connectors.
  • OUTPUTS: 1 stereo balanced audio, +4dBm typical, on XLR connectors.
  • SWITCHING SYSTEM: Mechanical, "Break-before-make".
  • BANDWIDTH (-3dB): 100 kHz.(audio)
  • CROSSPOINTS: 4 x 2 for audio stereo.
  • SIGNAL LEVELS: Up to +30dBm.
  • DIMENSIONS (W,D,H): 15.3cm x 6.6cm x 7.6cm (6" x 2.6" x 3") W, D, H.
  • WEIGHT: 0.57kg (1.27lbs.) approx.
  • OPTIONS: RK-4X rack adapter.

Applications:
  • Audio editing, monitoring and production systems.
  • Security, CCTV, home theater and presentation applications.
  • Mic switching in field or studio applications.
$75.60

Original: $252.00

-70%
Kramer VS4X 4x1 Passive Stereo Audio Switcher—

$252.00

$75.60

Product Information

Shipping & Returns

Description

VS-4X 4x1 Balanced Stereo Mechanical Switcher

The VS-4X is a high performance switcher for balanced stereo audio signals on XLR connectors. It switches any one of four stereo signals to a single stereo output.


Features:
  • Mechanical (Passive) Switching - No power required
  • Desktop Size - Compact size. Two units can be rack mounted side-by-side in a 2U rack space with the optional RK-4X adapter

Specifications:
  • INPUTS: 4 stereo balanced audio, +4dBm typical, on XLR connectors.
  • OUTPUTS: 1 stereo balanced audio, +4dBm typical, on XLR connectors.
  • SWITCHING SYSTEM: Mechanical, "Break-before-make".
  • BANDWIDTH (-3dB): 100 kHz.(audio)
  • CROSSPOINTS: 4 x 2 for audio stereo.
  • SIGNAL LEVELS: Up to +30dBm.
  • DIMENSIONS (W,D,H): 15.3cm x 6.6cm x 7.6cm (6" x 2.6" x 3") W, D, H.
  • WEIGHT: 0.57kg (1.27lbs.) approx.
  • OPTIONS: RK-4X rack adapter.

Applications:
  • Audio editing, monitoring and production systems.
  • Security, CCTV, home theater and presentation applications.
  • Mic switching in field or studio applications.
