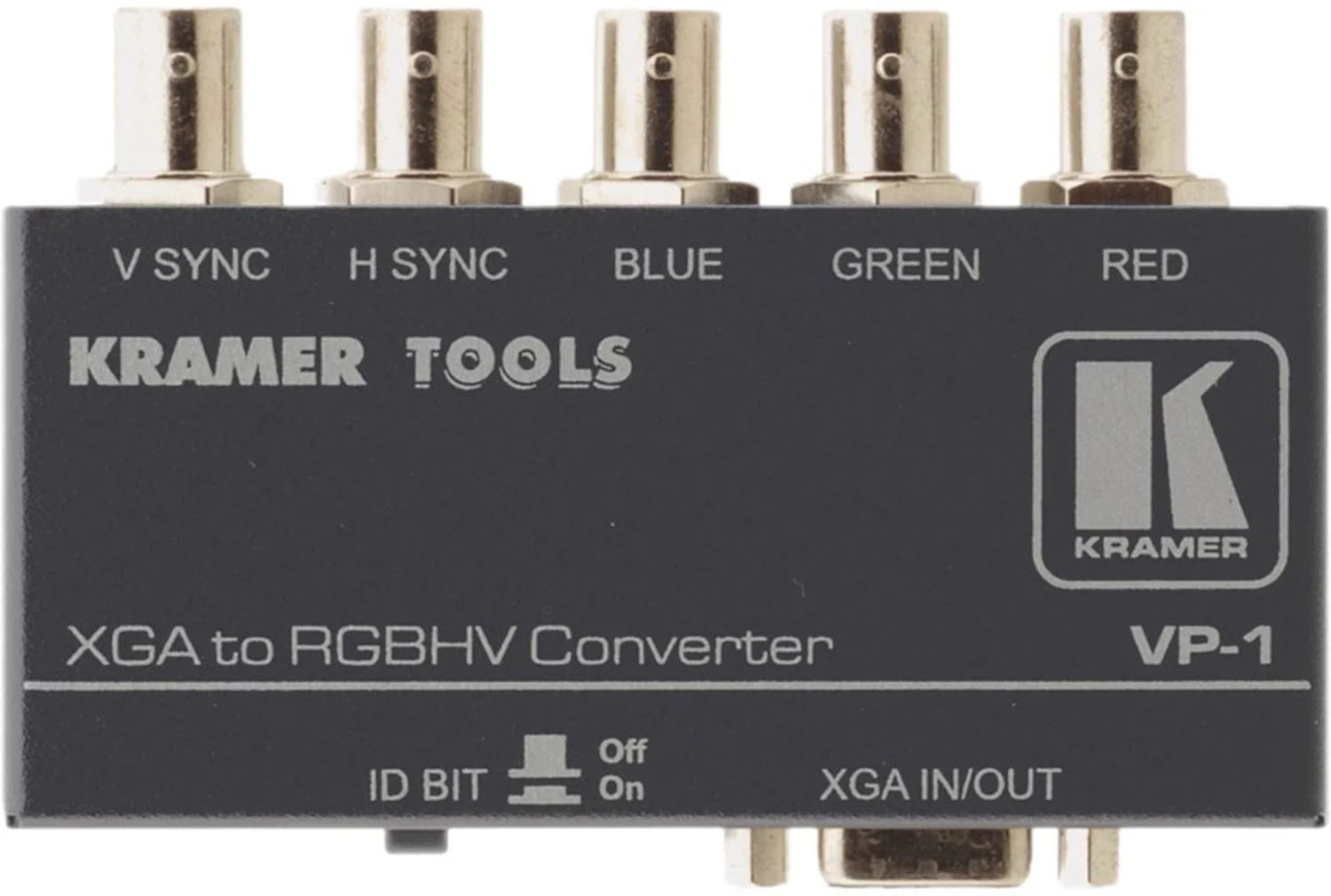

Kramer VP1 VGA/RGB-HV Bi-Directional Video Converter

The VP1 is a high-performance passive format converter for all RGBHV and 15-pin HD connector applications. The VP1 converts 15-pin HD computer graphics video signals to five BNC RGBHV signals and vice versa.

Features:

• HDTV Compatible
• ID Bit Control

Specifications:

• Input: VGA/UXGA on a 15-pin HD (F) connector or RGBHV on BNC connectors
• Outputs: RGBHV on BNC connectors or VGA/UXGA on a 15-pin HD connector
• Max. Output Level: 4Vpp/75Ω
• Bandwidth (-3dB): 1800MHz (1.8GHz)
• Controls: ID bit on/off
• Dimensions: 9.9cm x 4.65cm x 2.41cm (3.9" x 1.8" x 0.95") W, D, H
• Weight: 0.2kg (0.44lbs) approx
• Compact Kramer TOOLS: Part of the Kramer TOOLS family of compact, high-quality and cost-effective solutions
