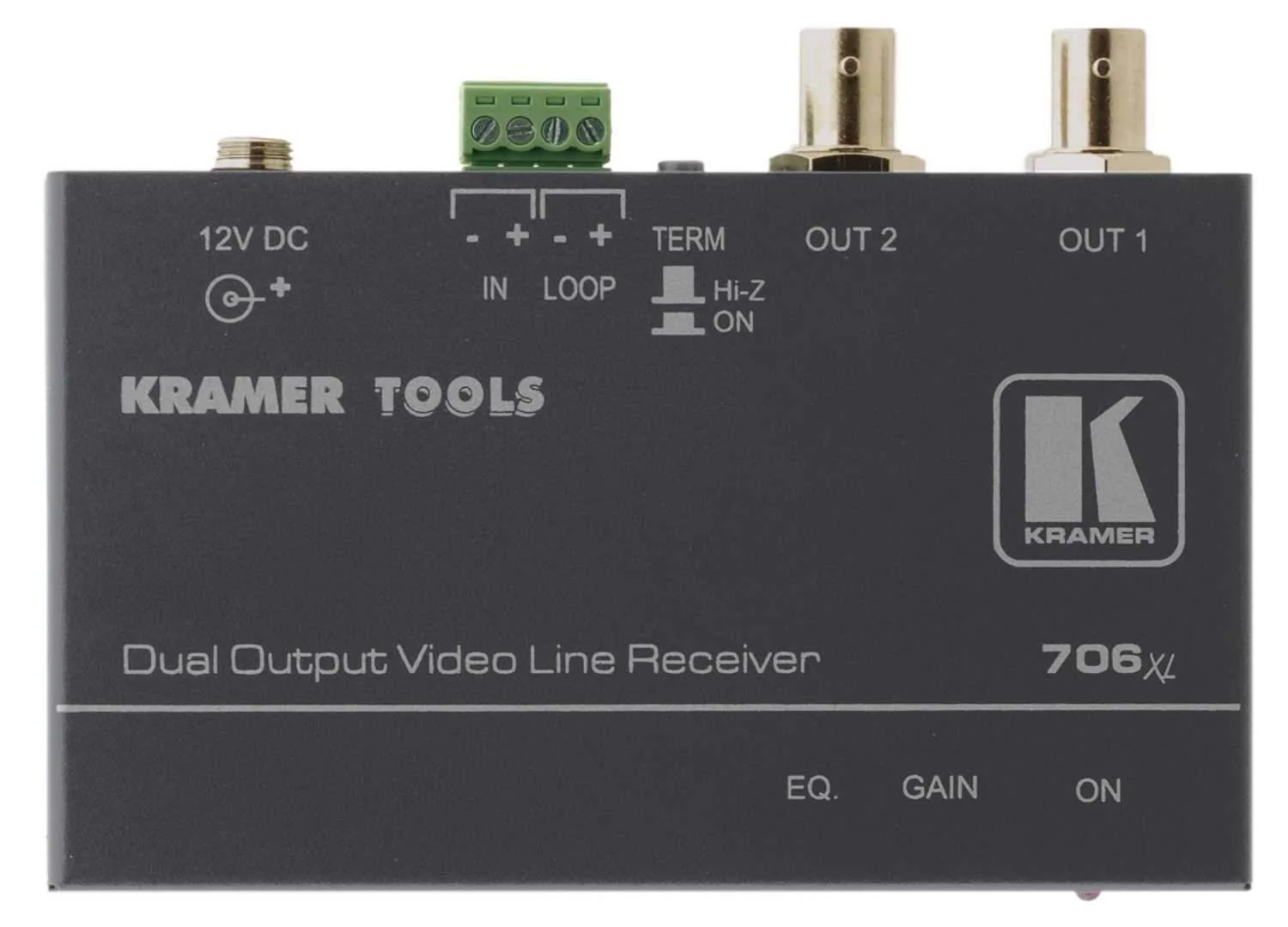

Kramer Composite Video Over Twisted Pair Receiver

Kramer Composite Video Over Twisted Pair Receiver

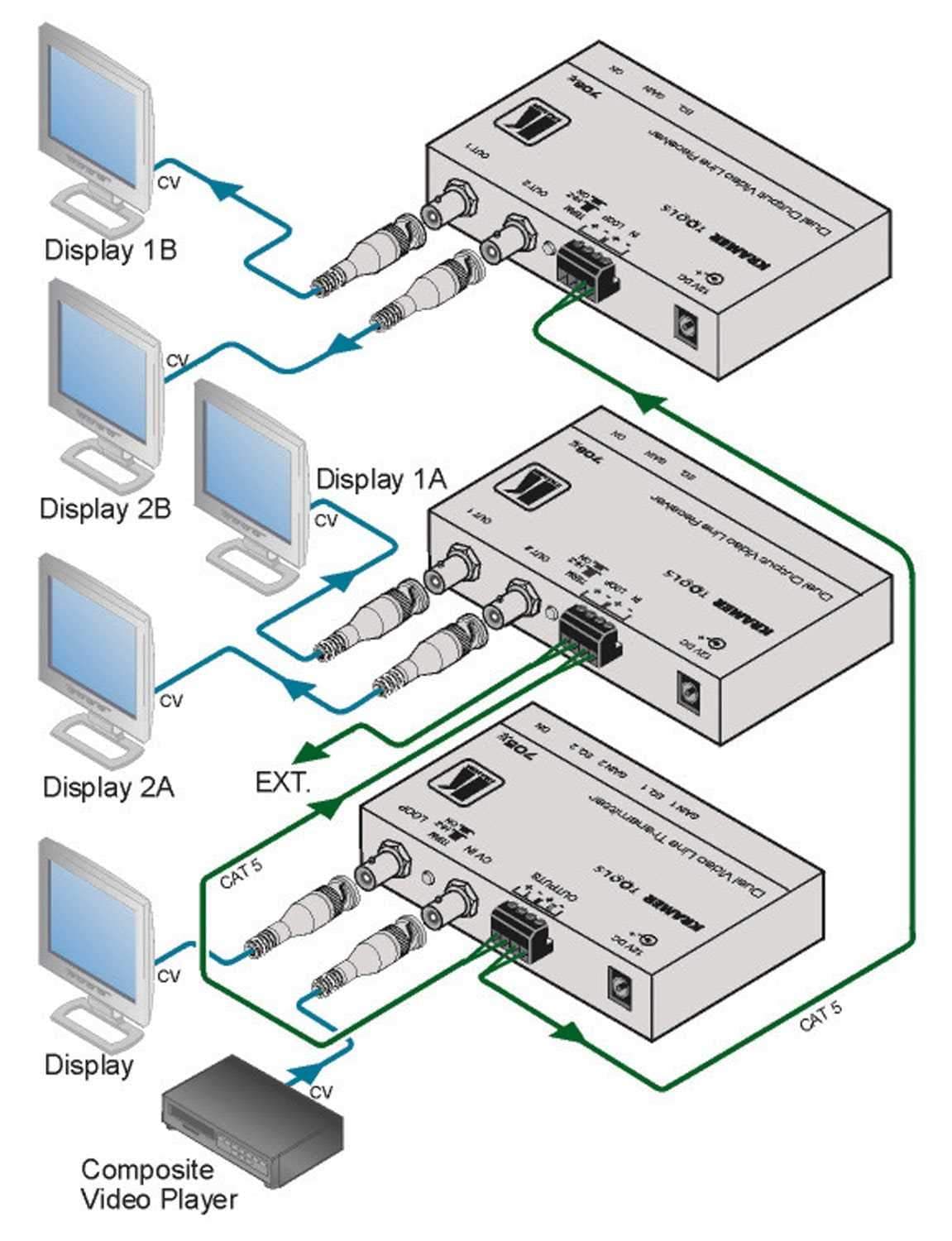

The 705xl and 706xl are a twisted pair transmitter and receiver for composite video signals. The 705xl converts a composite video signal to two twisted pair signals and the 706xl receiver converts the twisted pair signals back into two composite video signals.

Features:
  • Bandwidth - 108MHz (-3dB).
  • Twisted Pair Input/Outputs - Terminal block connector.
  • Level (Gain) and EQ (Peaking) Controls.
  • Looping Input.
  • Selectable Input Signal Termination.
  • System Range - Up to 1000m (3200ft).
  • Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
  • Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space.
Applications:
  • Simplification of security and CCTV installations.
  • Presentation and other wall-plate mounted systems.
  • Simple and quick studio wiring.
Specifications:
  • INPUT: 1 twisted pair input on terminal block connectors; 1 loop on terminal block connectors.
  • OUTPUT: 2 composite video 1Vpp/75 Ohm on BNC connectors.
  • BANDWIDTH (-3DB): 108MHz (-3dB).
  • DIFF. GAIN (PAIR): 0.08%.
  • DIFF. PHASE (PAIR): 0.07Deg.
  • K-FACTOR (PAIR): 3.1%.
  • S/N RATIO (PAIR): 57dB.
  • GAIN (EQ.): 0 to 3.5dB @5MHz.
  • COUPLING: DC.
  • POWER CONSUMPTION: 12V DC, 200mA.
  • DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98") W, D, H.
  • WEIGHT: 3kg (0.66lbs) approx.
  • INCLUDED ACCESSORIES: Power supply, mounting bracket.
