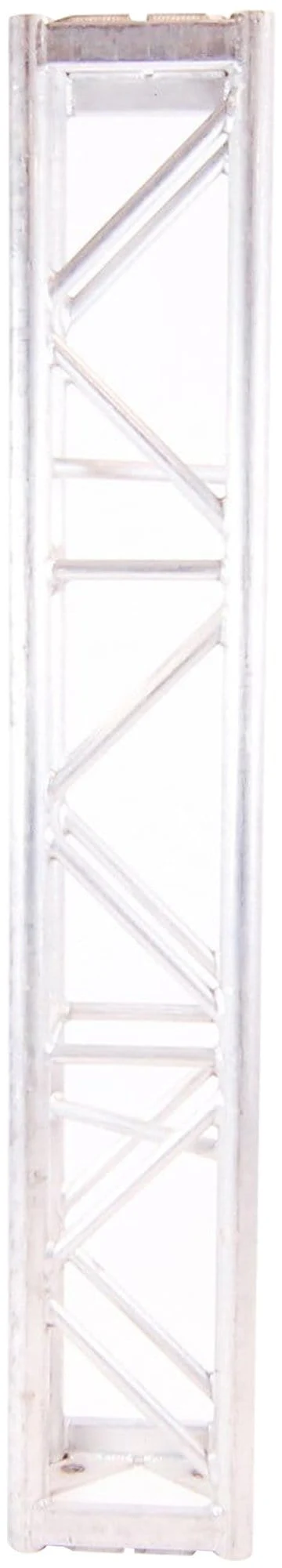

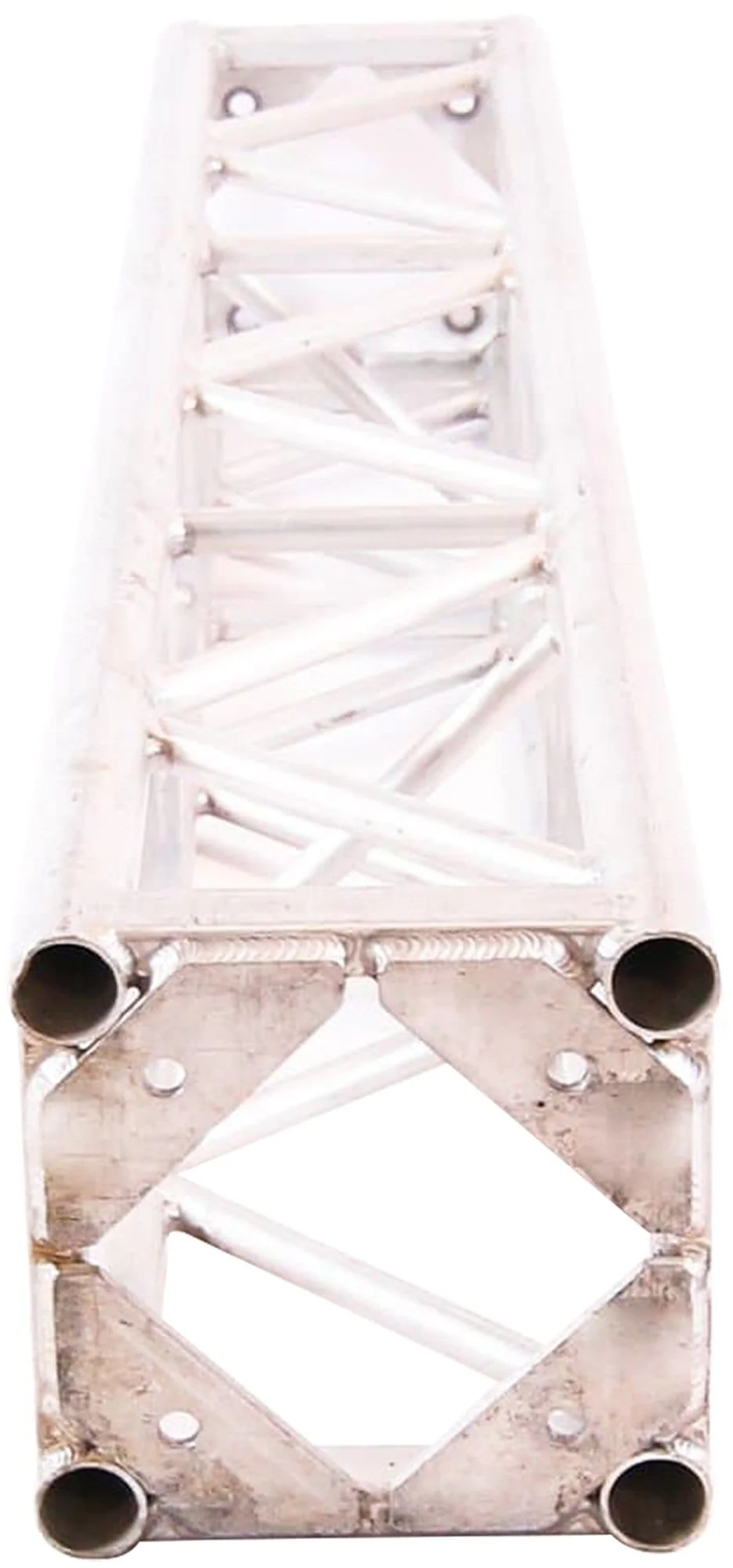

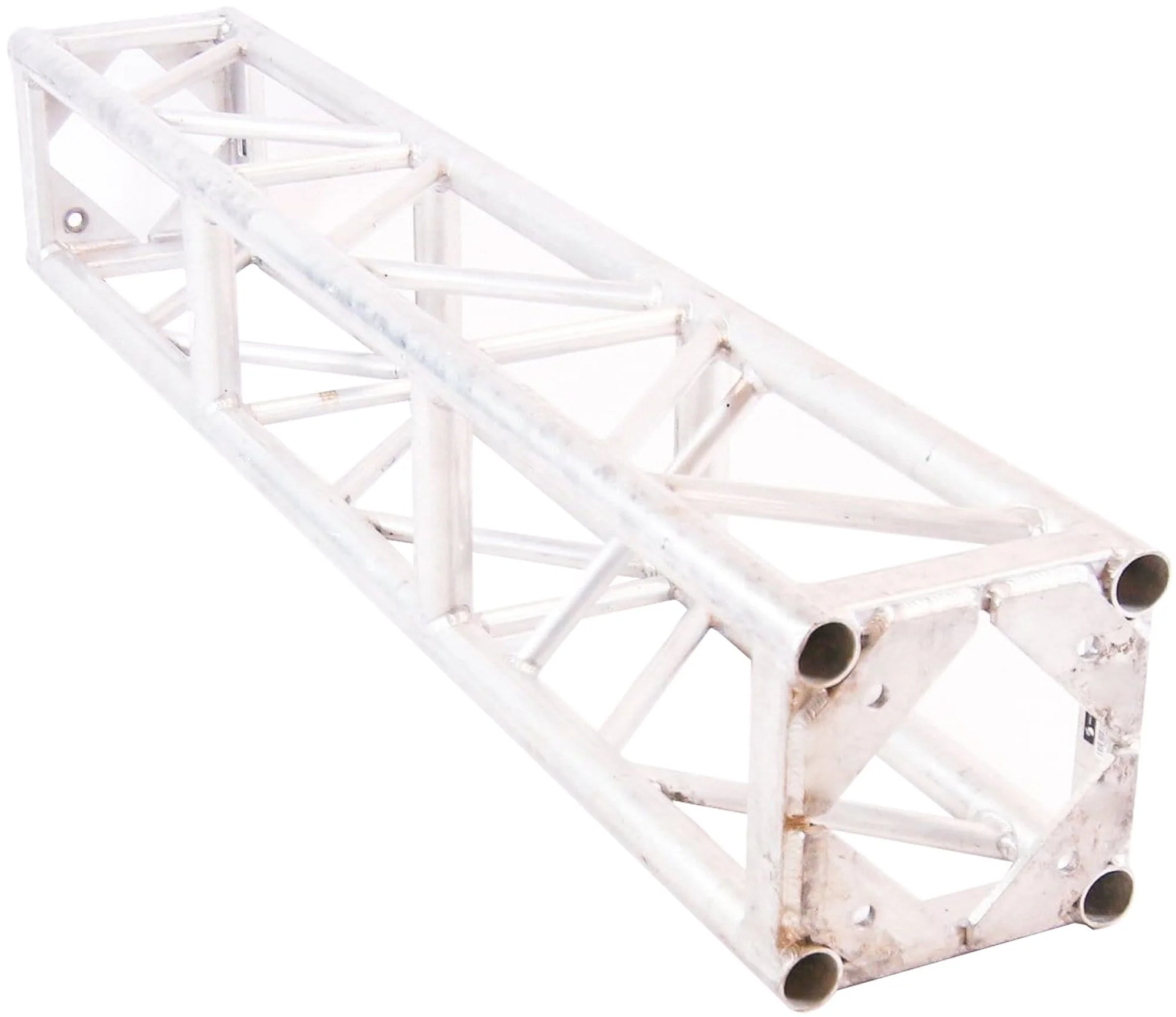

KAD Fabrications 12BT8 12 x 96-in Bolted Truss
KAD Fabrications 12BT8 12 x 96-inch Bolted Truss
12" natural finish and powder coated truss.
Specifications:
- Product Code: 12BT8
- Standard Size: 8 ft. Section
- Material: All Aluminum Components 6061-T6 Rated
- Hole Centers: 6.75" x 6.75"
- Recommended Fasteners: 5/8" x 2" High Tensile Hex Head Bolts
- Main Chords: 2" O.D. x 1/8" Aluminum Tube
- Diagonal Chords: 1" O.D. x 1/8" Aluminum Tube
- End Gusset Plates: 2-1/2" x 3/8" Aluminum Flat Bar
$150.00
Original: $500.00
-70%KAD Fabrications 12BT8 12 x 96-in Bolted Truss—
$500.00
$150.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
KAD Fabrications 12BT8 12 x 96-inch Bolted Truss
12" natural finish and powder coated truss.
Specifications:
- Product Code: 12BT8
- Standard Size: 8 ft. Section
- Material: All Aluminum Components 6061-T6 Rated
- Hole Centers: 6.75" x 6.75"
- Recommended Fasteners: 5/8" x 2" High Tensile Hex Head Bolts
- Main Chords: 2" O.D. x 1/8" Aluminum Tube
- Diagonal Chords: 1" O.D. x 1/8" Aluminum Tube
- End Gusset Plates: 2-1/2" x 3/8" Aluminum Flat Bar
