HK Audio EA600 HK Elements Power Amplifier Module

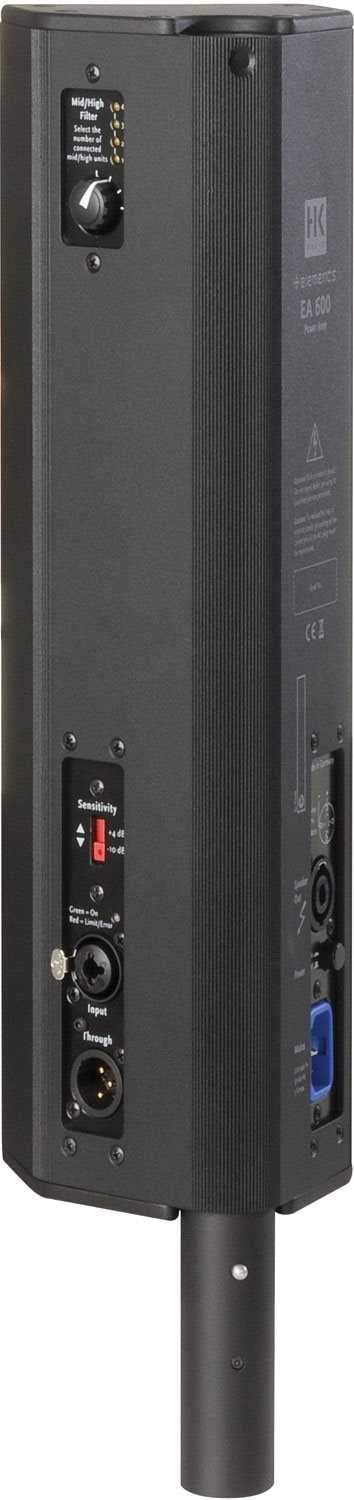

Housed in an enclosure that shares the same design as the mid/ high unit, the EA 600 amp module delivers 600 watts at 4 ohms. It can drive up to two passive E 110 Sub subwoofers or one passive subwoofer with up to two E 435 mid/ high units or one column with up to four mid/ high units. The power amp module is ventilated from the front. A rotary selector lets you choose a special EQ setting to match the number of connected E 435s and optimize the frequency response for a column of that height.

• Class-D power amp with 600 watts output
• Drives up to four mid/ high units, up to two subwoofers, or one passive subwoofer with two mid/ high units
• Four EQ filter settings - variable to match the number of mid/ high units in one column
• E-Connect bus

• Product class: elements
• Active protection circuits: RMS-limiter, protection dc, load, thermal

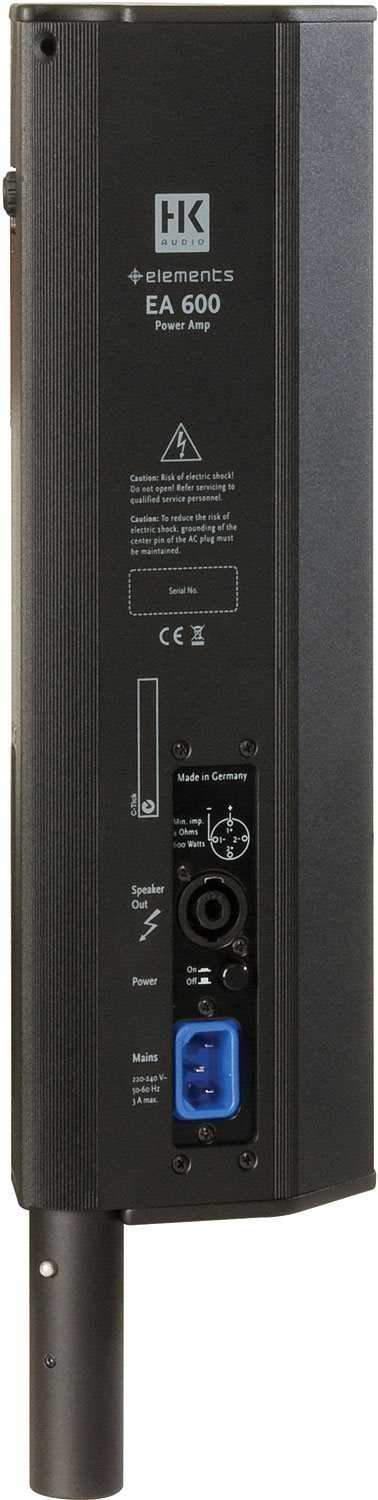

• Connections: combination XLR + 1/4" TRS, XLR out, 1 x speakon parallel out, 1 x e-connect out
• Input sensitivity: +4 dBu/ -10 dBu (variable)
• Filter type: subsonic filter, 4 system filters, depending on the number of connected mid/ high units
• Continous power: 600W Class-D @ 4 ohms (EIA)
• Cooling: temperature controlled fan
• Dimensions: 4-7/16" x 15" x 4-3/4" ( W x H x D - excluding e-connect coupler)
• Weight: 6.1 lbs.
