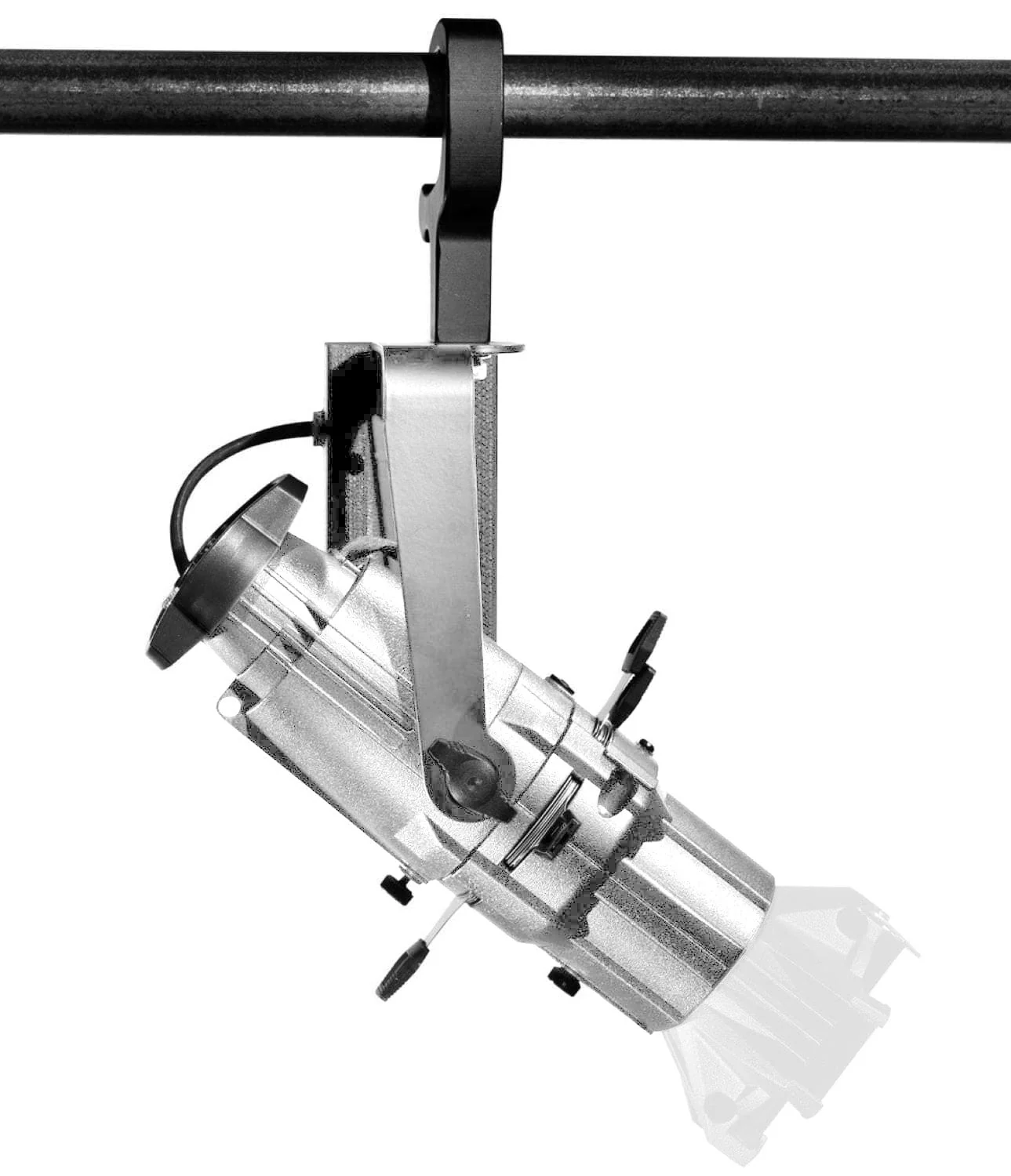

ETC Source Four Mini LED with Shutter Barrel - 3000 K/80+ CRI

The Source Four Mini LED delivers lighting in a remarkably compact shell.

This LED combines the optics and intuitive controls of the Source Four with advanced LED technology, measuring just one-third the size of the original.

The Source Four Mini LED features 3000 K colour temperature with 80+ CRI for accurate colour rendering. Also, it offers four selectable field angles to suit diverse applications.

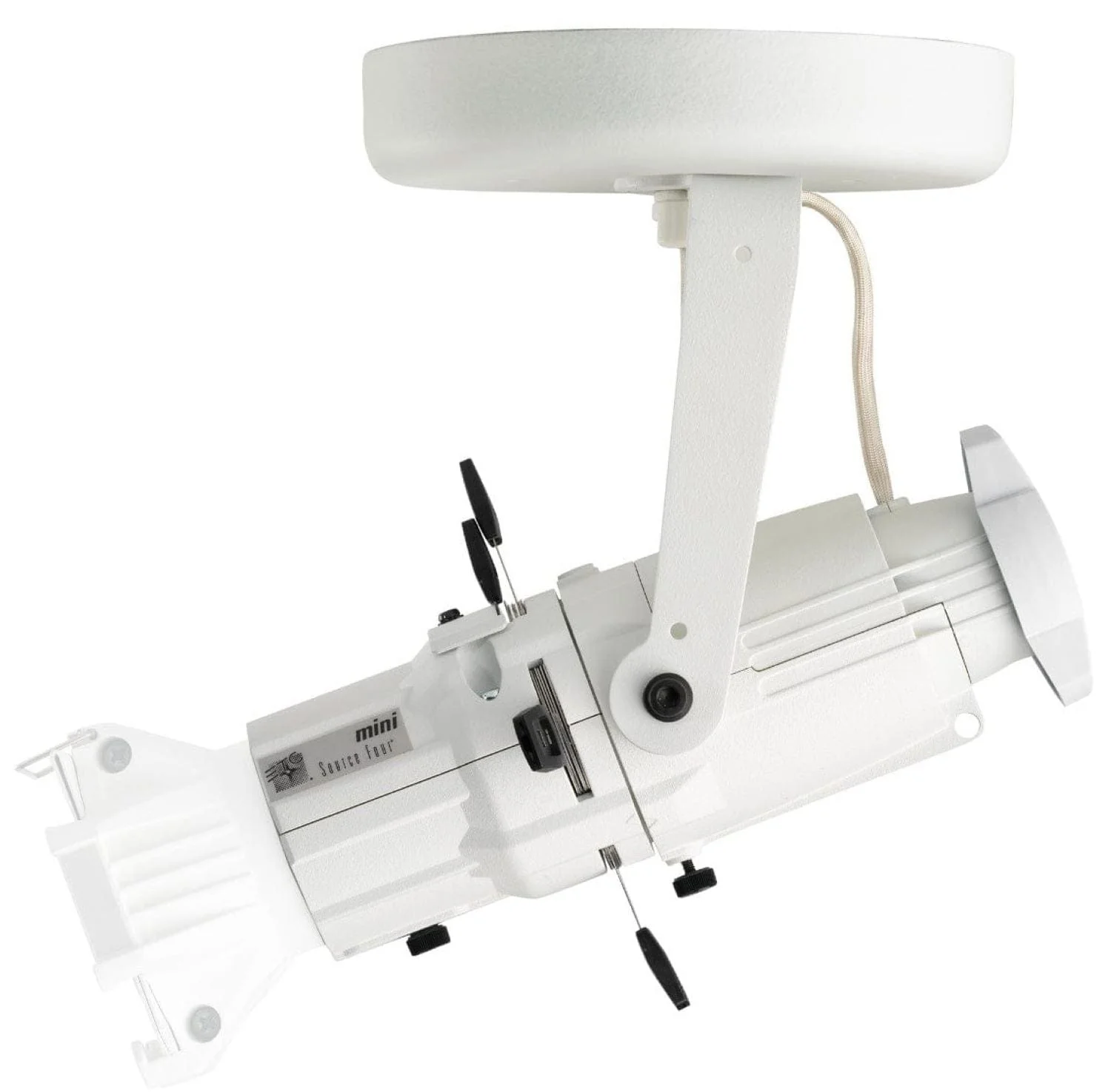

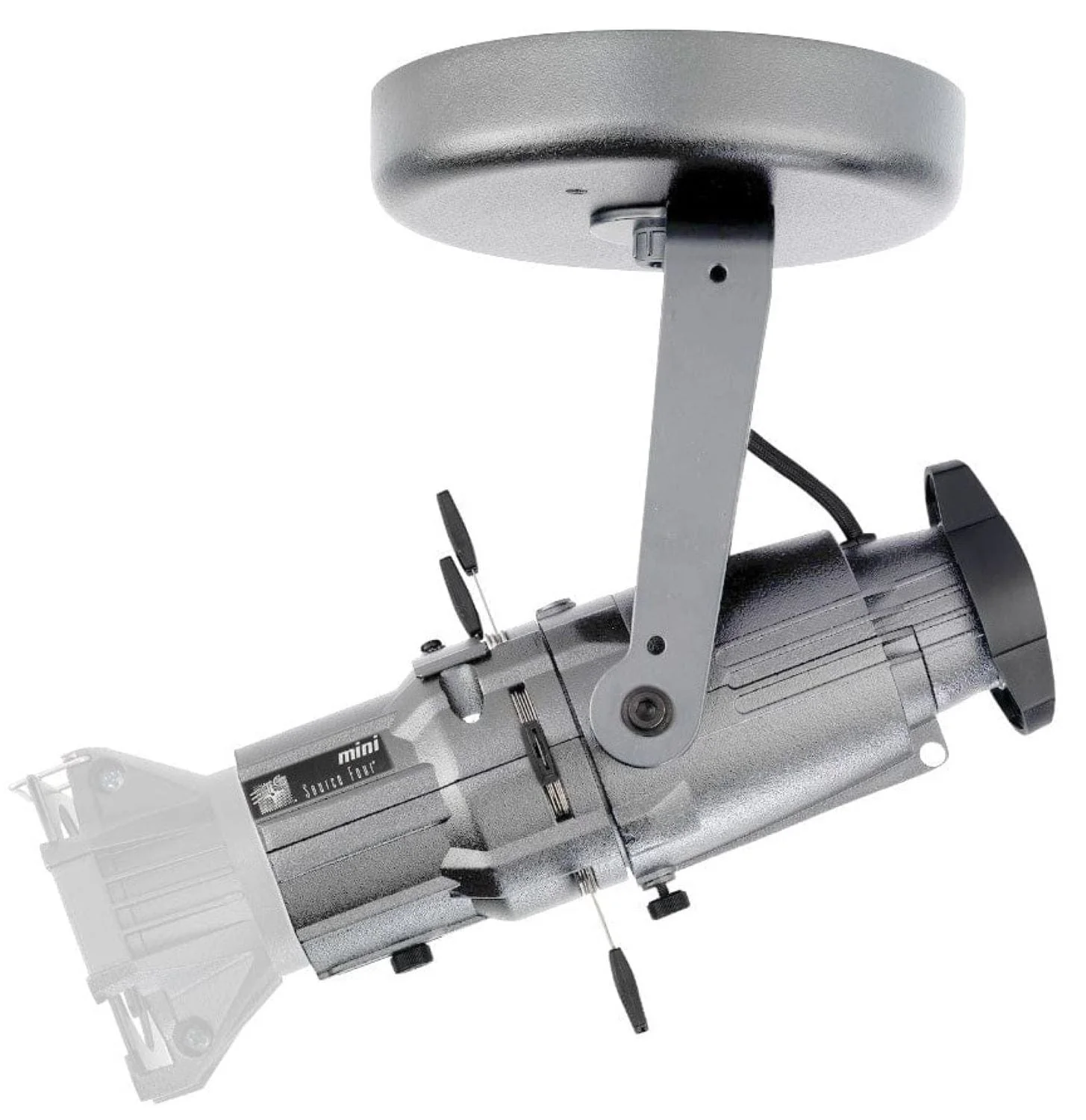

The Source Four Mini LED is available as portable, ceiling-mount canopy, or track-mount configurations to integrate seamlessly into your rig. It is also available in black, silver or white.

Features:

• Rugged, die-cast fixture body
• 19°, 26°, 36° and 50° Interchangeable lens tubes
• Long-life dimmable white LED source available in a wide variety of color temperatures and Color Rendering levels
• Three-plane shutters
• Multiple accessories available for color, pattern, and filtering
• Available for portable

Specifications:

• Source:
  • LED details: Lumiled 1204HD
  • Max field lumens: 671 (5000 K, 50°)
  • Lumens per watt: 43.0
  • L70 rating (hours to 70% output): 35,000
• LED Color Temperature Data:
  • Available color temperature options: 3000 K
  • CRI options: 80 CRI
  • Red shift: No
• Optical:
  • Field angle options: 19° / 26° / 36° / 50°
  • Pattern projection: Yes
  • Pattern size: E (37.5 mm with a 25.4 mm image area). Holder Included
  • Front accessory slot: Dual, captive accessory slots with 70 mm (2.75 in) media frame (included)
• Electrical:
  • Voltage range:
    • 100–120 V 50/60 Hz
    • 230–240 V 50/60 Hz
  • Power cord length (portable VAC variant only): 190 cm (75 in)
  • Track adapter (Track variant only):
    • 120 V - OneTrack or DataTrack
    • 230 V - EUTRAC 3-circuit track adapter
    • Global Trac Pro (GA69) or Halo compatible (AD1) adapters available on request.
    • AD1 adapter is compatible with Halo single- circuit and two-circuit track systems
  • Wattage typical/max: 12 W Typical / 14 W Max
  • Inrush (first half-cycle):
    • 120 V - <1 A
    • 230 V - <1 A
  • Dimming compatibility: Forward and reverse phase (120/230 VAC versions)
• Thermal:
  • Ambient operating temp: 0°–40° C (32°–104° F)
  • Fan (controllable): No fan
  • BTUs/hour: 40.95 typical / 47.77 max
• Physical:
  • Materials: Die-cast aluminum (A380 grade)
  • Color options: Silver
  • Mounting options: Portable
  • IP rating:
    • IP20 for portable and canopy version
  • Weight:
    • Portable: 1.2 kg (2.6 lb)
