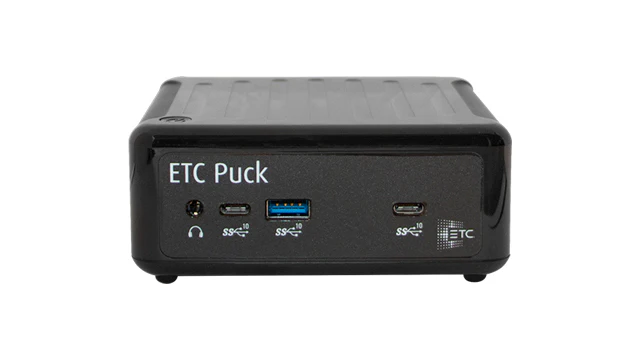

ETC Puck Eos Processor

The Eos Puck is a compact lighting processor and can be deployed as a redundant backup system to safeguard your main console, operated remotely for distributed control, or run as standalone for automated or extended productions.

The processor is available in 1K and 6K output configurations, it delivers at an accessible price point.

Specifications:

• Supports one external display port and one external HDMI monitors (1920x1080 minimum, 3840x2160 maximum), with optional singletouch or multi-touch screen control and DDC/IC support
• Solid-state hard drive
• Power input (100–240 VAC at 50/60 Hz), via included power supply and IEC NEMA 15 cord
• Two individually configurable Gigabit Ethernet ports, RJ-45 connectors
• One 802.11ax WiFi Ethernet adapter (to be enabled with future software)
• Bluetooth 5.0 for connecting input accessories (to be enabled with future software)

• sACN and Art-Net network output protocols
• USB 3.1 ports, for flash drives, pointing devices, keyboards (3 USB-A ports, 2 USB-C ports)
• One Kensington lock port
• Multiple MIDI and/or SMPTE timecode inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive, UDP transmit/receive through network interface or Response Gateways
• Power consumption approximately 1.6 A at 120 V or 230/240 V
• Ambient room temperature 0°C to 35°C (32°F to 95°F)
• Ambient humidity up to 90% non-condensing
