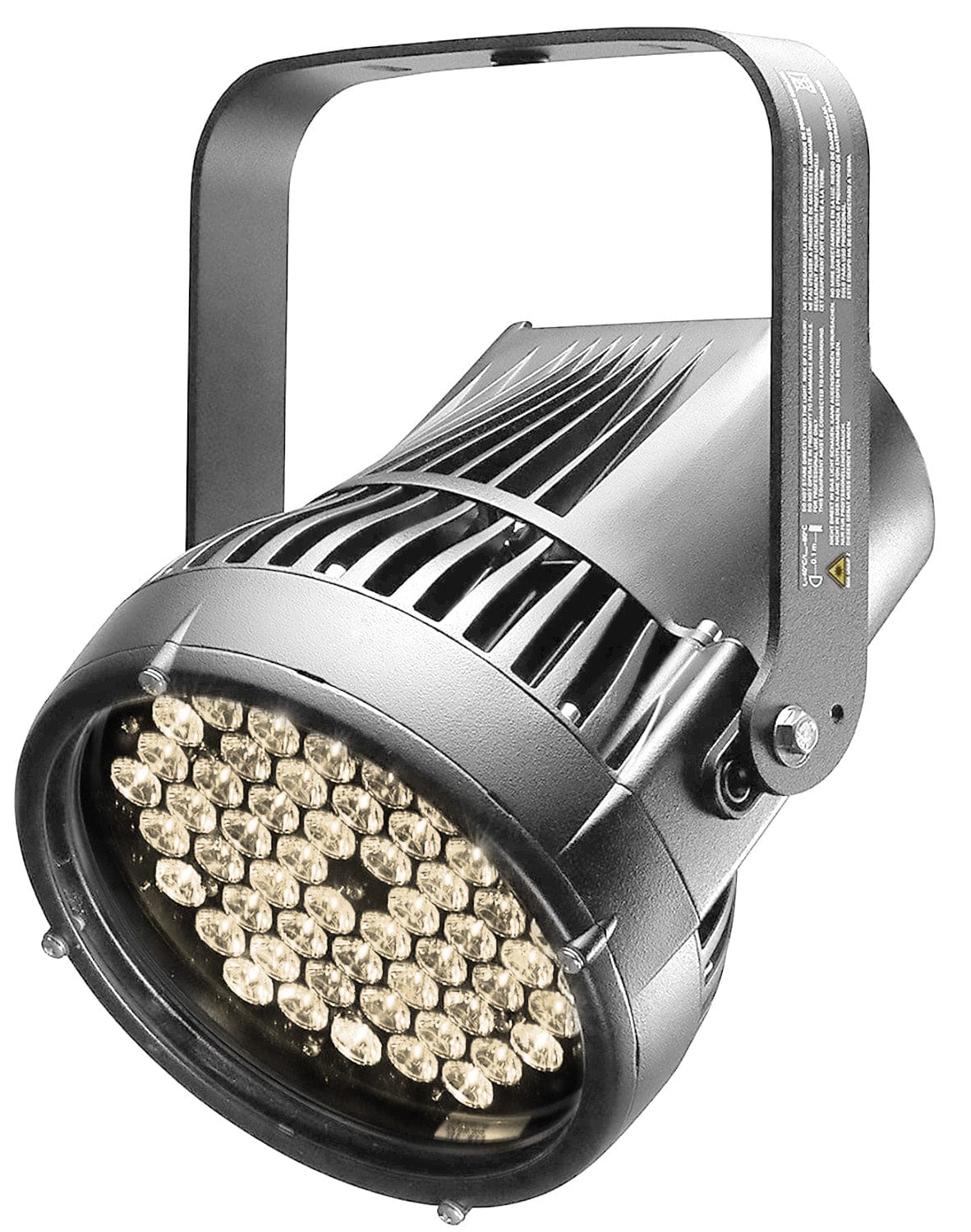

ETC Desire D60 Studio Daylight LED Par

The D60 Studio Daylight is ready for mounting inside or outside, wherever you need it.

The D60 Studio Daylight offers a rugged die-cast enclosure, noiseless fan-free operation and multiple lens options that can be changed on-site.

The D60 Studio Daylight contains sixty 5600 K LEDs for high-intensity, non-variable cool-white output.

The D60 is available in black, silver or white.

Specifications:

• Source:
  • LED details: LED details
  • Max lumens: Studio Daylight: 8,216
  • Lumens per watt: Studio Daylight: 55.3
  • L70 rating (hours to 70% output): 50,000 hours
• Colour:
  • Colours used: Studio Daylight: White
  • Colour temperature range: 2,700–6,500K
  • Calibrated array: Studio Daylight: No
• Optical:
  • Beam angle range: 8°–17°
  • Aperture size: 9 in
  • Pattern projection: No
  • Pattern size: N/A
  • Camera flicker control/Hz range: Yes: 900–25,000 Hz
  • Notes: Secondary lenses available for multiple beam-spread options
• Control:
  • Input method: DMX512 via termination board
  • Protocols: DMX512/RDM
  • RDM configuration: Yes
  • UI type: None (configure via RDM)
  • Local control: No
  • Onboard presets: Yes
  • Onboard sequences: No
  • Onboard effects: No
• Control:
  • Onboard sequences: Yes
  • Onboard effects: No
  • Fixture-to-fixture control: Yes
  • Notes: 15-bit virtual dimming engine
• Electrical:
  • Voltage range: 100 VAC–240 VAC 50/60 Hz
  • Input method: Waterproof, 39 in power lead Requires power from non-dim source
  • Inrush: 46 A at 120 V (First half-cycle) 77 A at 240 V (First half-cycle)
  • Fixtures per circuit(All measurements are for 120 V, 60 Hz. Results may vary in different regions.)- 10 (15 A may be fed on same circuit)
  • Wattage typical: 124
  • Current draw: 1 A
• Thermal:
  • Ambient operating temp: -20°–40° C (-4°–104° F)
  • Fan (controllable): No
  • Droop compensation: Yes
  • dB range: N/A
  • BTUs/hour: 423.088
• Physical:
  • Materials: Die-cast, all metal housing
  • Colour options: Black
  • IP rating: IP66 for exterior wet-location
  • Weight: 10.43 kg (23 lb)
  • Included accessories: Hanging yoke
• Warranty:
  • Fixture: 5 years
  • LED array: 10 years
• Regulatory and Compliance:
  • Approved regulatory standards:
    • cETLus Listed
    • Conforms to UL1598
    • Certified to CSA C22.2 No. 250.0
    • CE Compliant
