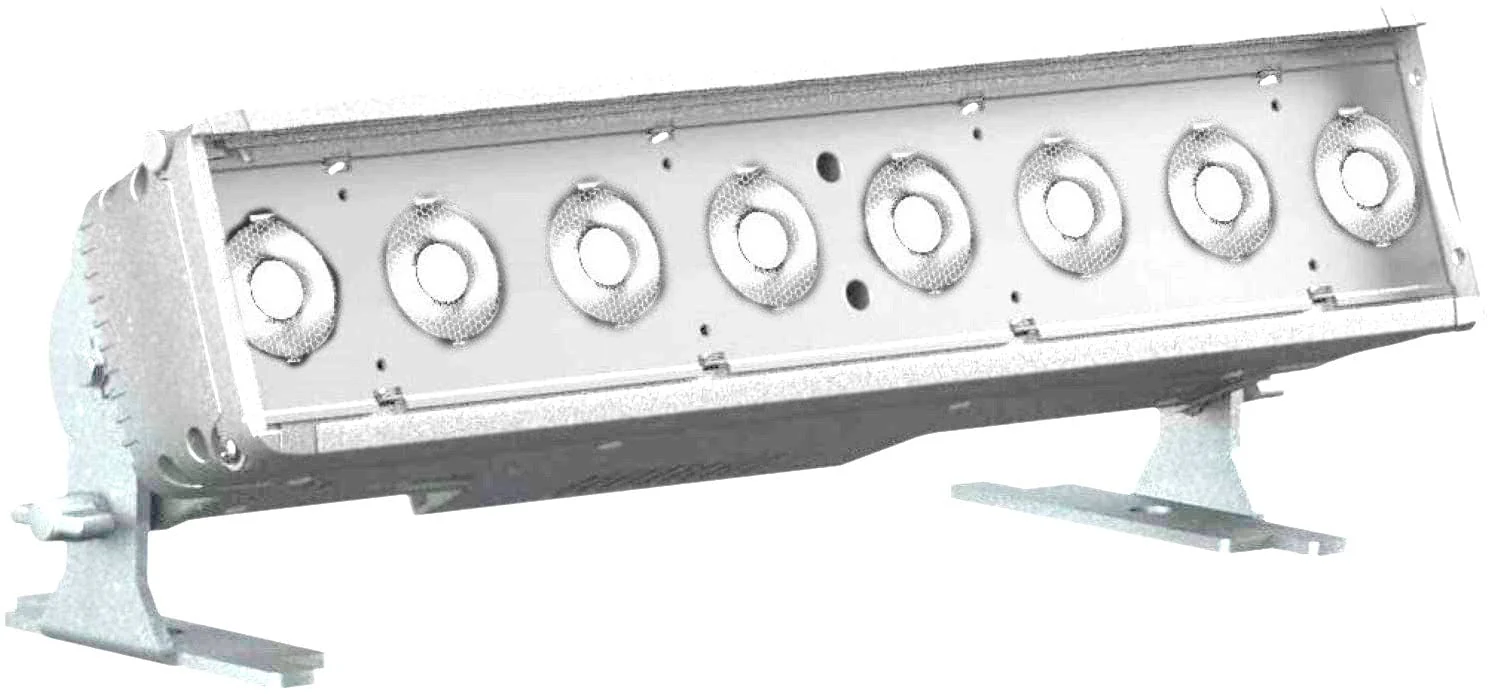

ETC ColourSource Linear 1

The ColourSource Linear 1 delivers lighting in a compact, intuitive package. Its four-color mixing system produces vibrant outputs and refined pastels with exceptional brightness.

The luminaire allows for flexible beam shaping offering dual diffuser options. Also, it offers a lifespan of 55,000-hours.

The ETC ColourSource Linear 1 is available with 5-pin DMX/XLR, in both Original, Deep Blue and Pearl arrays, and black, white or silver.

Features:

• Available in three lengths:
  • Linear 1 (0.5 meters) - one cell of control
  • Linear 2 (1 meter) - two cells of control
  • Linear 4 (2 meters) - four cells of control
• ETC’s RGB-L array (red, green, blue and lime): Also available in Deep Blue, which replaces the blue LEDs with indigo for rich, saturated blues and magentas
• Homogenized optics
• Simple user interface with seven-segment display
• powerCON® in and thru power connections
• DMX in and thru (5-pin XLR)
• RDM or local configuration
• LED droop compensation for consistent output
• Optically calibrated
• Tour-ready, aluminum housing

Specifications:

• Source:
  • LED details: 40 Lumileds LUXEON® Z LEDs (per segment)
  • Max lumens:
    • Linear 1: 3,039
    • Linear 1 DB: 2,978
  • Lumens per watt:
    • Linear 1: 28.1
    • Linear 1 DB: 27.6
  • L70 rating (hours to 70% output)*: 55,000 hours
• Colour:
  • Colours used:
    • Linear 1: Red, green, blue, lime
    • Linear 1 DB: Red, green, indigo, lime
  • Colour temperature range: Colour mixing fixture
  • Calibrated array: Yes
  • Red shift: No
• Optical:
  • Beam angle range: 15.6° (Secondary lenses available for multiple beam-spread options)
  • Gate size: N/A
  • Aperture size: 7.5 in / 190 mm
  • Pattern projection :No
  • Pattern size: N/A
  • Camera flicker control/Hz range: 1,200 Hz (default) and 25,000 Hz (via RDM)
• Control:
  • Input method: DMX512 via 5-pin XLR connector
  • Protocols: DMX512, RDM
  • Modes (footprint): 4 modes, see page 8
  • RDM configuration: Yes
  • UI type: Seven-segment, three-button interface
  • Local control: Yes
  • Onboard pre-sets: Yes (12)
  • Onboard sequences: Yes (5)
  • Onboard effects: No
  • Fixture-to-fixture control: Yes
  • Notes: 15-bit virtual dimming engine
• Physical:
  • Materials: Die-cast aluminium
  • Colour options: Black
  • Mounting options: Yoke (1 cell - optional), trunnions
  • IP rating: IP20
  • Weight: 2.9 / 9.12 / 17.01 kg (6.4 / 20.10 / 37.50 lb)
  • Included accessories: Power cable, trunnions
