Electro-Voice ELX215 Dual 15" Passive Speaker

This twin woofer configuration delivers real low-end punch — ideal for applications that demand high-volume output and an ultra-wide frequency response from a single cabinet.

• Designed for House of Worship, Pro Music, and other applications.

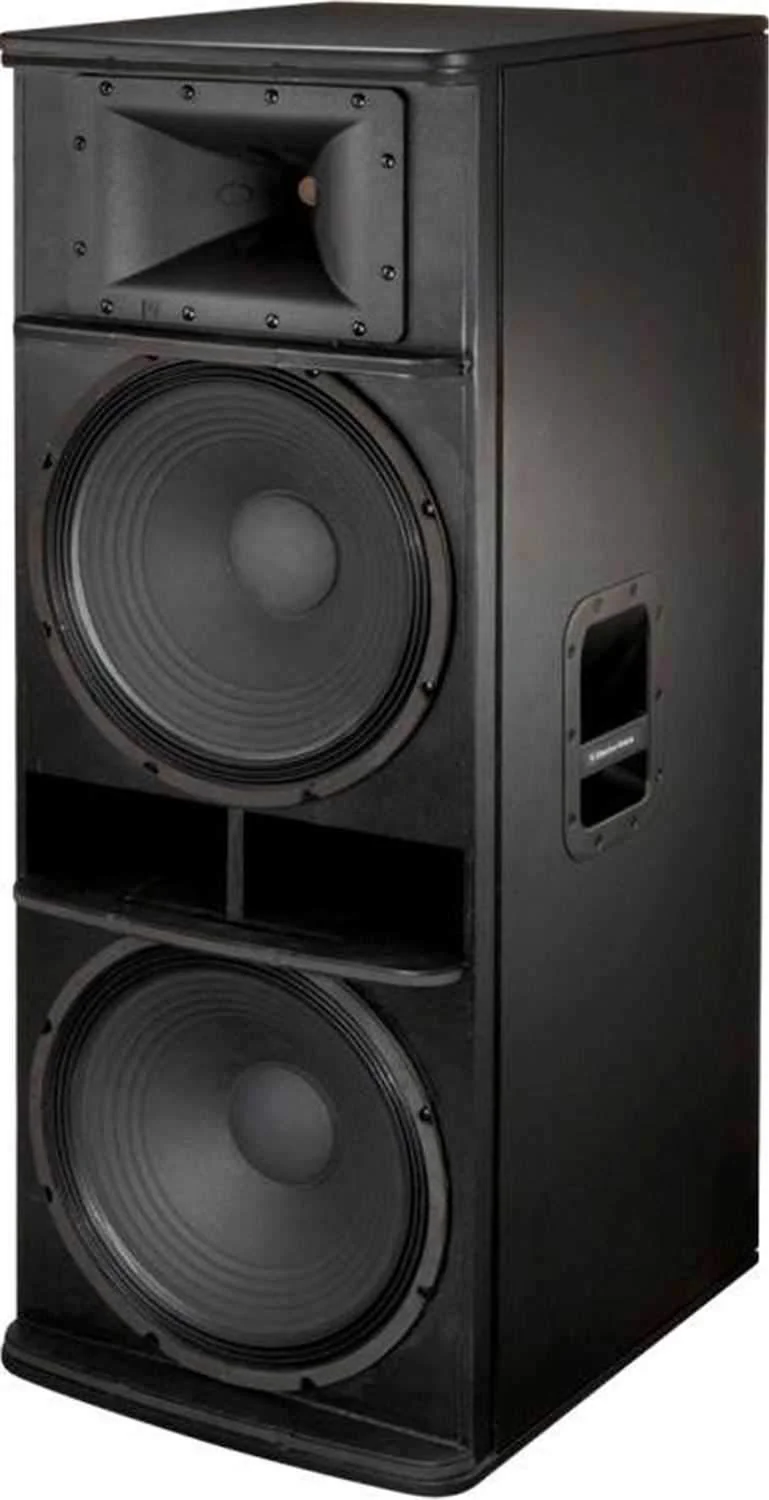

• Dual 15" woofers and a 1.5" high-frequency titanium compression driver
• 38 Hz – 20 kHz frequency range
• 96 dB SPL sensitivity; 137 dB max SPL
• 600 W continuous and 2400 W peak power handling
• Rugged wood cabinet creates serious stage presence

• Axial Sensitivity: 96 dB
• Case Material: 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
• Frequency Response (-3 dB): 62 Hz - 18 k Hz
• Frequency Response (-10 dB): 38 Hz - 20 k Hz
• Recommended High-Pass Frequency: 35 Hz
• Max. SPL/1m (calc)L: 137 dB
• Coverage: (Nominal -6 dB) H° 90 °
• Coverage: (Nominal -6 dB) V° 50 °
• LF Transducer: (2) EVS-15K, 381mm (15") Woofers
• HF Transducer: DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver
• Crossover Frequency: 1.7 k Hz
• Nominal Impedance (Passive): 4 Ohms
• Minimum Impedance: 3.7 Ohms

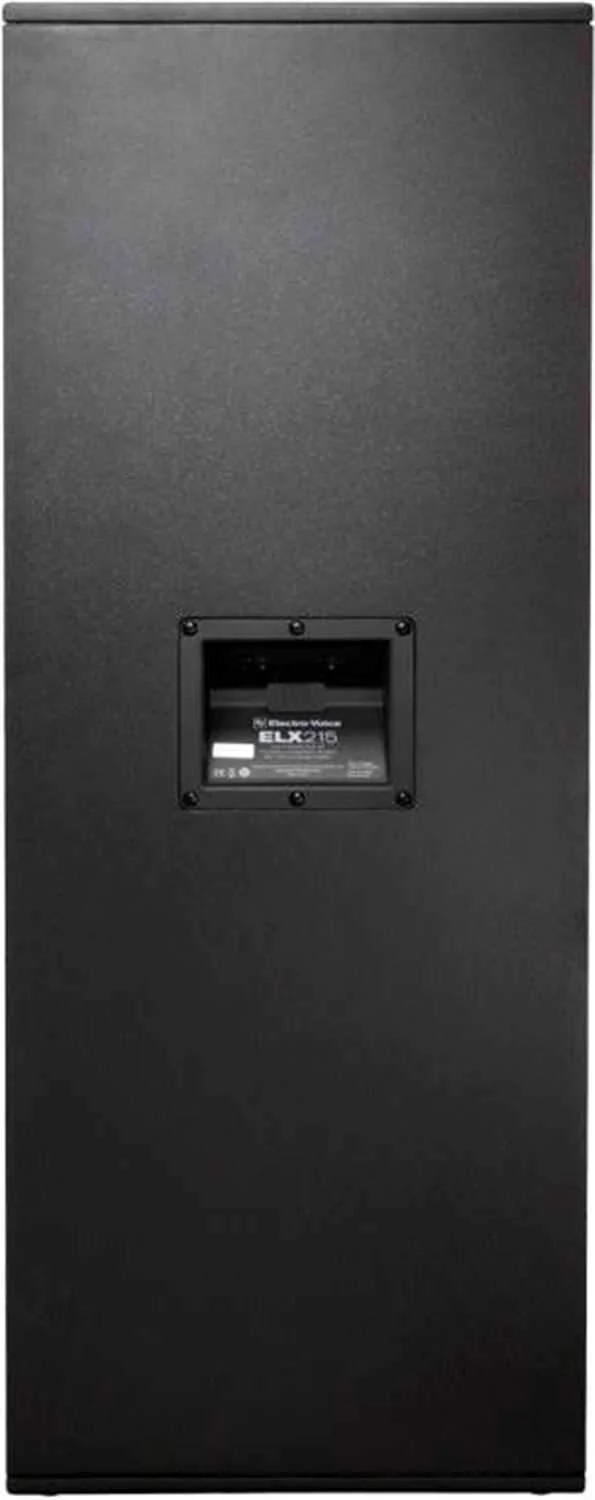

• Connector Type: Dual NL4

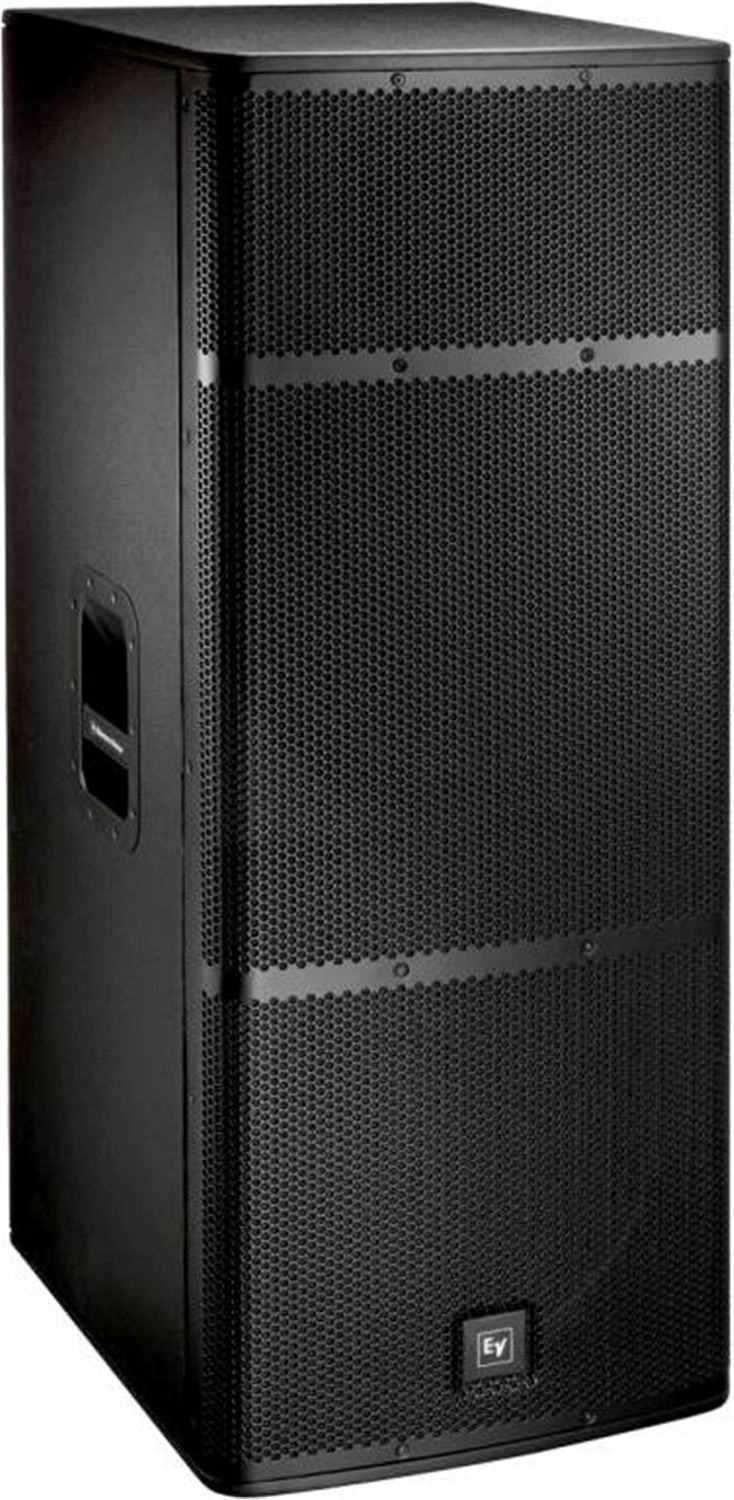

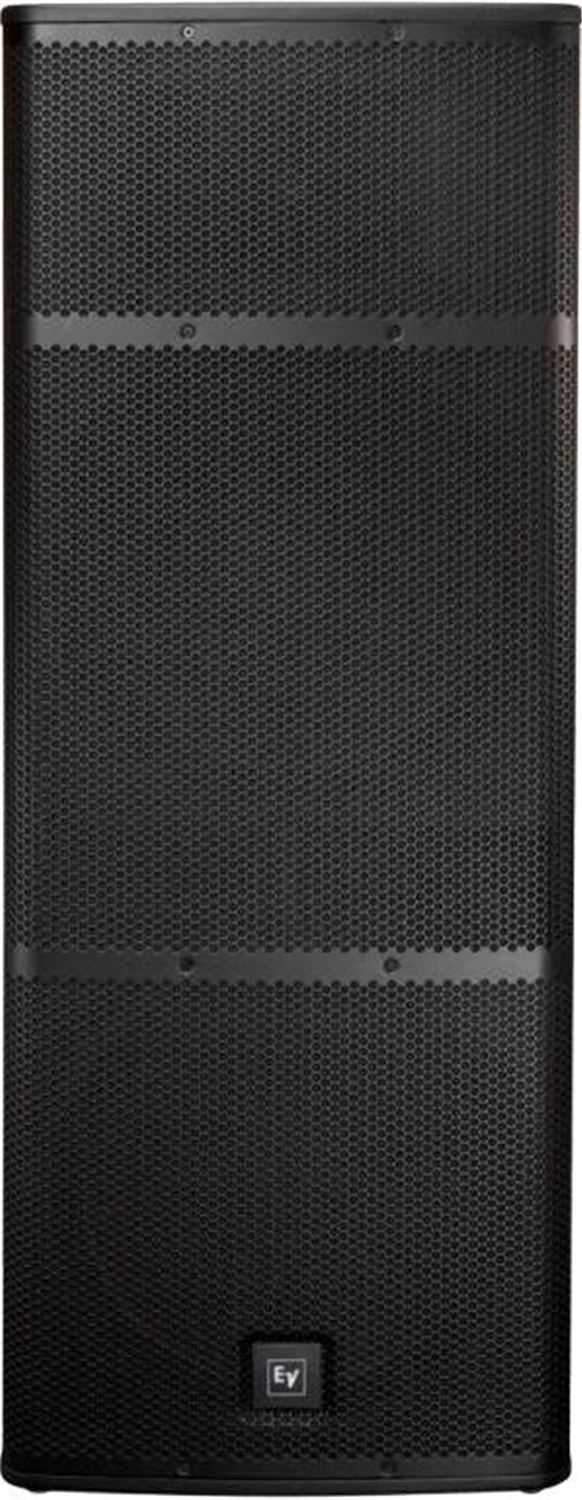

• Grill: 18GA Steel with Black Powdercoat
• Height: 1154 mm (45.43")
• Width: 432 mm (17.01")
• Depth: 501 mm (19.72")
• Weight Net: 44.1 kg (97.22 lbs)
• Shipping Weight: 52 kg (114.64 lbs)
