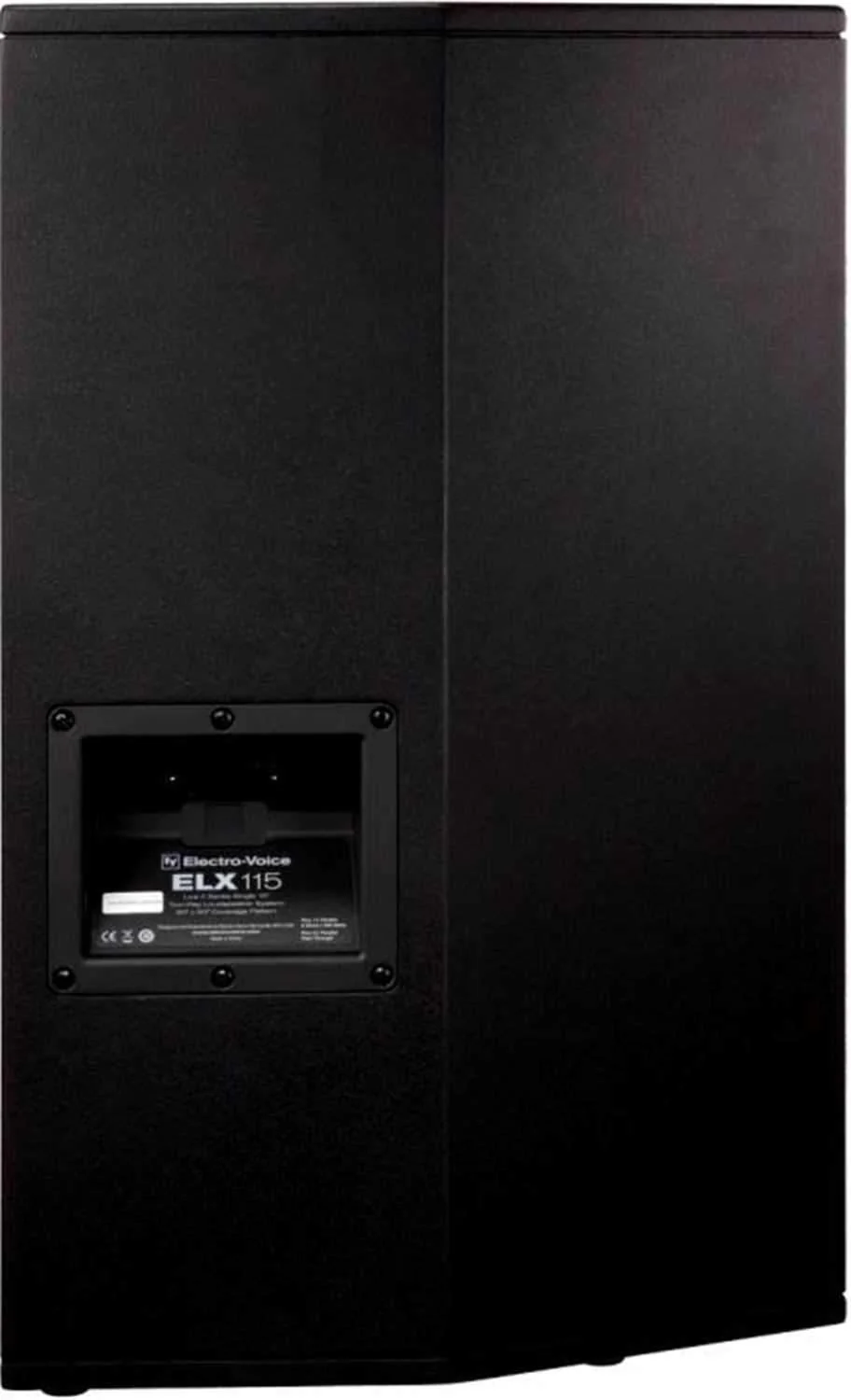

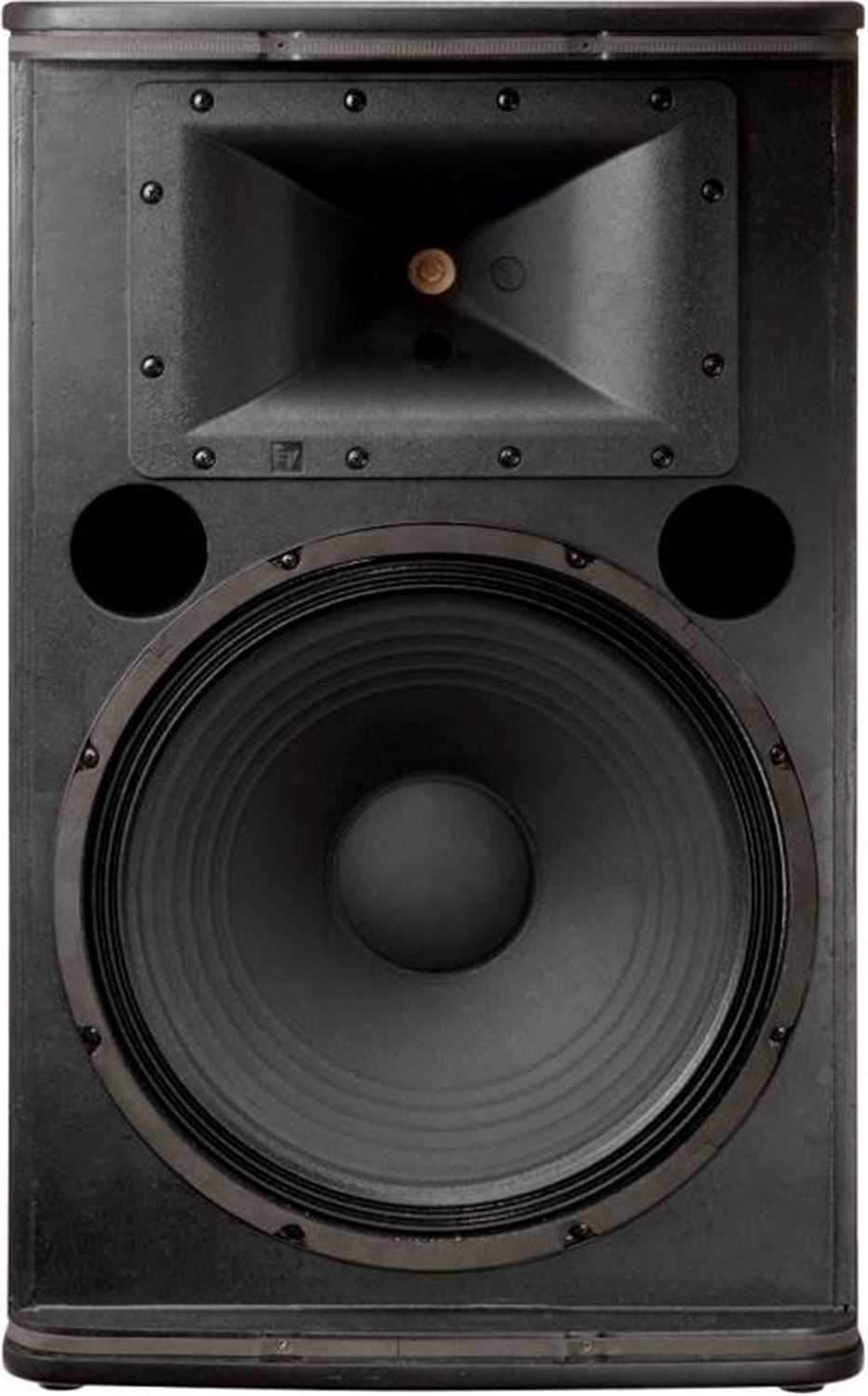

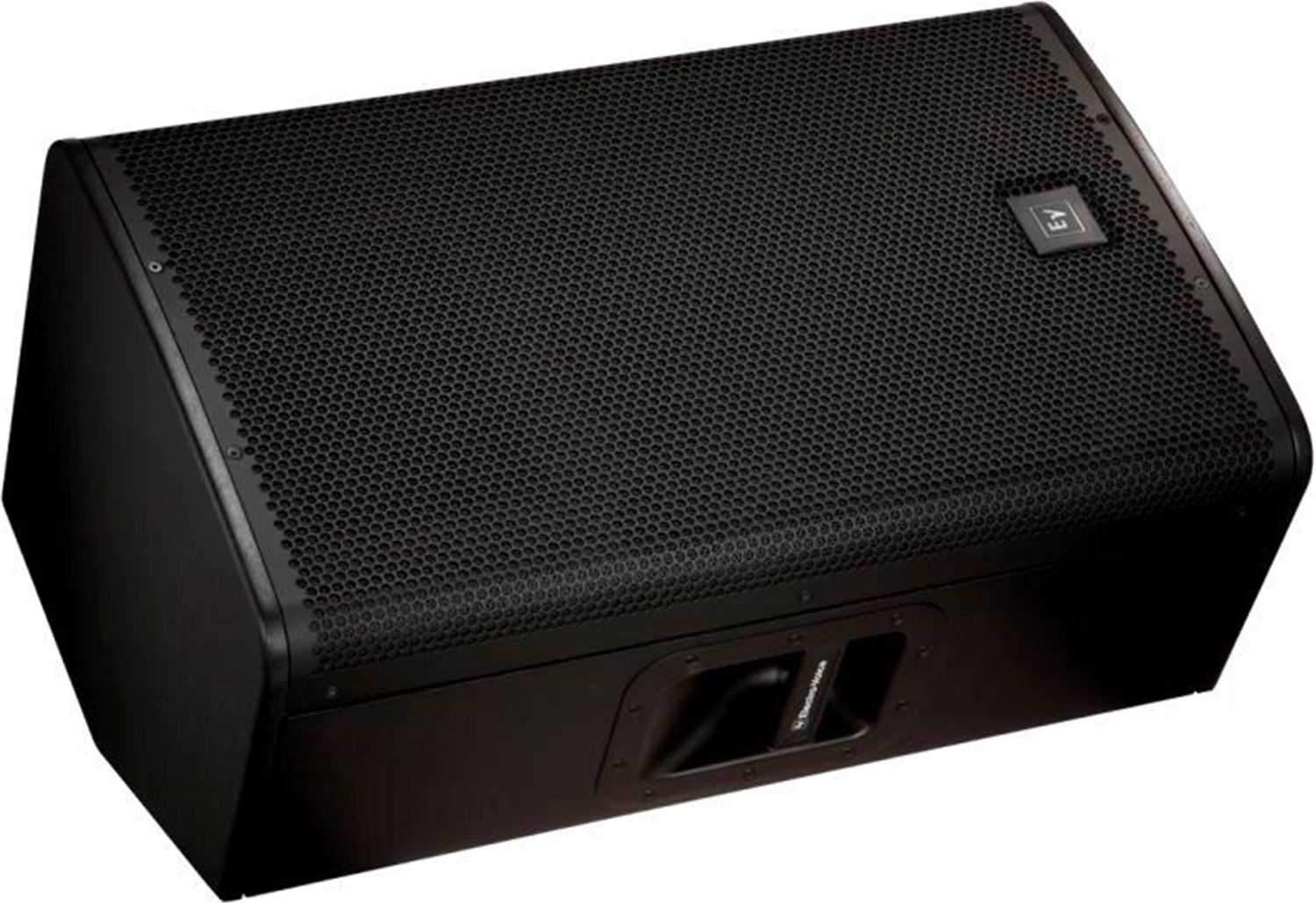

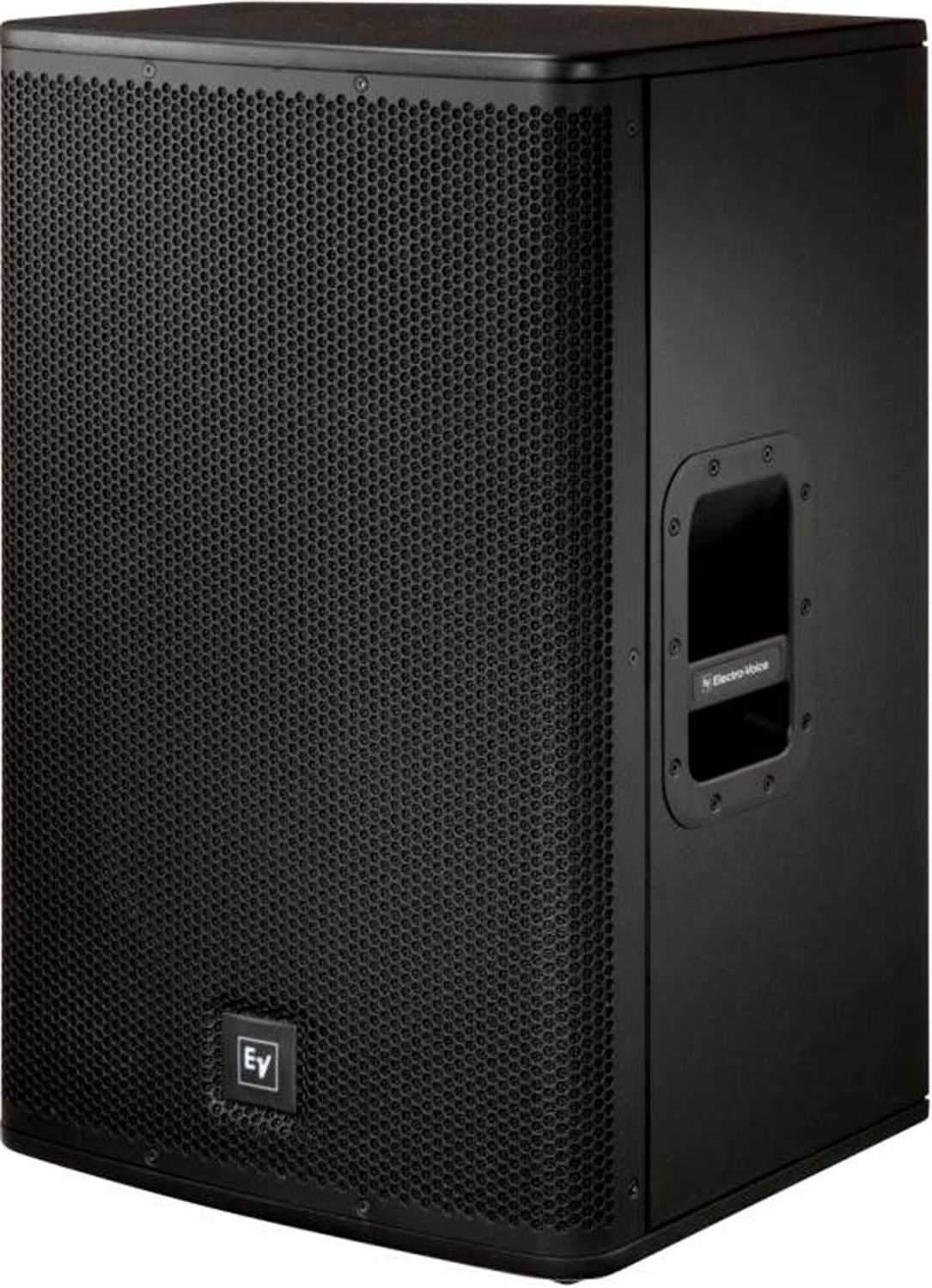

Electro-Voice ELX115 15" 2-Way Passive PA Speaker

A powerful step up from the ELX112, the ELX115 features a 15" woofer that delivers extended low-frequency response for bigger sound in larger rooms.

• Designed for House of Worship, Pro Music, and other applications.
• 15" woofer and 1.5" high-frequency titanium compression driver
• 50 Hz – 20 kHz frequency range 95 dB SPL sensitivity; 134 dB max SPL
• 400 W continuous and 1600 W peak power handling
• Rugged wood cabinet — pole-mounts or stacks with Live X Subwoofers

• Axial Sensitivity: 95 dB
• Case Material: 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
• Frequency Response (-3 dB): 75 Hz - 18 k Hz
• Frequency Response (-10 dB): 50 Hz - 20 k Hz
• Recommended High-Pass Frequency: 40 Hz
• Max. SPL/1m (calc): 134 dB
• Coverage: (Nominal -6 dB) H° 90 °
• Coverage: (Nominal -6 dB) V° 50 °
• LF Transducer: (1) EVS-15K, 381mm (15") Woofer
• HF Transducer: DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver
• Crossover Frequency: 1.7 k Hz
• Nominal Impedance (Passive): 8 Ohms
• Minimum Impedance: 7.4 Ohms
• Connector Type: Dual NL4
• Grill: 18GA Steel with Black Powdercoat
• Height:708 mm (27.87")
• Width: 432 mm (17.01")
• Depth: 382 mm (15.04")
• Weight Net: 23 kg (50.71 lbs)
• Shipping Weight: 27.8 kg (61.29 lbs)
