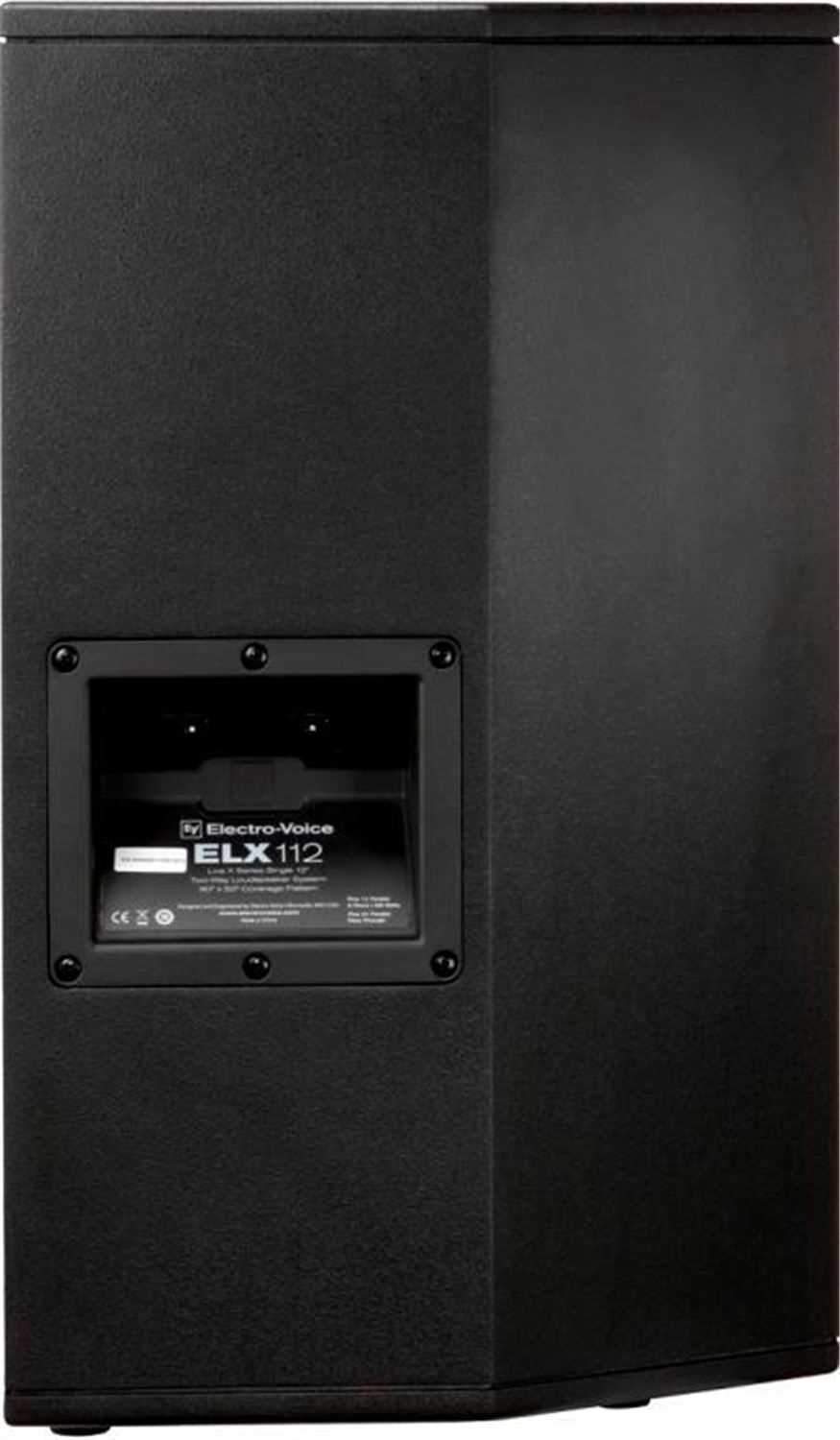

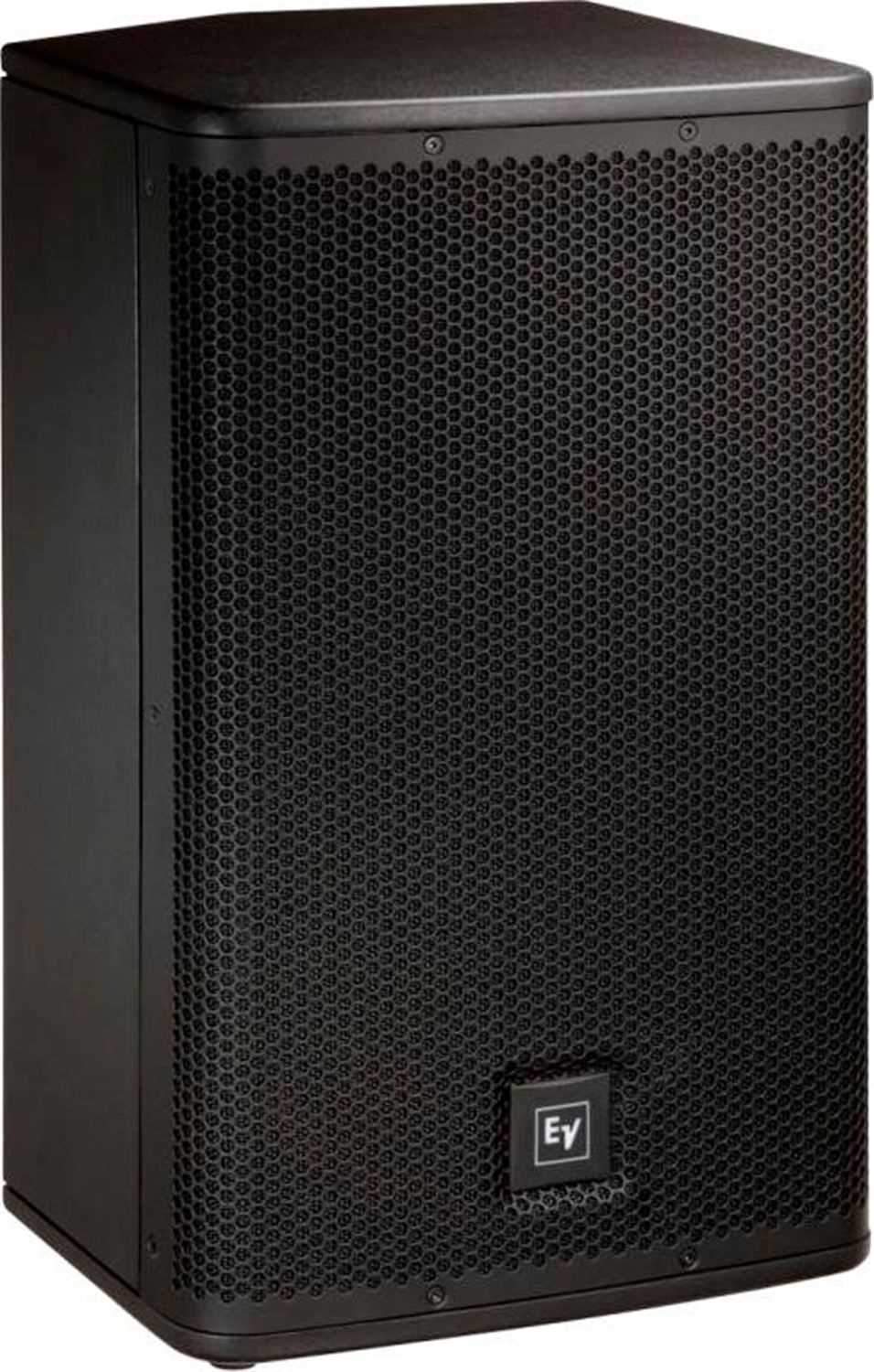

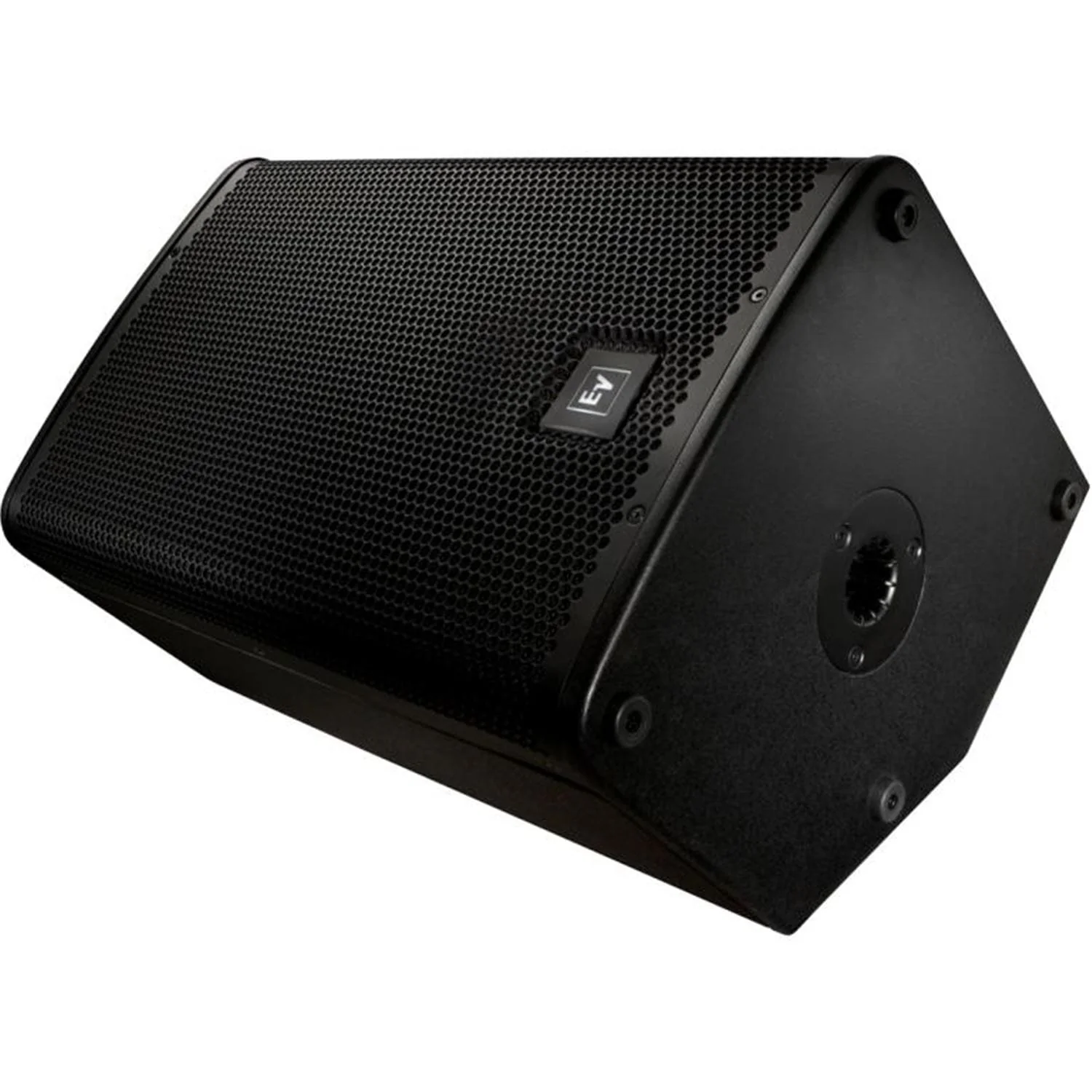

Electro-Voice ELX112 12-Inch Two-Way Passive Full-Range Speaker

The versatile ELX112 loudspeaker is a compact, powerful choice with real stage presence, for sound reinforcement and stage monitoring applications.

• Designed for House of Worship, Pro Music, and other applications.

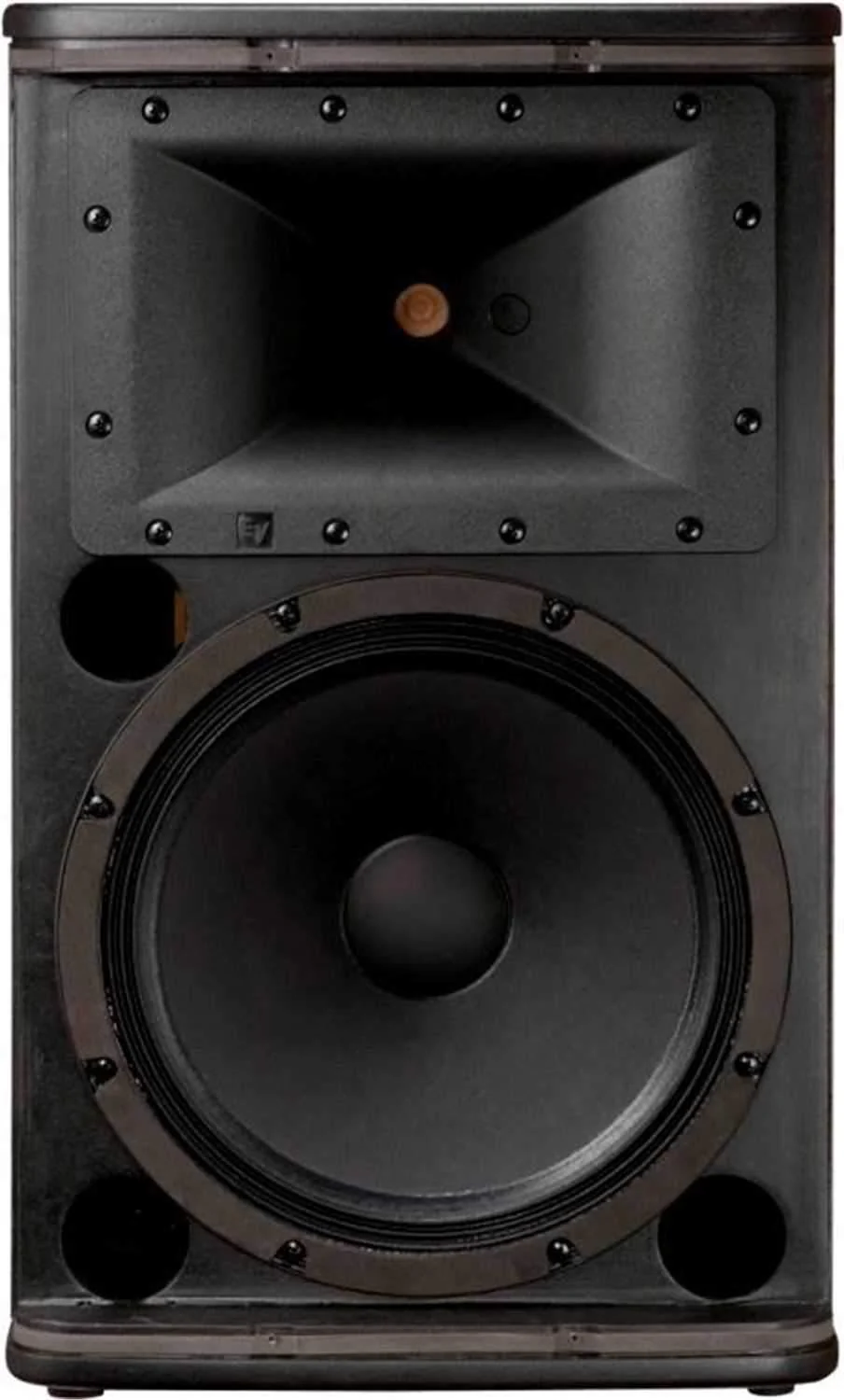

• 12" woofer and 1.5" high-frequency titanium compression driver
• 55 Hz – 20 kHz frequency range 94 dB SPL sensitivity; 132 dB max SPL
• 250 W continuous and 1000 W peak power handling
• Rugged wood cabinet — pole-mounts or stacks with Live X Subwoofers

• Axial Sensitivity: 94 dB
• Case Material: 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
• Frequency Response (-3 dB): 82 Hz - 18 k Hz
• Frequency Response (-10 dB): 55 Hz - 20 k Hz
• Recommended High-Pass Frequency: 45 Hz
• Max. SPL/1m (calc): 132 dB
• Coverage: (Nominal -6 dB) H° 90 °
• Coverage: (Nominal -6 dB) V° 50 °
• LF Transducer: (1) EVS-12K, 305mm (12") Woofer
• HF Transducer: DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver
• Crossover Frequency: 2.1 k Hz
• Nominal Impedance (Passive): 8 O
• Minimum Impedance: 7 O
• Connector Type: Dual NL4
• Grill: 18GA Steel with Black Powdercoat
• Height: 607 mm (23.9")
• Width: 362 mm (14.25")
• Depth:340 mm (13.39")
• Weight Net: 15.8 kg (34.83 lbs)
• Shipping Weight :20 kg (44.09 lbs)
