ELC Lighting DLN8GB 8 Port DMX to 2 Port Gigabit Node

DLN8GB – 8 Fully programmable DMX ports and a dual Gigabit port switch. Offers data splitting, merging, softpatching and backup when programmed using ELC’s dmXLAN software.

Features:

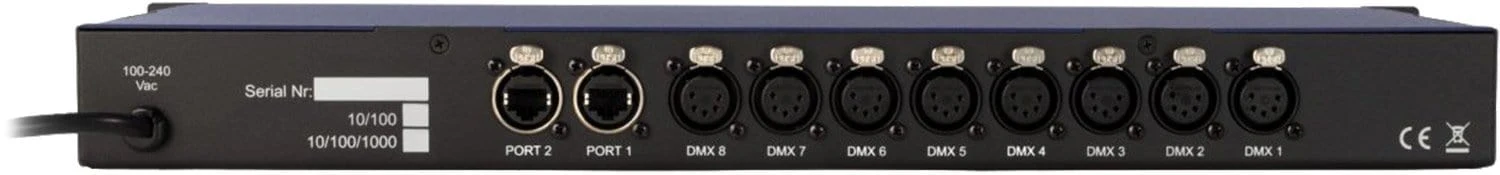

• 8 Bi-directional DMX ports on the rear panel, RDM compatible
• 2 Ethercon ports on the rear panel
• Supports sACN, Art-Net & Shownet
• Remote programming and monitoring and fixture parameter override
• DMX Input normal or backup
• DMX Output normal, HTP, Priority merging, Softpatch (channel by channel), programmable merging with DMX channel control
• Local control via backlit display, rotary encoder/selector pushbutton
• Support for WYSIWYG, ESP, Capture

Specifications:

• Power: 100-240 VAC 47-440 Hz 10VA max
• Dimensions 483 x 44 x 150 mm (19"1HE)
