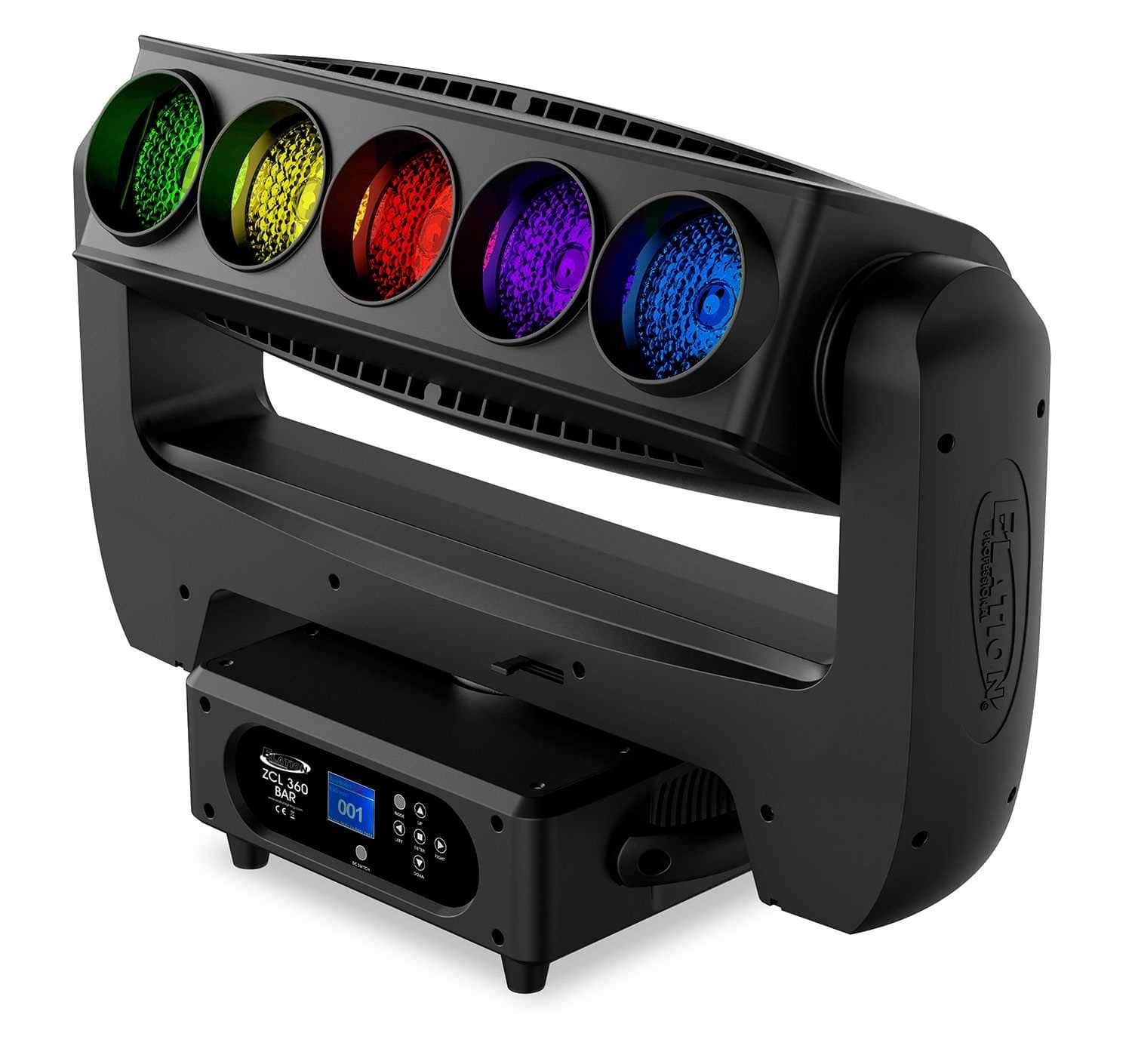

Elation ZCL 360 Bar 300W RGBW LED Moving Bar

The ZCL 360 BAR is a versatile moving bar effect luminaire with zoom featuring 5 individual 60W 4-in-1 RGBW LEDs and the new advanced collimator optic lens, which produces a laser-like homogenized 4° color-changing beam from each lens. Features 4° to 44° motorized zoom, pixel control, fast and precise 16-bit continuous full 360° pan and tilt rotation, strobe, and selectable dimming curve effects, DMX, RDM (Remote Device Management), KlingNET and Art-NET support 3/5pin XLR, RJ45 etherCON, and powerCON in/out connections, 7 button control full color 180° reversible menu display, multiple unit power linking, flicker free operation for TV and film, and a multi-voltage universal auto switching power supply (100-240v).

• Versatile multiple beam moving bar effect luminaire with zoom
• New advanced collimator lens
• 4° to 44° motorized zoom and pixel control
• 5 laser-like homogenized 4° color changing beams
• Fast and precise 16-bit continuous 360° pan/tilt rotation
• Flicker free operation for TV and Film

• Light source: 5 x 60-Watt 4-in-1 RGBW LED. 100,000 hour average led life
• Photometric data: 25,230 LUX 2,344 FC @9.8’ (3m) (4° min zoom) full on. 819 LUX 76 FC @9.8’ (3m) (44° max zoom) full oN
• RGBW color mixing
• Pixel control
• Beam zoom: 4° - 44°
• Electronic strobe and dimming
• Variable dimming curves
• 64 color presets and 14 unique program macros
• DMX channel modes: 37 total channels
• RDM (remote device management)
• 7 button touch control panel
• Full-color 180° reversible lcd menu display
• 8 / 16 bit resolution adjustable movement
• 3 and 5pin XLR DMX in/out
• RJ45 etherCON in/out (KlingNET / Art-NET)
• PowerCON power in/out
• Electrical: AC 100-240V - 50/60Hz
• Power consumption: 530W max
• Thermal: 5F to 113°F (-15°C to 45°C)
• Approvals/ratings: CE | RoHs | IP30
• Dimensions: 25.11" x 10.24" x 18.07" / 637.8mm x 260mm x 459mm (LxWxH)
• Weight: 53.0 lbs. / 24.0 kg
