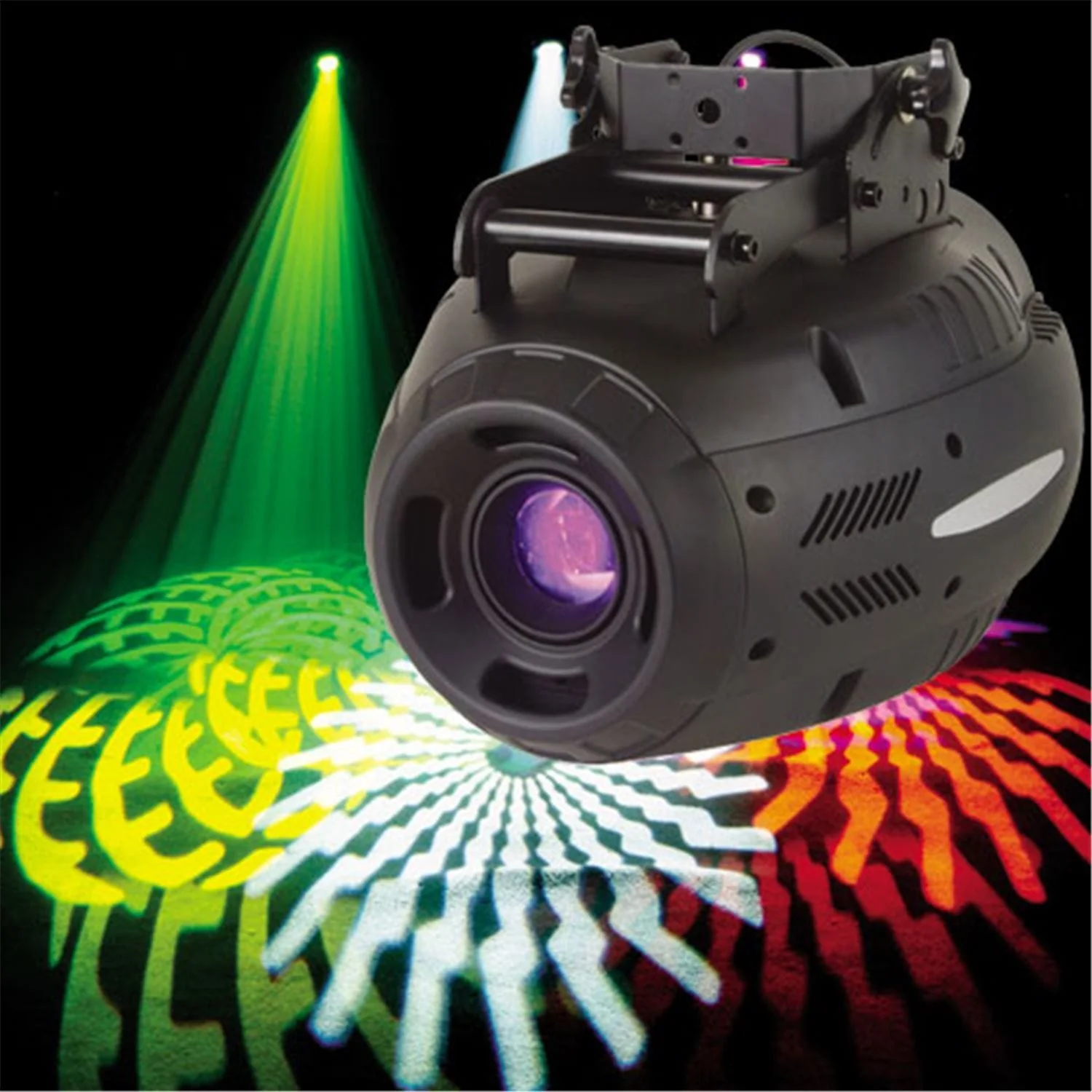

ELATION XCELON 575W DISCHARGE EFFECT FIXTURE

• RDMX Remote DMX Address
• USITT DMX-512
• 10 DMX Channels
• 4 Digit L.E.D. Display
• 3 pin XLR serial input/output
• Sound active mode

• High output luminous-parabolic dichroic reflector
• 19-degree Beam Angle
• Optional Beam Angles
• All lenses are anti-reflection coated

• 4 dichroic filters plus open
• Split and shared color combinations
• Continuous, variable speed, color scrolling in both directions (rainbow effect)
• More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel

• Variable speed strobe effect (1-10) Flashes per second
• Pre-set variable/random strobe and dimming pulse effect
• Dual Flag mechanical dimming system

• 3, 5, and 9 facet prisms rotating in both directions at variable speeds
• Macro-function for rotating gobos/rotating prisim combinations

• Motor driven remote focus from near to far

• Phillips MSR 575/2 (575W, 7200?K, 1000 Hrs.)

• 2 gobo wheels, 13 total gobos, 10 metal, 3 glass
• 6 interchangeable, indexable, rotating gobos plus open
• 7 interchangeable, indexable, static gobos plus open
• 26.9 mm outside diameter, 23mm image diameter
• Gobo overlay

• 1 x Heavy duty yoke
• 1 x Safety cable hole

• 8A or 4A Fuse
• Magnetic Ballast
• Voltage: AC 98, 120, 208, 220, 230, 240V 50/60zh
• Power Consumption: 800W

• 15?L x 11?W x 18?H
• 61.5 lbs.
