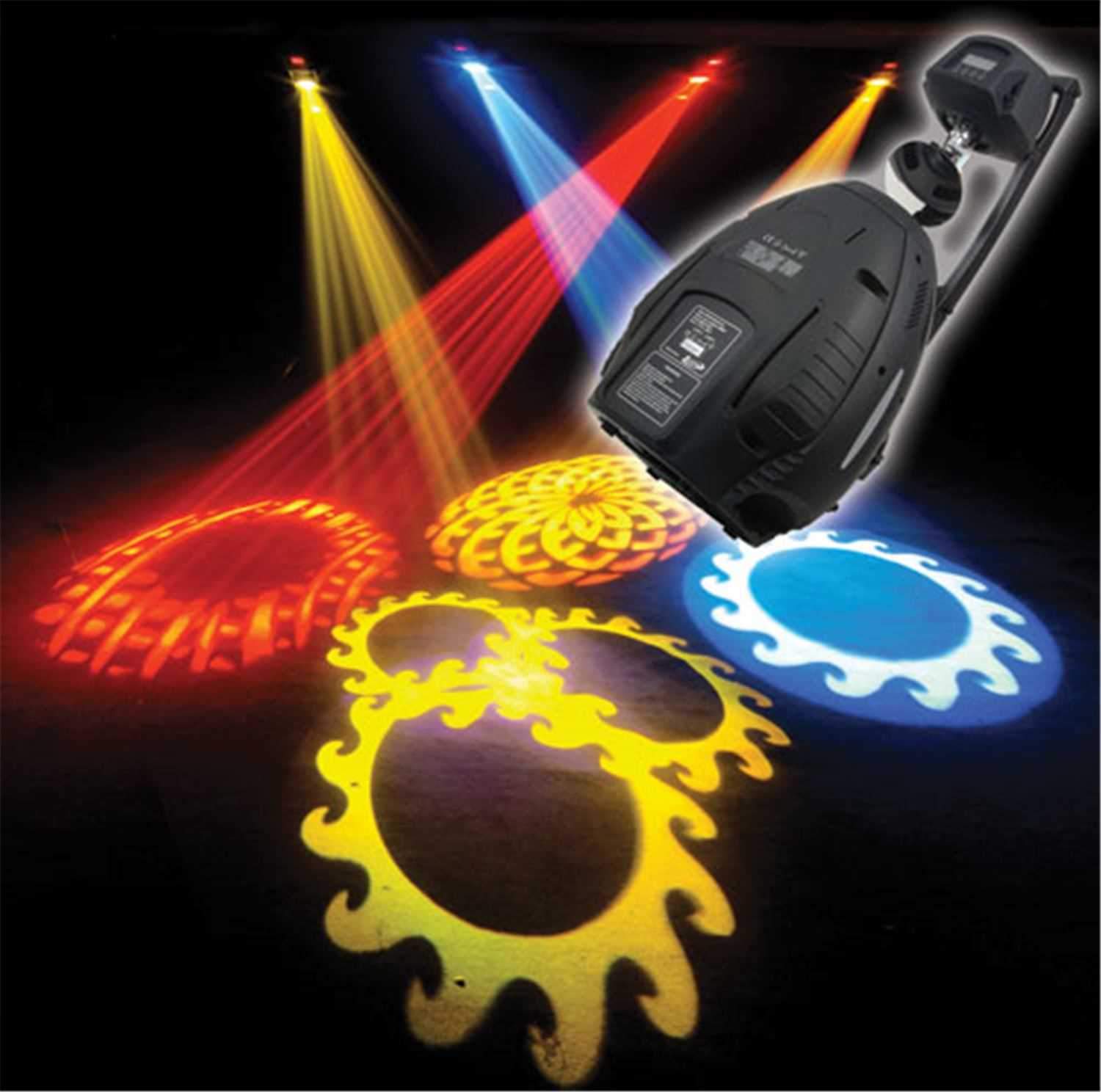

Elation VISION-SCAN-575 W DMX Scanner

Product image 1

Elation VISION-SCAN-575 W DMX Scanner

ELATION VISION SCAN 575 W DMX SCANNER



Control Features:
  • USITT DMX-512 (16-bit resolution)
  • Pan 170?/Tilt 80?
  • 16 DMX channels
  • 4 Digit L.E.D. Display
  • 3 pin XLR serial input/output

Optical System:
  • Remote Focus via DMX
  • High Output Luminous-Parabolic dichroic reflector

Beam Feature:
  • 20?, 22? & 24? Beam Angle

Color Features:
  • 8 Colors + White
  • UV filter
  • Color Scroll
  • Split Colors

Gobo Features:
  • 16 Gobos on 2 wheels
  • Convenient Slot-Lock gobo replacement system
  • Gobo Shake Effect
  • Gobo Scroll
  • Wheel 1: 6 interchangeable Rotating/Indexing Gobos, 3 Lithographic, 1 Glass, 3 Metal
  • Wheel 2: 7 interchangeable Static Metal gobos
  • Gobo Size Wheel 1: 22mm x 23mm viewing x 4mm thickness
  • Gobo Size wheel 2: 22mm x 23mm viewing metal only

Effect Features:
  • 3-facet prism rotating in both directions at variable speeds
  • Gobo Overlaying

Shutter/Dimmer Features:
  • Mechanical Dimming 0-100%
  • Mechanical High Speed shutter & Pulse Effect

Special DMX-Control Features:
  • 16 pan/tilt preprogrammed movements via DMX
  • Built-in Programs via DMX
  • Pan/Tilt/Gobo/Color & Prism set to Sound Active mode via DMX

Stand-Alone Features:
  • Sound activated built in programs
  • Sensitivity knob
  • Linkable up to 16 units
  • Self Test & Stand Alone settings
  • Built-in Microphone with sensitivity knob

Technical Features:
  • Lamp: Phillips MSR-575/2 (575W, 7200?K, 1000hrs)
  • Size: 13.75? x 15.5?W x 30.5?H
  • Weight: 65lbs
  • Fuse: 10A
  • Voltage: 120V/220v (50/60Hz)
  • Power Consumption: 700VA
  • Fan cooled 1 axial fan
$660.00

Original: $2,199.99

-70%
Elation VISION-SCAN-575 W DMX Scanner—

$2,199.99

$660.00

Product Information

Shipping & Returns

Description

ELATION VISION SCAN 575 W DMX SCANNER



Control Features:
  • USITT DMX-512 (16-bit resolution)
  • Pan 170?/Tilt 80?
  • 16 DMX channels
  • 4 Digit L.E.D. Display
  • 3 pin XLR serial input/output

Optical System:
  • Remote Focus via DMX
  • High Output Luminous-Parabolic dichroic reflector

Beam Feature:
  • 20?, 22? & 24? Beam Angle

Color Features:
  • 8 Colors + White
  • UV filter
  • Color Scroll
  • Split Colors

Gobo Features:
  • 16 Gobos on 2 wheels
  • Convenient Slot-Lock gobo replacement system
  • Gobo Shake Effect
  • Gobo Scroll
  • Wheel 1: 6 interchangeable Rotating/Indexing Gobos, 3 Lithographic, 1 Glass, 3 Metal
  • Wheel 2: 7 interchangeable Static Metal gobos
  • Gobo Size Wheel 1: 22mm x 23mm viewing x 4mm thickness
  • Gobo Size wheel 2: 22mm x 23mm viewing metal only

Effect Features:
  • 3-facet prism rotating in both directions at variable speeds
  • Gobo Overlaying

Shutter/Dimmer Features:
  • Mechanical Dimming 0-100%
  • Mechanical High Speed shutter & Pulse Effect

Special DMX-Control Features:
  • 16 pan/tilt preprogrammed movements via DMX
  • Built-in Programs via DMX
  • Pan/Tilt/Gobo/Color & Prism set to Sound Active mode via DMX

Stand-Alone Features:
  • Sound activated built in programs
  • Sensitivity knob
  • Linkable up to 16 units
  • Self Test & Stand Alone settings
  • Built-in Microphone with sensitivity knob

Technical Features:
  • Lamp: Phillips MSR-575/2 (575W, 7200?K, 1000hrs)
  • Size: 13.75? x 15.5?W x 30.5?H
  • Weight: 65lbs
  • Fuse: 10A
  • Voltage: 120V/220v (50/60Hz)
  • Power Consumption: 700VA
  • Fan cooled 1 axial fan
