Elation TVL1000 II High CRI WW/CW White Light LED

The new improved TVL1000 II features a low heat, >90CRI, dynamic LED array panel consisting of 200 warm white and 200 cool white LEDs, 30° beam angle, variable manual and DMX controlled color temperature and dimming, adjustable barn doors, magnetic gel/diffuser holder, flicker free operation for broadcast TV and film, 3 and 5 pin DMX in/out and linkable power in/out connections, 4 button 2 dial LCD display control panel, 68W max power consumption, a multi-voltage universal auto switching power supply (100-240v), and an optional battery is available.

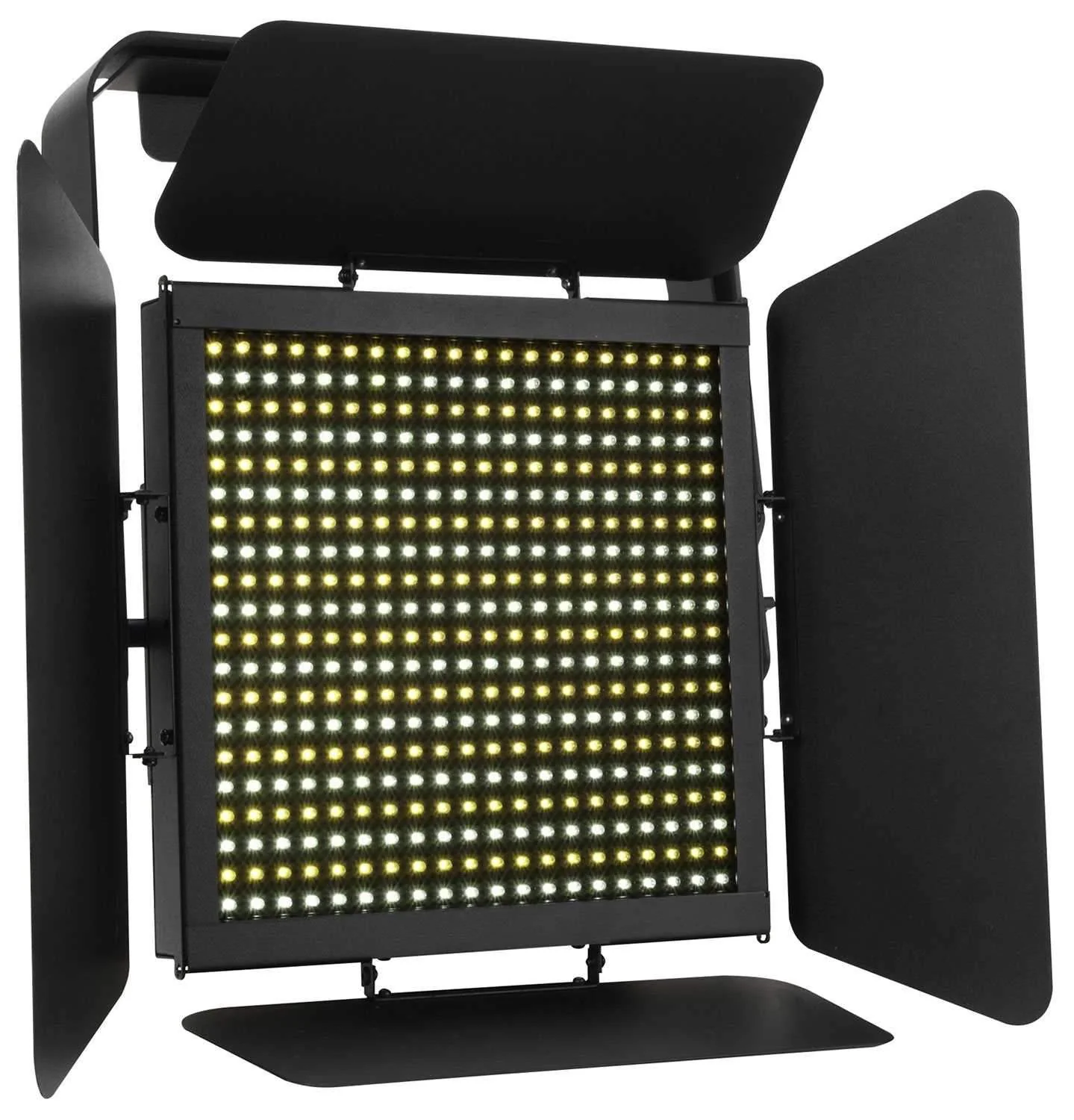

• Low heat, >90CRI dynamic LED array panel
• Beam angle: 30°
• Variable color temperature settings: 3,200K - 6,500K
• Adjustable barn doors
• Magnetic gel/diffuser holder
• Manual and DMX controlled color temp and dimming
• Flicker free operation for broadcast TV and Film
• Multiple unit power linking

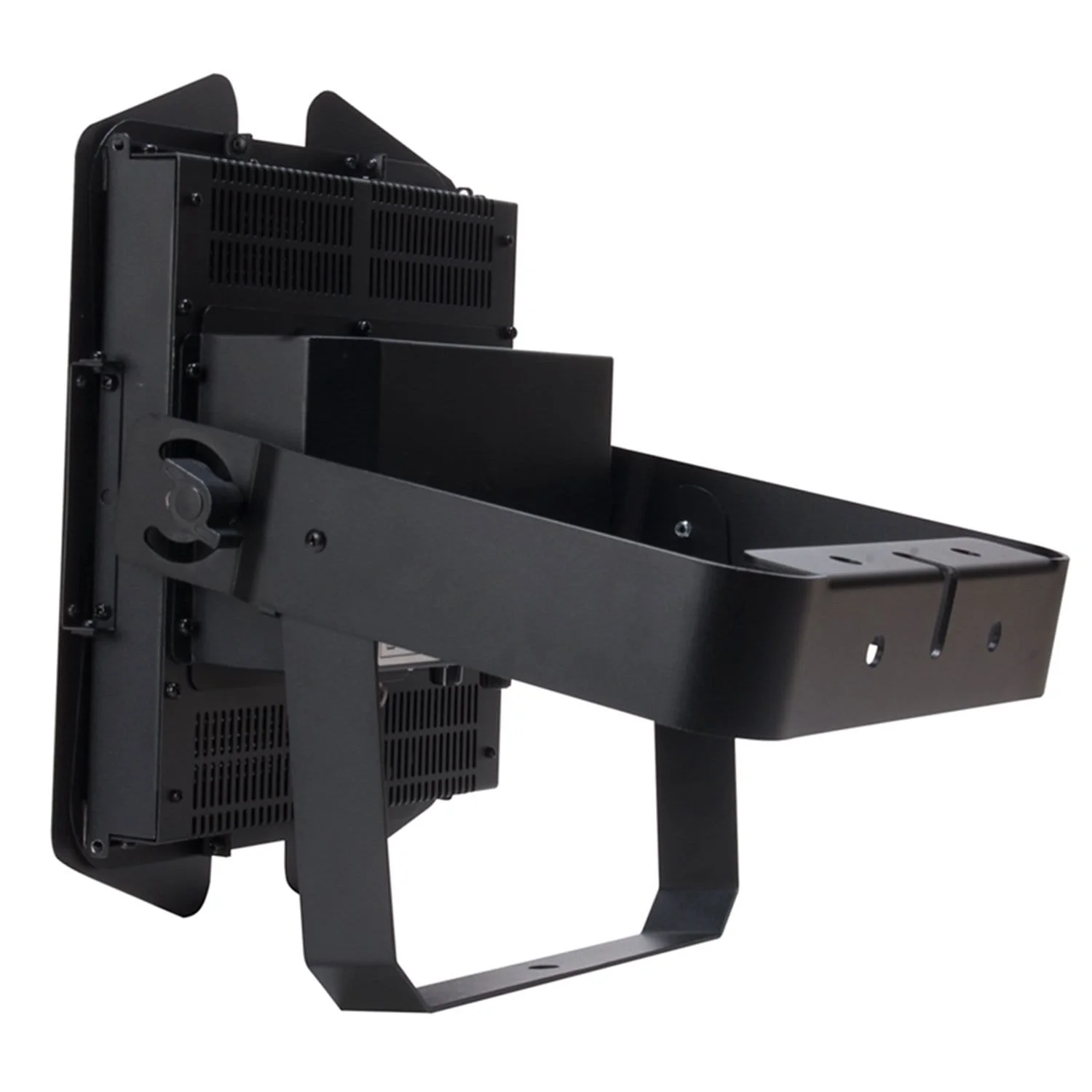

• Includes: 90° dual /yoke bracket and power cable

• Light source: 200 warm white + 200 cool white LEDs
• Photometric data: 340 LUX 32 FC @6.6’ (2M) (30° warm white 3,200K);420 LUX 39 FC @6.6’ (2M) (30° cool white 6,500K); 600 LUX 56 FC @ 6.6’ (2M) (30° full on 4,500-5,000K)
• Light effects: variable color temperature 3,200K - 6,500K
• Electronic dimming: 0% - 100%
• DMX channel modes: 2, 2, and 3-channels
• Manual and DMX color temperature and dimming

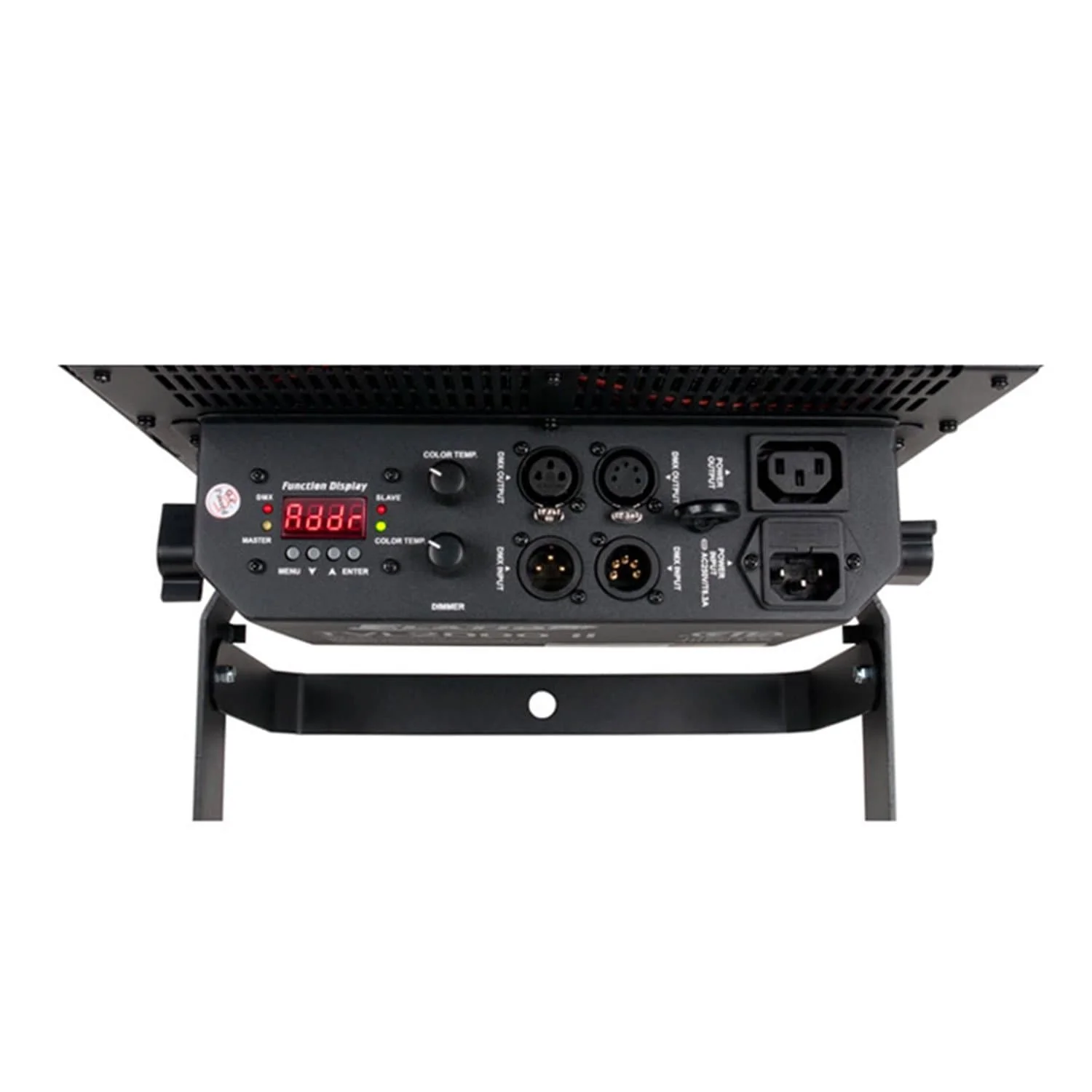

• 4 button and 2 dial control panel
• LCD menu display
• DMX connections: 3 and 5-pin in/out
• Power link up to 5 units
• Electrical: AC 100-240V - 50/60Hz; 68W max power consumption
• Thermal: 40°C max ambient temperature
• Approvals/ratings: CE | cETLus | RoHs | IP20
• Dimensions: 15.9" x 13.7" x 4.4" / 406mm x 350mm x 113mm)
• Weight: 13.6 lbs. / 6.2 kg
