Elation SHOW-DESIGNER 2 CF DMX Lighting Controller

Product image 1
1 / 4

Elation SHOW-DESIGNER 2 CF DMX Lighting Controller

Our prices are lower than we are allowed to advertise, please call or email us for pricing

ELATION SHOW DESIGNER 2 FC LIGHTING CONTROLLER


MAIN CONTROL FEATURES
  • 2 Universe Outputs
  • 1024 Total DMX Channels
  • Large Fixture Library
  • Effects Engine
  • 1152 Programmable Chases
  • 4752 Programmable Scenes
  • 1152 Programmable Shows
  • 1152 Programmable Presets
  • Control 48 moving light fixtures of up to 32 channels each
  • 48 Fixture groups
  • 8 faders allow control of 32 DMX fixture channels or as 32 scene masters
  • Scene Preview with "Go" feature
  • Factory ready Color, Gobo, Focus & Effects Presets!
  • Easily Name Scenes, Chases or Shows using Standard Computer KEY BOARD!

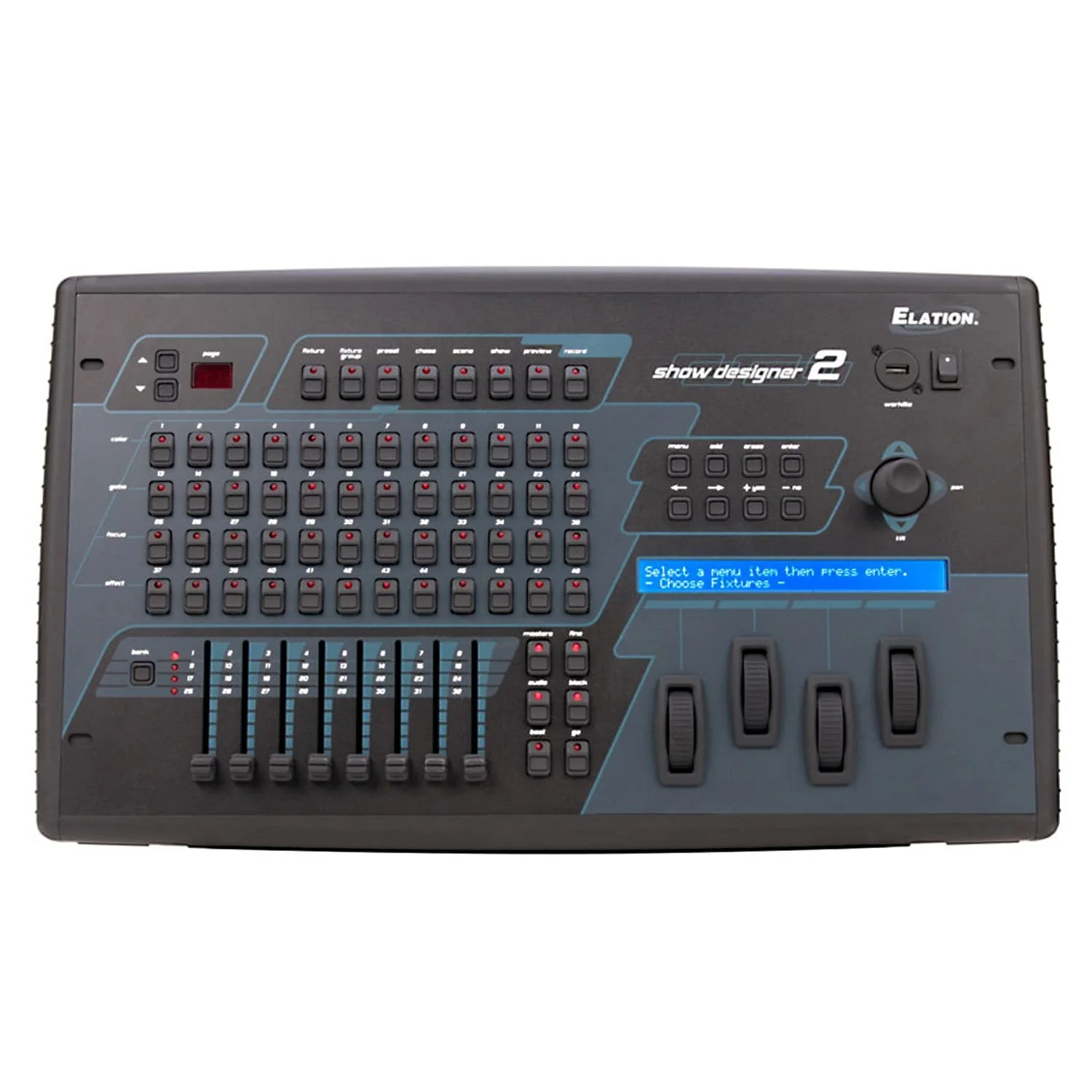

FRONT PANEL CONTROL OPTIONS
  • 80 Character backlit LCD Display for easy programming
  • 48 Multi function buttons
  • JOYSTICK for Pan/Tilt Operation
  • 4 Large Rotary wheels for Menu and Control
  • 8 Faders x 4 Banks
  • XLR Little Light Connector
  • ON/OFF power switch

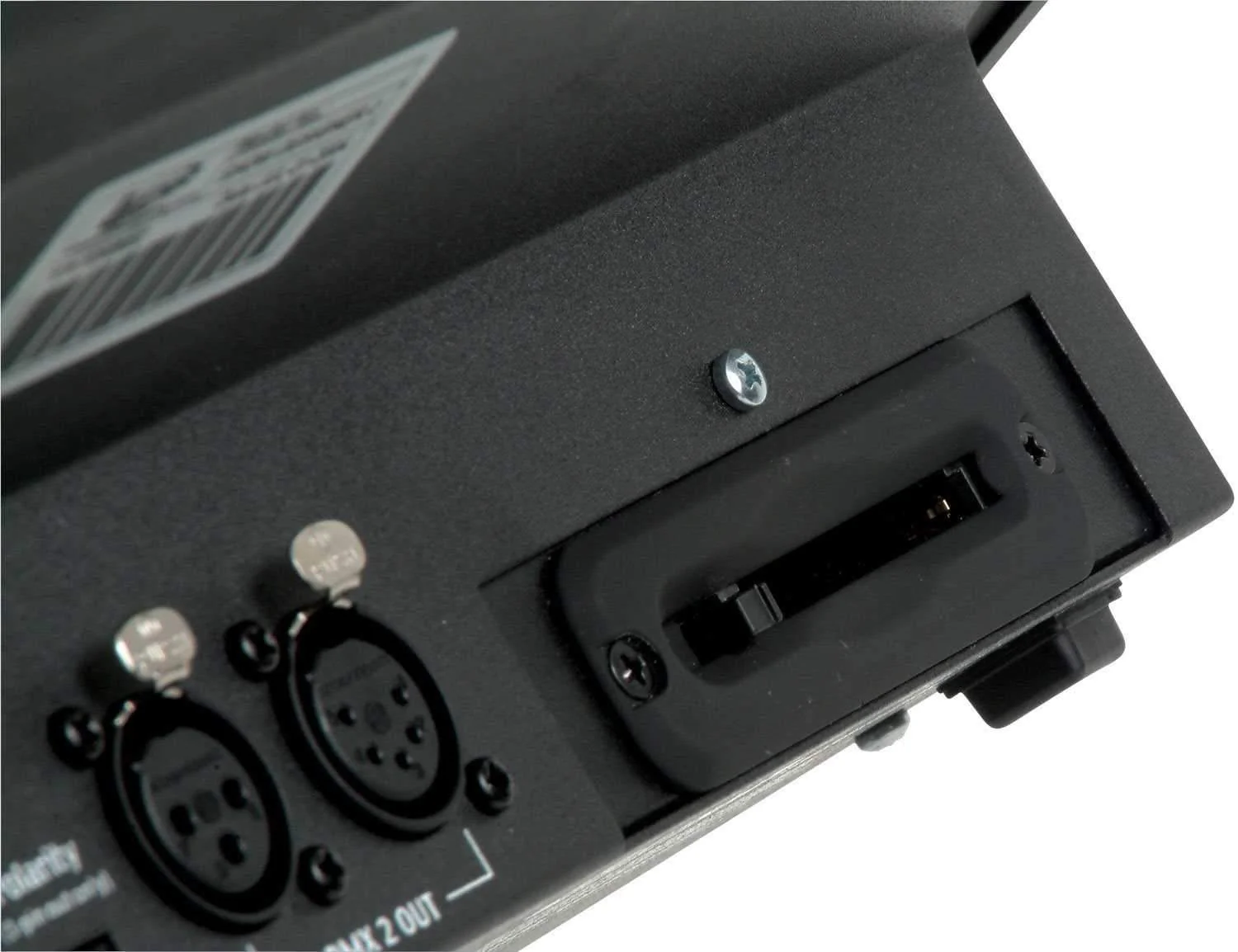

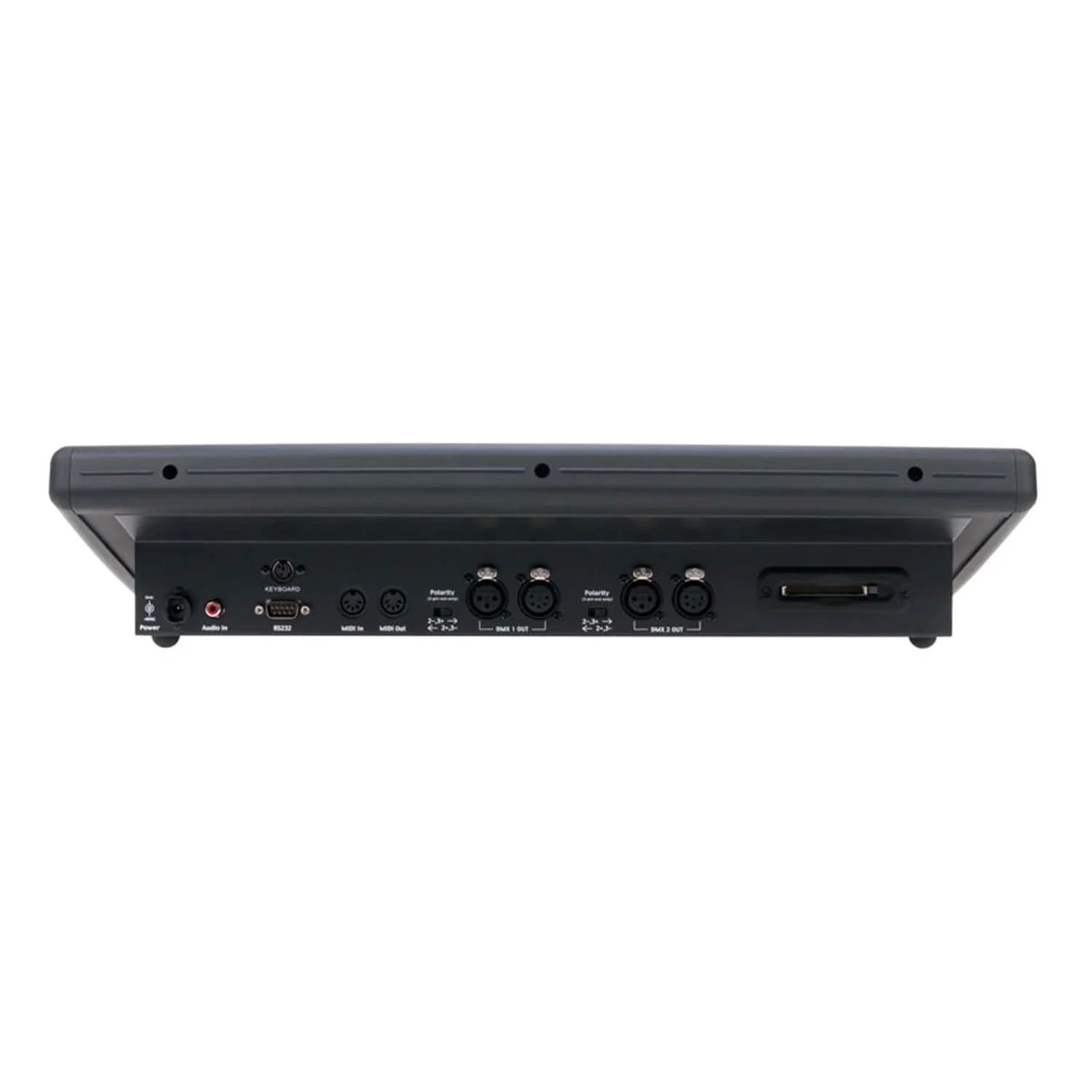

REAR PANEL CONTROL OPTIONS
  • 2x(3Pin) DMX Outputs
  • 2x(5Pin) DMX Outputs
  • Midi-In port
  • Midi-Out port
  • Compact Flash Drive (compatible with most standard Compact Flash Cards; For optimal results Elation Professional? recommends 64MB SanDisk or 64MB Cannon Compact Flash Cards only
  • KEY BOARD Input
  • RS-232 Port, for PC interface
  • 2 x Polarity Switch per Output
  • RCA Audio Input for Chases

SPECIFICATIONS
  • Polarity switch (2-,3+/2+,3-) 3 Pin XLR only
  • 1MB internal memory
  • Battery Back up
  • 19" Rack mountable, 6 space
  • Size: 19" x 10.5" x 4"
  • Weight: 10 lbs
  • Voltage: 120V/220V via (Power Supply)9-12v DC/1200ma
$360.00

Original: $1,200.00

-70%
Elation SHOW-DESIGNER 2 CF DMX Lighting Controller—

$1,200.00

$360.00

Product Information

Shipping & Returns

Description

Our prices are lower than we are allowed to advertise, please call or email us for pricing

ELATION SHOW DESIGNER 2 FC LIGHTING CONTROLLER


MAIN CONTROL FEATURES
  • 2 Universe Outputs
  • 1024 Total DMX Channels
  • Large Fixture Library
  • Effects Engine
  • 1152 Programmable Chases
  • 4752 Programmable Scenes
  • 1152 Programmable Shows
  • 1152 Programmable Presets
  • Control 48 moving light fixtures of up to 32 channels each
  • 48 Fixture groups
  • 8 faders allow control of 32 DMX fixture channels or as 32 scene masters
  • Scene Preview with "Go" feature
  • Factory ready Color, Gobo, Focus & Effects Presets!
  • Easily Name Scenes, Chases or Shows using Standard Computer KEY BOARD!
FRONT PANEL CONTROL OPTIONS
  • 80 Character backlit LCD Display for easy programming
  • 48 Multi function buttons
  • JOYSTICK for Pan/Tilt Operation
  • 4 Large Rotary wheels for Menu and Control
  • 8 Faders x 4 Banks
  • XLR Little Light Connector
  • ON/OFF power switch
REAR PANEL CONTROL OPTIONS
  • 2x(3Pin) DMX Outputs
  • 2x(5Pin) DMX Outputs
  • Midi-In port
  • Midi-Out port
  • Compact Flash Drive (compatible with most standard Compact Flash Cards; For optimal results Elation Professional? recommends 64MB SanDisk or 64MB Cannon Compact Flash Cards only
  • KEY BOARD Input
  • RS-232 Port, for PC interface
  • 2 x Polarity Switch per Output
  • RCA Audio Input for Chases

SPECIFICATIONS
  • Polarity switch (2-,3+/2+,3-) 3 Pin XLR only
  • 1MB internal memory
  • Battery Back up
  • 19" Rack mountable, 6 space
  • Size: 19" x 10.5" x 4"
  • Weight: 10 lbs
  • Voltage: 120V/220V via (Power Supply)9-12v DC/1200ma
