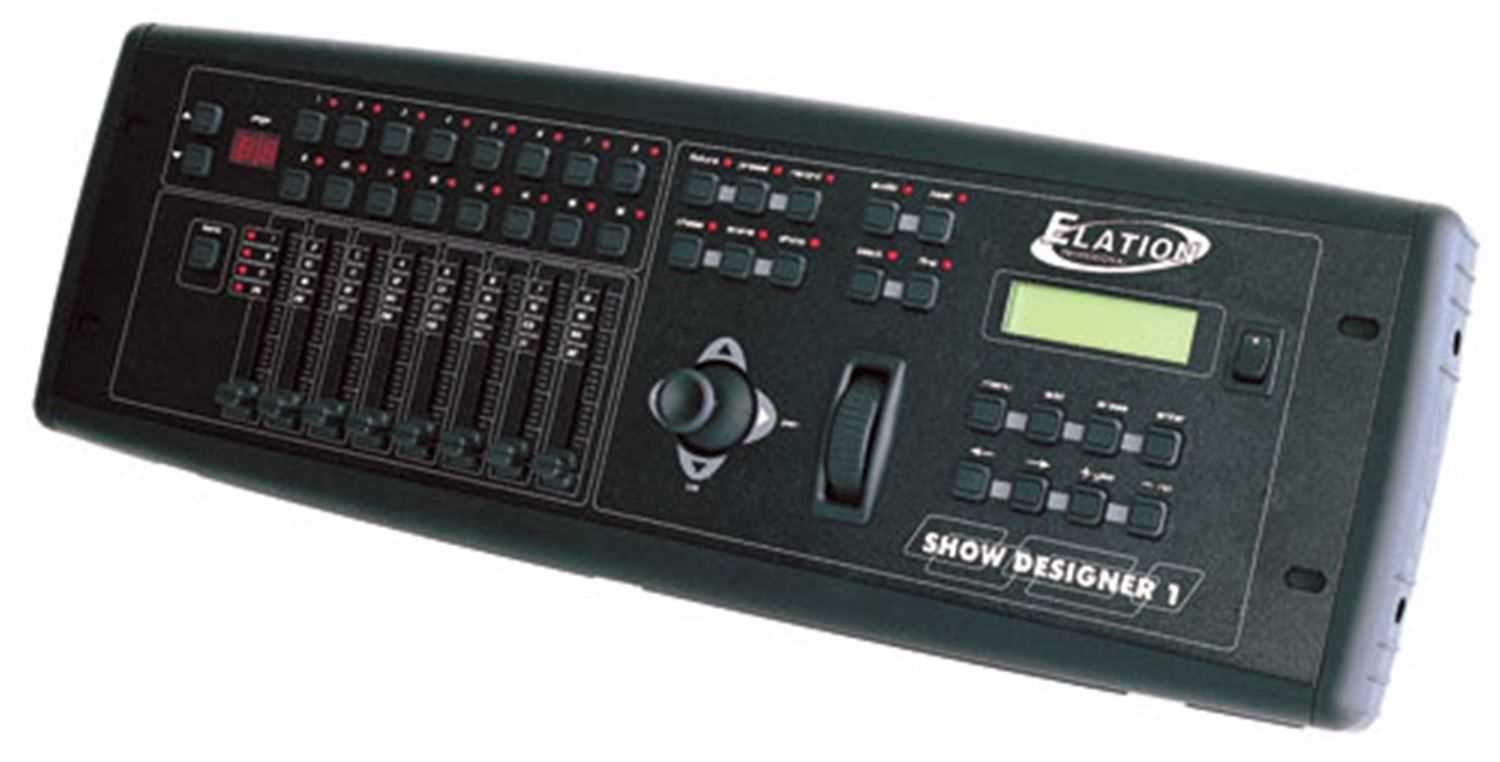

ELATION SHOW DESIGNER 1: Intelligent Lighting Controller

This is a surprisingly affordable, yet fully professional DMX lighting contoller. The Show Designer 1 offers all the same features as the popular Show Designer plus added features to make lighting control and show designing even easier!

• Pan/Tilt joystick
• Controller comes ?Tabletop Style? and includes removable rubber rails to fit standard 19" rack mount; 3 rack space
• Control a wide variety of DMX intelligent lighting fixtures
• Large library of fixture settings for many different brands of lighting equipment
• Control up to 512 channels (USITT DMX-512 compatible)
• Control up to 16 large fixtures (up to 32 channels each) or 16 groups of smaller fixtures
• Hold up to 1024 scenes, 512 presets, 256 chases and 256 shows
• Fixtures and memories are quickly selectable from an array of 16 switches
• Software updates can be easily downloaded from this web page.
• MIDI capable
• 8 faders allow direct control of channel settings for 32 channel fixtures using a bank switch
• Large rotary wheel for data entry
• Pan and tilt can also be controlled using a standard PC trackball/keyboard (sold separately)
• 32 character backlit LCD display for easy programming
• REAR PANEL
• 3 pin XLR connector for DMX-512 output
• Polarity switch to accommodate different types of cable requirements
• MIDI In & Out
• Audio input
• RS232 port for trackball or pc connection
• Size: 19" x 5.25" x 4.75". Wt. 7 lbs.
