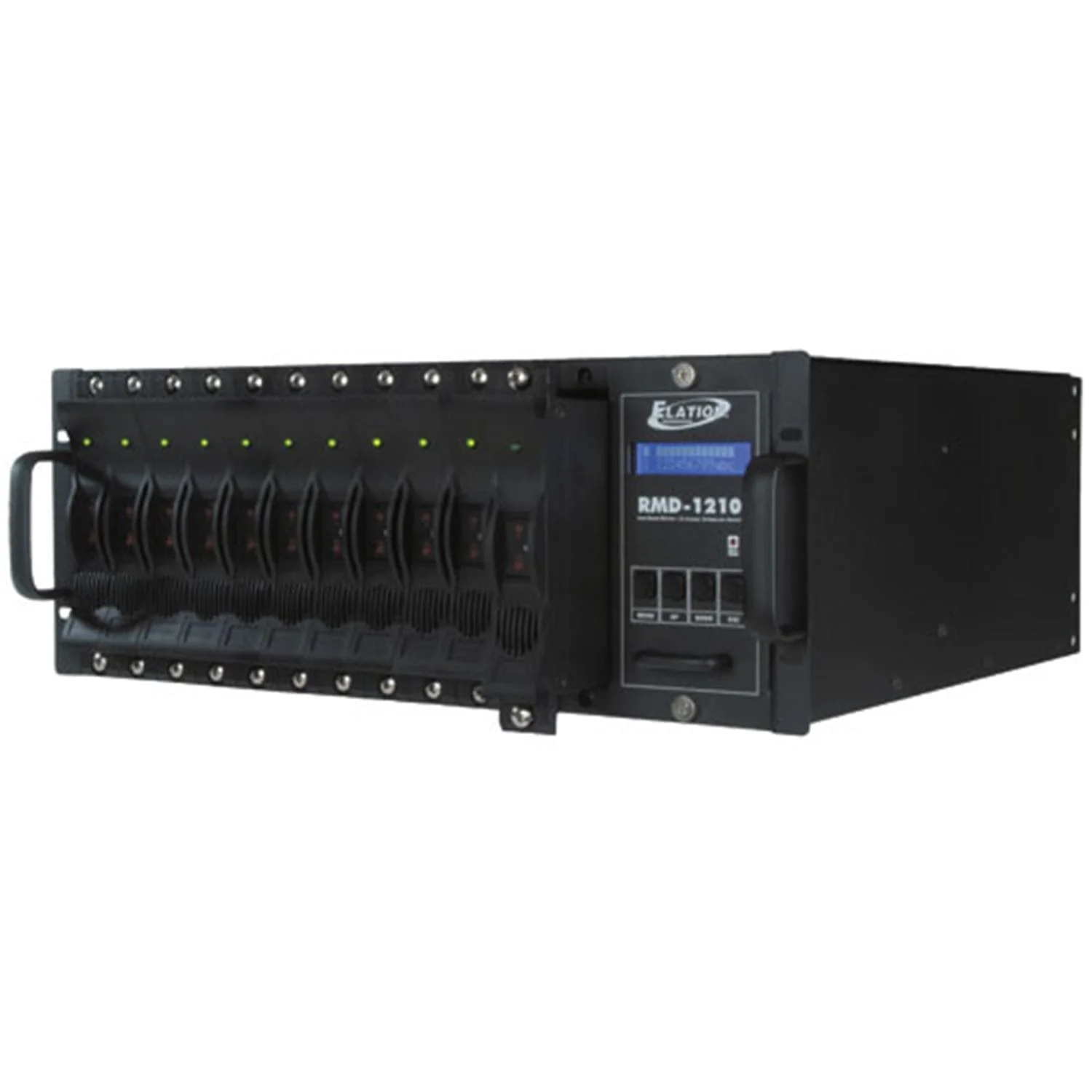

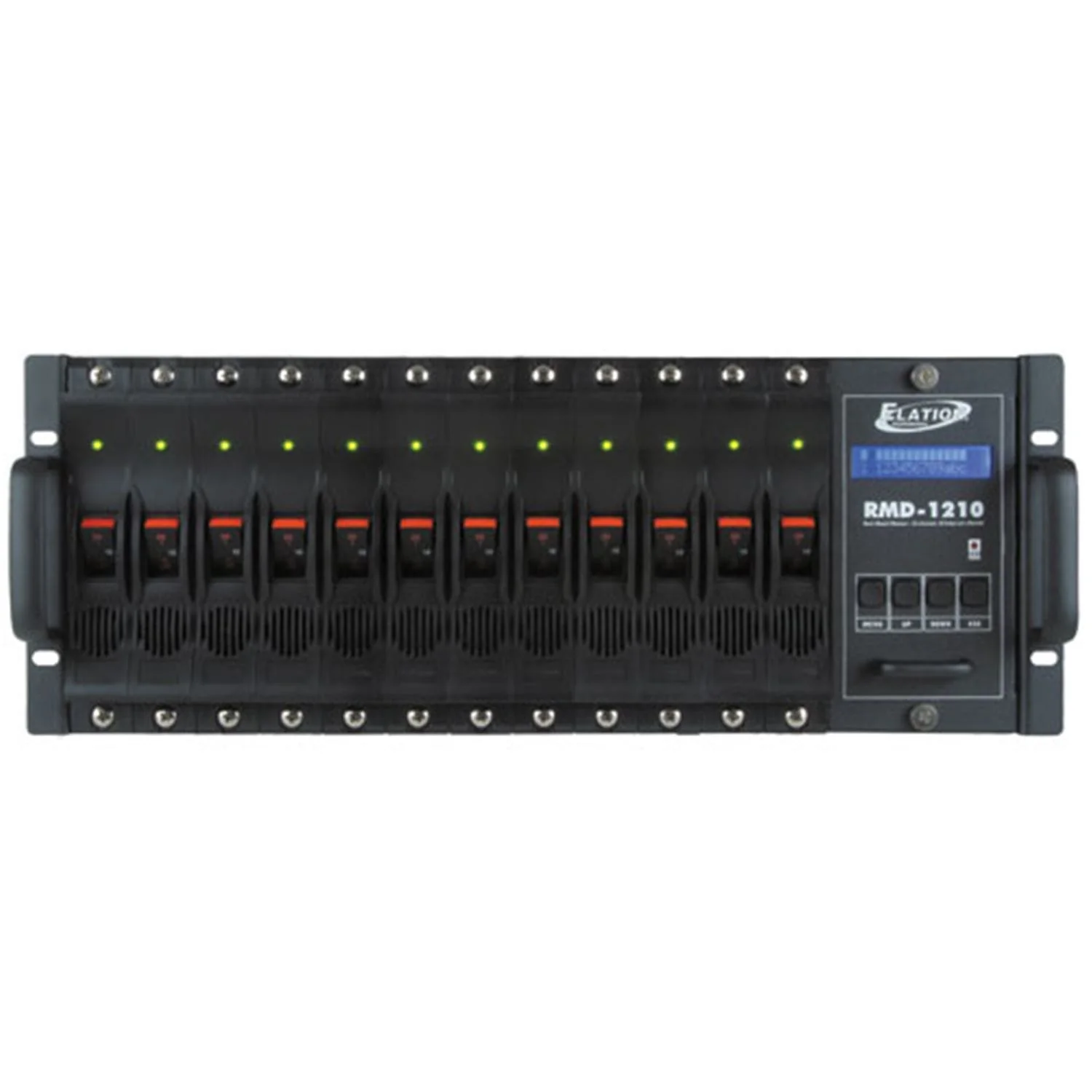

Elation RMD1210 12 Channel Digital Dimmer Pack
- 12 channel modular digital dimmer pack
- USITT DMX-512 (3-pin) input
- 3U 19" rack mount
- High speed micro processor
- Real time zero crossing detection
- Backlit digital display
- Dimming response time down to 24mS
- Individual or block channel patching
- Minimum channel output setting from 0-30%
- Maximum channel output setting from 70-100%
- Individual channel curve option setting
- Channel curve settings include Linear, Square, Non Dim and S-Curve.
- DMX fail backup feature- includes 12 internal chase programs, last scene hold and analog options
- Power failure memory

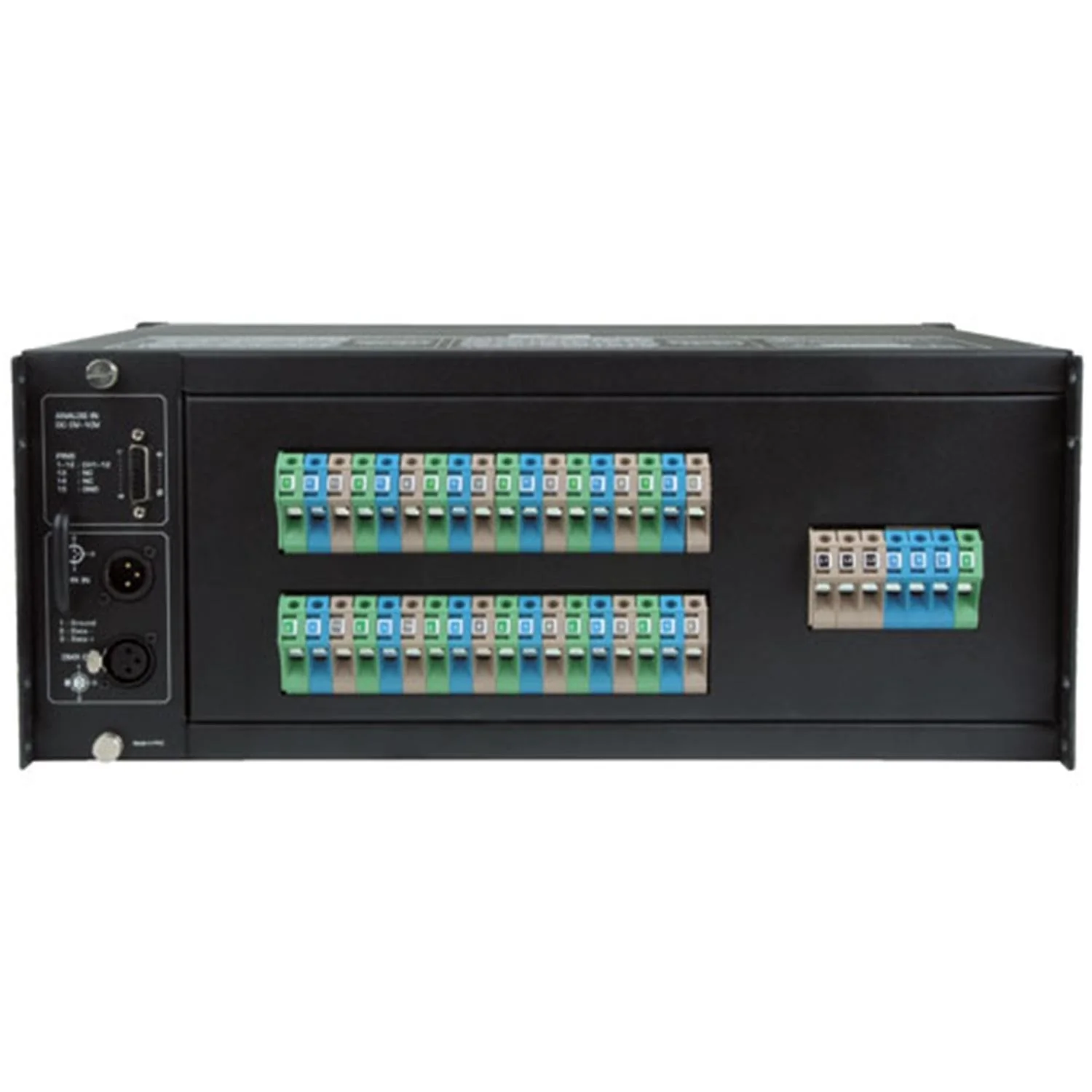

- Standard terminal type output panel- optional panels include: Edison, Socapex, Stage Pin- and Power Con
- DMX Output
- Analog Output
- Fan cooled
- 12 x 10A UL approved MCB breakers.
- 10A/CH. Total 120A single phase connection
- 10A/CH. Total 40A per phase-three phase connection
- Power requirement: AC 120V-60Hz
- Dimensions- 18" x 19" x 7"
- Weight - 60lbs.
Select Title
From $1,199.99
Elation RMD1210 12 Channel Digital Dimmer Pack—
$1,199.99
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- 12 channel modular digital dimmer pack
- USITT DMX-512 (3-pin) input
- 3U 19" rack mount
- High speed micro processor
- Real time zero crossing detection
- Backlit digital display
- Dimming response time down to 24mS
- Individual or block channel patching
- Minimum channel output setting from 0-30%
- Maximum channel output setting from 70-100%
- Individual channel curve option setting
- Channel curve settings include Linear, Square, Non Dim and S-Curve.
- DMX fail backup feature- includes 12 internal chase programs, last scene hold and analog options
- Power failure memory
- Standard terminal type output panel- optional panels include: Edison, Socapex, Stage Pin- and Power Con
- DMX Output
- Analog Output
- Fan cooled
- 12 x 10A UL approved MCB breakers.
- 10A/CH. Total 120A single phase connection
- 10A/CH. Total 40A per phase-three phase connection
- Power requirement: AC 120V-60Hz
- Dimensions- 18" x 19" x 7"
- Weight - 60lbs.
