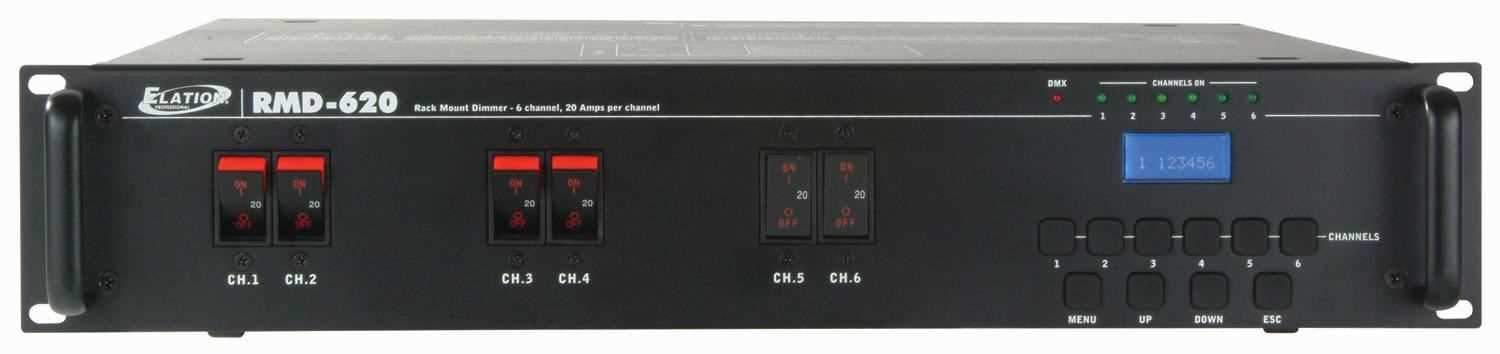

Elation RMD-620-UL Rack Mount 6-Channel Dimmer Pack

Elation's RMD 620 is a 6-channel digital dimmer pack. Each channel has a 20-amp load capacity and is protected with state-of-the-art circuit breaks. It includes terminal input and output connectors.

• 6 channel digital dimmer pack
• 20A per channel (2400 watts)
• USITT DMX-512 (3PIN) input & output
• 2U 19" rack mount
• High speed micro processor
• Real time zero crossing detection
• Blue backlit digital display
• High quality chokes for minimal noise
• Individual or block channel patching
• Minimum channel output setting from 0-30%
• Maximum channel output setting from 70-100%
• Individual channel curve option setting
• Channel curve settings include Linear, Square, Non Dim and S-Curve.
• DMX fail backup feature- includes 12 internal chase programs, last scene hold and analog options
• Power failure memory

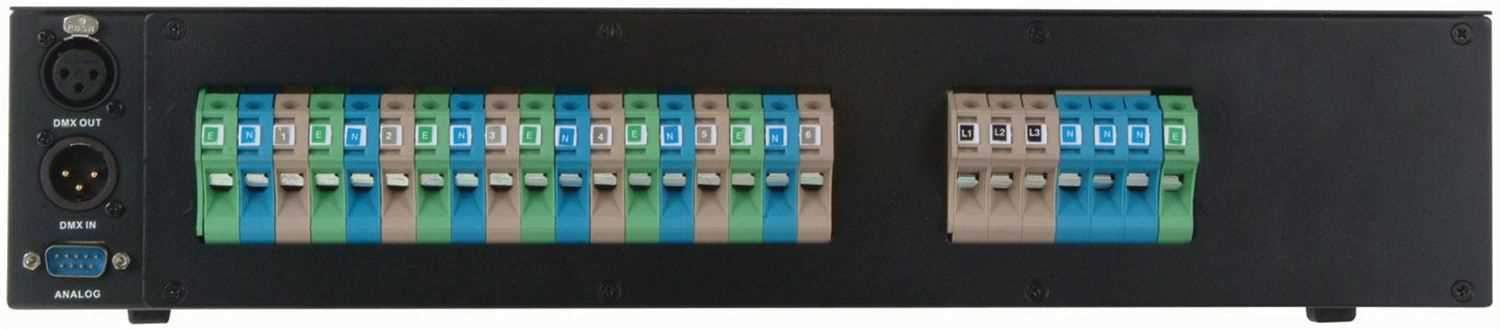

• Standard terminal type output panel
• DMX Output
• Analog Output
• Fan cooled
• 6 x 20A MCB breakers.
• Dimensions: 17" x 19" x 3.5"
• Weight: 21 lbs.
