Elation RDMX6S 6-Way RDM/DMX Data Splitter

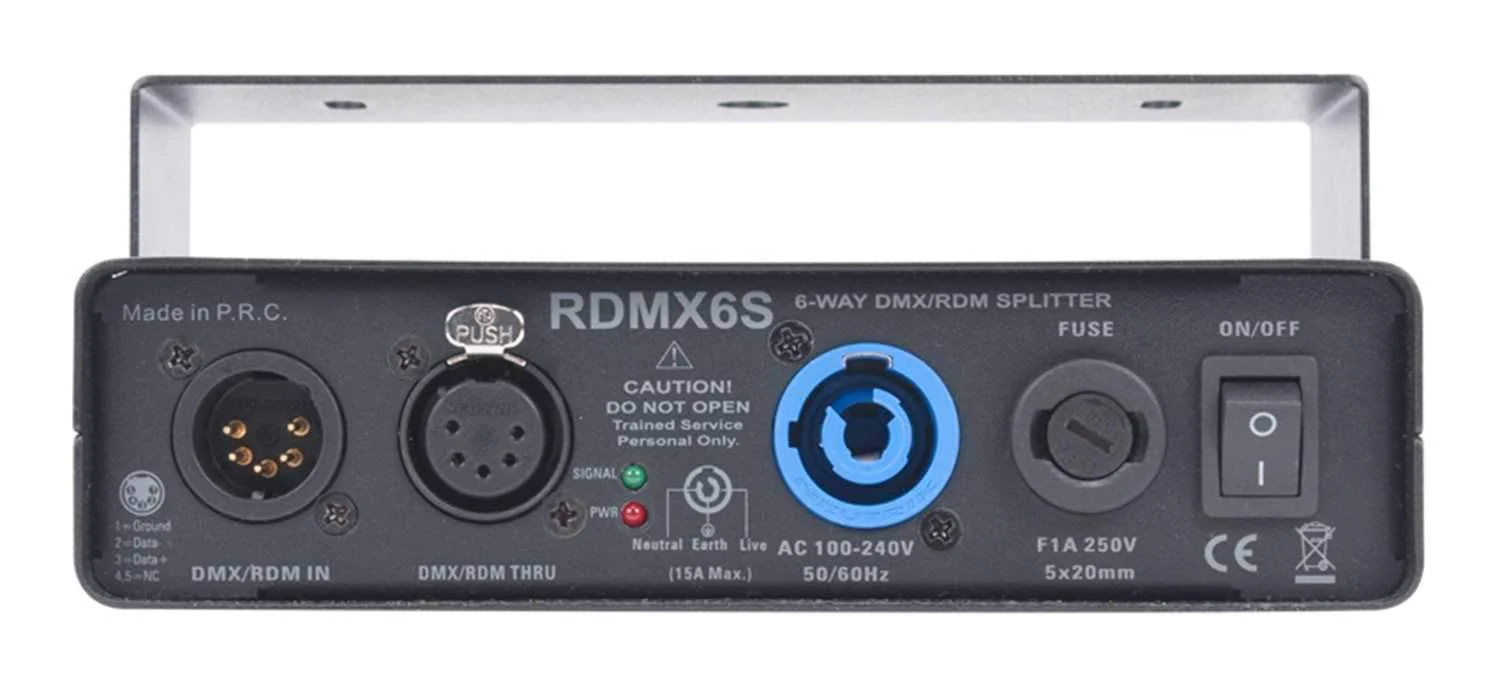

The RDMX6S is an easy-to-use RDM E1.20 compliant 6-way RDM/DMX data splitter featuring a 5-pin DMX input, a 5-pin DMX loop thru output with built-in termination, and 6 opto-isolated 5-pin DMX outputs. Housed in a die-cast aluminum housing, it features a multi-voltage universal auto-switching 100V to 240V power supply, and includes a single unit mounting bracket for truss/clamp installation. Optional single and dual unit rack mount kits are available.

• RDM E1.20 compliant
• 5-pin DMX loop thru output with built-in termination

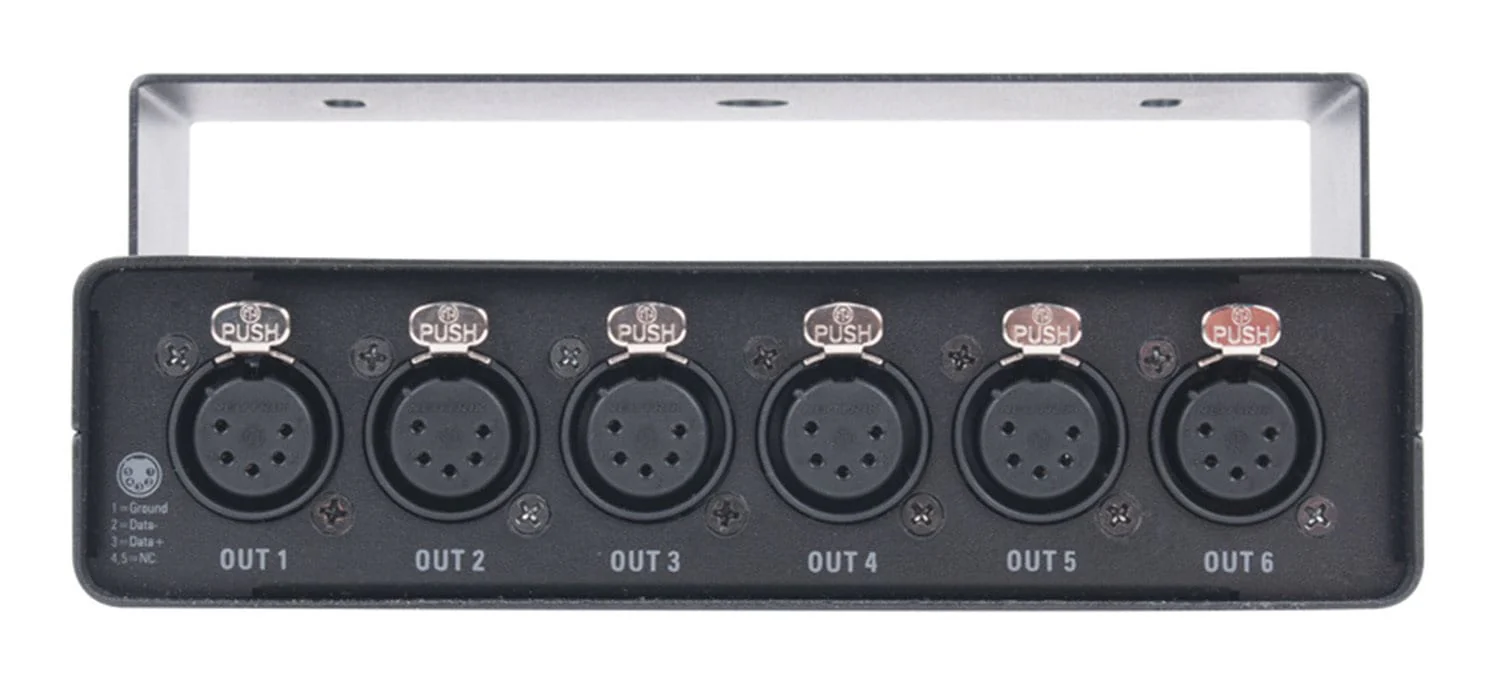

• 6 opto-isolated 5-pin DMX outputs
• powerCON in
• Universal multi-voltage auto-switching power supply
• Includes mounting bracket for truss/clamp installation
• optional single and dual unit rack mount kits available

• 5-pin DMX input
• 5-pin DMX lopp thru output w/built-in termination
• 6 x 5-pin opto-isolated DMX outputs
• AC 100-240V - 50/60Hz
• Power consumption: 3-watts maximum
• 14°F (-10°C) to 113°F (45°C)
• Dimensions: 6.8" x 6.7" x 2.9" without bracket (L x W x H)
• Weight: 2.1 lbs. (1.0kg)
