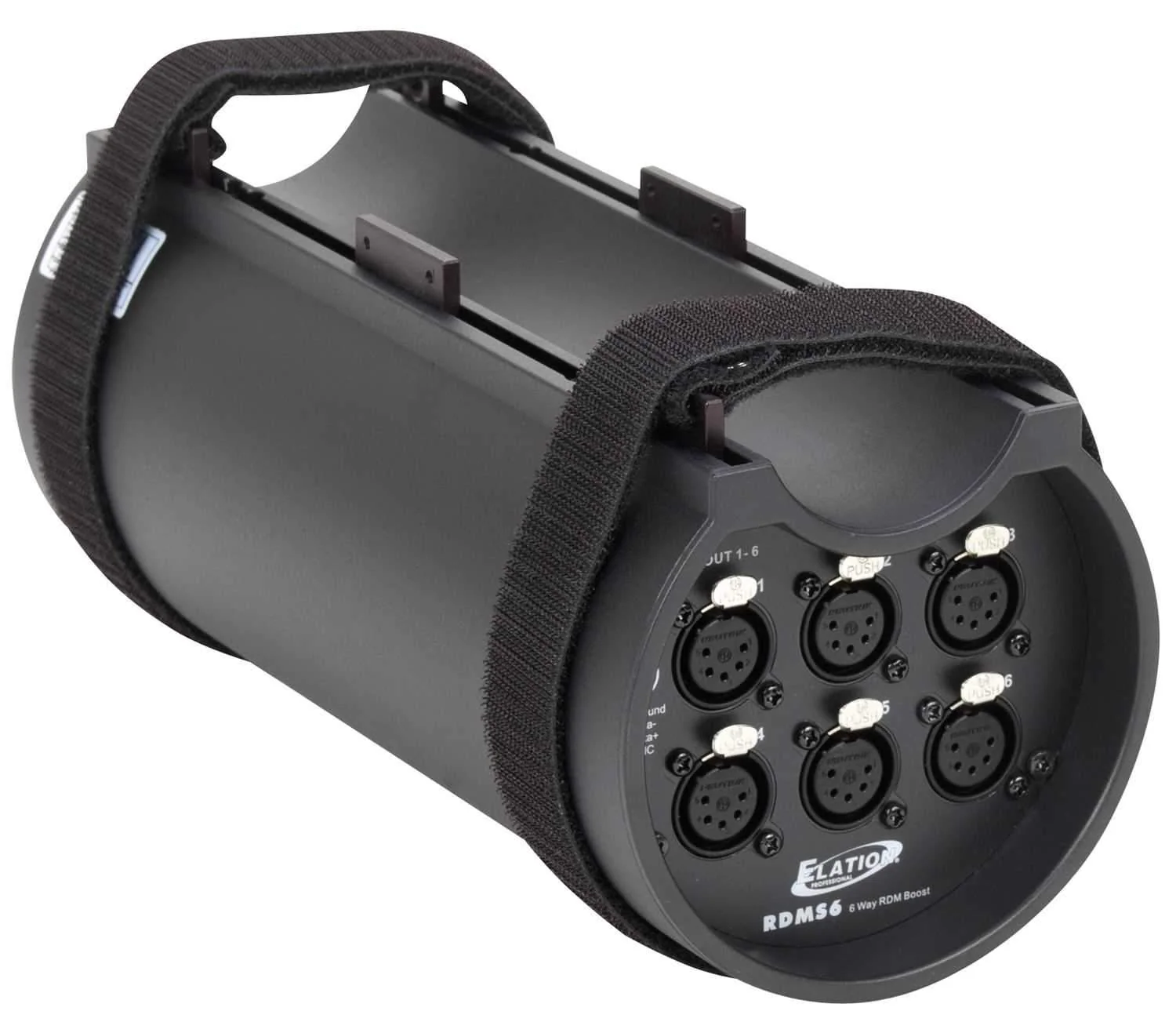

Elation RDMS6 DMX 6 Way Data Splitter

• RDM / DMX data splitter
• Opto and electrical isolation between input and outputs
• Meets RDM E1.20-2006 & USITT DMX-512 (1990) protocol standards
• Each output features an independent driver to boost signal

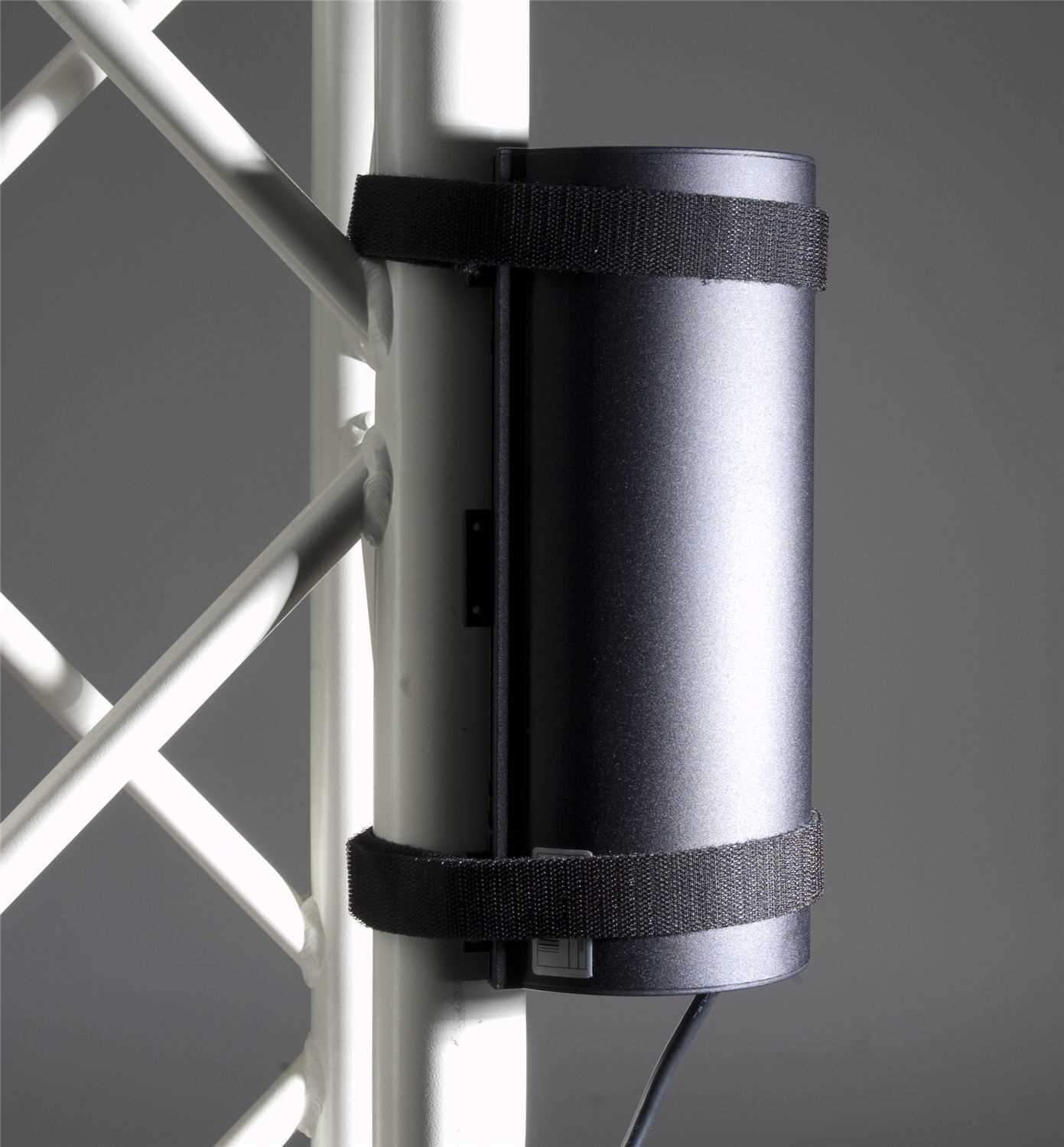

• Includes 2 x velcro straps for easy pipe mounting and a

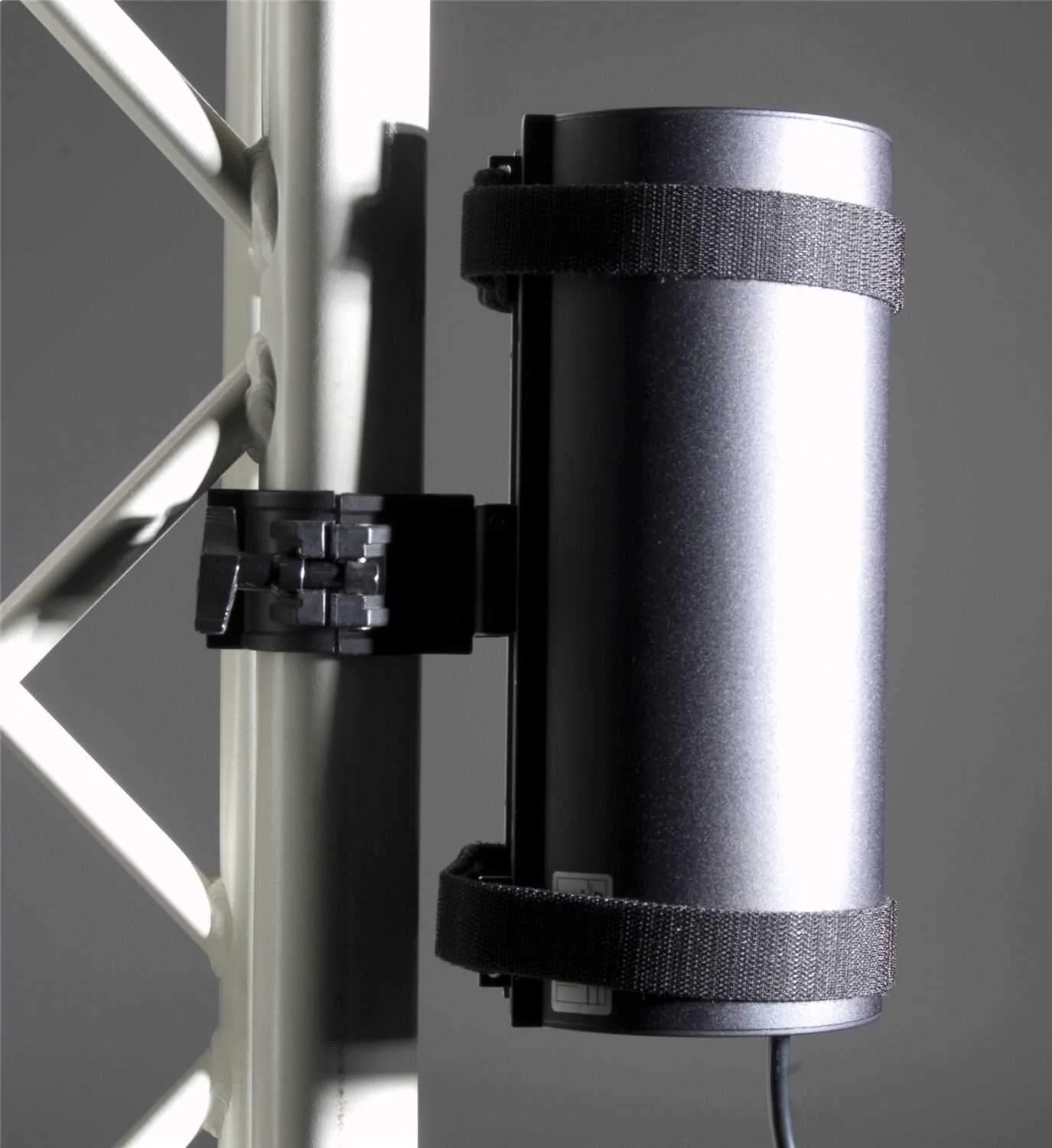

• Clamp bracket for c-clamp truss mount

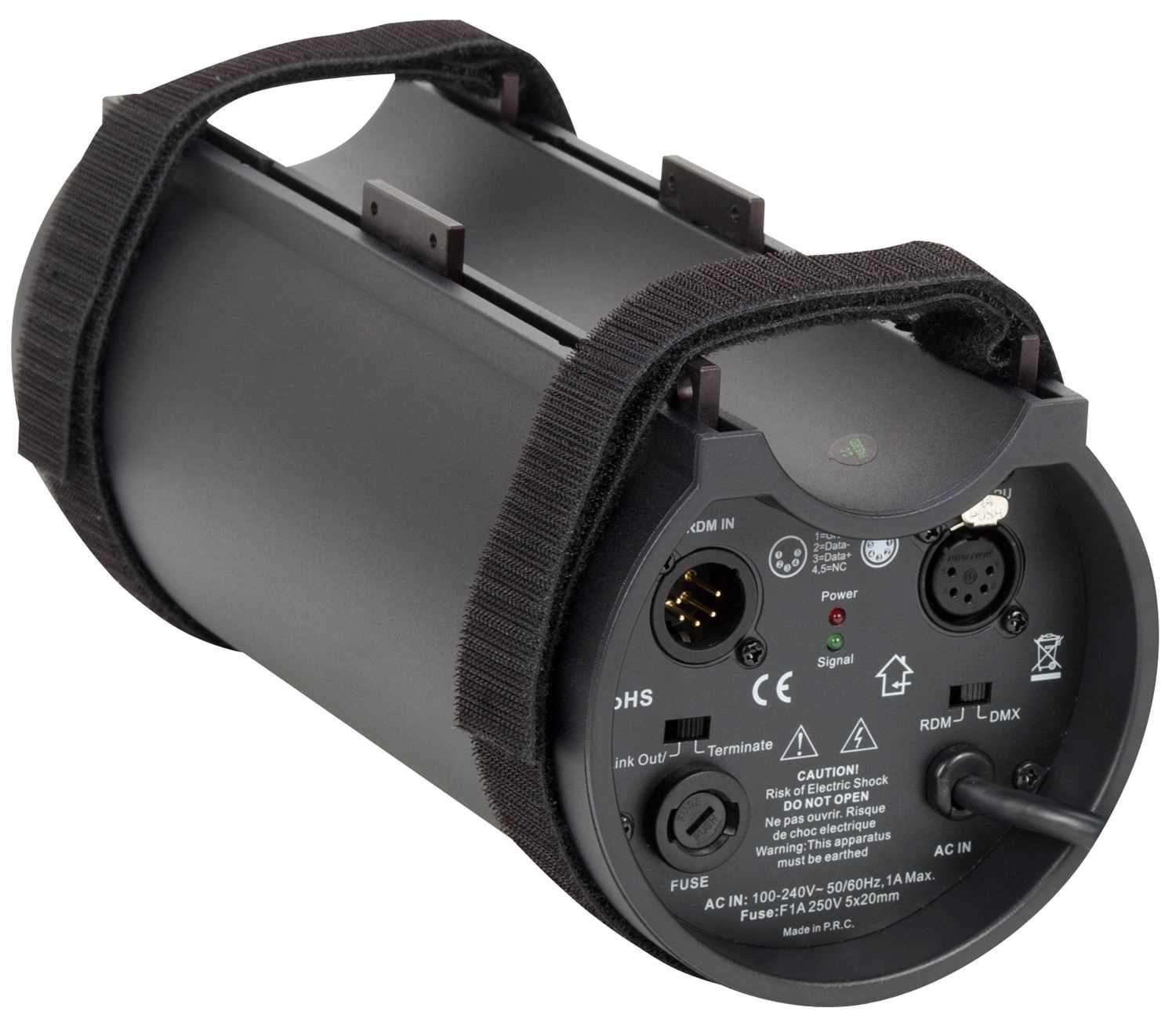

• RDM/DMX switch and Linkout/Terminate switch for easy operation

• Power Input: 100-240VAC, 50/60Hz
• Fuse: F1A, 250V , 5x20mm
• Output: 5-pin XLR female socket x 6pcs.
• Data In and Through: 5-pin XLR connectors
• Housing: Extruded aluminum
• IP Rating: IP 20
• Control Standard: RDM E1.20-2006 & DMX-512 protocols
• Listing: RoHS, CE co mpliant
• Operating Temperature: -10degC to +50degC
• Storage Temperature: -20degC to +70degC
• Dimensions: 264mm x 120mm x 113mm (10.4" x 4.7" x 4.4")
• Weight: 0.57kg. (1.3lbs)
