Compact and Fast Wash with 12 15W Quad Color RGBW LEDs

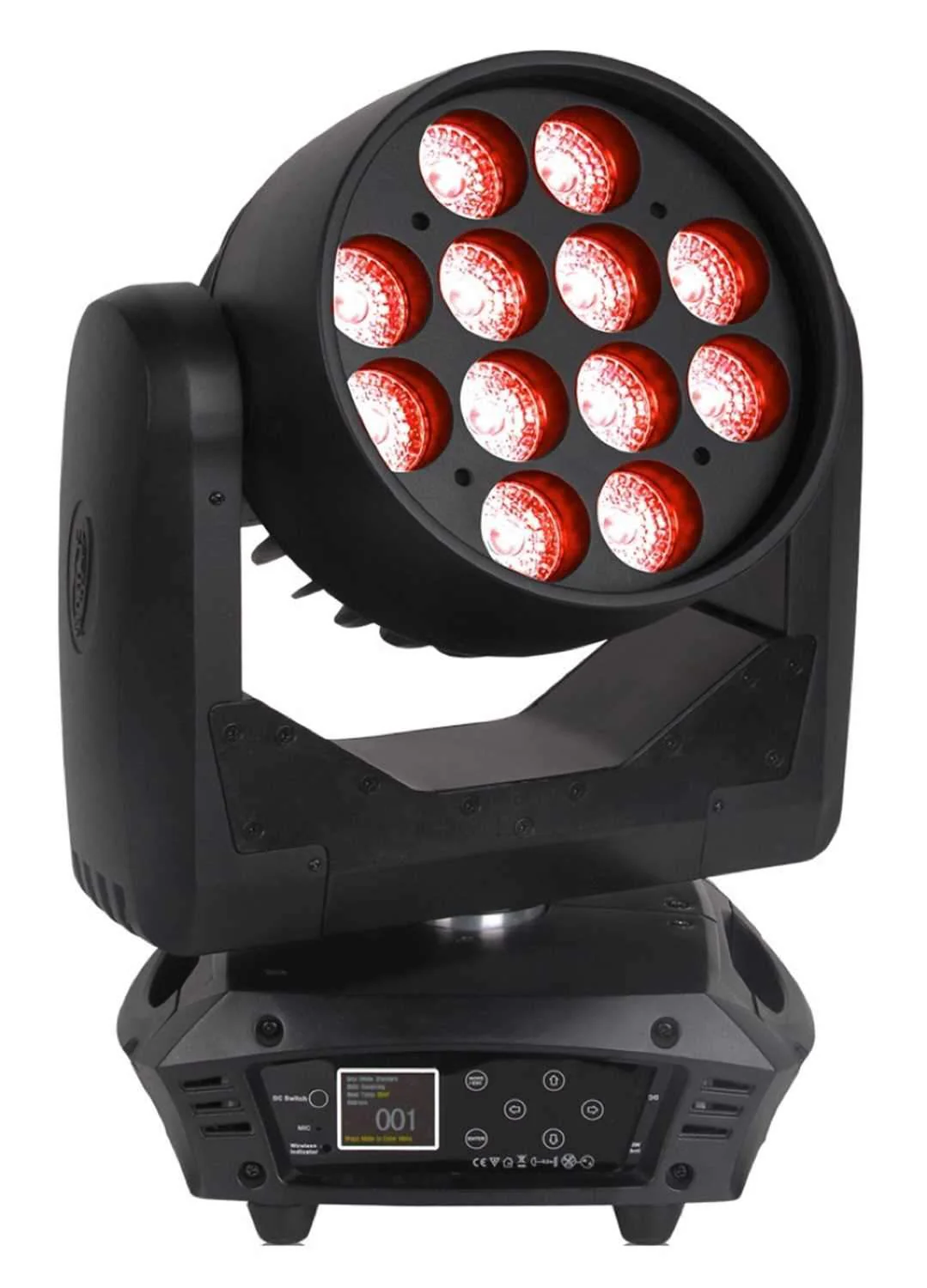

The new Rayzor Q12 Zoom™ is a compact and fast wash lluminare featuring (12) 15W Quad Color RGBW LEDs, 11° to 39° motorized zoom, RGBW color mixing and color macros, multiple pixel zone control and chase effects, 16bit 3-phase motors, 5pin DMX and powerCON in/out connections, RDM (remote device management), flicker free operation for broadcast TV and FILM, (6) button control full color 180° reversible menu display, 240W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).

Features:

• 540°/630° Pan
• 265° Tilt
• 8 / 16 Bit Resolution Adjustable Movement
• 6 Zone Chase Effects
• 11° to 39° Zoom Range
• 6 Button Touch Control Panel
• Full Color 180° Reversible Menu Display
• Microphone for Sound Activated Programs
• Rechargeable Backup Battery for Menu Display
• Stand Alone Operation with Master/Slave Function
• Software Upload via Optional External DMX Accessary

LAMP

• 12x 15W Quad Color OSRAM RGBW LED's
• 50,000 Hour Average Life

PHOTOMETRICS

• Max 21,320 LUX @2,5M

EFFECTS

• Dimming: 0% - 100%
• 6 Zone Chase Effects
• High Speed Mechanical Shutter / Strobe 1-18 FPS

COLOR

• RGBW Color Mixing

CONTROL / CONNECTIONS

• 3 DMX Channel Modes (16 / 19 / 38)
• 3pin & 5pin DMX In/Out
• powerCON Power In

SIZE / WEIGHT

• Length: 397mm
• Width: 214mm
• Vertical Height: 295mm
• Weight: 9kg
