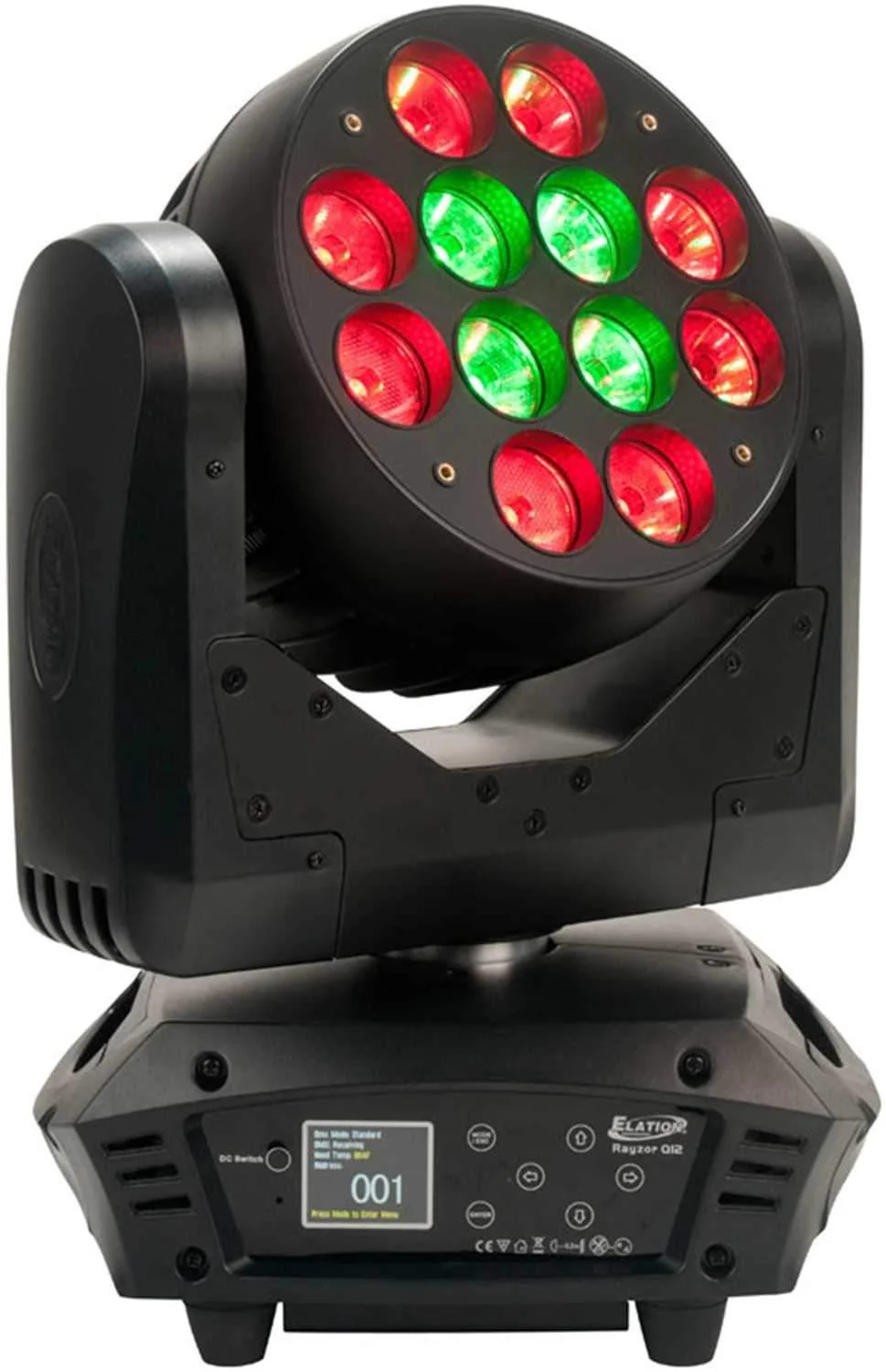

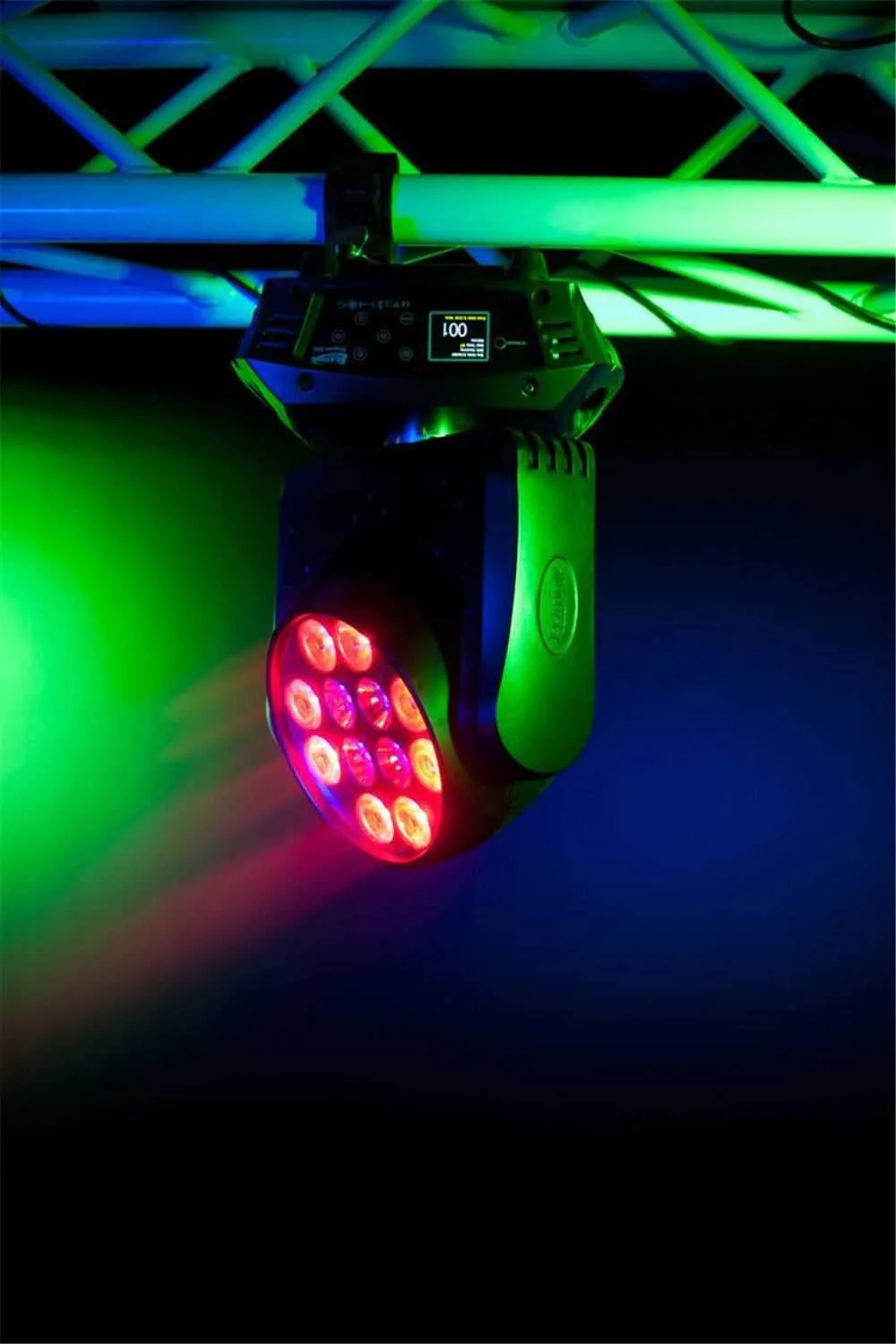

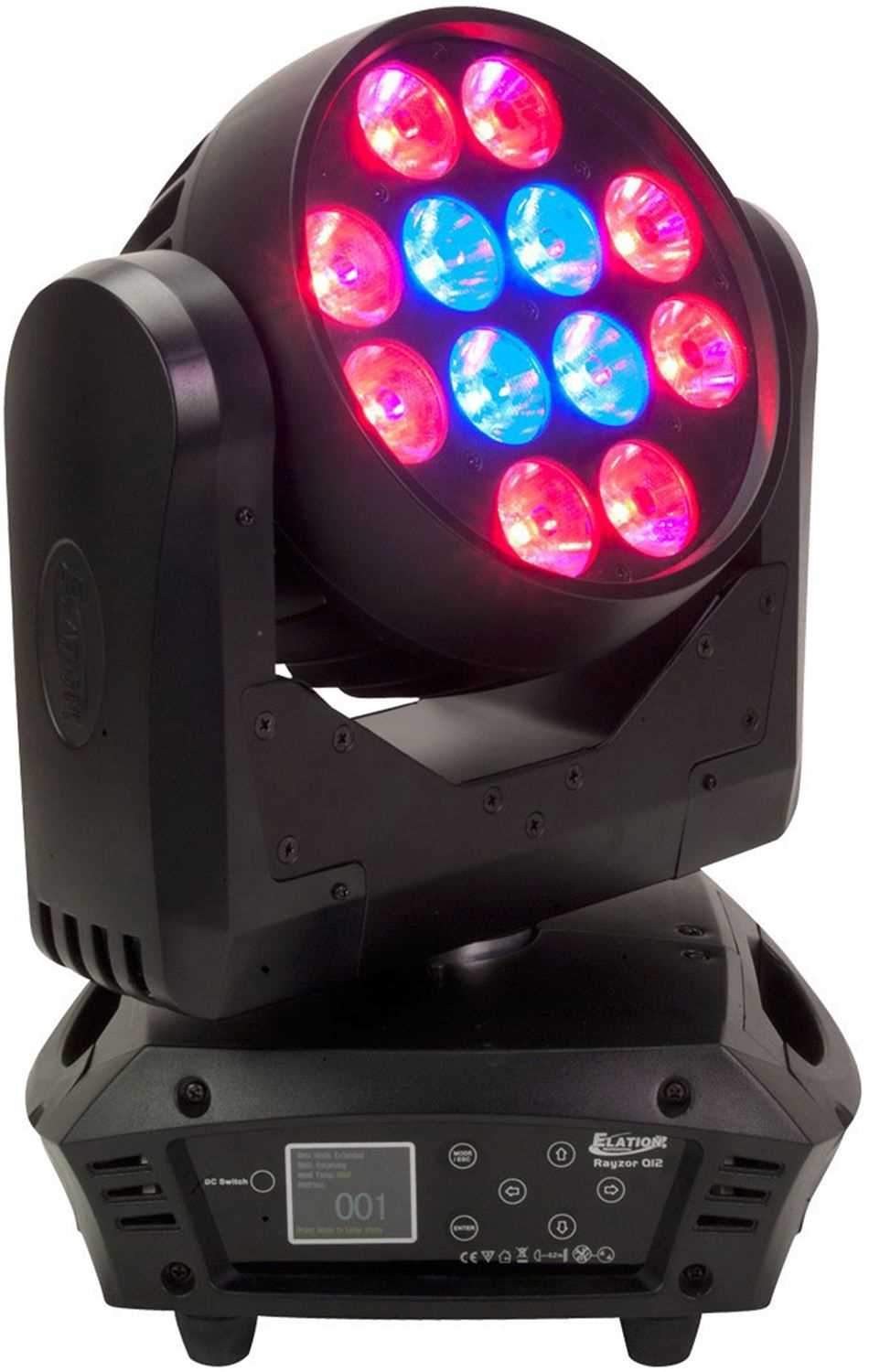

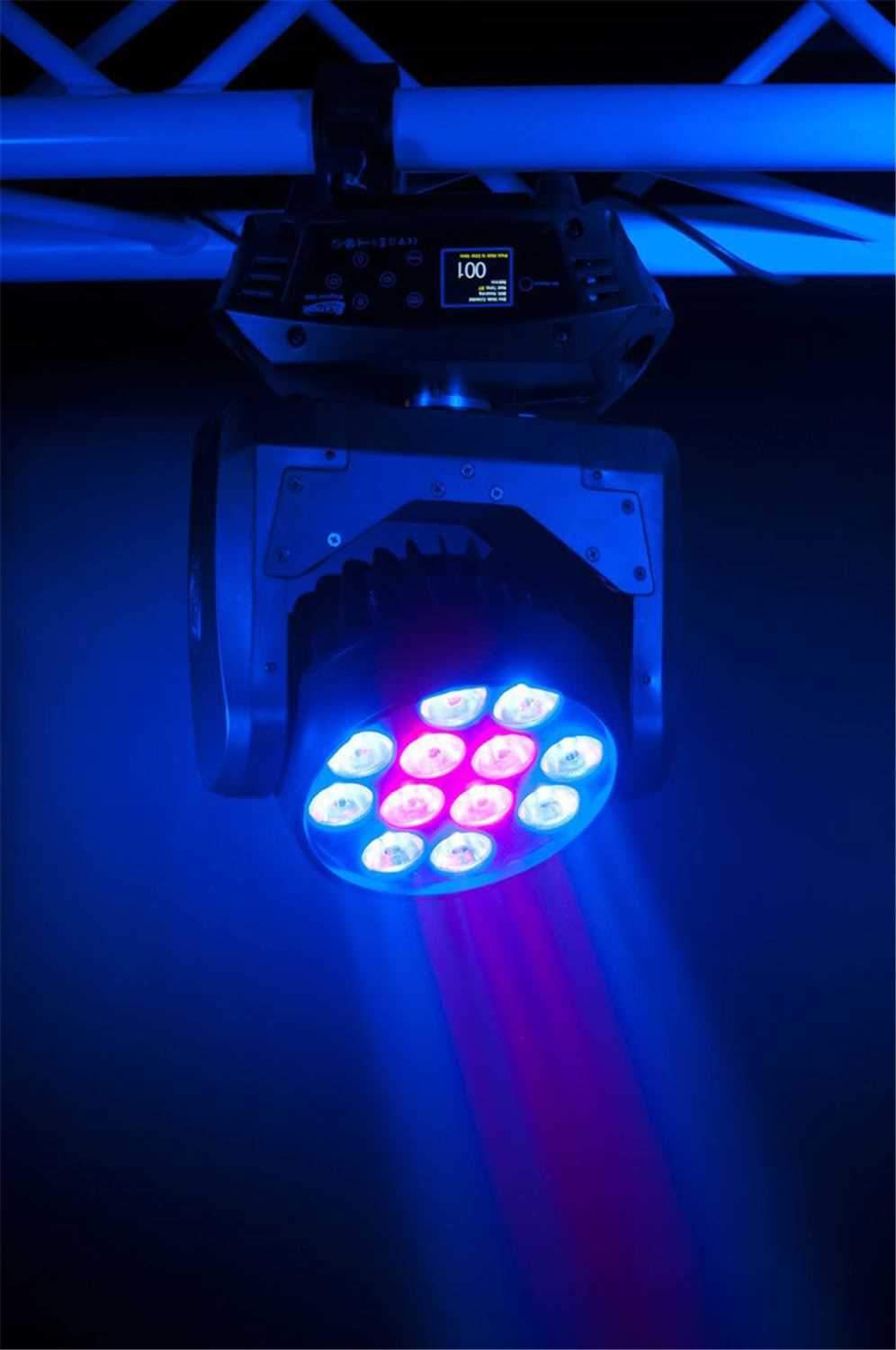

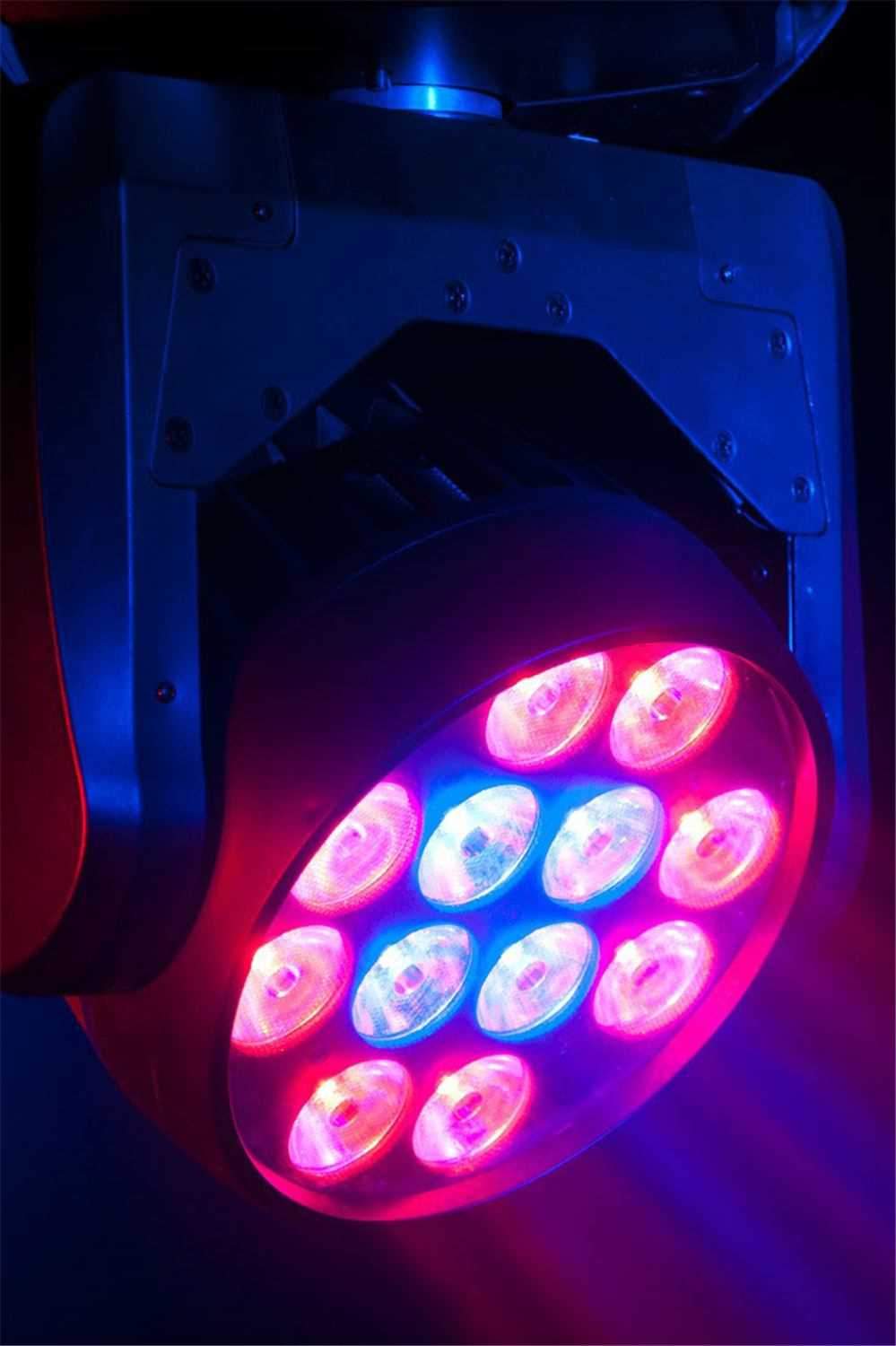

Elation Rayzor Q12 12x 15-Watt RGBW Quad LED Beam

The new Rayzor Q12 features 12 x 15-watt Quad Color RGBW LEDs, high-speed 16-bit resolution movement, color mixing, rainbow effect, 7° to 14° field angle range, 6 zone chase effects and 8 auto program chase effects. It offers flicker-free operation, making it ideal for TV and Film.

Features:

• 12 x 15-watt RGBW QUAD COLOR LED
• Pan: 540° / 630°/ 540° - 90° Offset
• Tilt: 270° / 240°
• High Speed Adjustable 16-Bit Resolution Movement
• 6 Zone Chase Effects
• 8 Auto Program Chase Macros
• 6 Button Touch Control Panel
• Omega Bracket Mounting (2x 107mm)
• Flicker Free Operation for TV and Film
• Full Color 180° Reversible Menu Display
• Microphone for Sound Activated Programs
• Rechargeable Backup Battery for Menu Display
• Stand Alone Operation with Master/Slave Function
• Software Upload via Optional External DMX Accessory
• 100,000 Hours Average Life
• CE Pending, cETLus Pending, IP20 Rated
• Dimensions (L x W x H): 11.7" x 8.5" x 15.7" (295.5 x 214 x 397mm)
• Weight: 22 lbs. (10kg)

Photometrics:

• Max 5,840 LUX @5M
• 7° to 14° Field Angle Range

Effects:

• Color Mixing
• Rainbow Effect
• Dimming: 0% - 100% + Blackout for All Four Colors
• Strobe: 1 - 18 Flashes Per Second
• Pulse Effect

Control/Connections:

• 3 DMX Channel Modes (15/17/37)
• 5-pin DMX In/Out
• powerCON Power In/Out

Electrical/Thermal:

• AC 100-240V - 50/60Hz
• -10°C/14°F to 45°C/113°F
