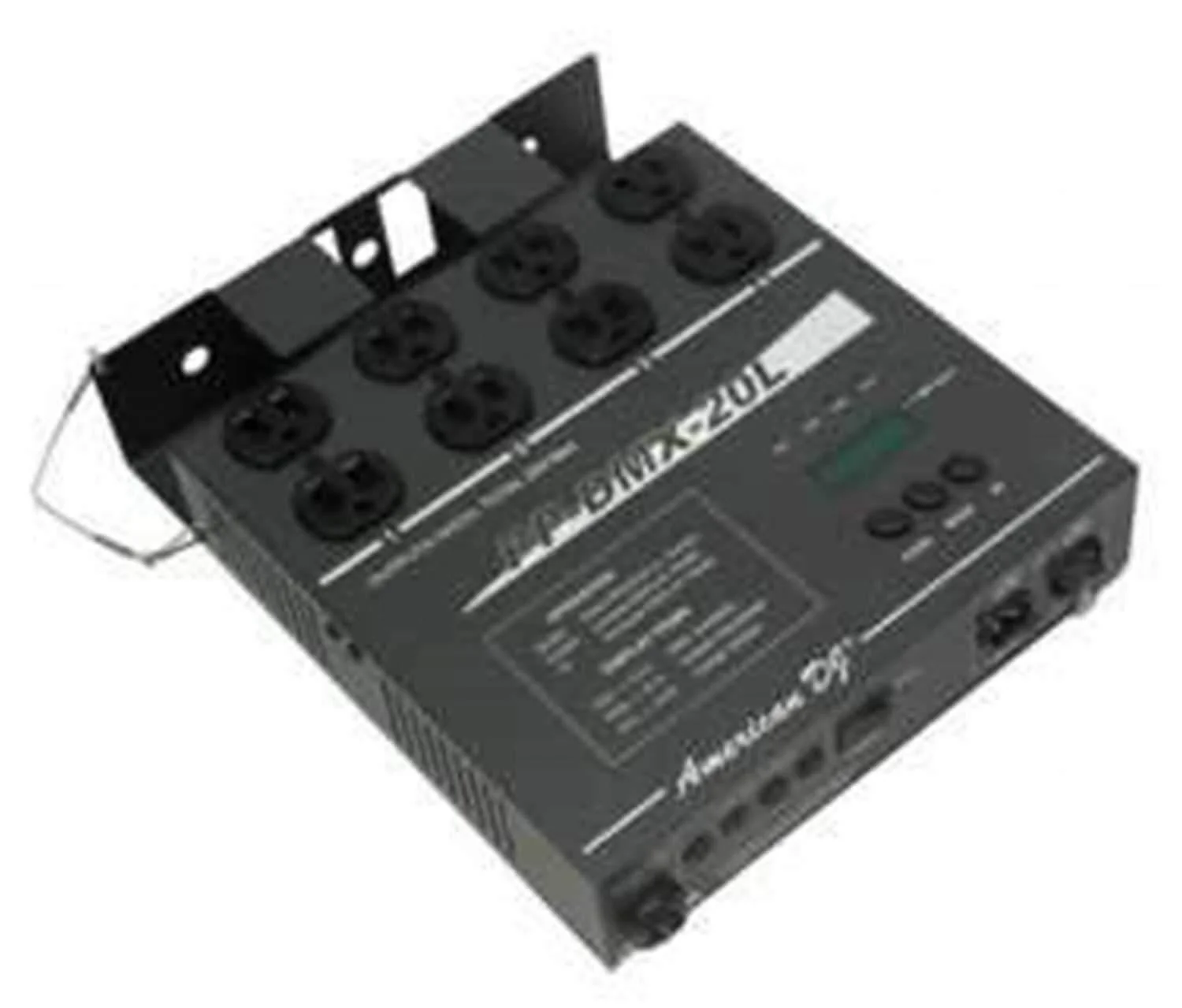

PP-DMX20-L

4 channel DMX Power Pack - Ideal when wanting to run non DMX products with a DMX controller

Specifications:

• Digital display- used to set starting DMX address channels and set all other menu options.
• Selectable 1, 2, or 4 channel operation
• Two three prong Edison sockets per channel
• 3 pin XLR DMX Input & Output
• Four LED's display channel activity
• External channel fuses for quick and easy replacement
• Sleek reversible mounting panel on the rear
• Zero crossing circuitry for protection of transformer loads when switching
• 16 built in Chases when in Chase mode with adjustable speed setting
• Use in conjunction with Elation; DMX Operator, DMX Operator Pro, DMX Programmer, DMX Duo, Show Designer-1, Show Designer-2D, Stage Q or Show Q
• Power Input: 120V o 60Hz
• Maximum Load: 10A per channel / 20A total
• Dimensions: 10.25"L x 8.25"W x 3"H
• Weight: 6 lbs
