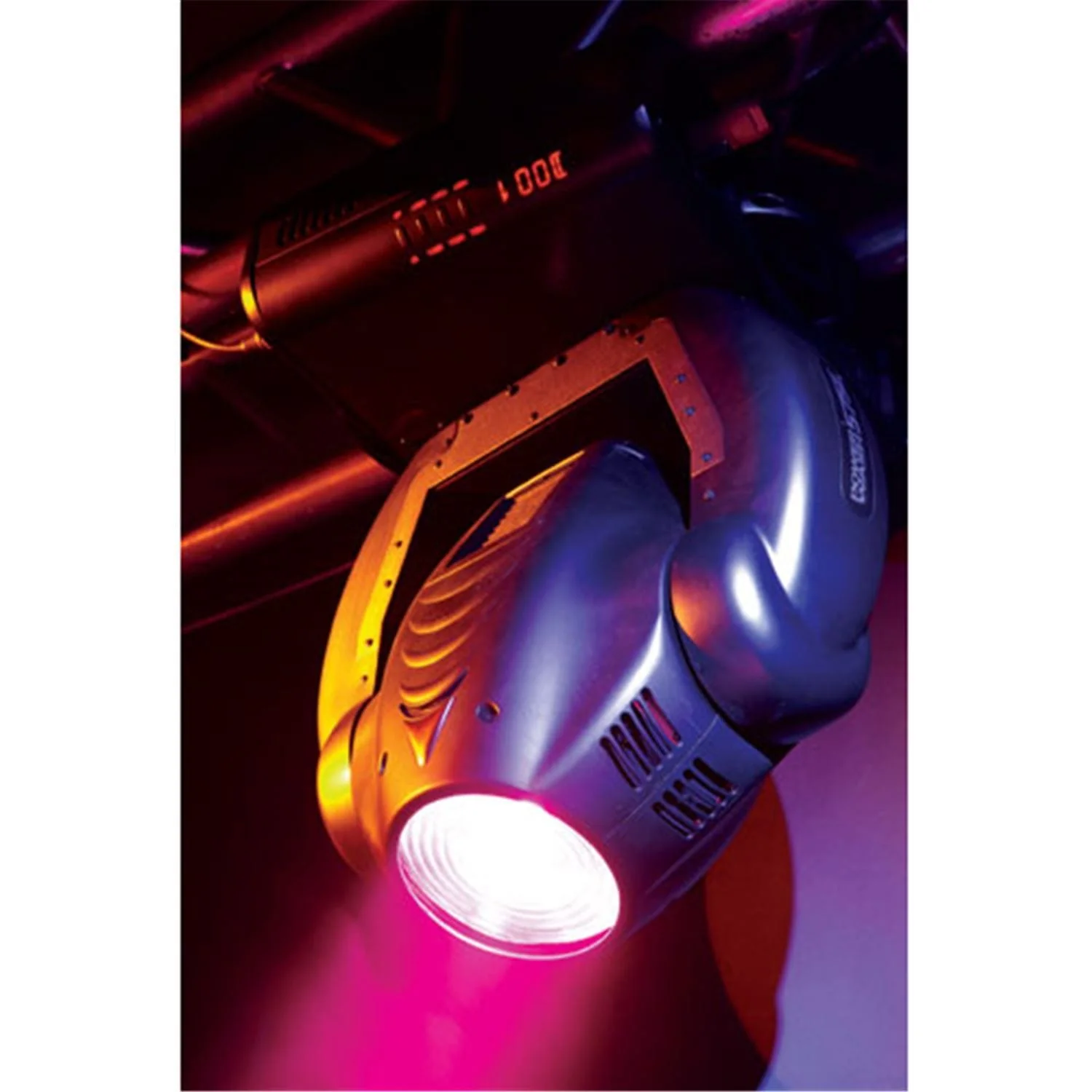

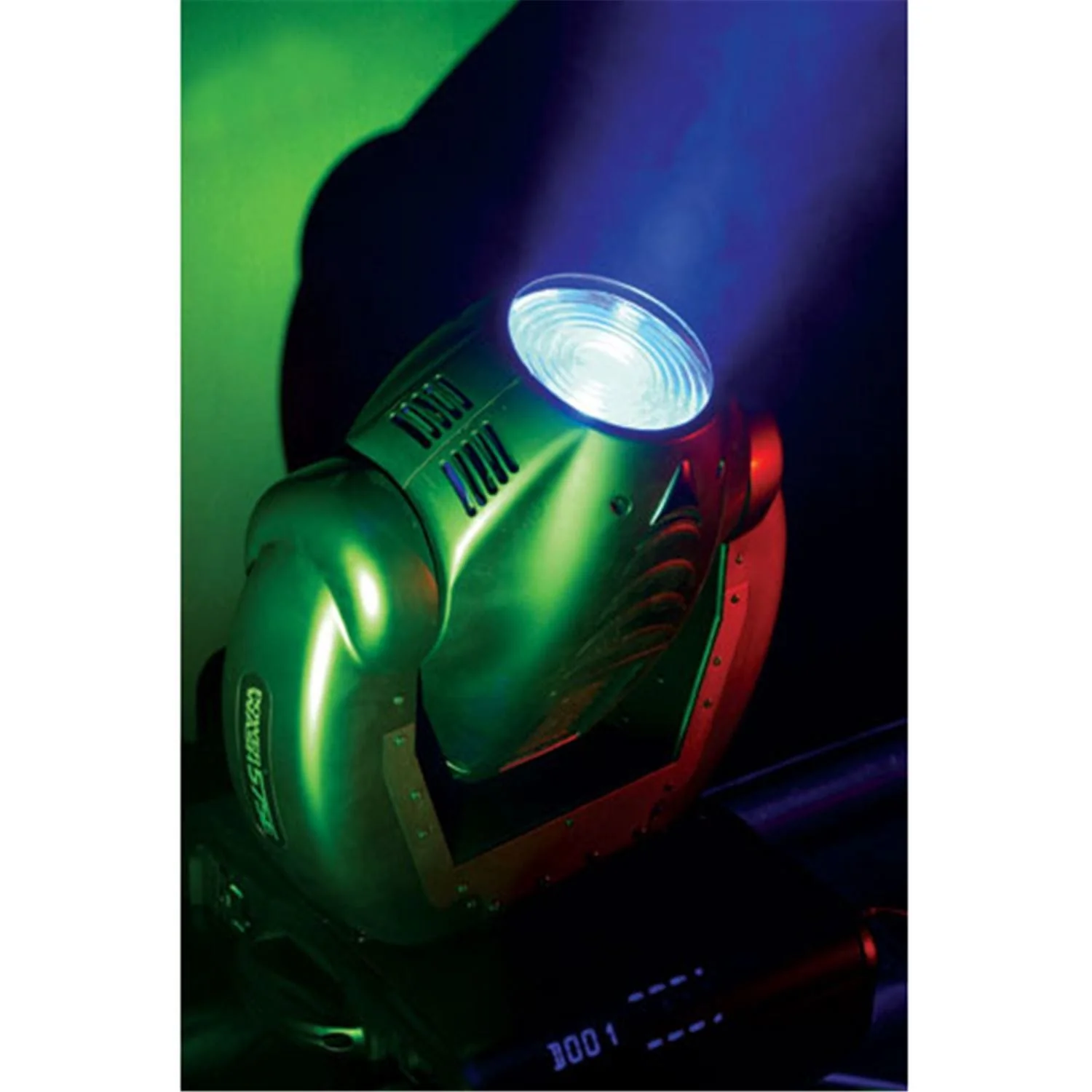

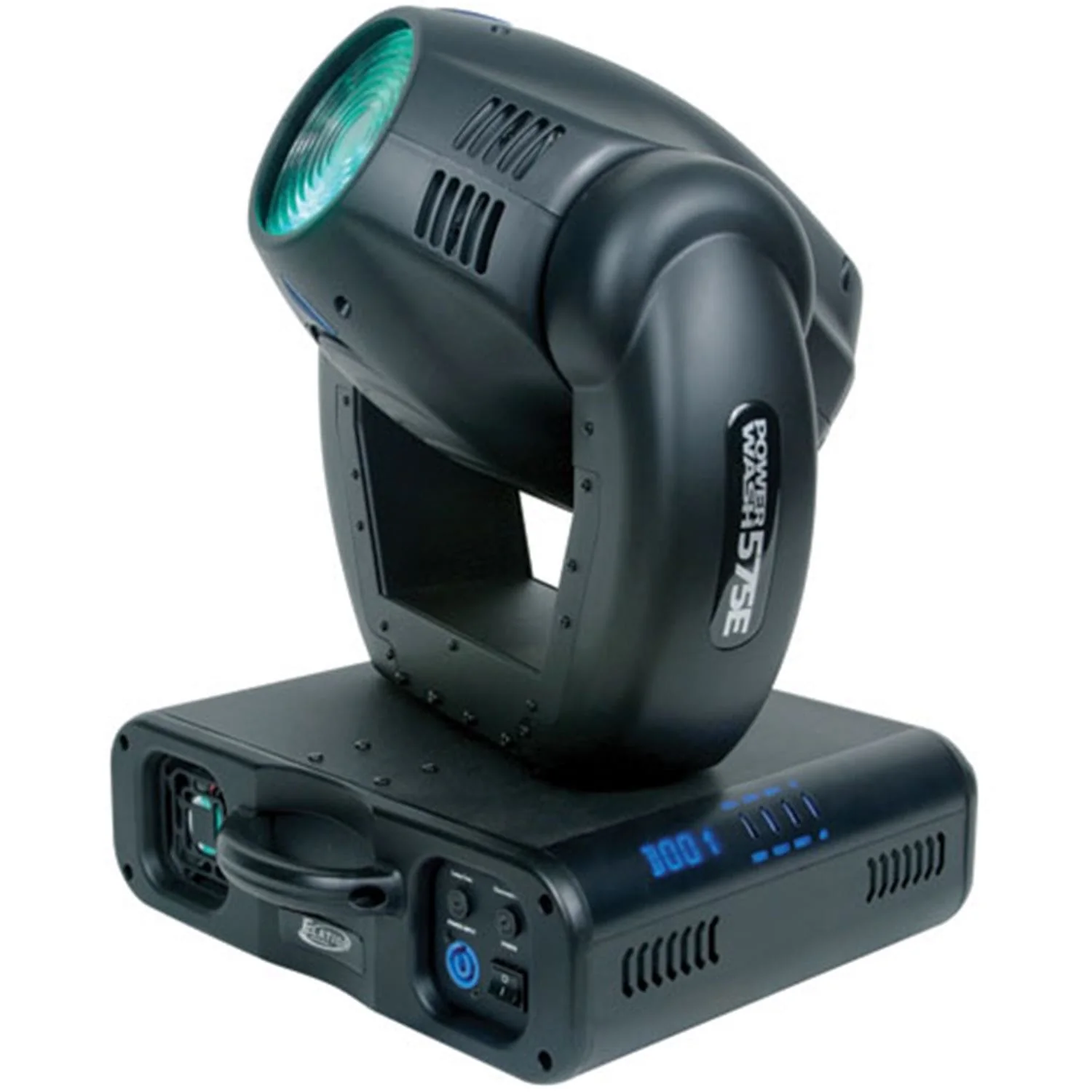

Elation POWERWASH 575 Moving Head Wash

CONTROL FEATURES

• USITT DMX-512 (16-bit resolution)
• 15 DMX channels
• 4 Digit Blue L.E.D. Display
• 3 pin XLR serial input/output

SPECIAL DMX-CONTROL FEATURES

• 16 pan/tilt pre programed movements via DMX
• Built-in Programs via DMX
• Pan/Tilt/Gobo/Color & Prism set to Sound Active mode via DMX

STAND-ALONE FEATURES

• Sound activated built in programs
• Sensitivity knob
• Linkable up to 16 units
• Self Test & Stand Alone settings
• Built in Microphone with sensitivity knob

OPTICAL SYSTEM

• High Output Luminous-Efficiency parabolic mirror
• Glass Dichroic reflector
• 8º - 22º Motorized zoom
• 150mm Fresnel Lens
• Lamp: Philips MSR575/SA2DE 7500K, 1000hr

COLOR

• CMY Gradual Color Mixing
• 9 Dichroic Colors + White + UV
• Continuous Color Scroll

SHUTTER/DIMMER

• Mechanical Dimming 0-100%
• Mechanical High Speed shutter & Pulse Effect

PAN/TILT

• Fine Pan & Tilt (16 bit resolution)
• Automatic Pan / Tilt position correction
• Maximum Pan movement 540º in 2.0s / 16 bit
• Maximum Tilt movement 280º in 1.1s / 16 bit

EFFECTS

• 180º Beam Shaper
• Frost Filter

POWER SUPPLY

• Fuse: 10A
• Electronic Ballast
• Voltage: 90-240V 50-60Hz
• Power Consumption: 700VA
