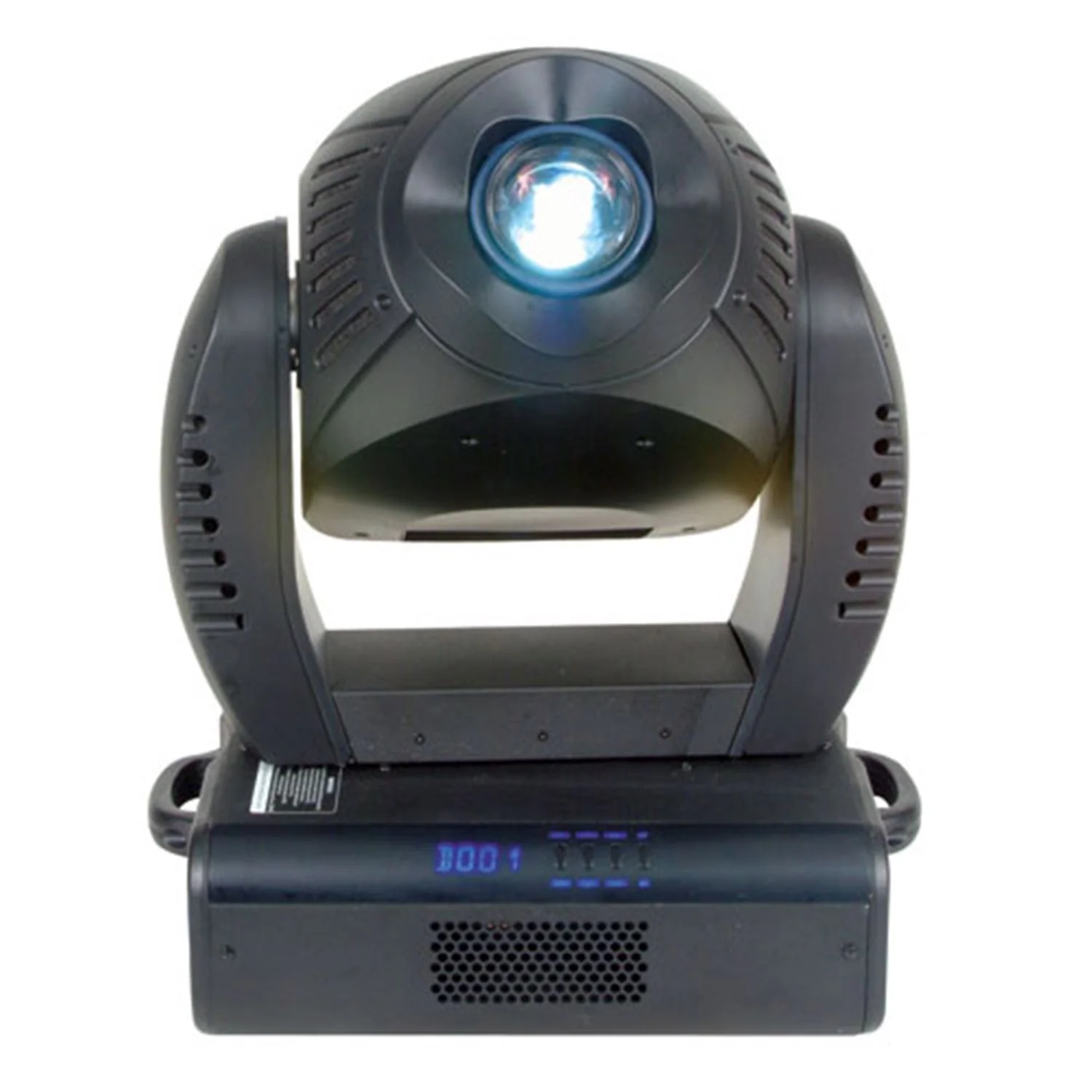

Elation Power Spot 700 II DMX Moving Head

CONTROL FEATURES

• USITT DMX-512 (16-bit resolution)
• 21 DMX Channels
• 4 Digit L.E.D. Display
• On board menu settings
• 3-pin XLR serial input/output
• Sound active mode - built in mic. Lamp
• On/off Power con mains
• Modular internal construction 1/4 turn removable lid 1/4 turn lamp replacement

OPTICAL SYSTEM

• High output luminous- dichroic glass reflector
• 14 - 32 degree linear Zoom All lenses are anti-reflection coated

COLORS

• 2 Color Wheels
• Color Wheel 1 - interchangeable color filters, 8 dichroic color filters + white, Split colors
• Color Wheel 2 - interchangeable color filters, 8 dichroic color filters CTC, CTB + white, Split colors
• Continuous, variable speed, color scrolling in both directions (rainbow effect)
• More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel

GOBOS

• 3 gobo wheels
• 23 Quick-Snap gobos system
• 7 interchangeable, indexable, rotating gobos plus open 9 interchangeable, static gobos plus open 26.9mm outside diameter, 23mm image diameter, 3mm max thickness
• Gobo Overlay (Gobo Morphing)

SHUTTER

• Variable speed strobe effect (1-10) flashes per second
• Pre-set variable/random strobe and dimming pulse effect

DIMMER

• Dual Flag mechanical dimming system

IRIS

• Beam narrow to wide (4% - 100%)
• Variable speed iris macros
• Small to large and large to small Iris Pulse Effect

FROST

• Variable Frost Control
• Hard edge to soft edge

PRISM

• 3-facet rotating/Indexing Prism
• Both directions at variable speeds
• Macro-function for rotating gobos/rotating prism combinations

FOCUS

• Motor driven focus from near to far

ZOOM

• 14 - 32 degree linear Zoom

POWER SUPPLY

• Electronic Ballast
• Voltage: AC 90-260V 50/60Hz
• Power Consumption: 900W (120V=7.5A)
