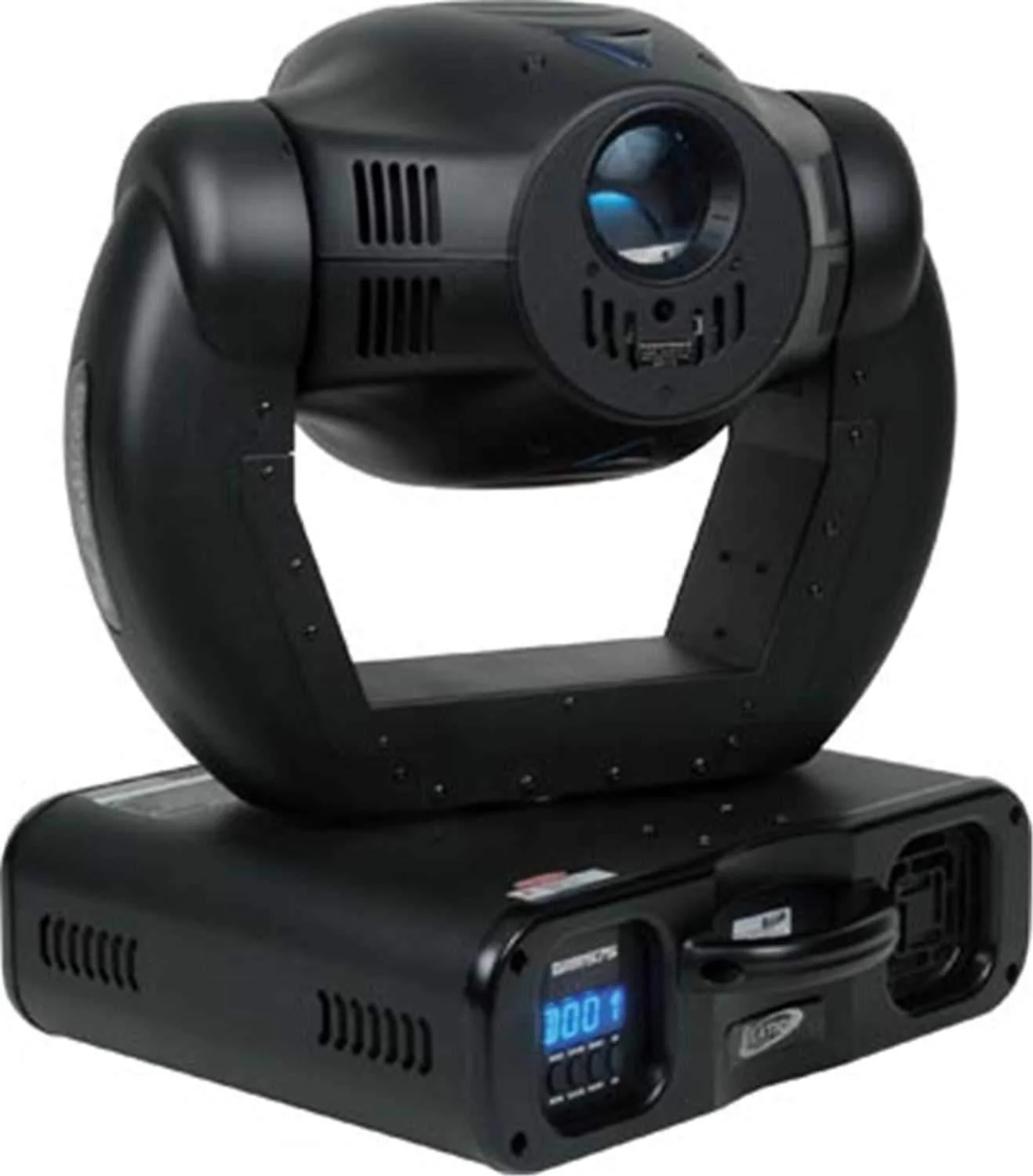

Elation Power Spot 575 II DMX Moving Head

A new inovation in Automated lighting. The POWER SPOT 575II boast a powerfull 575 discharge lamp in a fixture the size as the popular Power Spot 250. Along with this powerfull output the POWER SPOT 575II features 2 Gobo wheels with the patent pending "Quick Snap" gobo change technology for gobo overlaying effects.The POWER SPOT 575II is the ideal fixture for any venue or event!

Control Features

• USITT DMX-512 (16-bit resolution)
• Pan 540º/Tilt 280º
• 16 DMX channels
• 4 Digit Blue L.E.D. Display
• 3 pin XLR serial input/output

Optical Features

• Remote Focus via DMX
• High Output Luminous-Efficiency axial reflector and double condenser lens system
• 15º Beam Angle

Color Features 11 Colors + White

• UV filter
• Color Scroll
• Split Colors

Gobo Features

• 16 Gobos on 2 wheels
• Patent Pending Quick Snap gobo replacement system
• Gobo Shake Effect
• Gobo Scroll
• Wheel 1: 7 interchangable Rotating/Indexing Gobos, 3 Lithographic, 1 Glass, 3 Metal
• Wheel 2: 9 interchangable Static Metal gobosGobo Size Wheel 1: 26.9mm x 23mm viewing x 4mm thickness
• Gobo Size wheel 2: 26.9mm x 23mm viewing metal only

Effect Features

• 4.9 mW Red Laser with pulse effect
• 3 facet prism rotating in both directions at variable speeds
• Gobo Overlaying

Shutter/Dimmer Features

• Mechanical Dimming 0-100%
• Mechanical High Speed shutter & Pulse Effect

SPECIAL DMX-Control Features

• 16 pan/tilt preprogramed movements via DMX
• Built-in Programs via DMX
• Pan/Tilt/Gobo/Color & Prism set to Sound Active mode via DMX

Stand-Alone Features

• Sound activated built in programs
• Sensitivity knob
• Linkable up to 16 units
• Self Test & Stand Alone settings
• Built in Microphone with sensitivity knob.

Technical Specifications

• Lamp: Philips MSR575/SA2DE 7500K, 1000hr
• Dimensions: 26"x12"x10" (530x200x180mm)
• Weight: 50lbs (22.68kgs)
• Fuse: 10A
• Voltage: 120V/220v (50/60Hz)
• Power Consumption: 700VA
• Fan cooled 1 axial fan for head 1 for base
