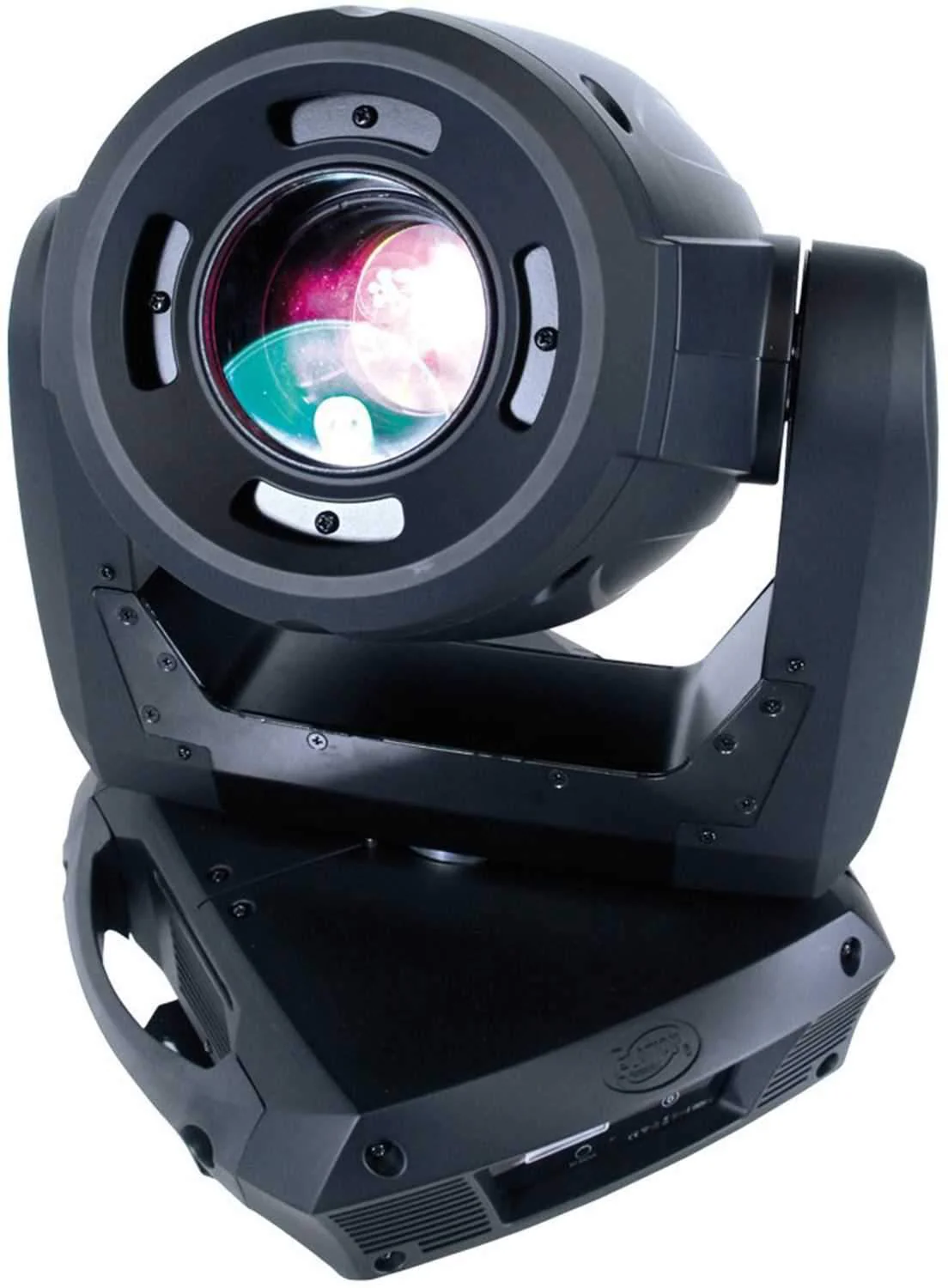

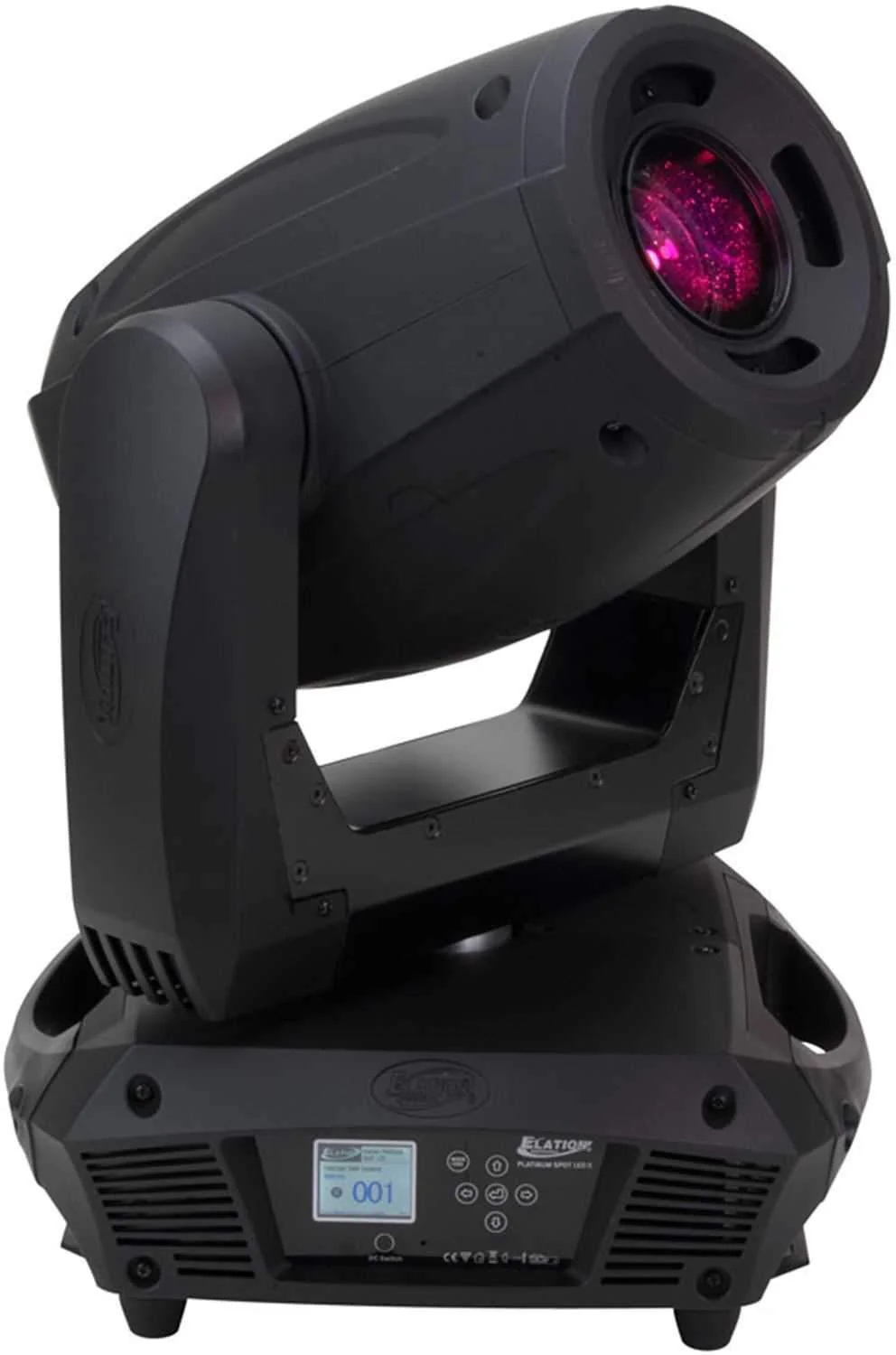

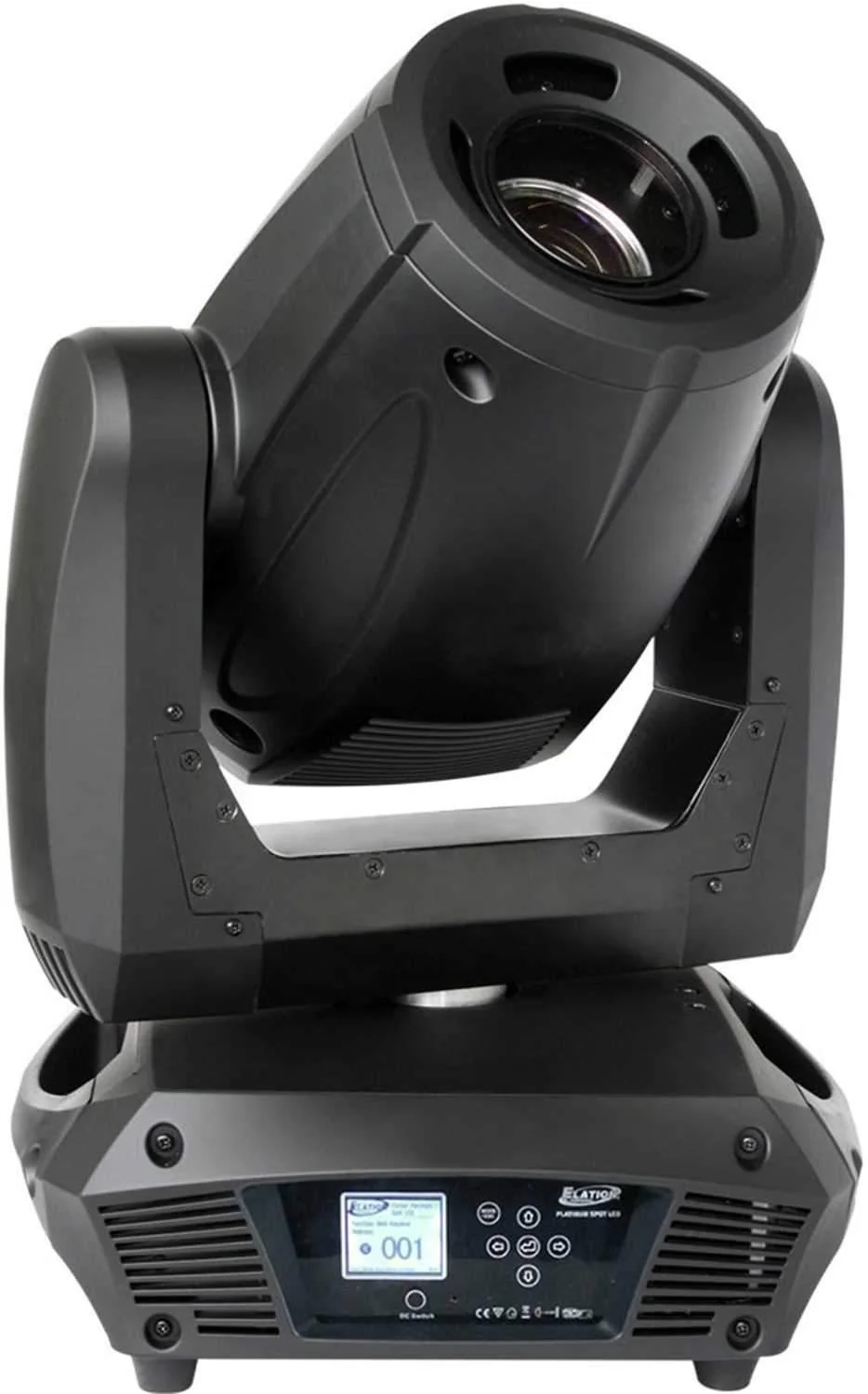

Elation Platinum Spot LED II Moving Head

The Platinum Spot LED II is a moving head fixture featuring (1) 135-watt cold white LED, 16° fixed beam angle and can operate in DMX, stand-alone or sound activated mode.

• 60,000 hour solid state LED lamp source
• Extremely bright led up to 10368 lux 2.5m
• 3/5 Prism/iris/focus
• Very quiet operation
• Very low heat emission

• 1 x LED 135-watt cold white led
• 60,000 hour rated LED source
• Up to 10368 lux 2.5m 16°
• 16° fix beam angle
• 1 color wheel with total 8 dichroic colors + white
• 2 gobo wheels = 14 gobos
• First wheel: 7 indexable, interchangeable, rotating gobos plus open
• Second wheel: 7 static gobos plus open
• Gobo size: outside 27mm / image 22mm
• 3 & 5 facet rotating prisms
• Variable speed iris with macros 5 100%
• Variable frost filter hybrid effect for wash
• Dual flag mechanical dimming system
• Variable speed strobe effect
• Preset variable/random strobe and dimming pulse effects
• Motor driven focus from near to far
• Automatic pan / tilt position correction
• Maximum pan movement 630° or 540° / 16 bit
• Maximum tilt movement 265° / 16 bit
• 16/14/20 channel usitt DMX 512 16 bit resolution
• 3 phase motors for fast, accurate pan / tilt positioning
• Vector mode with blackout MIB function
• Battery powered and colored LCD display
• Customizable DMX channel assignment
• DMX, stand alone, master/slave, sound activated mode
• DMX recorder and edit function integrated
• 3-pin and 5-pin XLR serial input/output
• Fan cooled: fans regulated automatic or DMX
• 2 x 1/4 turn fastening omega clamps
• Electronic power supply
• Max. Power consumption: 230w
• Voltage: ac 120v ~ 240v 50/60hz
• Dimensions (L x W x H): 357 x 335 x 468mm
• Weight: 16 kg.
