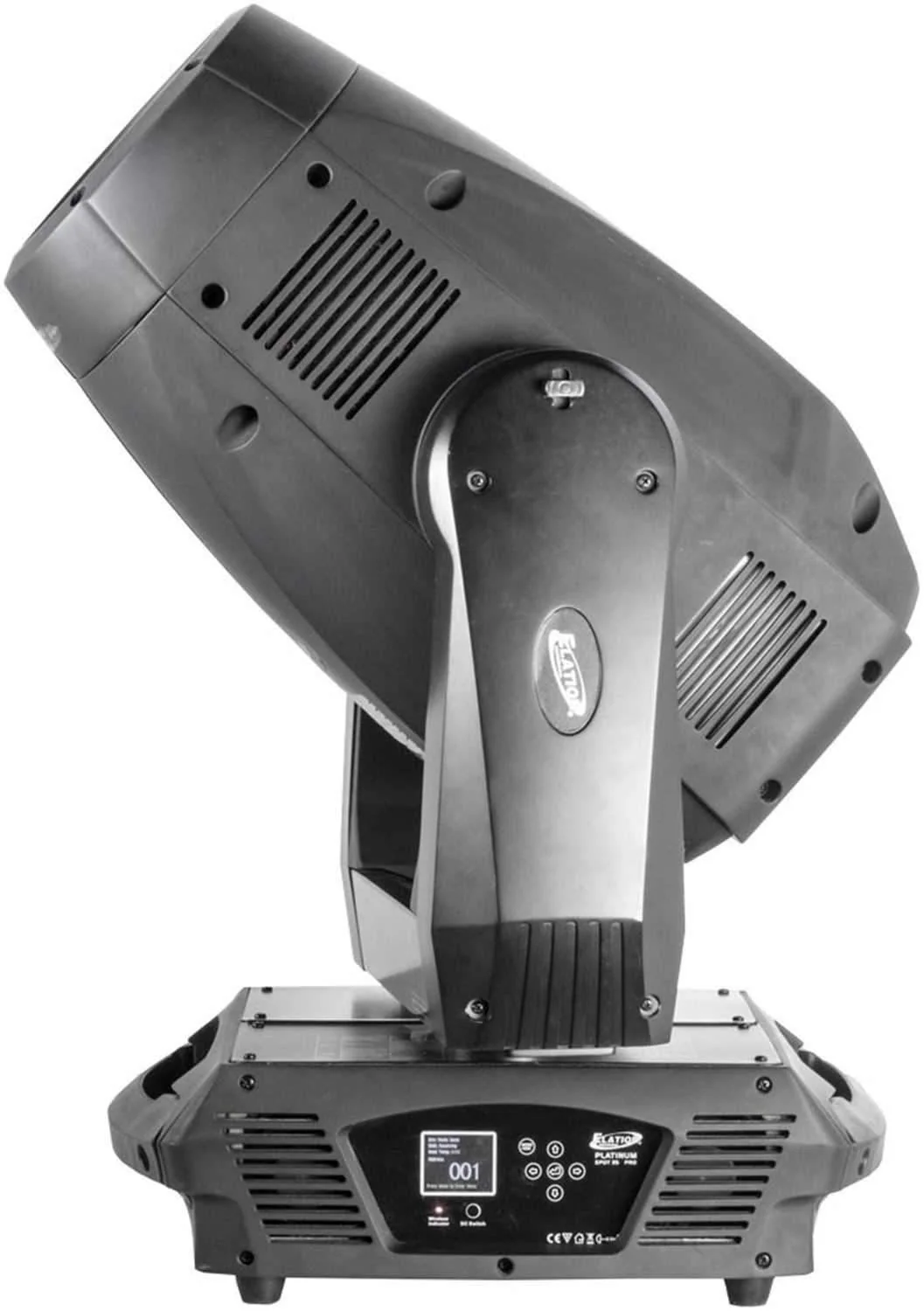

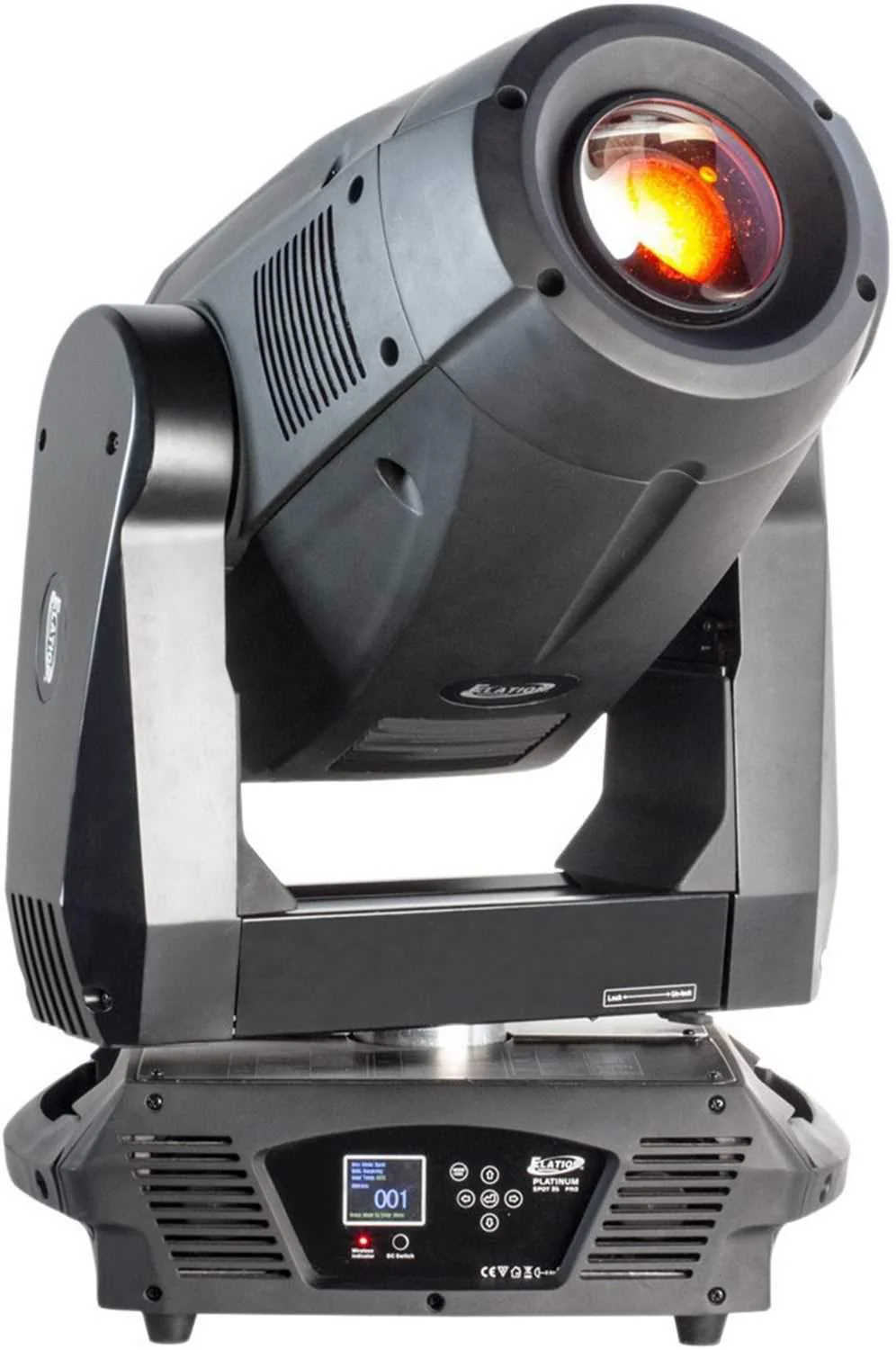

Elation Platinum Spot 35 Pro Moving Head

The Platinum Spot 35 Pro from Elation features the MSR Platinum 35, 800-watt lamp from Phillips, 16-bit resolution on all motor functions, 2 gobo wheels with a total of 12 interchangeable glass rotating/indexing gobos and built-in EWDMX wireless DMX receiver. It offers 3 & 5pin DMX connections and a multi-voltage universal auto switching power supply (100-240v).

Features:

• 540°/630° Pan
• 245° Tilt
• Pan/Tilt Lock
• 8/16 Bit Resolution Adjustable Movement
• Motorized Focus
• 7 Auto Program Macros
• 6 Button Touch Control Panel
• Full Color 180° Reversible Menu Display
• EWDMX Wireless DMX Receiver
• Microphone for Sound Activated Programs
• Rechargeable Backup Battery for Menu Display
• Stand Alone Operation with Master/Slave Function
• Software Upload via Optional External DMX Accessory
• Philips 800-Watt MSR PLATINUM 35
• 55,000 Lumen, 7,800k, >75 CRI, 750 Hour Average Life
• Max 76,880 LUX @5M 8° Min Zoom
• Max 2,725 LUX @5M 50° Max Zoom
• CE Pending, cETLus Pending, IP20 Rated
• Dimensions (L x W x H): 19.9" x 17.6" x 28.6" (506.5 x 447.3 x 726.5mm)
• Weight: 79 lbs. (36kg)

Effects:

• Frost Filter
• Animation Wheel Effect
• Motorized Iris: 5% - 100%
• Two Direction Rainbow Effect
• Mechanical Dimming: 0% - 100%
• High Speed Mechanical Shutter / Strobe
• 3 Facet Rotating Prisms with 16 Prism Macros

Color:

• Variable CMY & CTO
• 8 Interchangeable Dichroic Colors Including UV

Gobos:

• 2 Gobo Wheels
• 12 Interchangeable Glass Rotating / Indexing Gobos
• Size: OD 29mm / ID 24mm

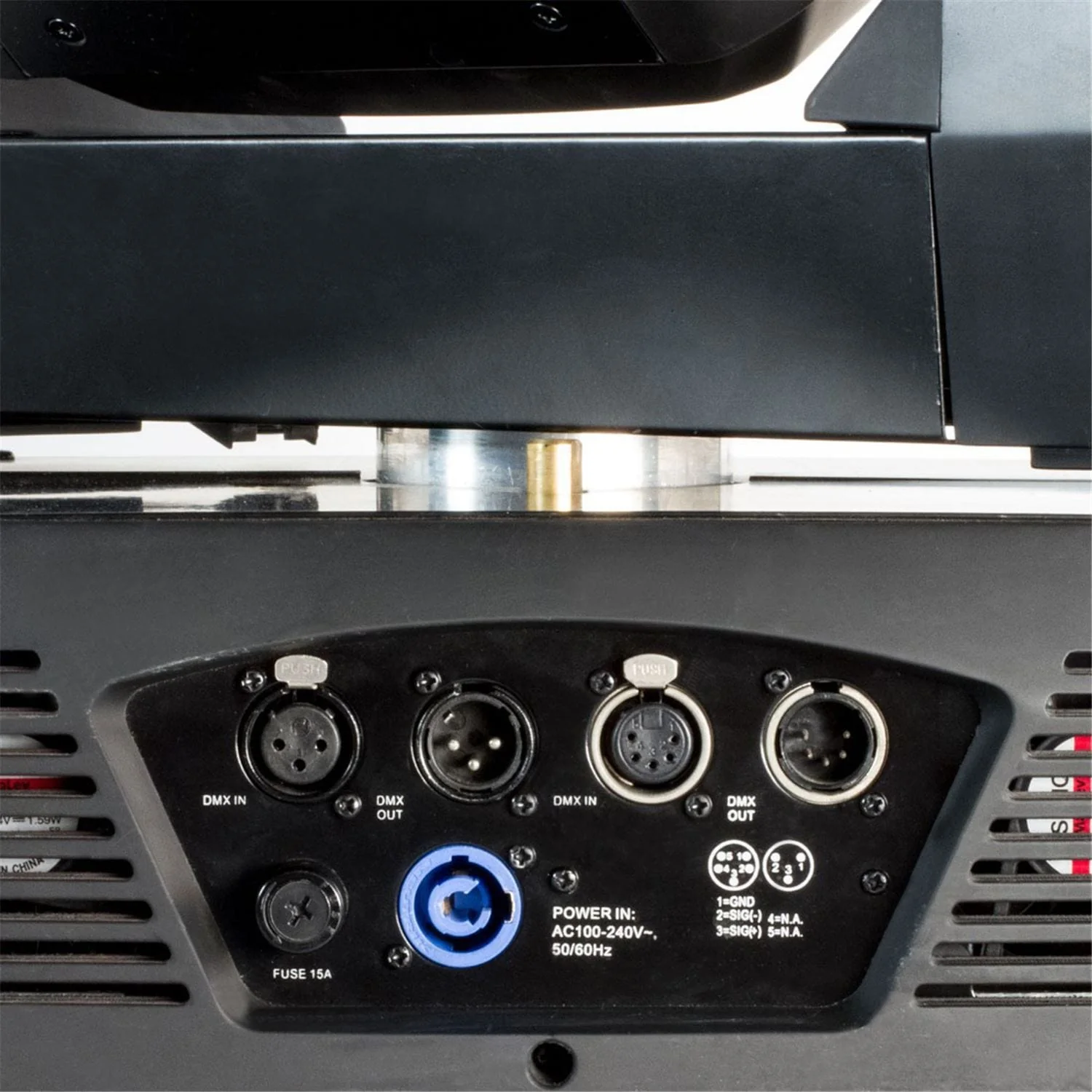

Control/Connections:

• 3 DMX Channel Modes (27/29/41)
• 3pin & 5pin DMX In/Out
• powerCON Power In

Electrical/Thermal:

• AC 100-240V - 50/60Hz
• 1200W Max Power Consumption
• -13°F to 113°F (-25°C to 45°C)
