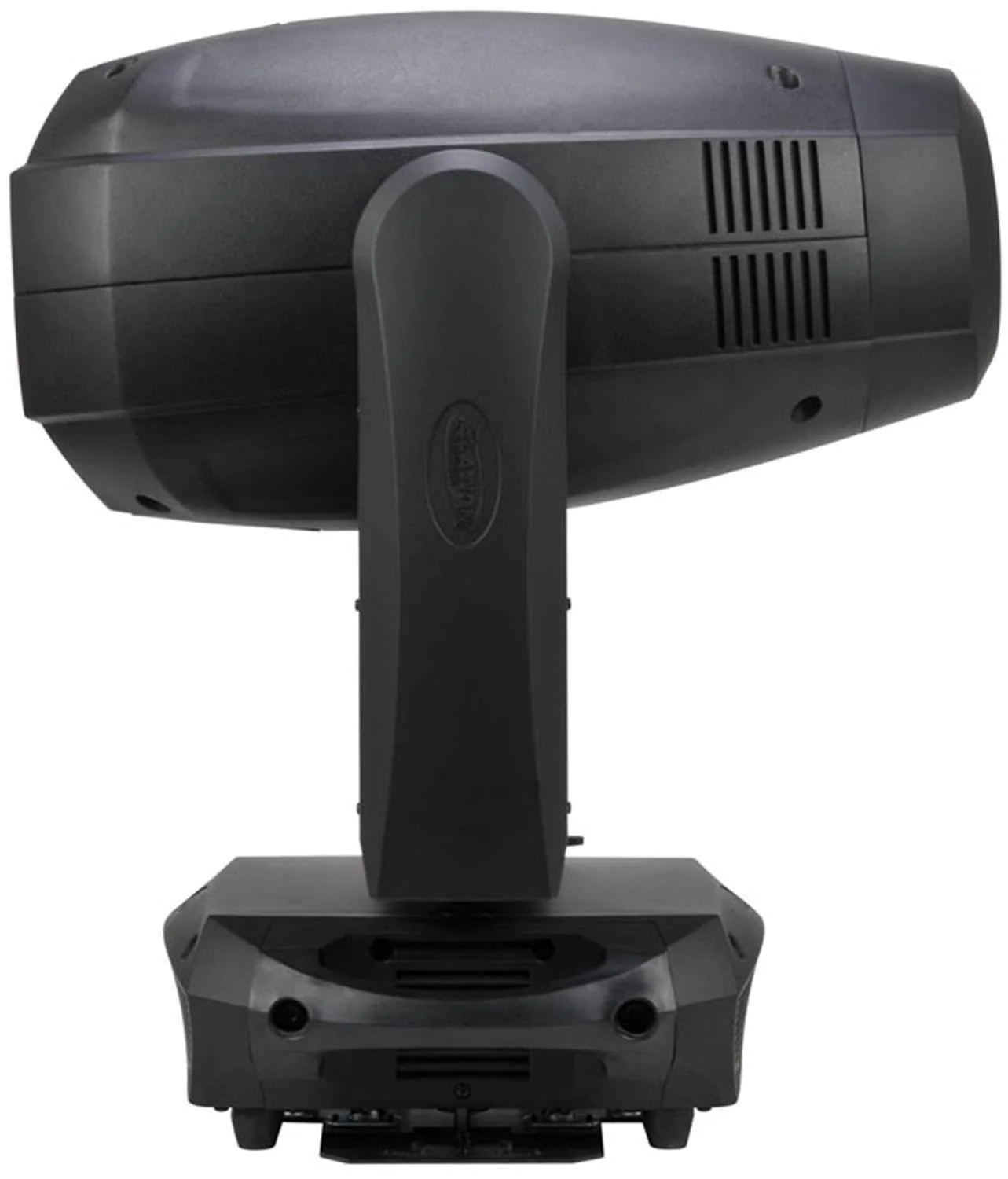

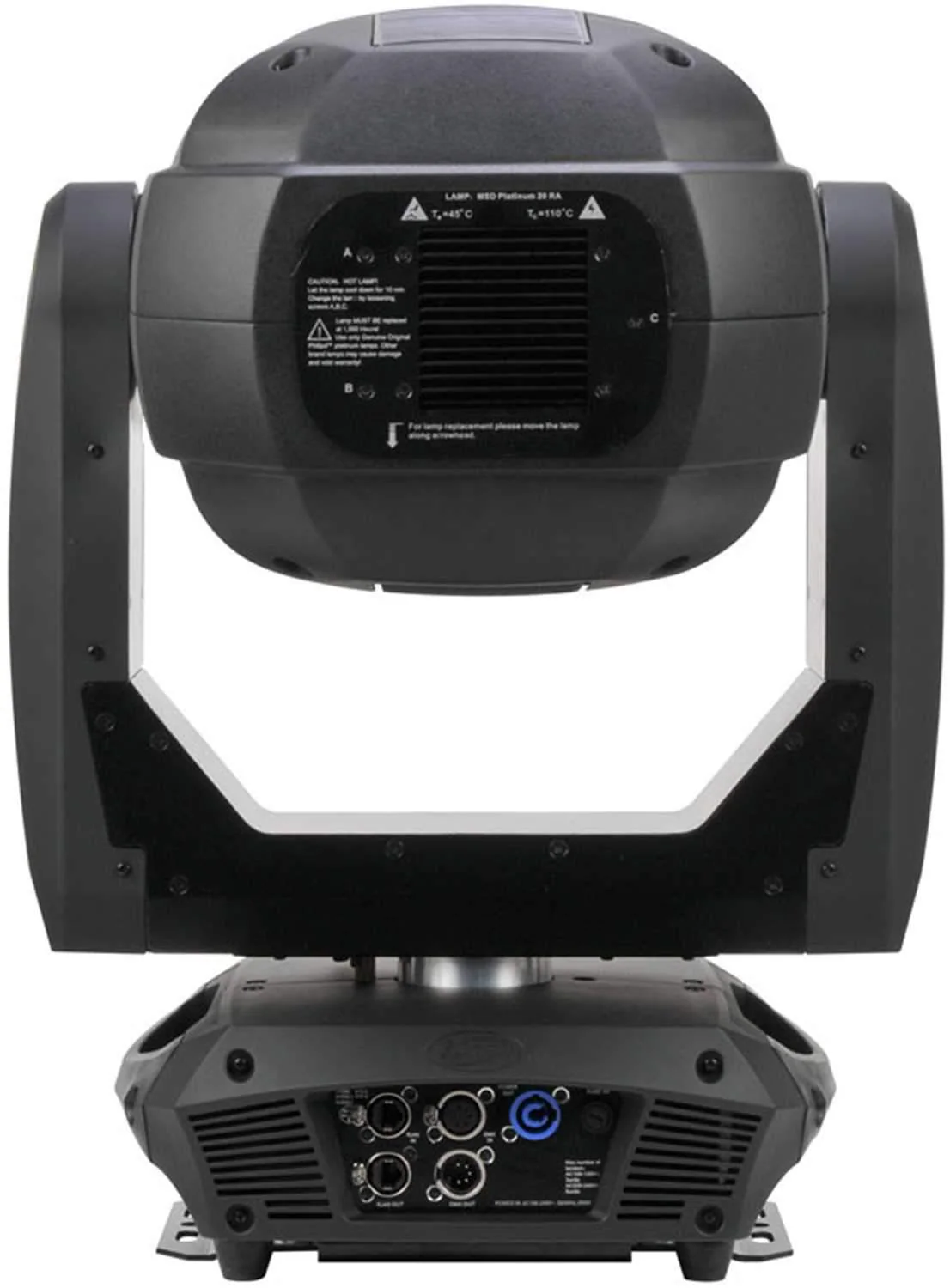

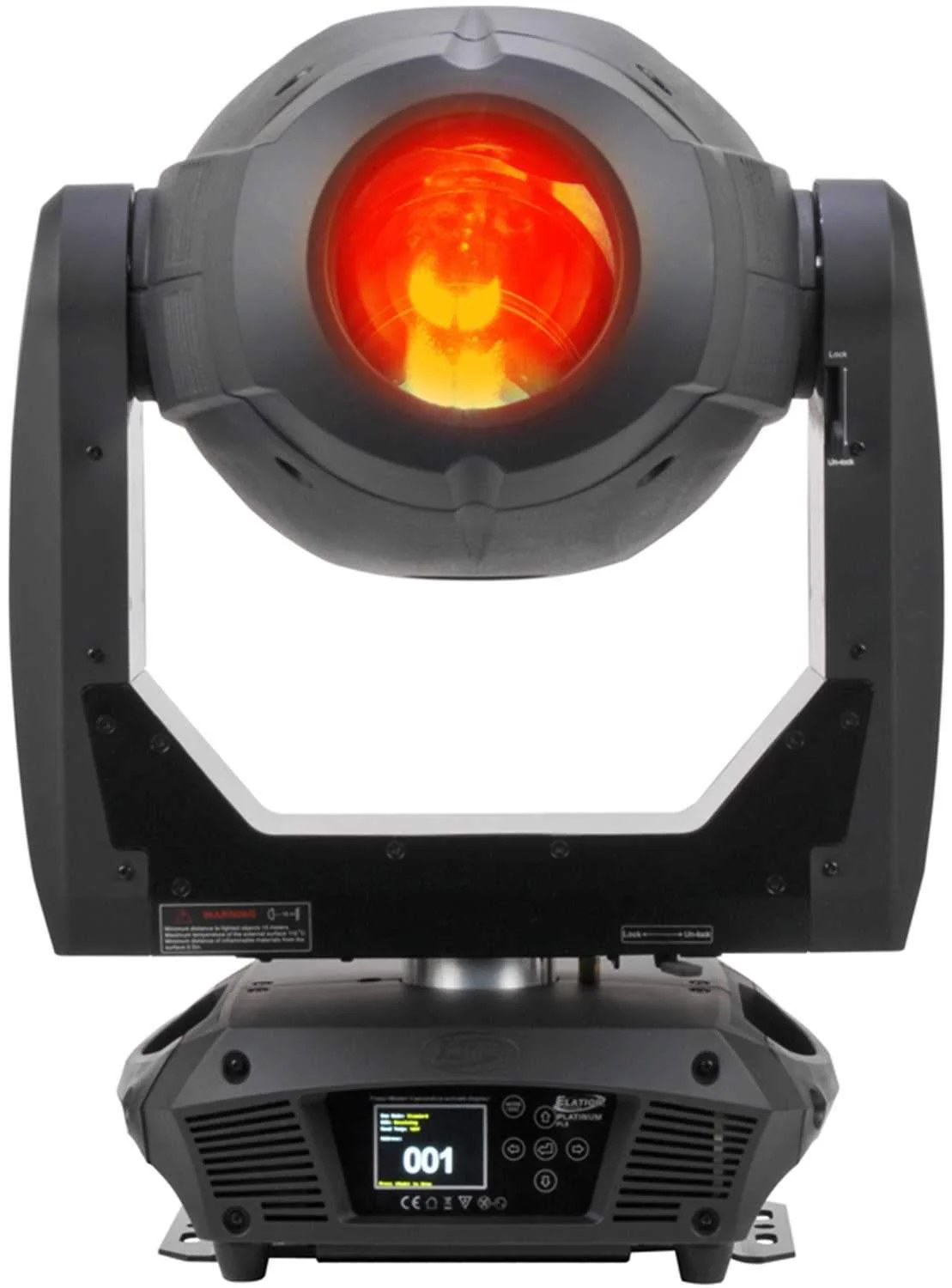

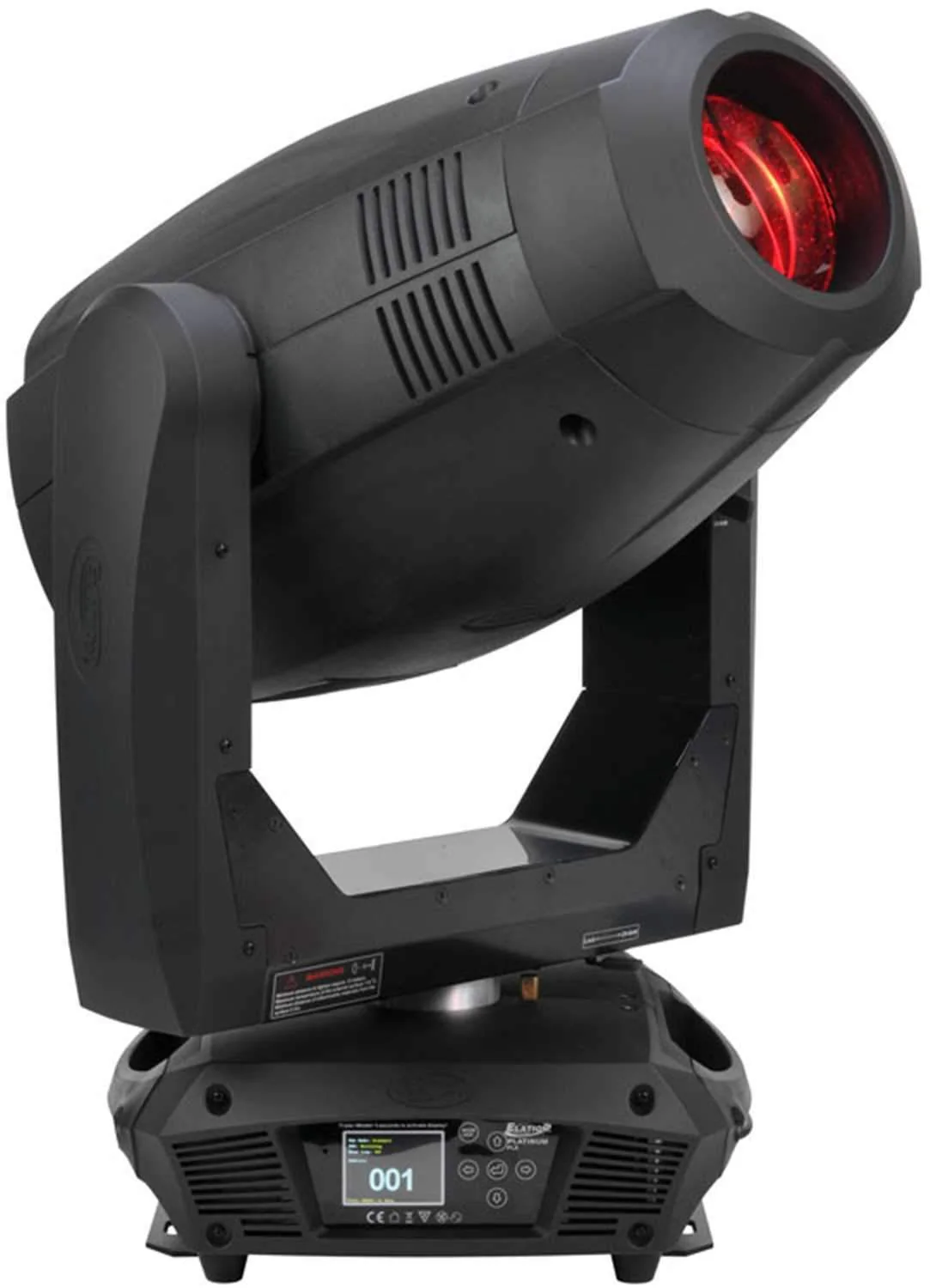

Elation Platinum FLX 3-in-1 Moving Head DMX Light

The new award winning Platinum FLX™ is an innovative full featured patent pending design 3-in-1 luminaire which can be utilized as a beam, spot, or wash fixture, featuring the brand new Philips™ MSD Platinum 20R 470W 80CRI lamp, 7,800K, 23,000 total lumens delivering comparable output to 1,200W fixtures, 1.8° to 18° zoom in beam mode and 2.9° to 25° zoom in spot mode, 6° - 42° zoomable wash / frost effect, full CMY color mixing plus linear CTO color correction, 10 dichroic colors including UV, CTB, plus white (open), 8 rotating-interchangeable and 6 static-stamped gobos, 6-way linear and 8-facet rotating prisms, bi-directional animation wash frost effects, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support, 5pin DMX, RJ45 Ethernet, and powerCON connections, (6) button control full color 180° reversible menu display, 740W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).

Features

• Patent Pending 3-in-1 Beam, Spot, and Wash Luminare
• Comparable Output to 700-1,200W Fixtures
• Minimal Lux Loss in Spot Mode
• 1.8° - 18° Beam and 2.9° - 25° Spot Zoom
• 6° - 42° Zoomable Wash / Frost Filter
• 6-Way Linear and 8-Facet Rotating Prisms
• Bi-Directional Animation and Zoomable Wash / Frost Effects
• Full CMY Color Mixing and Linear CTO Color Correction
• RDM, KlingNET™ and Art-NET (DMX Over Ethernet)

Source

• Philips™ MSD Platinum 20R 470W Lamp
• 23,000 Total Lumens, 7,800K, 80CRI
• 1,500 Hour Average Lamp Life

Photometric Data

• 19,133 Lumens Beam Mode / 11,262 Lumens Spot Mode
• 360,000 LUX 33,444 FC @32.8’ (10m) (1.8° Beam)
• 165,500 LUX 15,375 FC @32.8’ (10m) (2.9° Spot)

Effects

• 6-Way Linear and 8-Facet Rotating Prisms
• Bi-Directional Animation Effect
• 6° - 42° Zoomable Wash / Frost Filter
• Strobe and Dimming

Control / Connections

• (3) DMX Channel Modes (24 / 26 / 37)
• RDM (Remote Device Management)
• 6 Button Touch Control Panel
• Full Color 180° Reversible LCD Menu Display
• 8 / 16 Bit Resolution Adjustable Movement
• 5pin DMX In/Out
• RJ45 Ethernet In/Out (KlingNET™, Art-NET)
• powerCON Power In

Color

• Full CMY Color Mixing
• Linear CTO Color Correction
• 10 Dichroic Colors Including UV and CTB

Gobos

• (2) Gobo Wheels
• (8) Interchangeable / Rotating / Indexing Gobos
• (6) Static-Stamped Gobos (Indexing Wheel)

Size / Weight

• Length: 18.3" (466mm)
• Width: 20.9" (532mm)
• Vertical Height: 30.0" (762mm)
• Weight: 75.0 lbs. (34.0 kg)

Electrical / Thermal

• AC 100-240V - 50/60Hz
• 740W Max Power Consumption
• 14°F to 113°F (-10°C to 45°C)

Approvals / Ratings

• CE | IP20

Installatoin

• Rigging: Clamps (Not Included)
• Working Position: Flat Surface / Inverted (180°)
