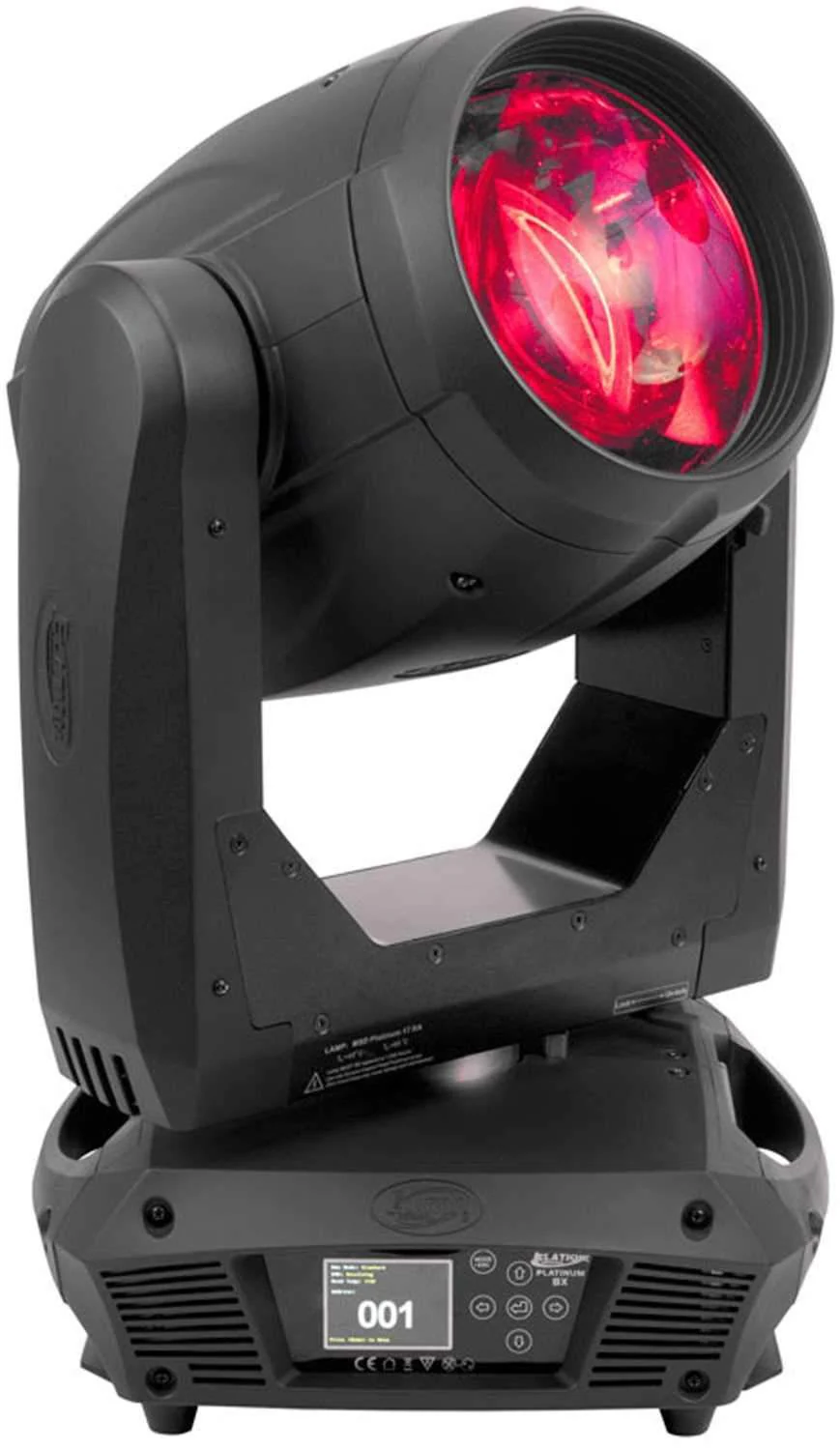

Elation Platinum BX 350W DMX Moving Head Light
Elation Platinum BX 350W DMX Moving Head Light
The new Platinum BX™ is a powerful beam luminaire featuring the new Phillips™ MSD Platinum 17 RA 350W, 6,900K, 85CRI lamp, 15,000 total lumens, delivering extreme output and speed, 3° beam, 10 dichroic colors including UV, CTO, CTB, plus white, 8 rotating interchangeable indexing and 13 static-stamped indexing gobos, rotating 8-facet prism, frost filter, 5pin DMX, powerCON, and RJ45 ethernet (Art-NET) in/out connections, (6) button control full color 180° reversible menu display, 575W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
FEATURES- Powerful 3° Beam
- Extreme Output and Speed
- CTO & CTB Color Correction
- 8-Facet Rotating Prism
- Art-NET (DMX Over Ethernet) Support
- Phillips™ MSD Platinum 17 RA 350W Lamp
- 1,500 Hour Average Lamp Life
- 15,000 Total Lumens, 6,900K, 85CRI
- 219,400 LUX 20,382 FC @49.2' (15m) (3° Full ON)
- 129,400 LUX 12,021 FC @65.6' (20m) (3° Full ON)
- 84,680 LUX 7,867 FC @82' (25m) (3° Full ON)
- 8-Facet Rotating Prism and 16 Prism Macros
- Frost Filter
- Strobe: 1-18fps
- Dimming: 0% - 100%
- 10 Dichroic Colors Including UV, CTB, CTO, + White
- (2) Gobo Wheels
- (8) Interchangeable / Rotating / Indexing Gobos
- (13) Static-Stamped / Indexing Gobos
- (3) DMX Channel Modes (14 / 16 / 22)
- RDM (Remote Device Management)

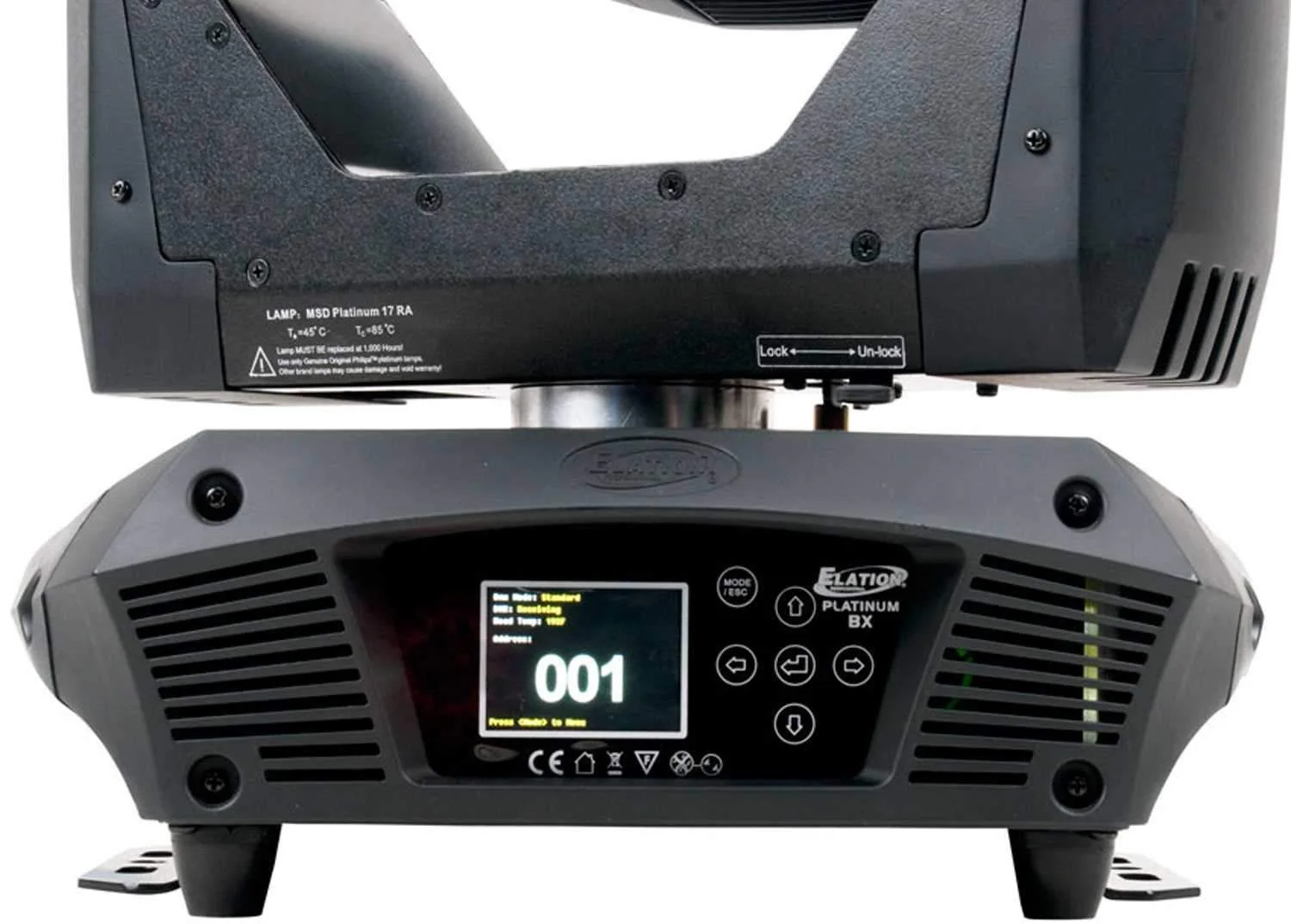

- 6 Button Touch Control Panel
- Full Color 180° Reversible LCD Menu Display
- 8 / 16 Bit Resolution Adjustable Movement

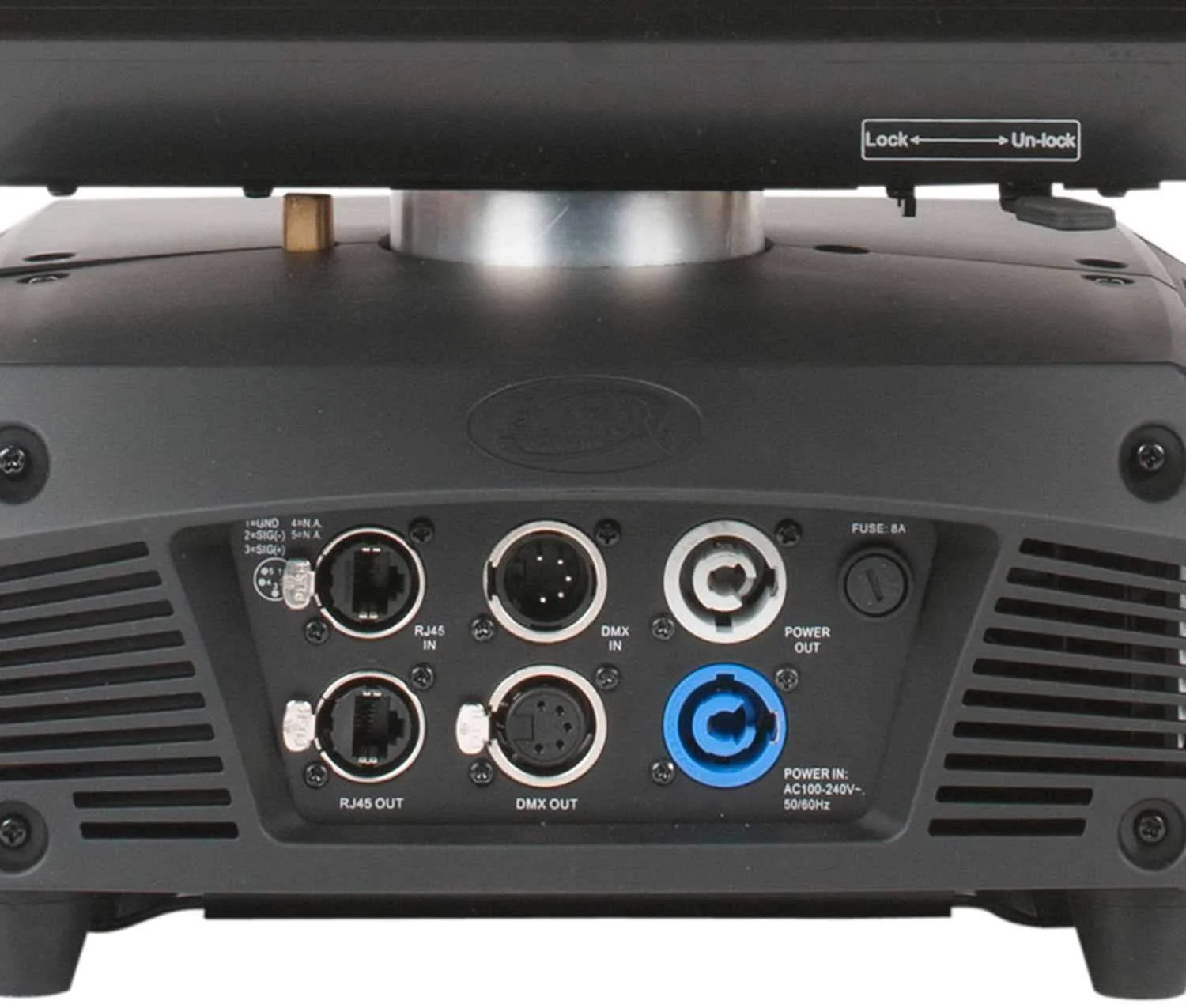

- 5pin DMX In/Out
- RJ45 Ethernet In/Out (Art-NET)
- powerCON Power In/Out
- Length: 14.97" (380.2mm)
- Width: 14.58" (370.3mm)
- Vertical Height: 23.13" (587.5mm)
- Weight: 60.0 lbs. (27 kg)
- AC 100-240V - 50/60Hz
- 575W Max Power Consumption
- -13°F to 113°F (-25°C to 45°C)
- CE | cETLus | IP20
- Rigging: Clamps (Not Included)
- Working Position: Flat Surface / Inverted (180°)

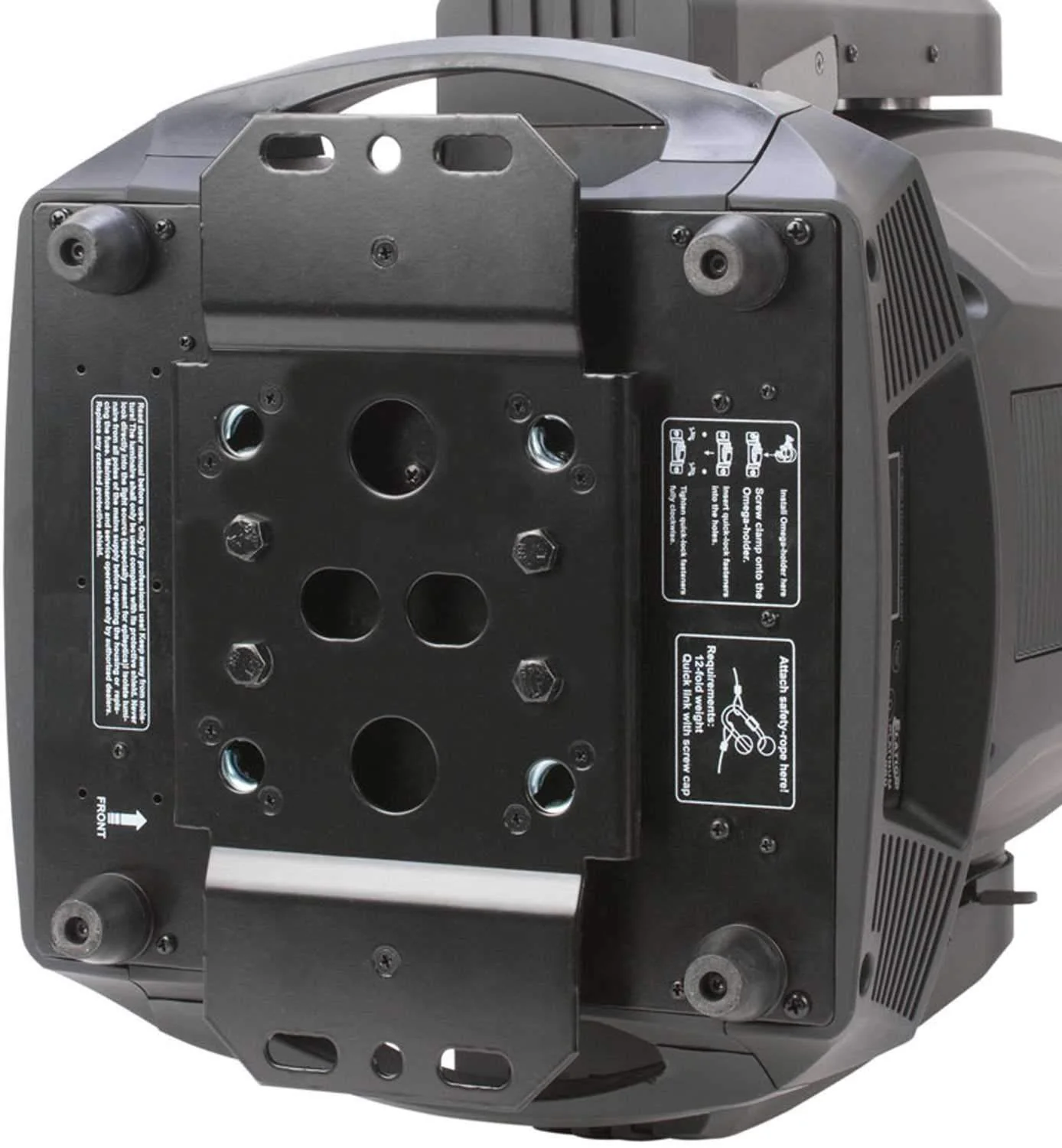

- (2) Omega Brackets
- (1) 5pin DMX Cable
- (1) Safety Cable
- (1) powerCON Cable
