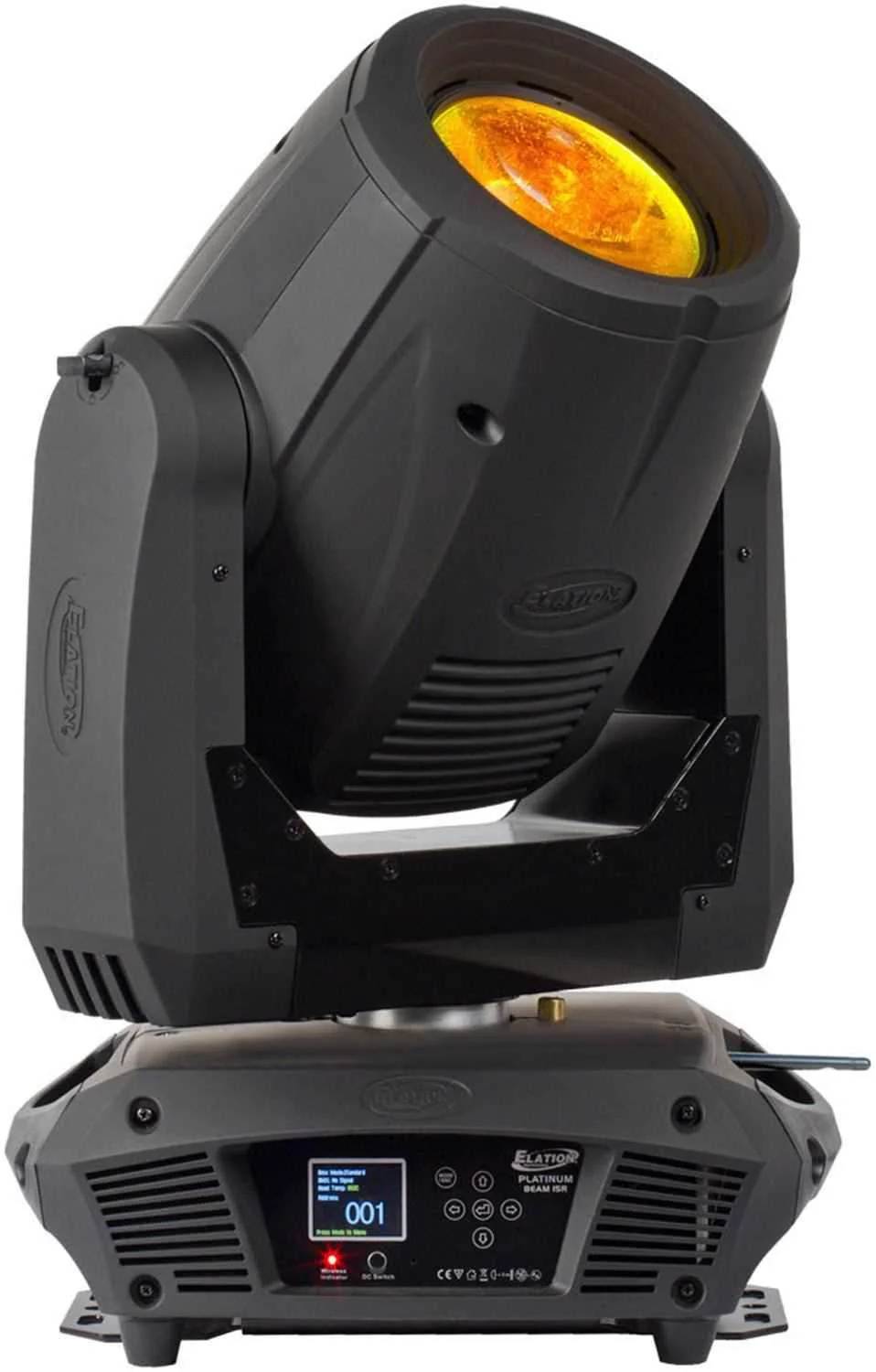

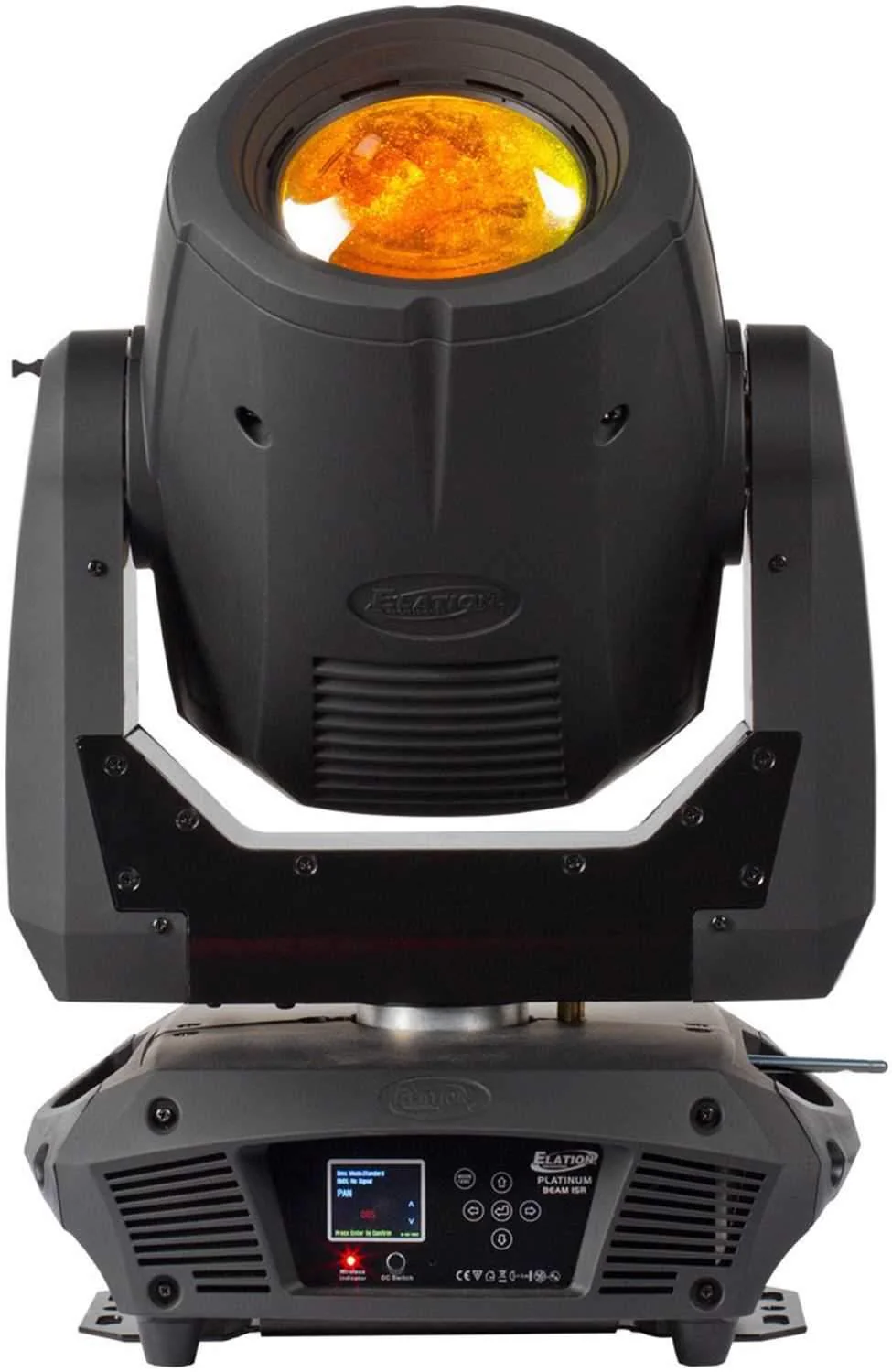

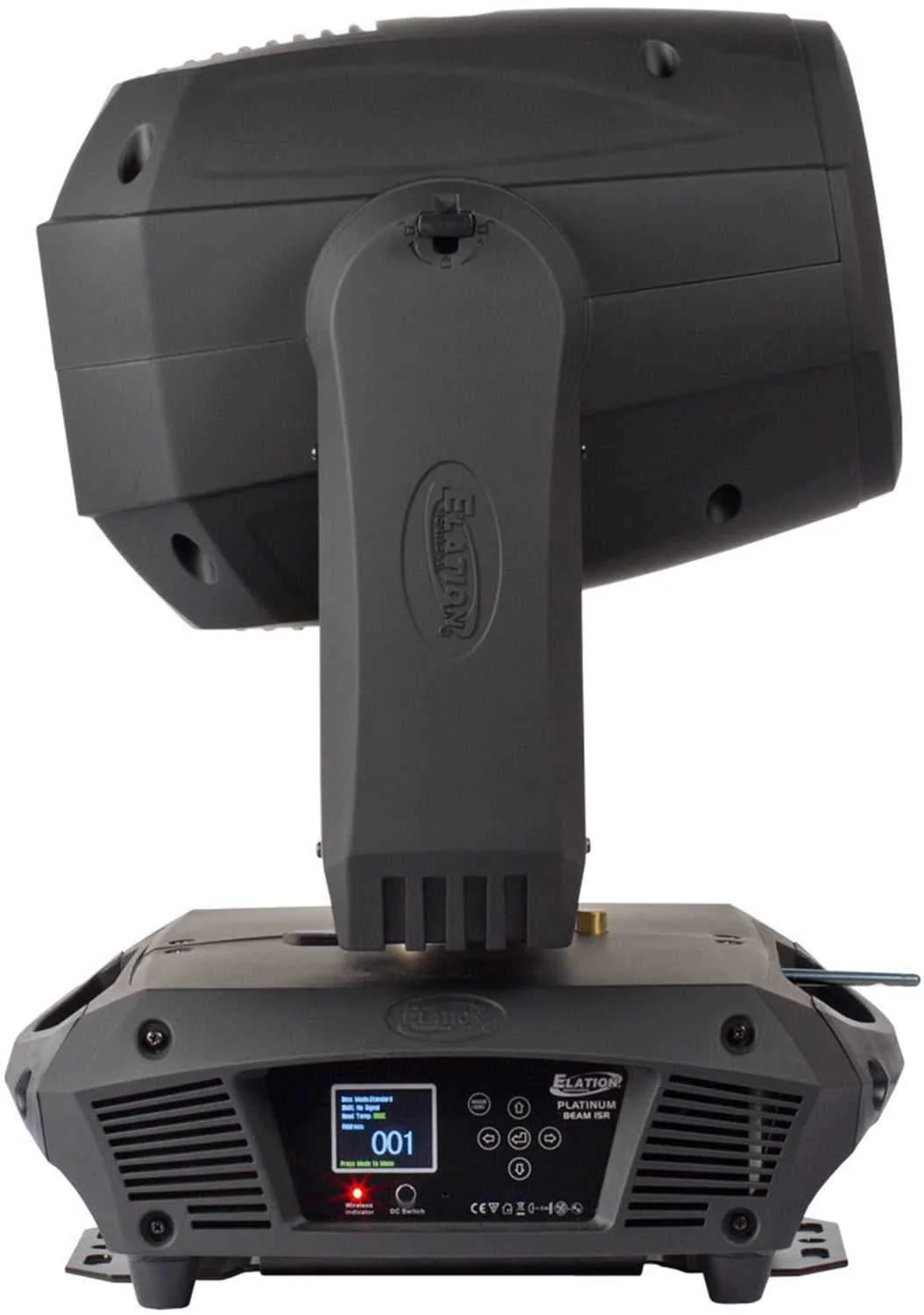

Elation Platinum Beam 15R Pro Moving Head
Elation Platinum Beam 15R Pro Moving Head
The Platinum Beam 15R is the next evolution in extreme ACL/Beam moving heads. Featuring the new Platinum 15R 300 watt Lamp from Philips, offering comparable output to 1200w fixtures with a new specialized optical system offering sharp gobo projections and a extreme beam "ACL / Searchlight" type effect. Featuring 8 dichroic colors, 8 rotating indexing gobos, 11 static gobos, rotating 8-facet prism, frost filter for wash effect and lighting fast 3 phase motors for all effects.
Features:- Razor Sharp 4.8° Beam Angle
- Uses Philips MSD Platinum 15R Lamp technology 300W
- Remote Focus, Stepless Frost (Hybrid), 8 Facet Prism
- 8 Dichroic Colors
- 19 Gobos 8 Rotating/indexing, 11 Static
- EWDMX Receiver built in
- Philips MSD Platinum 15R lamp (13500th, 8000°K, 2000h) included
- 106400 Lux @ 15m
- 4.8° beam angle
- No need for cleaning or adjustment of reflector or lamp
- All lenses are anti-reflection coated
- 1 color wheel with total 8 colors + white
- Variable speed color scrolling both directions (rainbow)
- 2 gobo wheels
- First wheel with 8 rotating and interchangeable (quickout)
- Second wheel with 11 static gobos plus open
- Variable speed gobo scrolling in both directions
- Gobo Size: 14.0mm outside, 6mm image diameter
- Rotating, indexing prism: 8-facet
- Macro-function for rotating gobo/prism combinations
- Variable Frost Filter (Hybrid effect for Wash)
- Dual flag mechanical dimming system
- Variable speed strobe effect
- Preset variable/random strobe and dimming pulse effects
- Automatic Pan / Tilt position correction
- Maximum Pan-movement 630° or 540°/ 16 bit
- Maximum Tilt-movement 265° / 16 bit
- 3 Phase motors for fast, accurate Pan / Tilt positioning
- Vector Mode with blackout MIB function

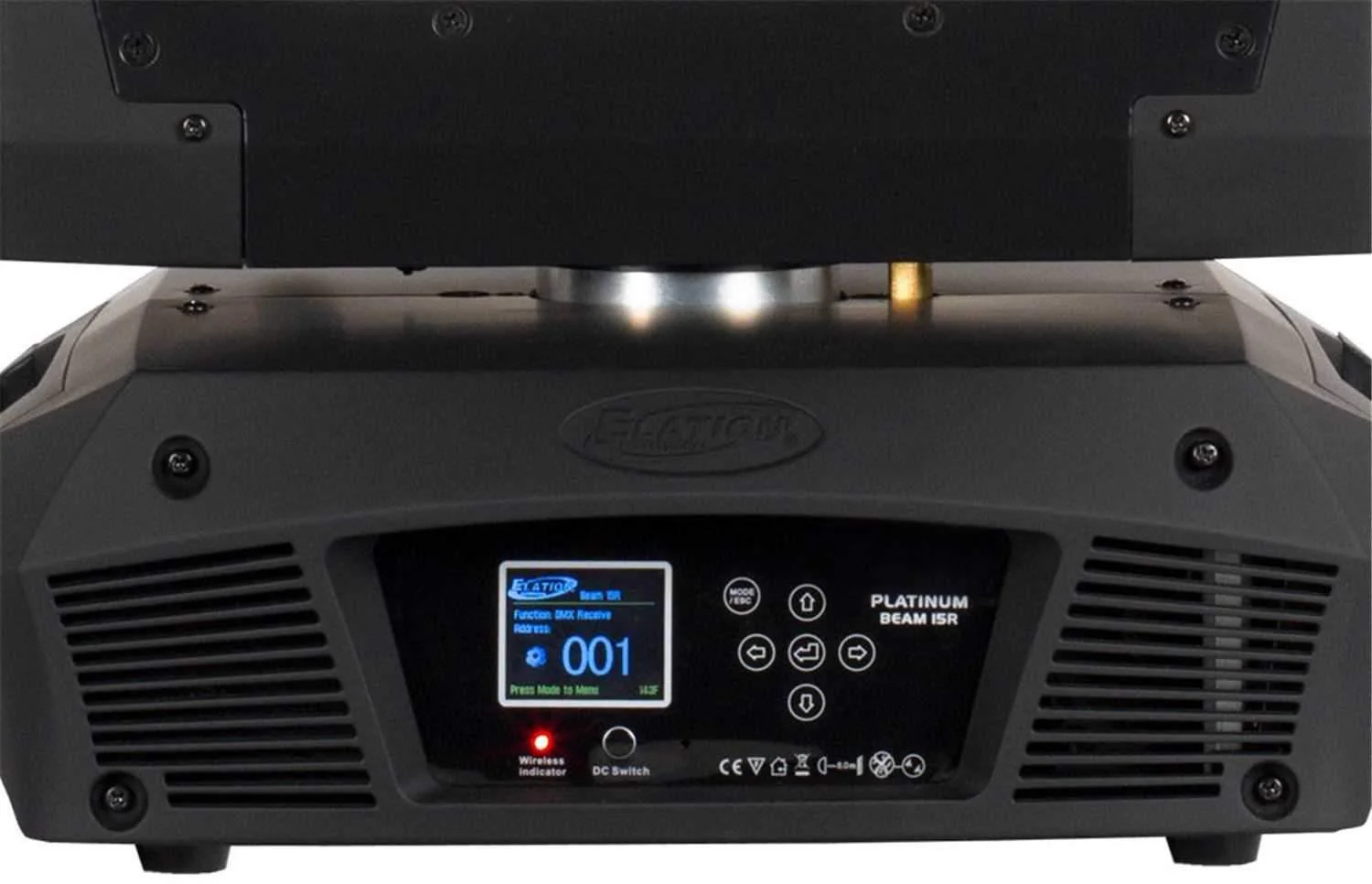

- Battery powered and colored LCD Display
- 14/16/22 DMX channels USITT DMX-512 (16-bit resolution)
- Customizable DMX channel assignment
- DMX, stand-alone, master/slave, sound activated mode
- DMX recorder and edit function integrated
- Software update via DMX, using optional E-Loader
- 3-pin and 5-Pin XLR serial input/output
- Fan cooled - fans regulated automatic or DMX
- Constant temperature readout / management function
- 2 x 1/4 turn fastening Omega Clamps
- Electronic ballast and auto switching power supply
- Power consumption: 500W max.
- cETLus approved
- Voltage: AC 100V ~ 240V 50/60Hz
- Dimensions (L x W x H): 13.7" x 15" x 22.4"/350 x 380 x 570 mm
- Weight: 50 lbs/23 kg
Original: $2,399.99
-70%$2,399.99
$720.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Elation Platinum Beam 15R Pro Moving Head
The Platinum Beam 15R is the next evolution in extreme ACL/Beam moving heads. Featuring the new Platinum 15R 300 watt Lamp from Philips, offering comparable output to 1200w fixtures with a new specialized optical system offering sharp gobo projections and a extreme beam "ACL / Searchlight" type effect. Featuring 8 dichroic colors, 8 rotating indexing gobos, 11 static gobos, rotating 8-facet prism, frost filter for wash effect and lighting fast 3 phase motors for all effects.
Features:- Razor Sharp 4.8° Beam Angle
- Uses Philips MSD Platinum 15R Lamp technology 300W
- Remote Focus, Stepless Frost (Hybrid), 8 Facet Prism
- 8 Dichroic Colors
- 19 Gobos 8 Rotating/indexing, 11 Static
- EWDMX Receiver built in
- Philips MSD Platinum 15R lamp (13500th, 8000°K, 2000h) included
- 106400 Lux @ 15m
- 4.8° beam angle
- No need for cleaning or adjustment of reflector or lamp
- All lenses are anti-reflection coated
- 1 color wheel with total 8 colors + white
- Variable speed color scrolling both directions (rainbow)
- 2 gobo wheels
- First wheel with 8 rotating and interchangeable (quickout)
- Second wheel with 11 static gobos plus open
- Variable speed gobo scrolling in both directions
- Gobo Size: 14.0mm outside, 6mm image diameter
- Rotating, indexing prism: 8-facet
- Macro-function for rotating gobo/prism combinations
- Variable Frost Filter (Hybrid effect for Wash)
- Dual flag mechanical dimming system
- Variable speed strobe effect
- Preset variable/random strobe and dimming pulse effects
- Automatic Pan / Tilt position correction
- Maximum Pan-movement 630° or 540°/ 16 bit
- Maximum Tilt-movement 265° / 16 bit
- 3 Phase motors for fast, accurate Pan / Tilt positioning
- Vector Mode with blackout MIB function
- Battery powered and colored LCD Display
- 14/16/22 DMX channels USITT DMX-512 (16-bit resolution)
- Customizable DMX channel assignment
- DMX, stand-alone, master/slave, sound activated mode
- DMX recorder and edit function integrated
- Software update via DMX, using optional E-Loader
- 3-pin and 5-Pin XLR serial input/output
- Fan cooled - fans regulated automatic or DMX
- Constant temperature readout / management function
- 2 x 1/4 turn fastening Omega Clamps
- Electronic ballast and auto switching power supply
- Power consumption: 500W max.
- cETLus approved
- Voltage: AC 100V ~ 240V 50/60Hz
- Dimensions (L x W x H): 13.7" x 15" x 22.4"/350 x 380 x 570 mm
- Weight: 50 lbs/23 kg
