Elation Pixel Driver 4000 Controller for Pixel Bar

Pixel Driver 4000™ is designed specifically for the Elation Pixel Bar 30IP, 60IP, and 120IP series, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control of 4,080 max pixels via Kling-Net, and 680 max pixels via Art-Net and sACN (streaming ACN) protocols.

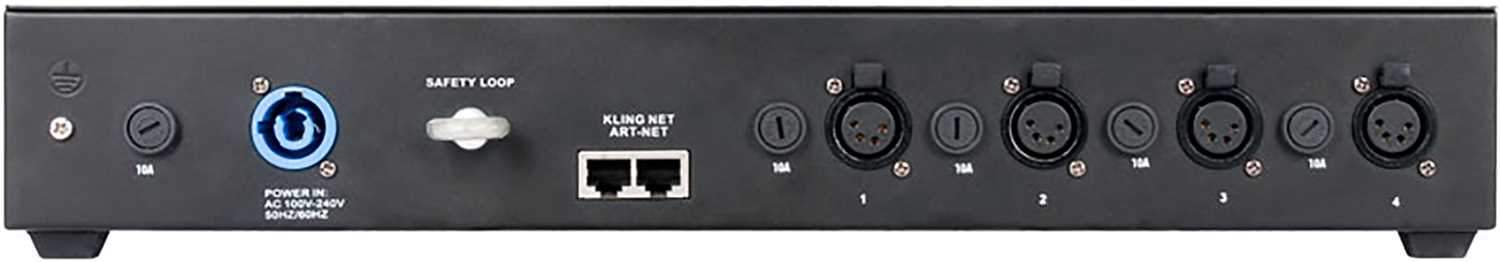

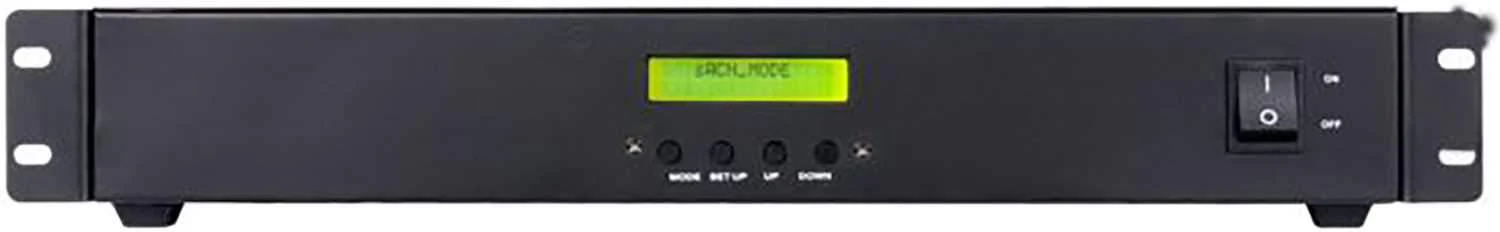

The Pixel Driver 4000 features a universal auto switching power supply (100-240v), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and (4) outputs which use proprietary IP rated 4pin combo cables (sold separately) that supply power and data to each pixel bar, (available in lengths from 2 to 50 meters). The Pixel Driver 4000 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).

Features:

• Power/Data Supply for Elation Pixel Bar 30IP, 60IP, and 120IP
• Simple On-Board Manual Dimming and Strobe Control
• Kling-Net, Art-Net, and sACN Protocol Support
• 4,080 Max Pixel Mapping via Kling-Net
• 680 Max Pixel Mapping via Art-Net and sACN
• 19-inch Rack or Truss Mounting Options
• Multi Unit Linking via RJ45 Ethernet
• (4) Outputs
• Power/Data Combo Cables (sold separately)*

*Available in lengths from 2-50 meters

Specifications:

Control / Connections

• Manual RGB Mode
• Internal Programs
• Art-NET | sACN | Kling-NET
• 2 RJ45 Ethernet Ports
• 4 4pin Power/Data Outputs

Size / Weight

• Length: 16.7" (425mm)
• Width: 11.9" (301mm)
• Height: 2.9" (74mm)
• Weight: 9.5 lbs. (4.3kg)

Electrical

• AC 100-240V - 50/60HZ
• 800W Max Power Consumption
• -4°F to 113°F (-20°C to 45°C)

Approvals

• CE | cETLus
