Elation Pixel Bar Bar 20 Tri Color LED Fixture

Product image 1
1 / 5

Elation Pixel Bar Bar 20 Tri Color LED Fixture

Elation Pixel Bar Bar 20 Tri Color LED Fixture

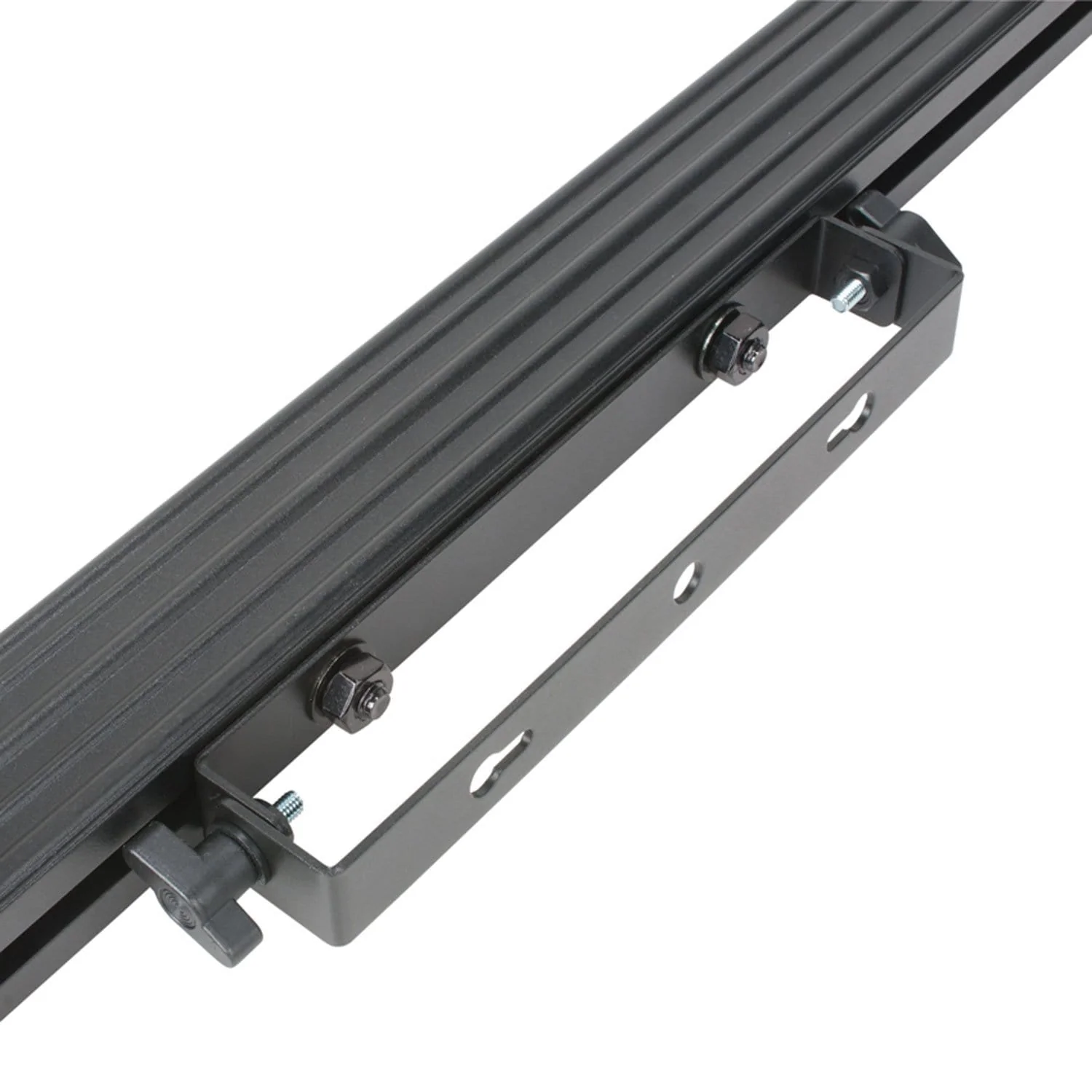

The Pixel Bar is a 20 pixels length fixture featuring 3-in-1 SMD LEDs producing a 25mm pixel pitch, 16.7 million colors with 8 bits per color, 850 NITs, 2000Hz refresh rate, DC24V, (2) RJ45 CAT5e ports (input/output) connections, flicker free operation for broadcast TV and film, multiple unit linkable, extruded aluminum housing, and integrated adjustable mounting brackets/clamps.

Features
  • Pixel pitch: 25mm
  • Refresh rate: 850 NITs / 2000Hz
  • Housing: extruded aluminum
Specifications
  • Light source: 20 x 3-in-1 SMD LEDs
  • Photometric data: 82 LUX 8 FC @1.6’ (0.5m) 120° full on
  • Color: 16.7 million colors / 8 bits per color
  • Control & connections:
    • DMX channels: 60
    • Multiple unit linkable: 32 per Pixel Net 4 device

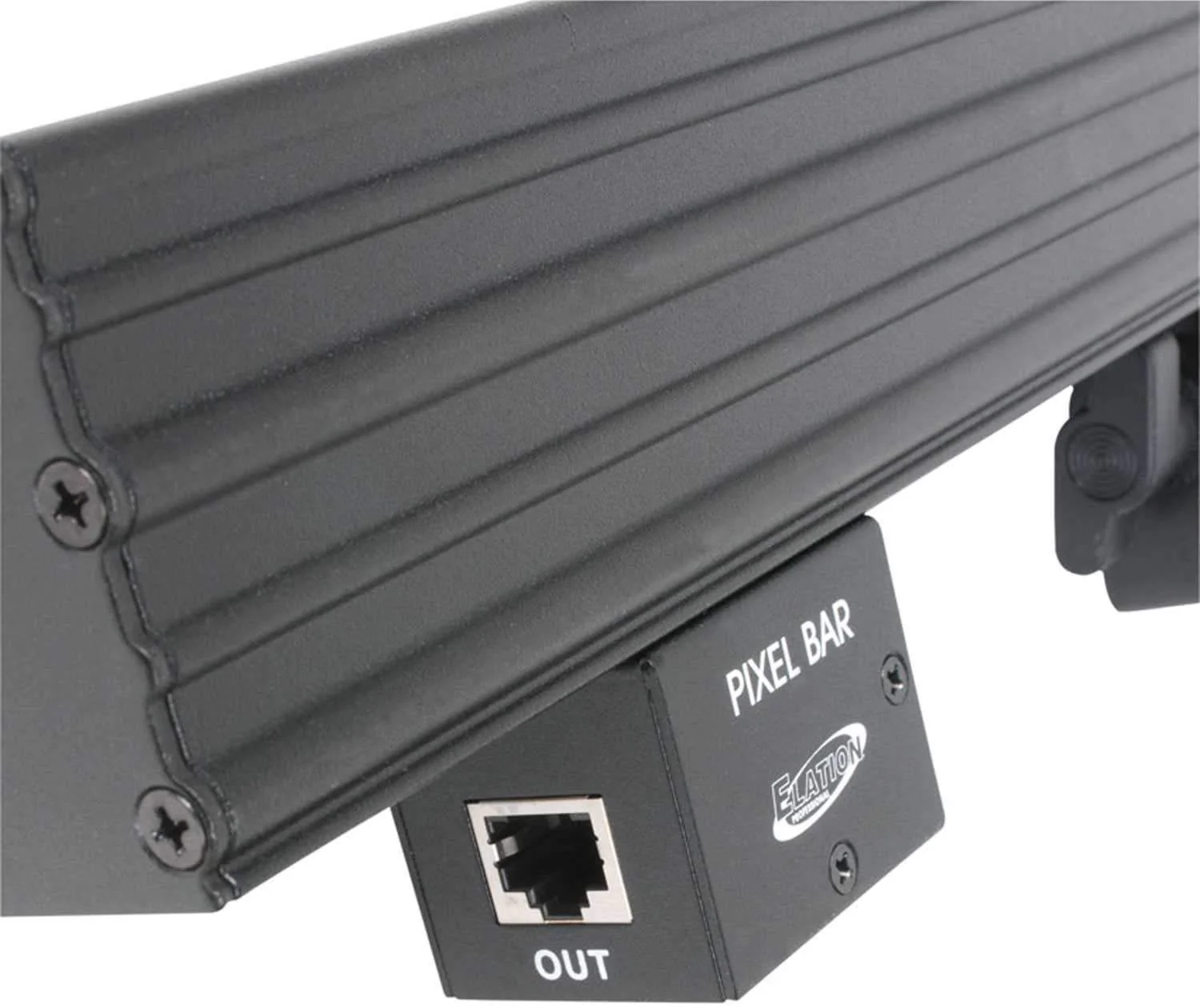

    • (2) RJ45 CAT5e input / output
  • Size / weight:
    • Dimensions: 19.7" x 1.5" x 3.6" (L x W x H)
    • Weight: 3.6 lbs. / 1.63kg
  • Electrical & thermal
    • DC-24V
    • Power consumption: 8W max.
  • Approvals / ratings:
    • CE
    • cETLus
    • IP20
$36.00

Original: $120.00

-70%
Elation Pixel Bar Bar 20 Tri Color LED Fixture—

$120.00

$36.00

Product Information

Shipping & Returns

Description

Elation Pixel Bar Bar 20 Tri Color LED Fixture

The Pixel Bar is a 20 pixels length fixture featuring 3-in-1 SMD LEDs producing a 25mm pixel pitch, 16.7 million colors with 8 bits per color, 850 NITs, 2000Hz refresh rate, DC24V, (2) RJ45 CAT5e ports (input/output) connections, flicker free operation for broadcast TV and film, multiple unit linkable, extruded aluminum housing, and integrated adjustable mounting brackets/clamps.

Features
  • Pixel pitch: 25mm
  • Refresh rate: 850 NITs / 2000Hz
  • Housing: extruded aluminum
Specifications
  • Light source: 20 x 3-in-1 SMD LEDs
  • Photometric data: 82 LUX 8 FC @1.6’ (0.5m) 120° full on
  • Color: 16.7 million colors / 8 bits per color
  • Control & connections:
    • DMX channels: 60
    • Multiple unit linkable: 32 per Pixel Net 4 device
    • (2) RJ45 CAT5e input / output
  • Size / weight:
    • Dimensions: 19.7" x 1.5" x 3.6" (L x W x H)
    • Weight: 3.6 lbs. / 1.63kg
  • Electrical & thermal
    • DC-24V
    • Power consumption: 8W max.
  • Approvals / ratings:
    • CE
    • cETLus
    • IP20
