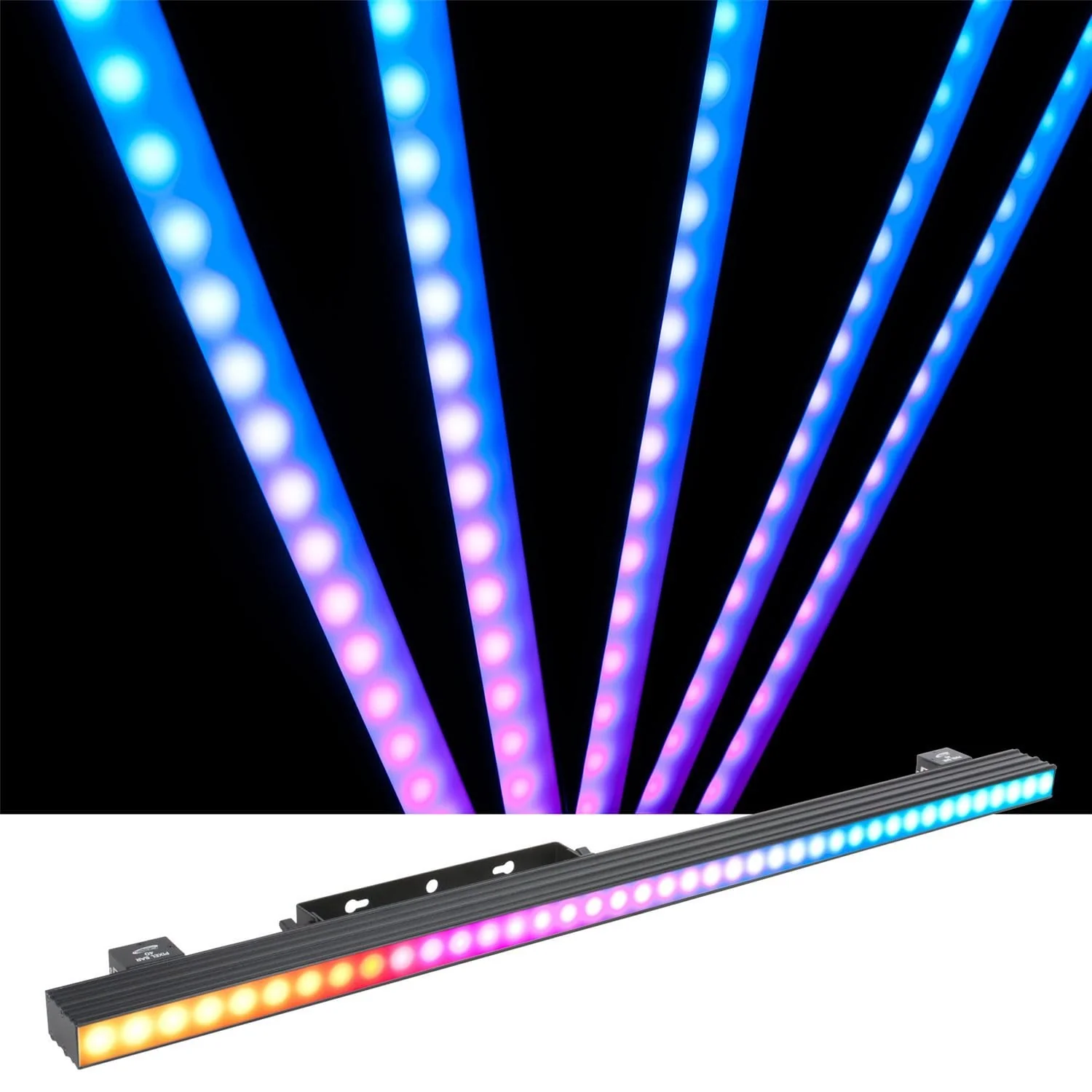

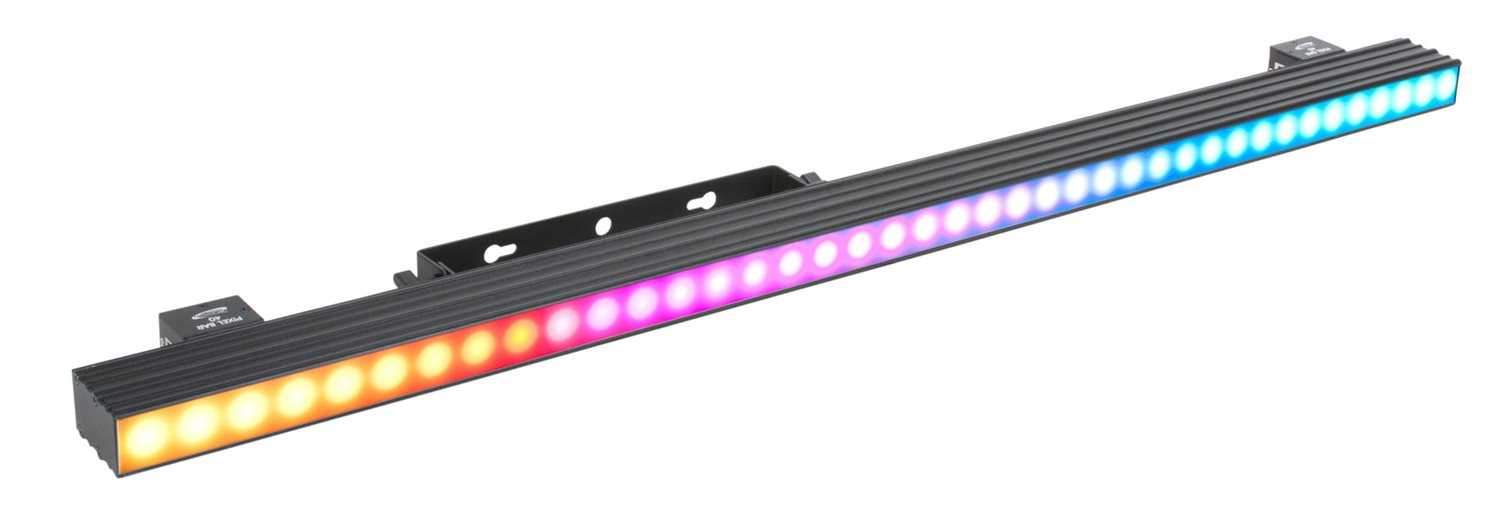

Elation Pixel Bar 40 3-in-1 SMD LED Light Bar

The Pixel Bar 40 features (40) 3-in-1 SMD LEDs producing a 25mm pixel pitch, a 120° viewing angle, 16.7 million colors with 8 bits per color, 850 NITs, 2000Hz refresh rate, 120 DMX channels, DC24V, 16W max power consumption, (2) RJ45 CAT5e ports (input/output) connections, flicker free operation for broadcast TV and FILM, multiple unit linkable, extruded aluminum housing, and integrated adjustable mounting brackets/clamps.

Features:

• 25mm Pixel Pitch
• 120° Viewing Angle
• 850 NITs / 2000Hz Refresh Rate
• Extruded Aluminum Housing

SOURCE(40) 3-in-1 SMD LEDs

PHOTOMETRIC DATA82 LUX (8 FC) @1.6 ft. (0.5m) 120° Full ON

COLOR16.7 Million Colors / 8 Bits Per Color

CONTROL / CONNECTIONS

• 120 DMX Channels

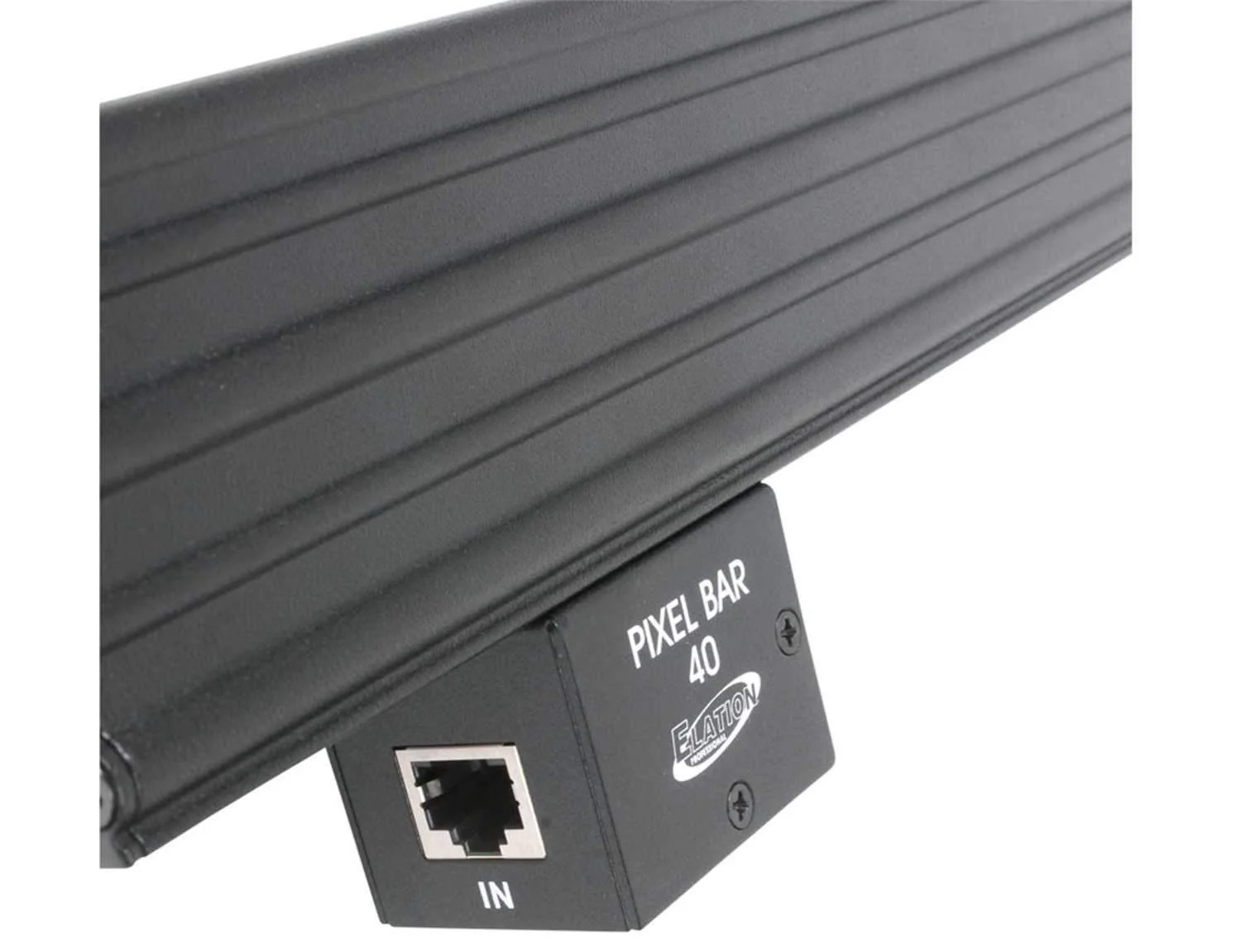

• (1) RJ45 CAT5e Inputs / (1) RJ45 CAT5e Outputs

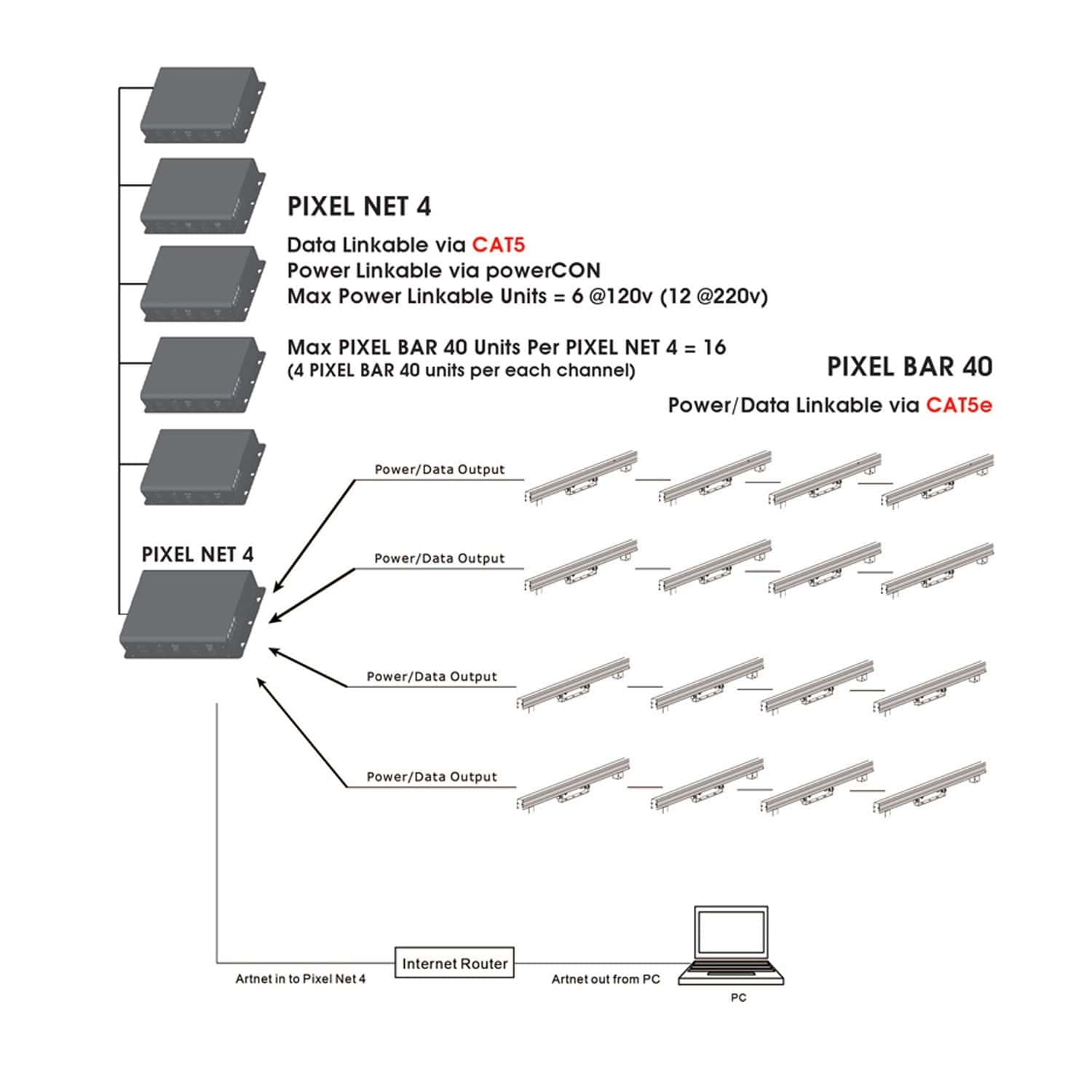

• Multiple Unit Linkable (16 units per PIXEL NET 4™ device)

SIZE / WEIGHT

• Length: 39.4" (1000mm)
• Width: 1.5" (38.2mm)
• Vertical Height: 3.6" (92.6mm)
• Weight: 6.0 lbs. (2.7kg)

ELECTRICAL / THERMAL

• DC-24V
• 16W Max Power Consumption
• 32°F to 104°F (0°C to 40°C)
