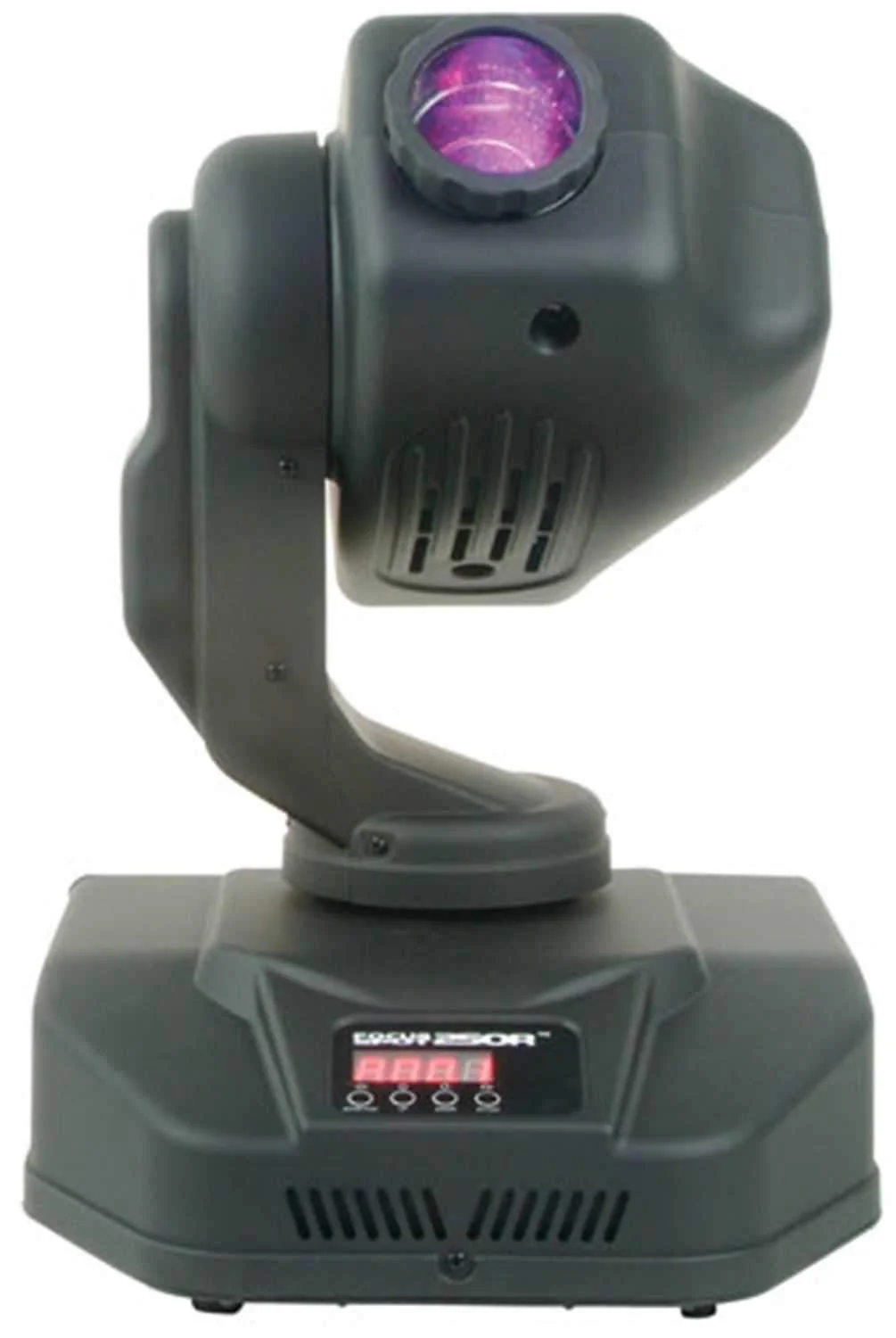

Elation Focus Spot 250 R Moving Head Fixture

Colors

• 8 Dichroic Colors + White
• Continuous Color Scroll

Gobos

• One gobo wheels
• 6 interchangeable, indexable, rotating gobos + spot;
• 3 metal gobos, 2 dichroic glass gobos, 1 textured glass gobo
• Gobo Size 27mm (outside dimensions) / 24mm (inside dimensions)
• Gobo shake effect
• Continuous gobo scroll

Shutter/Dimmer

• Variable speed strobe pulse effect
• Mechanical Dimmer 0-100%
• Mechanical high speed shutter

Light Source

• 4,800 Lux / 446 fc @ 16 feet / 5 meters
• Lamp life: 3,000hr 8,500k, 250W
• Lamp: Philips MSD250/2

Optical System

• 18 degree beam angle
• Motor driven focus from near to far remote focus via DMX
• Dichroic Glass Reflector
• High luminous-efficiency axial reflector and double - condenser lens system cold dichroic reflector
• Anti-reflection coated lenses

Movement

• Maximum pan movement 580 degree in 3.5s / 16 bit
• Maximum tilt movement 265 degree in 2.0 s / 16 bit
• Fine Pan and Tilt (16 bit resolution)
• Automatic pan/tilt correction

Control

• 11 DMX channels
• 4 Digit Digital LED Display
• USITT DMX-512 (16-bit resolution)
• RDMX - Remote DMX Addressing
• Pre-programmed movements via DMX
• Self Test and Stand Alone settings

Operation Parameters

• Rigging: 2 x 1/4 turn fastener brackets, 1 x safety cable hole

Power Supply

• Magnetic ballast
• Voltage: 115/208/230/240V AC, 50/60 Hz
• Power consumption: 500W
• Fuse: 8A

Connectors

• 3 pin XLR serial input/output

Dimensions and Weight

• Dimensions (L x W x H): 13" x 13" x 22" / 320 x 338 x 559mm (Head up)
• Weight: 35lbs / 7.3kg
