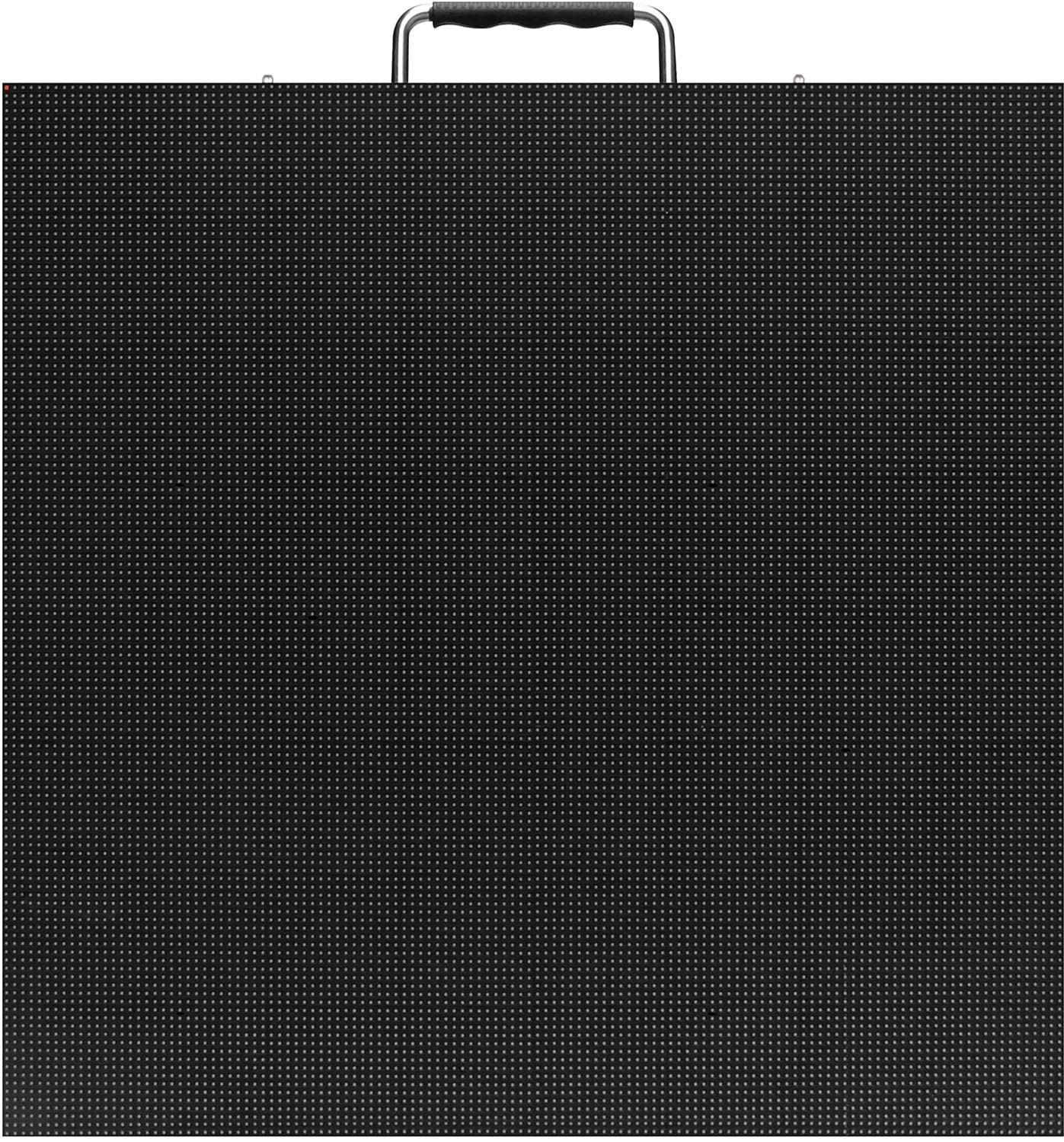

Elation EVHD3 3.9MM Pixel Pitch LED Video Panel

The EVHD3™ is a 3.9mm pixel pitch black face LED display. It’s light weight durable die-cast aluminum frame and modular front maintenance design, allows for easy installation and service. Features include a seamless bezel-free design, no fan metal cooling structure, pixel by pixel calibration for optimized color rendering, uniformity and brightness, an ultra-wide viewing angle, and lockable curve adjustments for smooth convex or concave designs providing easy solutions for creative high-resolution video designs. The EVHD3™ is ideal for any broadcast installations.

Features:

• Easy To Install

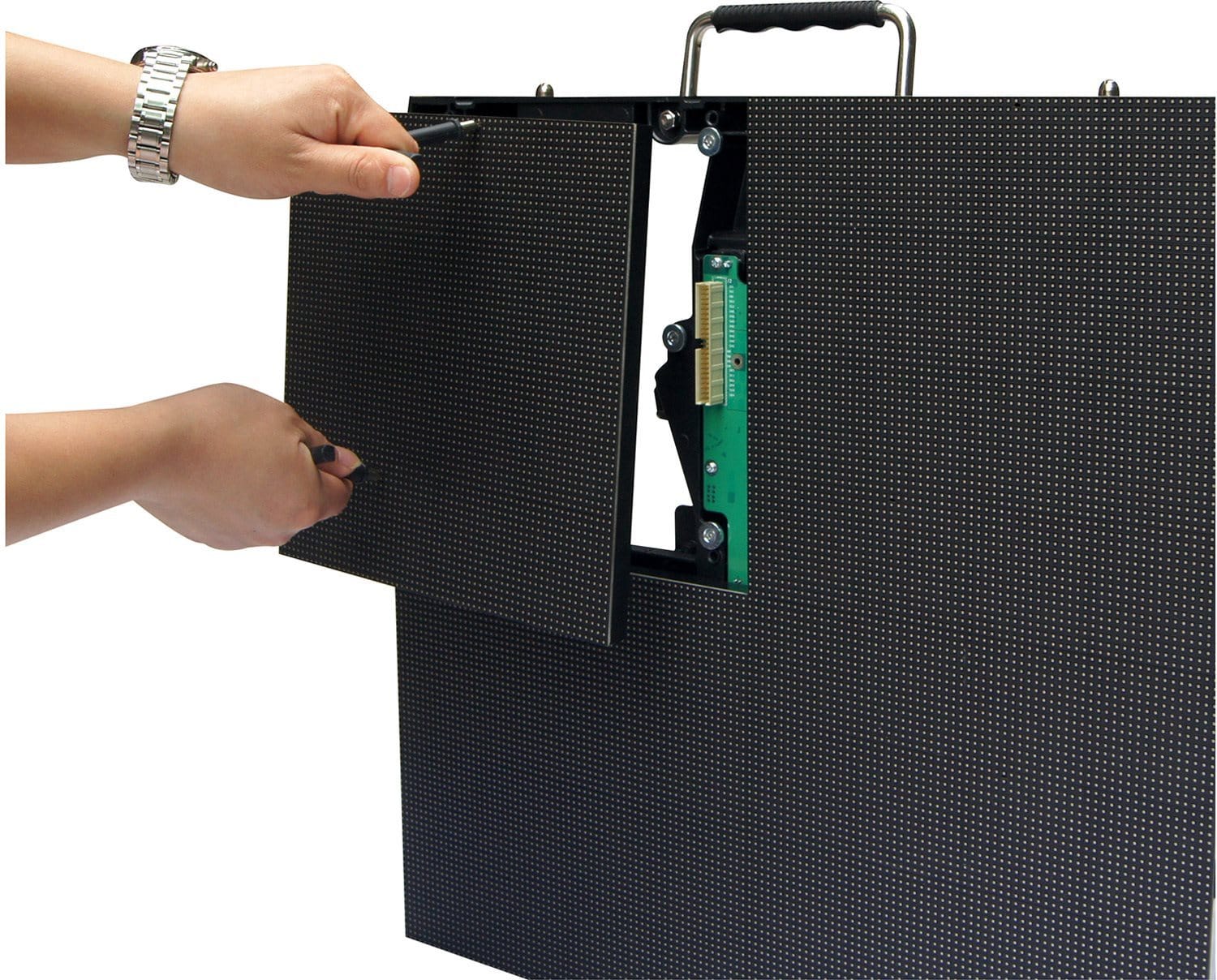

• 100% Serviceable From Front or Backsides
• Broadcast Quality 3840Hz
• EMC Certification
• Convex or Concave Design Capable
• MOM - Memory-on-Module (Saved Pixel By Pixel Calibration)

Specifications:

• Pixel Pitch: 3.9mm
• Physical Density: 65,536 (dots/m2)
• LED Type: SMD Chip
• LED Size: SMD 2121
• Module Size: 250 x 250mm
• Module Resolution: 64 x 64 pixels
• Drive Mode: Constant Current Drive
• Horizontal and Vertical View angle: H:140° | V:120°
• Scan Way: 1/16
• Cabinet Size: 500 x 500mm
• Cabinet Resolution: 128 x 128 pixels
• Cabinet Weight: ?18.7 lbs. (?8.5 kg)
• Cabinet Material: Die Cast Aluminum Alloy
• Brightness: 1200 (cd/m2) (after calibration)
• Gray Scale: 14bit
• Refresh Rate: Variable Up To 3840Hz
• Input Voltage: AC110V-220V, 50/60Hz
• Cabinet Max Power Consumption: 135W
• Cabinet Average Max Power Consumption: 50W
• Protection Level: IP20
• Environment: Indoors | -20° - 40° C | 10-90% RH
• Life Span: ?50,000 Hours
