Elation EPV762MH Moving Head LED Video Screen

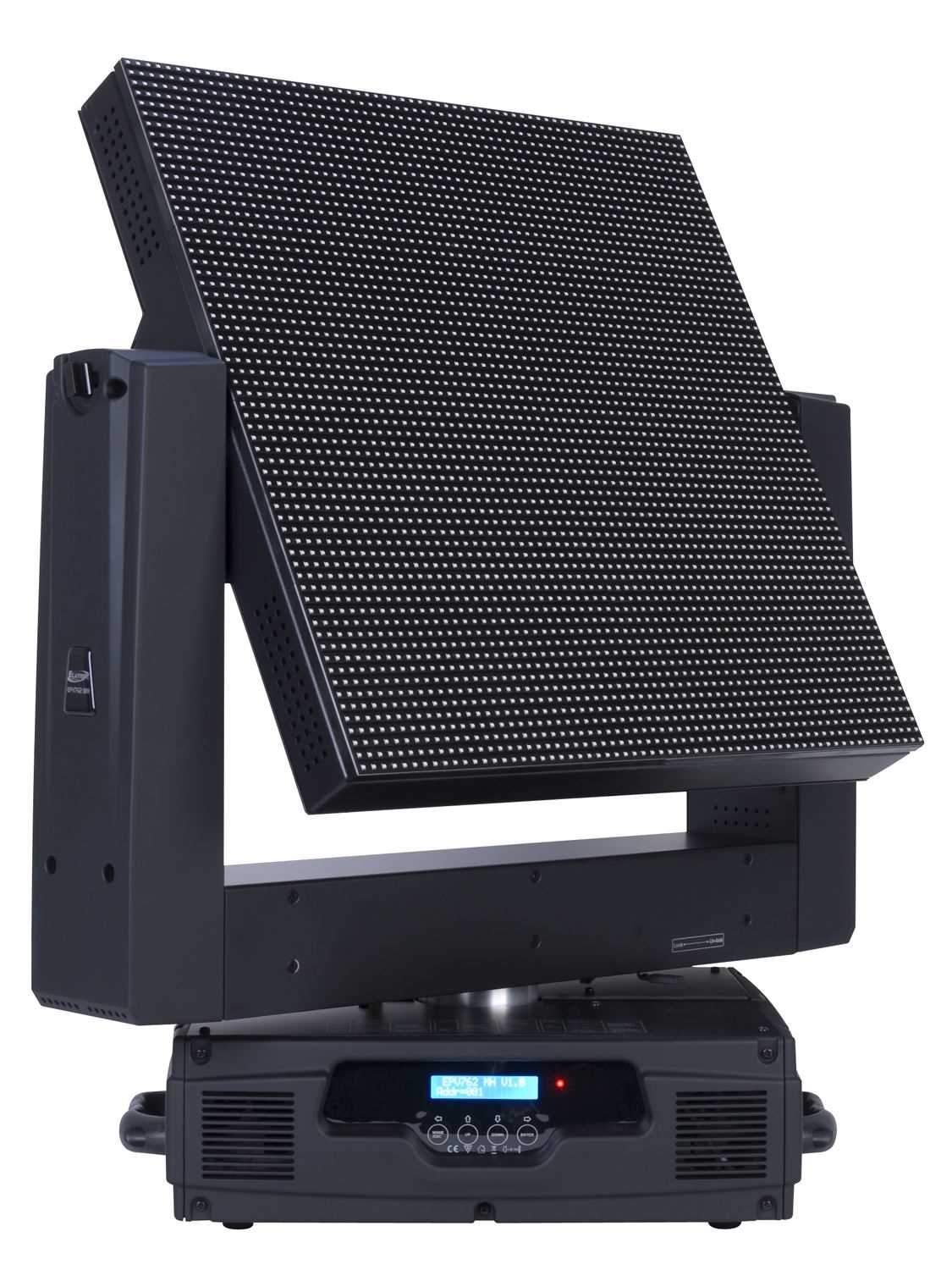

The dynamic EPV762MH is a high resolution SMD LED display panel mounted on a moving yoke pan/tilt base. With separate inputs for video and pan/tilt control, designers can create dynamic moving LED video displays or use them as moving digital signage. Ideal for portable applications, this unit provides a unique bright and creative way to display your video content.

• High Resolution LED Video Panel
• Slim Cabinet Design
• Seamless Mechanical System
• Easy To Hang / Rig
• Ideal For Rental / Production / Install
• Wide Viewing Angle (H 135° / V 110°)
• High Contrast Levels
• High Refresh Rates For Flicker Free Performance
• 7.62mm Pixel Pitch
• Indoor rated
• 2,000 nits
• 3-in-1 3528 SMD LED
• 2,000hz refresh rate
• 16-bit processing
• 6m min. viewing distance
• 17,222 pixels per sq mtr

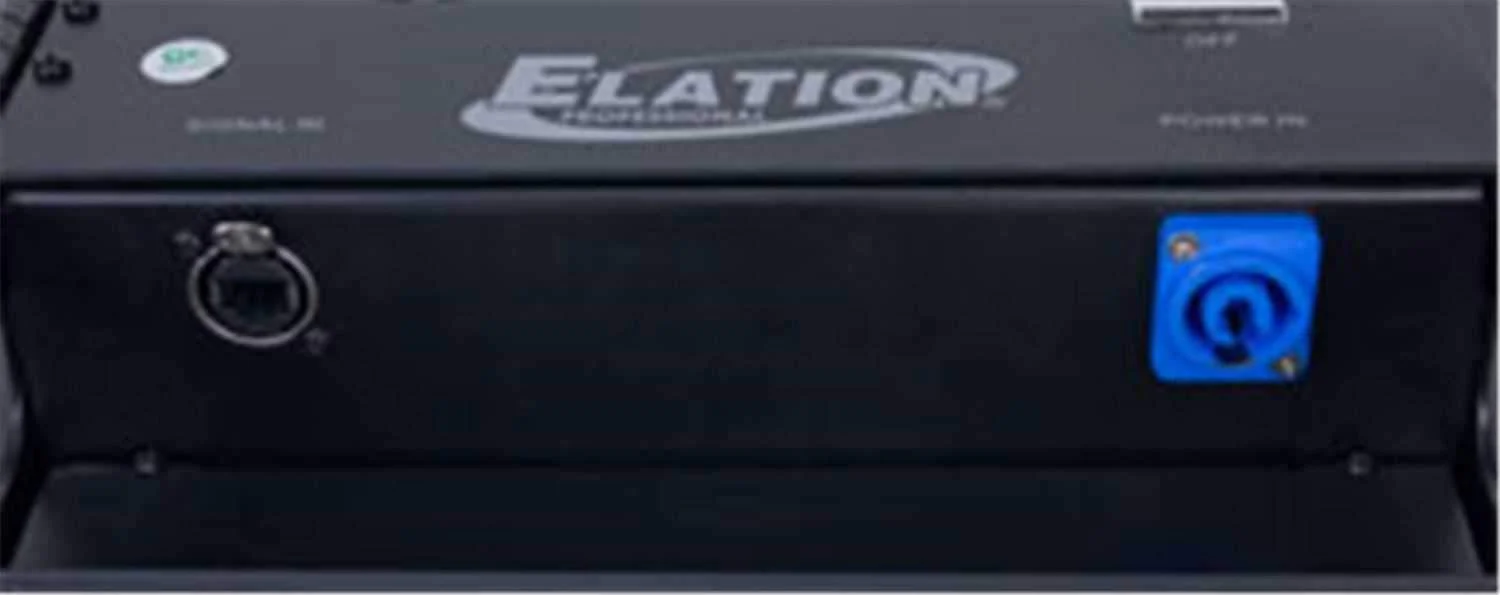

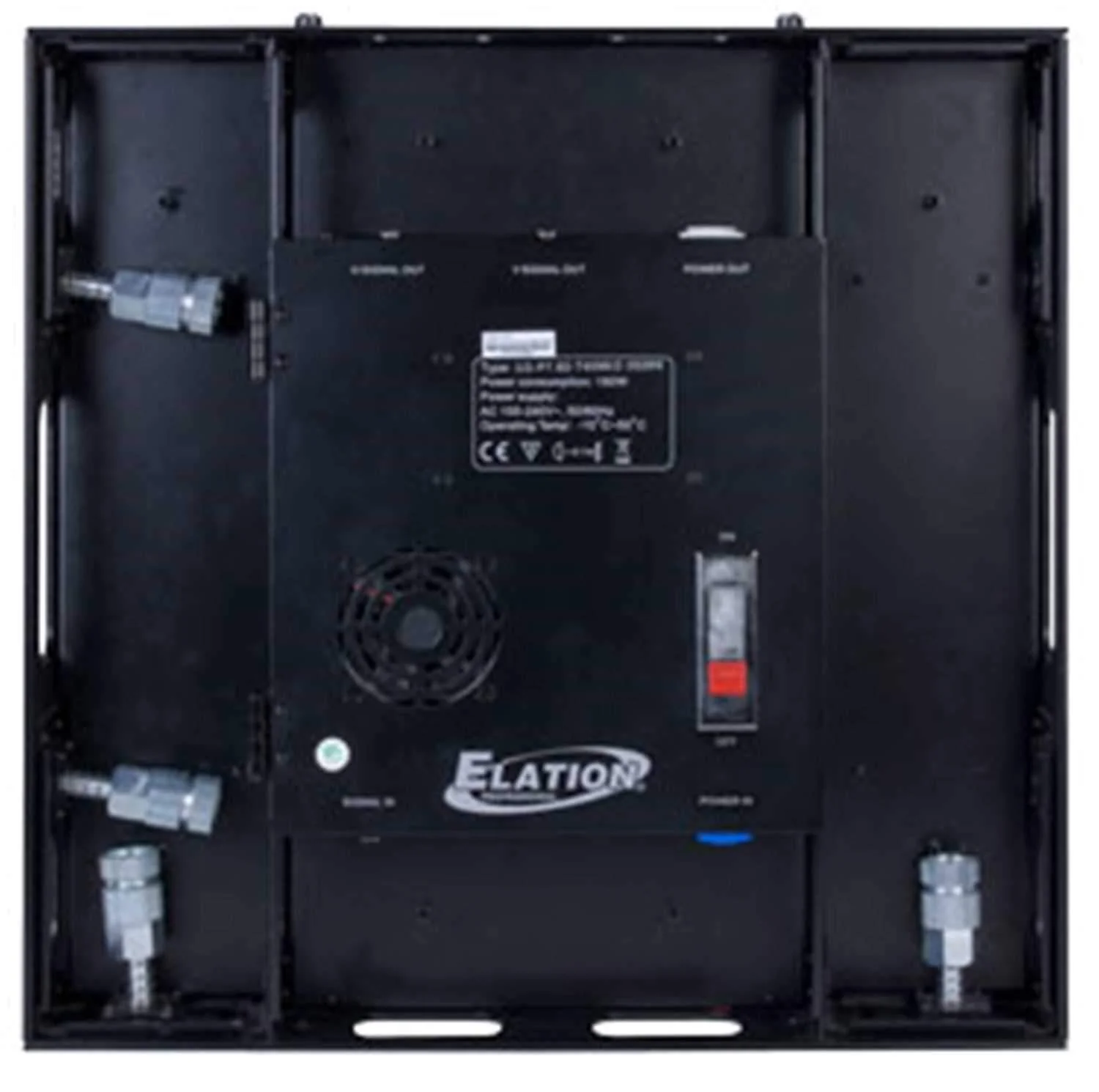

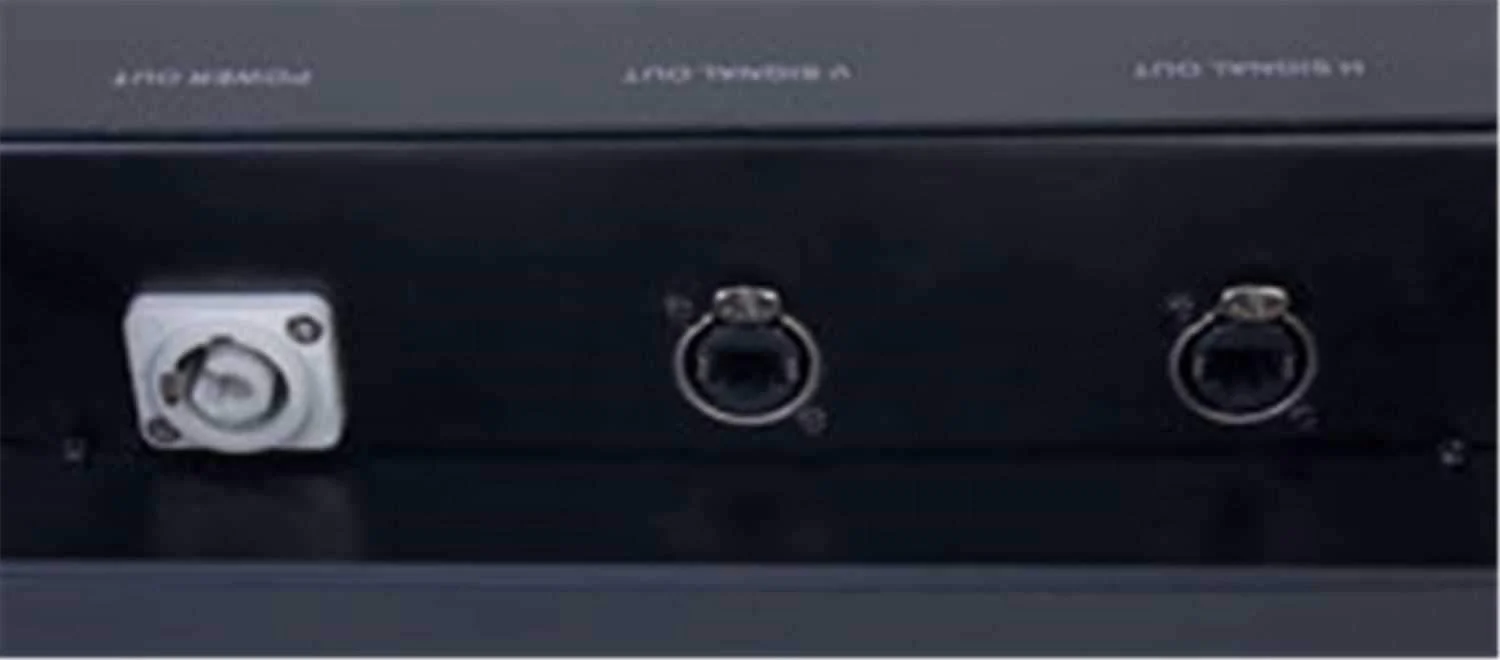

• Ethercon in/out for video signal
• Powercon in/out for power link
• 100-240v built in psu
• 320watts (210w avg)
• Frame Size: 488mm x 488mm (19.2" x 19.2")
• Pixels Per Panel: 64 x 64 (4,096 pixels total per panel)
• 28.7lbs / 13kg
• cETLus approved

• IP Rating: IP20 (Indoor Only)
• Pixel Pitch: 7.62MM
• Brightness (nits): 2,500 nits
• Weight: 28.7lbs / 13kg
• LED Type: SMD (3528 RGB 3 in 1) Epistar
• LED Life: 100,000 hours
• Contrast: ±8192
• Gray Scale: 16bit
• Refresh Rate: ±2400Hz
• Scanning Rate: 300Hz
• Transparency: n/a
• Frame Size (mm): 488mm x 488mm x 80mm
• Frame Size (in): 19.3" x 19.3" x 3.2"
• Pixels per Panel: 4096 pixels (64 x 64)
• Viewing Angle: H140°/V110°
• Operating Temperature: -20 C to +50 C
• Operating Humidity: 5%-95%
• Power Supply: 100-240VAC, 50 or 60Hz
• Max Power: 300W
• Average Power: 195W
