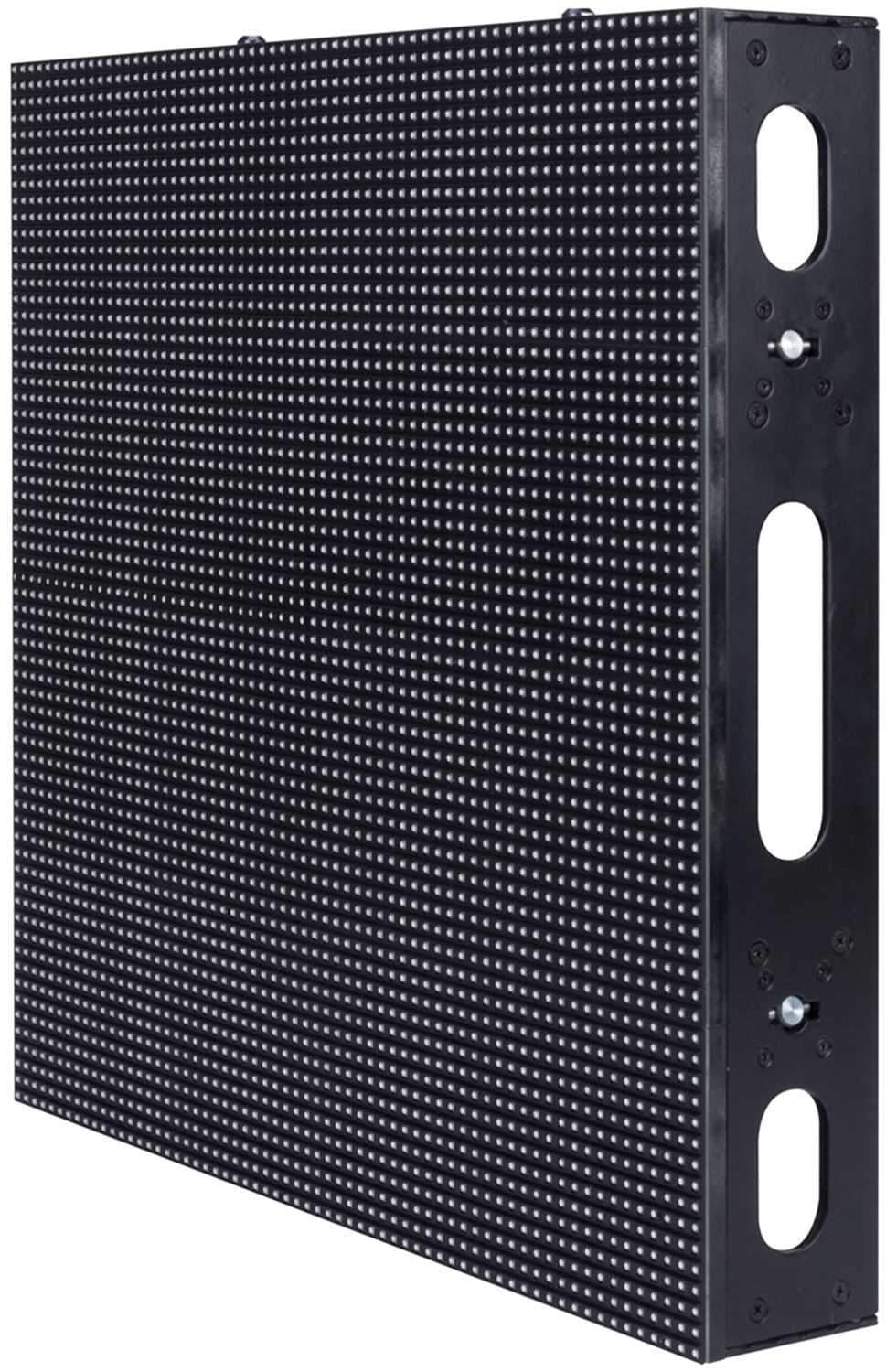

Elation EPV762 7.62mm Video Panel 19.2-In Square

• 7.62mm Pixel Pitch for High Resolution
• Seamless Mechanical System
• Easy To Hang / Rig
• Wide Viewing Angle (H 135° / V 110°)
• High Contrast Levels and extreme brightness
• High Refresh Rates For Flicker-Free Performance
• Slim Cabinet Design

• 3-in-1 RGB SMD LED, type 3528
• Long Life LED (rated at 100,000 Hours)
• 7.62mm Pixel Pitch
• 2500 Nits brightness
• Frame Size 488mm x 488mm x 80mm
• Refresh Rate =2400Hz
• Contrast ratio =8192:1
• 16bit Processing Depth
• 4096 pixels (64 x 64) Pixels per Panel
• 17.222 pixel per square meter
• 300Hz Scanning Rate
• Viewing angle: H140°/V110°
• Minimum Viewing distance: 6m

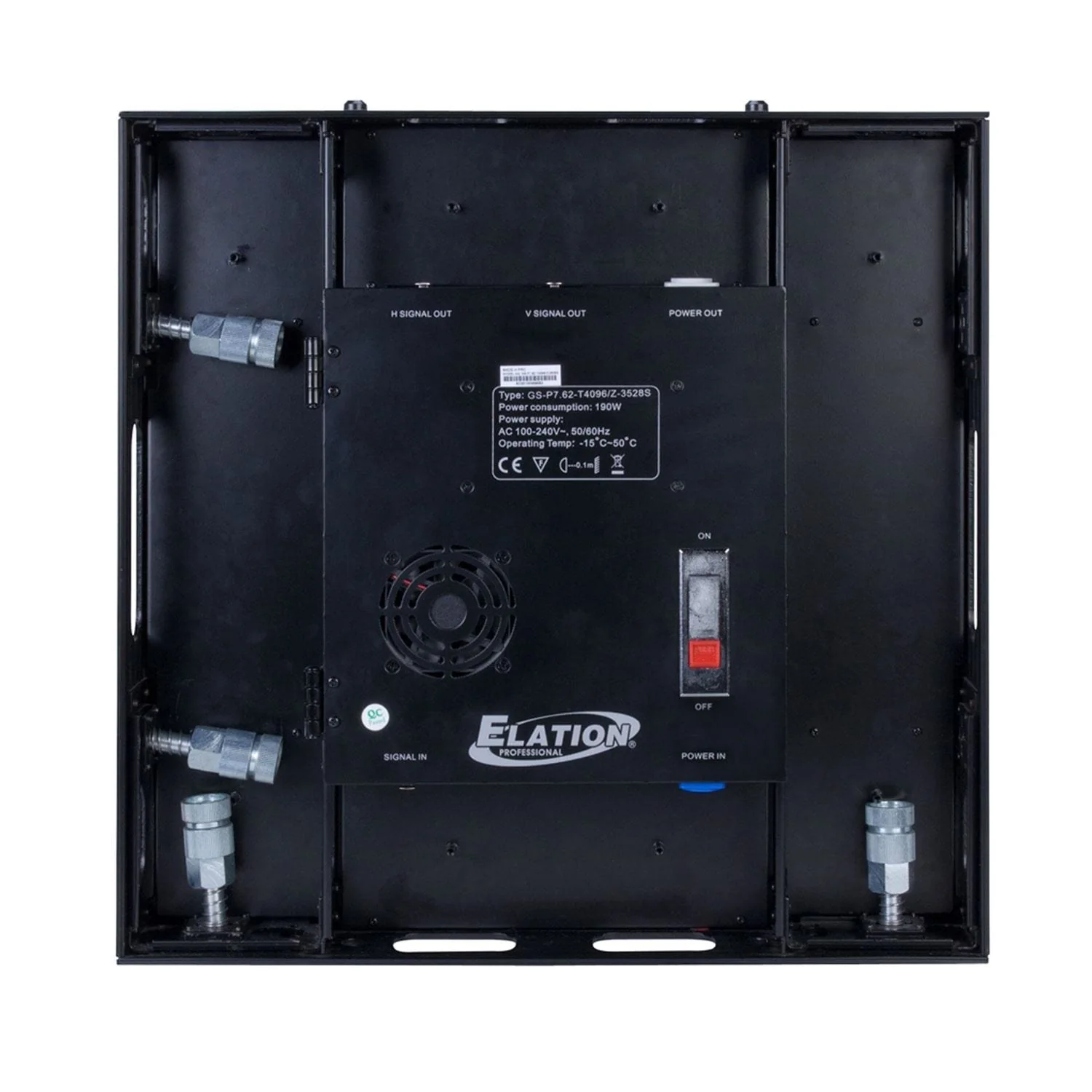

• Ethercon In/Out Data Connectors
• Powercon In/Out Power link
• Operating temperature: -20 C to +50 C
• Operating humidity: 5%-95%
• 100-240V AC, 50/60Hz (Multi-voltage)
• Power consumption per panel maximal: 240W
• Average power consumption per panel: 120W
• Weight: 13 kg
