Elation eNode2 POE 2-Universe Ethernet-DMX Node

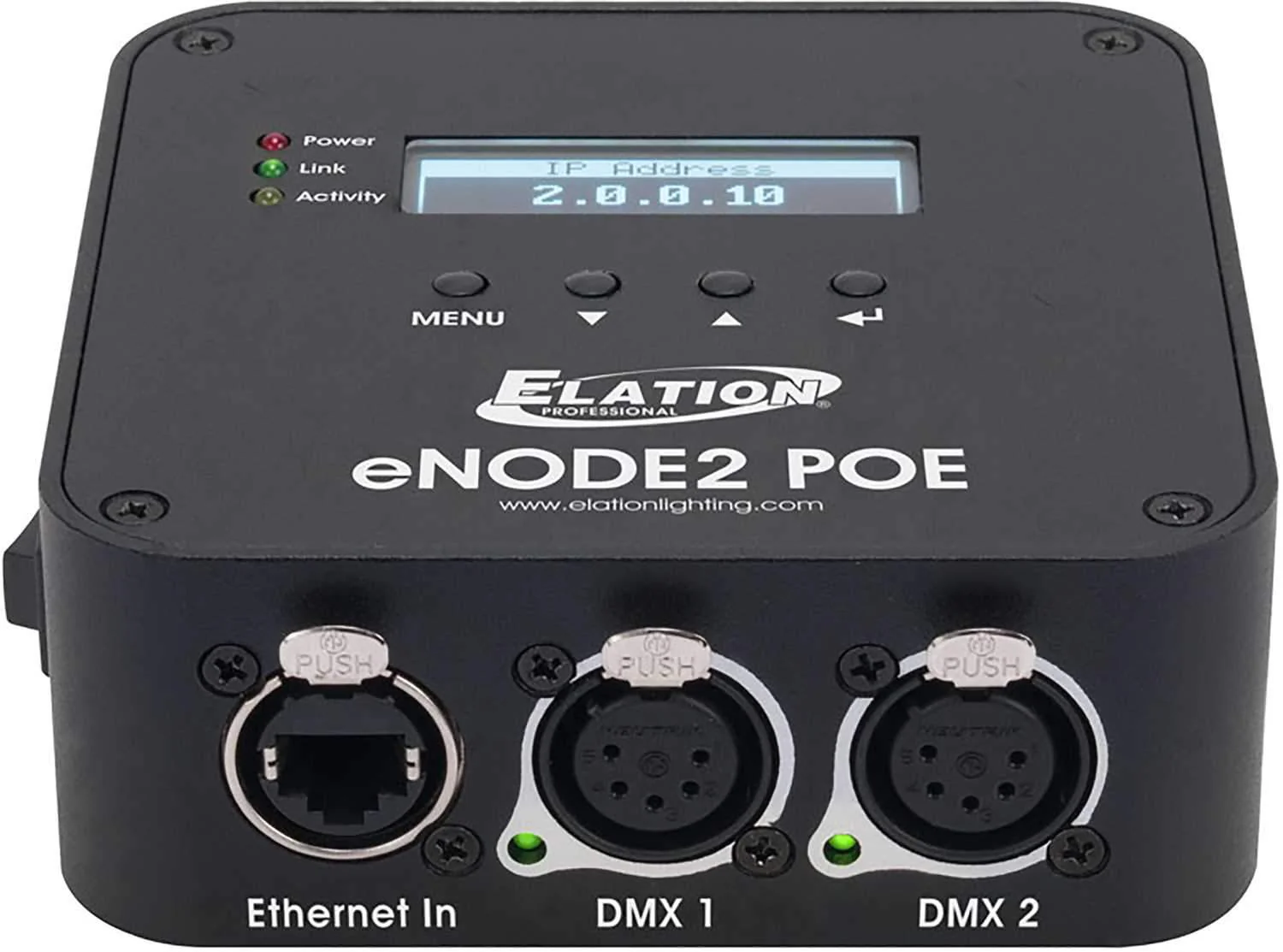

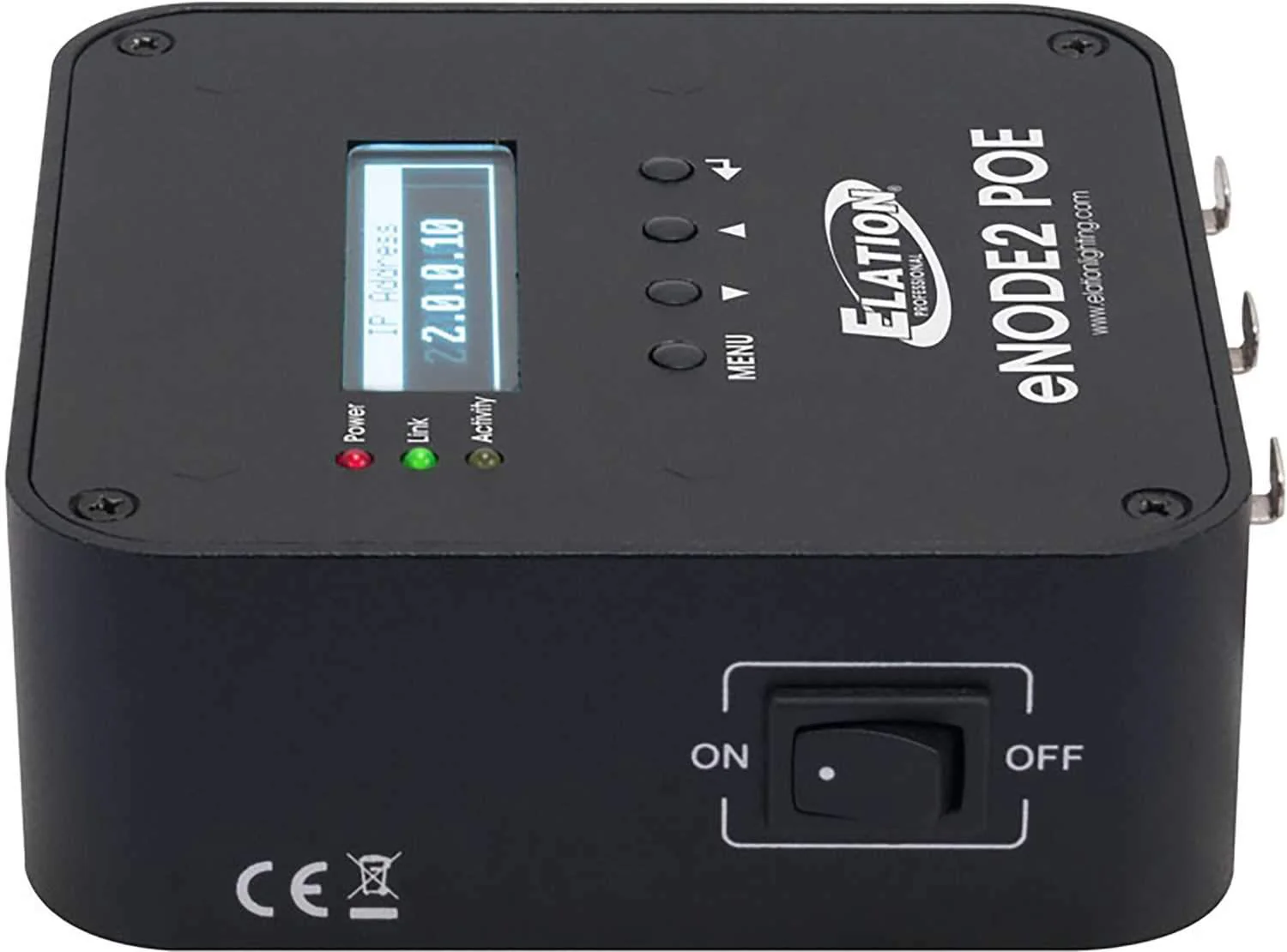

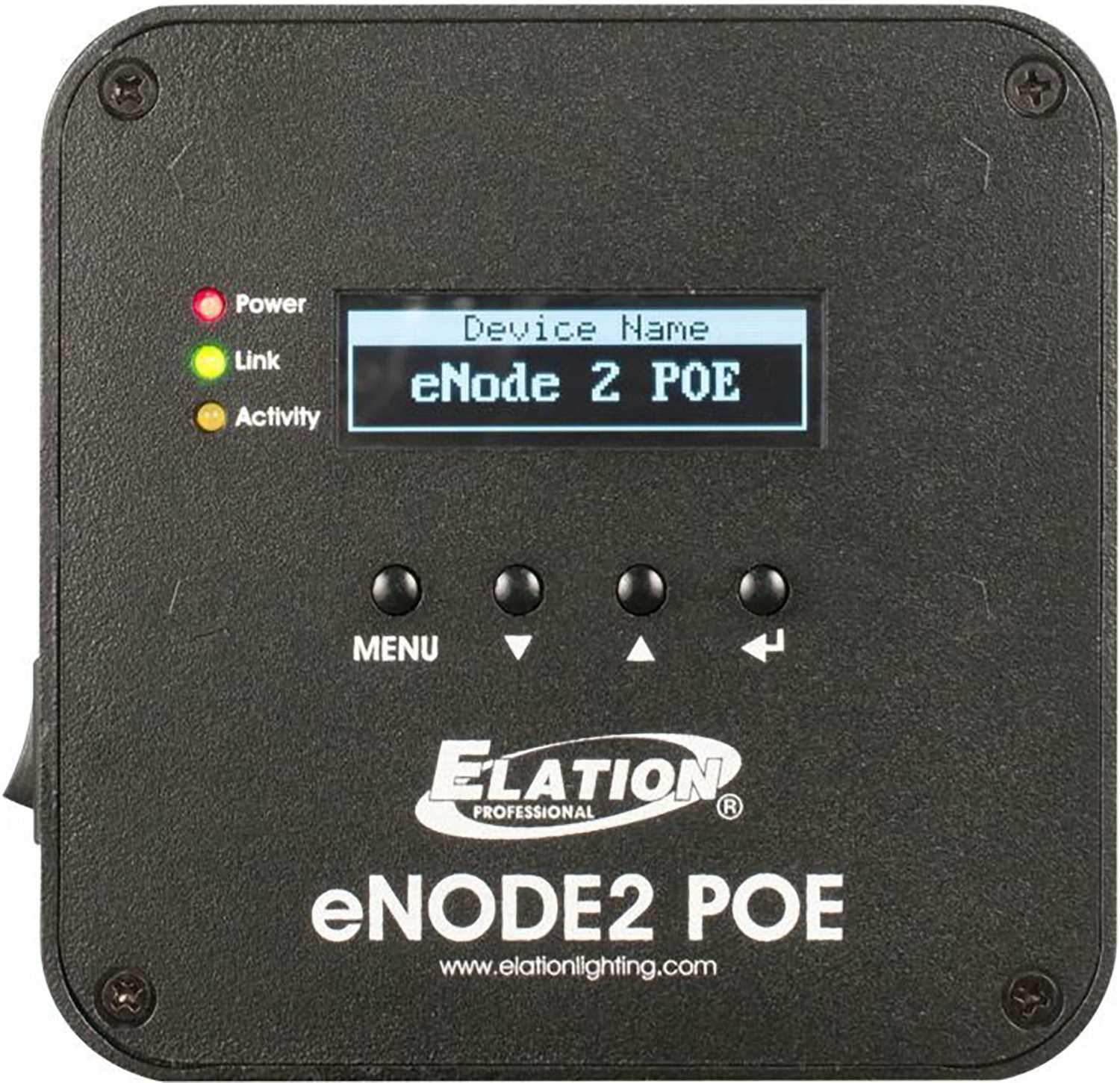

The eNode 2 POE™ is a compact 2-universe Ethernet-DMX node powered over Ethernet (POE), no external power supply or cord is needed. Supports Art-Net, sACN and RDM compatible DMX control systems utilizing a single RJ45 auto-switching 10/100Mbps etherCON input and two multi-configuration 5pin DMX data outputs. Features include DMX bilateral conversion support, sACN auto-detection, variable MAC address assignable, a 4-button control panel, an OLED system menu display, 3 LED status indicators, compact and lightweight die-cast aluminum housing, and a mini omega bracket for easy clamp/truss mounting.

Features:

• Compact 2-Universe Ethernet-DMX Node
• POE (Power over Ethernet)
• DMX, RDM, Art-Net, and sACN Protocol Support
• DMX Bilateral Conversion Support Compact
• sACN Auto-Detection
• Variable MAC Address Assignable
• Compact Lightweight Die-Cast Aluminum Housing
• Easy Clamp/Truss Mounting

Specifications:

Control / Connections

• 2-Universe Support
• DMX, RDM, Art-Net, and sACN Protocol Support
• DMX Bilateral Conversion
• sACN Auto-Detection
• 4-Button Control Panel
• OLED System Menu Display
• (3) LED Status Indicators
• (1) Auto-Switching 10/100Mbps RJ45 EtherCON Input
• (2) Multi-Configuration 5pin DMX Data Outputs

Size / Weight

• Length: 4.76" (121mm)
• Width: 4.68" (119mm)
• Vertical Height: 1.69" (43mm)
• Weight: 0.88 lbs. (0.4kg)

Electrical

• POE (Power over Ethernet)
• 2.6W Max Power Consumption

APPROVAL

• CE
