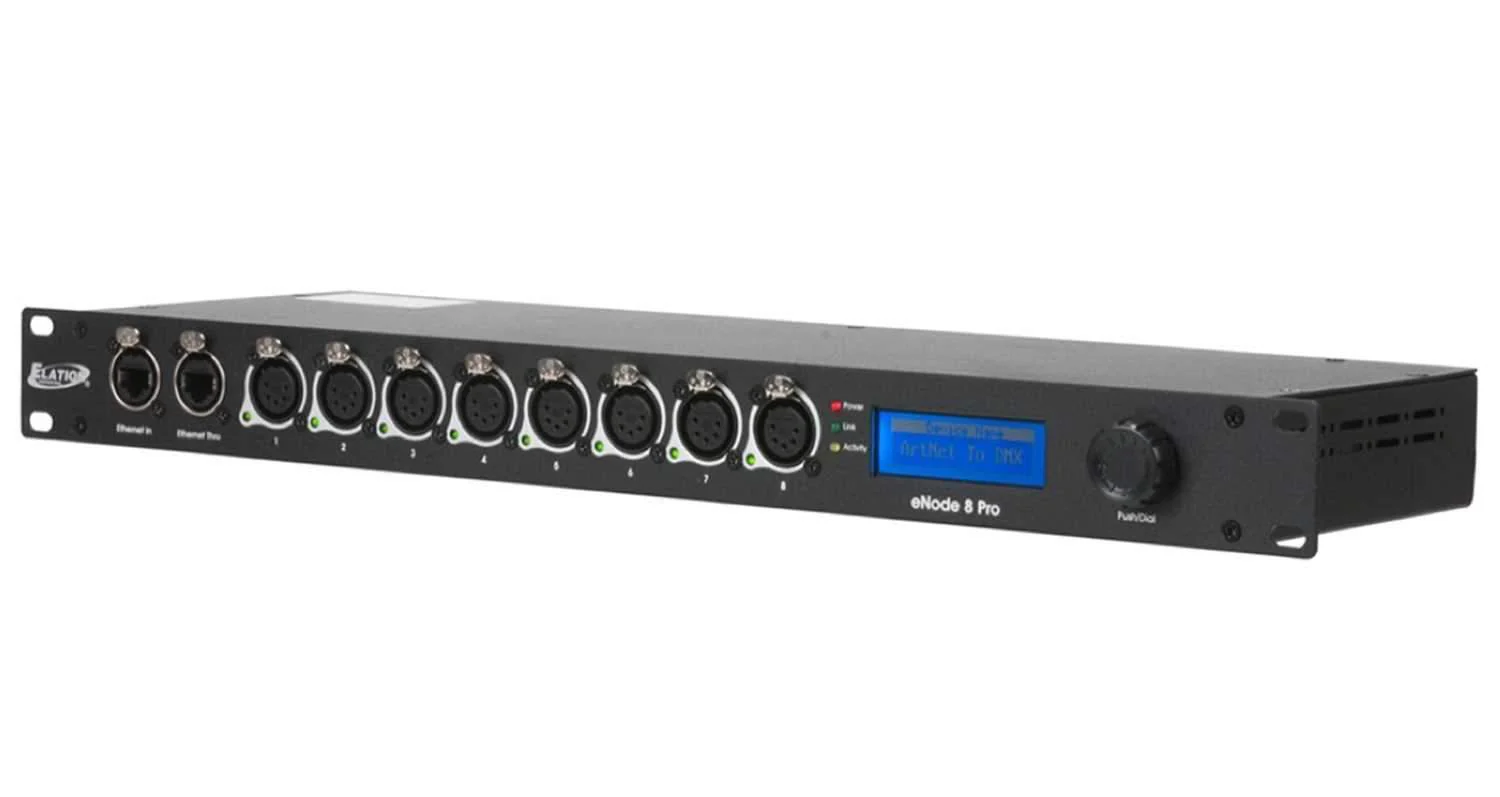

Elation Professional eNode 8 Pro Ethernet Node

The eNode 8 PRO is an Ethernet node that serves eight DMX512 outlets, compatible with the Artnet and sACN protocols. All 8 outlets conform to DMX512-A and can be used as input or output. The two Ethernet links on the front are 10/100BaseTX connections on Neutrik RJ45 Ethercon connectors. The eNode8 embeds a built-in switch fabric which allows you to use the converter as an Ethernet repeater. All configuration are done through the on-board display and push dial. Connections: 2 x 10/100BaseTX Ethernet connections on shielded Neutrik RJ45 Ethercon connectors and 8 x DMX512-A in/outputs on shielded and isolated gold plated 5 pin female XLR, with termination (DMX512-A)

• DMX routing, universe setting, Input and output enable / disable
• DMX output frame rate setting
• Supported protocols: DMX, DMX512-A, RDM, Art-Net™, sACN
• Protocol selection per port
• IP settings
• Unit ID and labeling
• Ethernet activity indication on front panel
• Multi language support
• Built-in DMX soft-patch
• Length: 482mm
• Width: 160mm
• Vertical Height: 44mm
• Weight: 2.1kg
• AC 100-240V - 50/60Hz
• 7W Max Power Consumption
